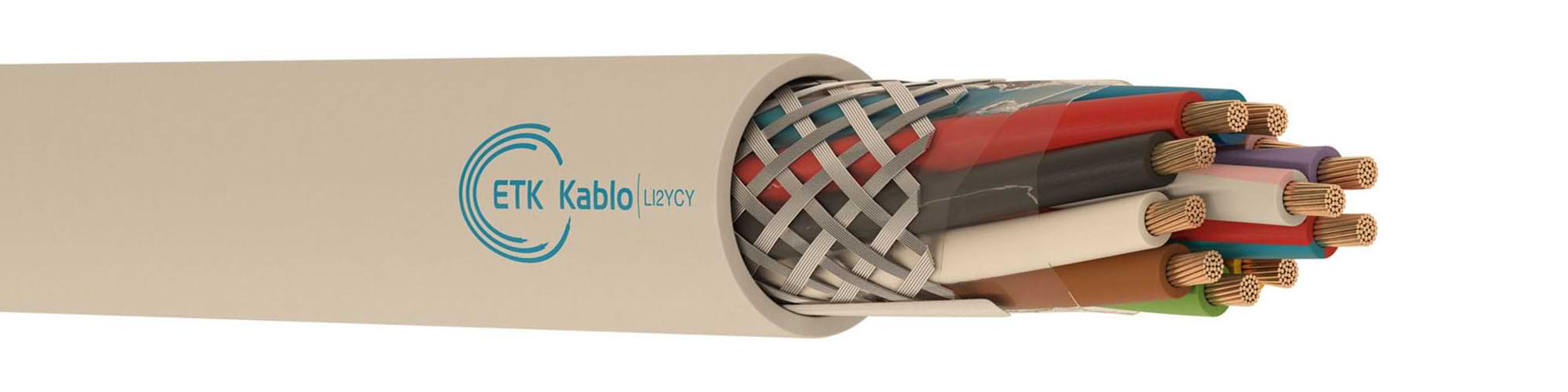

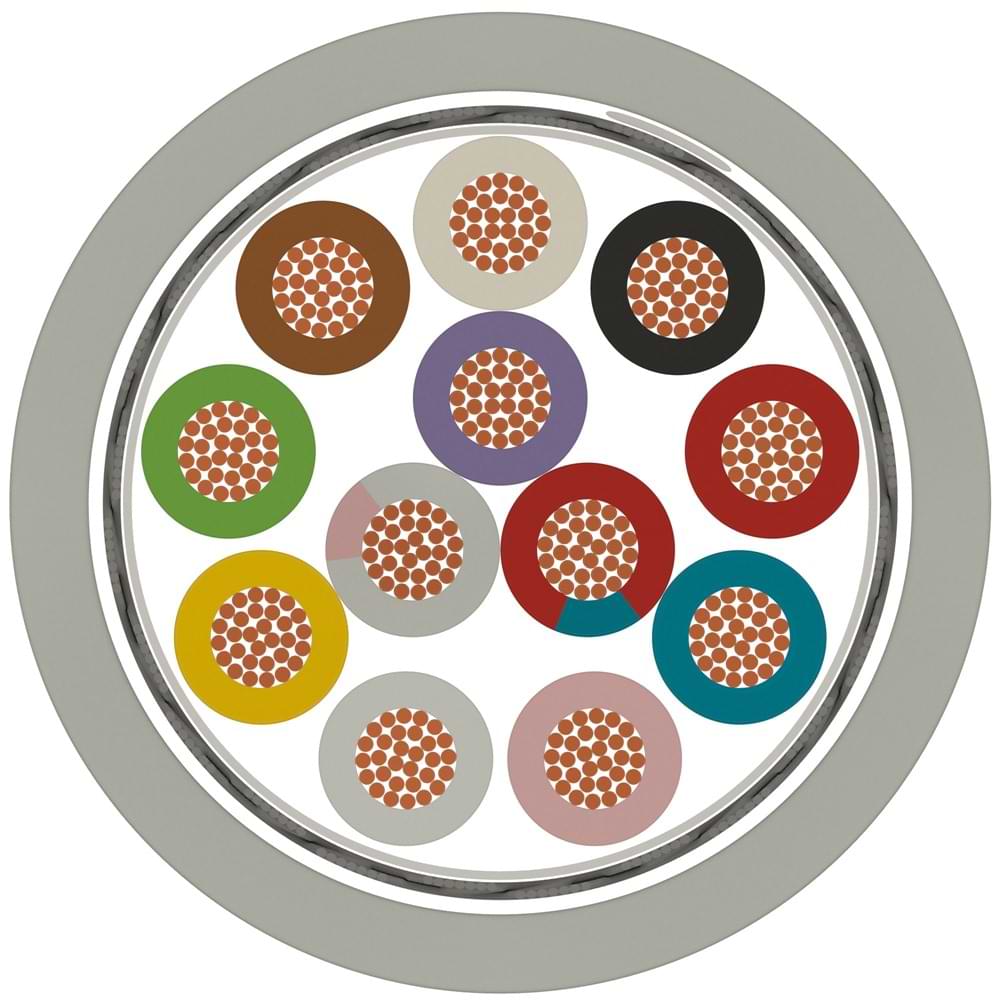

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Solid polietilen (EN 50290-2-23, BS 6234 Tip 03 – ASTM D 1248) (DIN 47100)
3 – Büküm:Katmanlar halinde
4 – Ayırıcı:Polyester bant
5 – Ekran:Kalaylı bakır örgü
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı PVC dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.050001102501200
0.25 mm²77.850001102501200
0.34 mm²56.050001102501200
0.50 mm²39.05000120300/5002000
0.75 mm²26.05000120300/5002000
1.00 mm²19.55000130300/5002000
1.50 mm²13.35000140300/5002000
2.50 mm²7.985000150300/5002000
Alev Geciktiricilik Testi
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.2.2.2.0022.0.00022–0,223,79,719100/500/1000
3.520.2.2.2.0022.0.00033–0,223,911,823100/500/1000
3.520.2.2.2.0022.0.00044–0,224,215,228100/500/1000
3.520.2.2.2.0022.0.00055–0,224,717,534100/500/1000
3.520.2.2.2.0022.0.00066–0,225,120,939100/500/1000
3.520.2.2.2.0022.0.00077–0,225,12342100/500/1000
3.520.2.2.2.0022.0.00088–0,225,725,549100/500/1000
3.520.2.2.2.0022.0.00099–0,22628,754100/500/1000
3.520.2.2.2.0022.0.001010–0,226,530,859100/500/1000
3.520.2.2.2.0022.0.001212–0,226,835,967100/500/1000
3.520.2.2.2.0022.0.001414–0,227,240,876100/500/1000
3.520.2.2.2.0022.0.001616–0,227,545,884100/500/1000
3.520.2.2.2.0022.0.001818–0,22850,794100/500/1000
3.520.2.2.2.0022.0.001919–0,22852,897100/500/1000
3.520.2.2.2.0022.0.002020–0,228,355,7102100/500/1000
3.520.2.2.2.0022.0.002121–0,228,357,8105100/500/1000
3.520.2.2.2.0022.0.002424–0,229,368,8124100/500/1000
3.520.2.2.2.0022.0.002525–0,229,371127100/500/1000
3.520.2.2.2.0022.0.002727–0,229,576,3134100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.2.2.2.0025.0.00022–0,253,911,522100/500/1000
3.520.2.2.2.0025.0.00033–0,254,113,926100/500/1000
3.520.2.2.2.0025.0.00044–0,254,616,332100/500/1000
3.520.2.2.2.0025.0.00055–0,255,120,139100/500/1000
3.520.2.2.2.0025.0.00066–0,255,52344100/500/1000
3.520.2.2.2.0025.0.00077–0,255,524,947100/500/1000
3.520.2.2.2.0025.0.00088–0,256,128,756100/500/1000
3.520.2.2.2.0025.0.00099–0,256,531,361100/500/1000
3.520.2.2.2.0025.0.001010–0,2573466100/500/1000
3.520.2.2.2.0025.0.001212–0,257,339,776100/500/1000
3.520.2.2.2.0025.0.001414–0,257,745,887100/500/1000
3.520.2.2.2.0025.0.001616–0,258,151,496100/500/1000
3.520.2.2.2.0025.0.001818–0,258,556,3104100/500/1000
3.520.2.2.2.0025.0.001919–0,258,558,7107100/500/1000
3.520.2.2.2.0025.0.002020–0,25961,4115100/500/1000
3.520.2.2.2.0025.0.002121–0,25963,8118100/500/1000
3.520.2.2.2.0025.0.002424–0,251076,7141100/500/1000
3.520.2.2.2.0025.0.002525–0,251079,1144100/500/1000
3.520.2.2.2.0025.0.002727–0,2510,284,1151100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.2.2.2.0034.0.00022–0,344,513,427100/500/1000
3.520.2.2.2.0034.0.00033–0,344,716,733100/500/1000
3.520.2.2.2.0034.0.00044–0,345,121,440100/500/1000
3.520.2.2.2.0034.0.00055–0,345,62547100/500/1000
3.520.2.2.2.0034.0.00066–0,346,129,754100/500/1000
3.520.2.2.2.0034.0.00077–0,346,13359100/500/1000
3.520.2.2.2.0034.0.00088–0,346,73767100/500/1000
3.520.2.2.2.0034.0.00099–0,347,740,976100/500/1000
3.520.2.2.2.0034.0.001010–0,347,84583100/500/1000
3.520.2.2.2.0034.0.001212–0,3485394100/500/1000
3.520.2.2.2.0034.0.001414–0,348,562,7109100/500/1000
3.520.2.2.2.0034.0.001616–0,34971122100/500/1000
3.520.2.2.2.0034.0.001818–0,349,677,8137100/500/1000
3.520.2.2.2.0034.0.001919–0,349,681,2142100/500/1000
3.520.2.2.2.0034.0.002020–0,3410,285,9152100/500/1000
3.520.2.2.2.0034.0.002121–0,3410,289,3157100/500/1000
3.520.2.2.2.0034.0.002424–0,3411,398,3177100/500/1000
3.520.2.2.2.0034.0.002525–0,3411,3101,7181100/500/1000
3.520.2.2.2.0034.0.002727–0,3411,5108,4192100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.2.2.2.0050.0.00022–0,55,116,935100/500/1000
3.520.2.2.2.0050.0.00033–0,55,421,342100/500/1000
3.520.2.2.2.0050.0.00044–0,55,82650100/500/1000
3.520.3.2.2.0050.0.00055–0,56,431,561100/500/1000
3.520.3.2.2.0050.0.00066–0,56,937,671100/500/1000
3.520.3.2.2.0050.0.00077–0,56,94275100/500/1000
3.520.3.2.2.0050.0.00088–0,57,646,990100/500/1000
3.520.3.2.2.0050.0.00099–0,58,851,9101100/500/1000
3.520.3.2.2.0050.0.001010–0,58,857,1105100/500/1000
3.520.3.2.2.0050.0.001212–0,59,269,5124100/500/1000
3.520.3.2.2.0050.0.001414–0,59,780,5142100/500/1000
3.520.3.2.2.0050.0.001616–0,510,289,7156100/500/1000
3.520.3.2.2.0050.0.001818–0,510,796,7171100/500/1000
3.520.3.2.2.0050.0.001919–0,510,7101,1175100/500/1000
3.520.3.2.2.0050.0.002020–0,511,4106,4191100/500/1000
3.520.3.2.2.0050.0.002121–0,511,4110,8193100/500/1000
3.520.3.2.2.0050.0.002424–0,512,6125,5220100/500/1000
3.520.3.2.2.0050.0.002525–0,512,6129,9231100/500/1000
3.520.3.2.2.0050.0.002727–0,512,8140,1241100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.2.2.2.0075.0.00022–0,755,521,642100/500/1000
3.520.2.2.2.0075.0.00033–0,755,828,251100/500/1000
3.520.2.2.2.0075.0.00044–0,756,335,962100/500/1000
3.520.3.2.2.0075.0.00055–0,756,943,476100/500/1000
3.520.3.2.2.0075.0.00066–0,757,551,989100/500/1000
3.520.3.2.2.0075.0.00077–0,757,558,995100/500/1000
3.520.3.2.2.0075.0.00088–0,758,365,9113100/500/1000
3.520.3.2.2.0075.0.00099–0,759,676,1130100/500/1000
3.520.3.2.2.0075.0.001010–0,759,683,7137100/500/1000
3.520.3.2.2.0075.0.001212–0,751098,3158100/500/1000
3.520.3.2.2.0075.0.001414–0,7510,6109,3177100/500/1000
3.520.3.2.2.0075.0.001616–0,7511,1123,9197100/500/1000
3.520.3.2.2.0075.0.001818–0,7511,8138,3223100/500/1000
3.520.3.2.2.0075.0.001919–0,7511,8144,9229100/500/1000
3.520.3.2.2.0075.0.002020–0,7512,6156,9253100/500/1000
3.520.3.2.2.0075.0.002121–0,7512,6163,5257100/500/1000
3.520.3.2.2.0075.0.002424–0,7513,8185,2292100/500/1000
3.520.3.2.2.0075.0.002525–0,7513,8191,8304100/500/1000
3.520.3.2.2.0075.0.002727–0,7514,2206,7321100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.2.2.2.0100.0.00022–15,925,147100/500/1000
3.520.2.2.2.0100.0.00033–16,234,259100/500/1000
3.520.3.2.2.0100.0.00044–16,643,372100/500/1000
3.520.3.2.2.0100.0.00055–17,552,290100/500/1000
3.520.3.2.2.0100.0.00066–18,266,1110100/500/1000
3.520.3.2.2.0100.0.00077–18,274,4117100/500/1000
3.520.3.2.2.0100.0.00088–19,183,6139100/500/1000
3.520.3.2.2.0100.0.00099–110,591155100/500/1000
3.520.3.2.2.0100.0.001010–110,599,3161100/500/1000
3.520.3.2.2.0100.0.001212–110,9116,5187100/500/1000
3.520.3.2.2.0100.0.001414–111,6134213100/500/1000
3.520.3.2.2.0100.0.001616–112,2151,8238100/500/1000
3.520.3.2.2.0100.0.001818–112,9173,6273100/500/1000
3.520.3.2.2.0100.0.001919–112,9181,8280100/500/1000
3.520.3.2.2.0100.0.002020–113,6191,6301100/500/1000
3.520.3.2.2.0100.0.002121–113,6199,9305100/500/1000
3.520.3.2.2.0100.0.002424–115,1227,3349100/500/1000
3.520.3.2.2.0100.0.002525–115,1235,6366100/500/1000
3.520.3.2.2.0100.0.002727–115,4254,5384100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.2.2.2.0150.0.00022–1,56,635,762100/500/1000
3.520.2.2.2.0150.0.00033–1,5748,578100/500/1000
3.520.2.2.2.0150.0.00044–1,57,762,799100/500/1000
3.520.3.2.2.0150.0.00055–1,58,577,2122100/500/1000
3.520.3.2.2.0150.0.00066–1,59,294,8146100/500/1000
3.520.3.2.2.0150.0.00077–1,59,2107,7157100/500/1000
3.520.3.2.2.0150.0.00088–1,510,1119,6184100/500/1000
3.520.3.2.2.0150.0.00099–1,511,8132,6207100/500/1000
3.520.3.2.2.0150.0.001010–1,511,8146,8219100/500/1000
3.520.3.2.2.0150.0.001212–1,512,3173,7255100/500/1000
3.520.3.2.2.0150.0.001414–1,513204,9296100/500/1000
3.520.3.2.2.0150.0.001616–1,513,7232,1331100/500/1000
3.520.3.2.2.0150.0.001818–1,514,4259,8371100/500/1000
3.520.3.2.2.0150.0.001919–1,514,4272,7382100/500/1000
3.520.3.2.2.0150.0.002020–1,515,3286,2413100/500/1000
3.520.3.2.2.0150.0.002121–1,515,3299420100/500/1000
3.520.3.2.2.0150.0.002424–1,517,1341,3486100/500/1000
3.520.3.2.2.0150.0.002525–1,517,1354,1509100/500/1000
3.520.3.2.2.0150.0.002727–1,517,5380,3533100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.2.2.2.0250.0.00022–2,57,858,891100/500/1000
3.520.2.2.2.0250.0.00033–2,58,380,2117100/500/1000
3.520.2.2.2.0250.0.00044–2,59,3103,4151100/500/1000
3.520.3.2.2.0250.0.00055–2,510,3123,9186100/500/1000
3.520.3.2.2.0250.0.00066–2,511,2148,1221100/500/1000
3.520.3.2.2.0250.0.00077–2,511,2169,5238100/500/1000
3.520.3.2.2.0250.0.00088–2,512,3192,4282100/500/1000
3.520.3.2.2.0250.0.00099–2,514,5219,2327100/500/1000
3.520.3.2.2.0250.0.001010–2,514,5242,5346100/500/1000
3.520.3.2.2.0250.0.001212–2,515,1285,9401100/500/1000
3.520.3.2.2.0250.0.001414–2,516332461100/500/1000
3.520.3.2.2.0250.0.001616–2,516,8378,5519100/500/1000
3.520.3.2.2.0250.0.001818–2,517,8422,7586100/500/1000
3.520.3.2.2.0250.0.001919–2,517,8444,1603100/500/1000
3.520.3.2.2.0250.0.002020–2,518,8466,7647100/500/1000
3.520.3.2.2.0250.0.002121–2,518,8488,4659100/500/1000
3.520.3.2.2.0250.0.002424–2,520,9555,8753100/500/1000
3.520.3.2.2.0250.0.002525–2,520,9577,2792100/500/1000
3.520.3.2.2.0250.0.002727–2,521,4620,8830100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.2.2.2.0400.0.00022–48,986131100/500/1000
3.520.3.2.2.0400.0.00033–49,5120,3164100/500/1000
3.520.3.2.2.0400.0.00044–410,8154217100/500/1000
3.520.3.2.2.0400.0.00055–411,8190,8267100/500/1000
3.520.3.2.2.0400.0.00066–412,8232,3318100/500/1000
3.520.3.2.2.0400.0.00077–412,8266,6346100/500/1000
3.520.3.2.2.0400.0.00088–414,1303408100/500/1000
3.520.3.2.2.0400.0.00099–416,5339,9461100/500/1000
3.520.3.2.2.0400.0.001010–416,5375490100/500/1000
3.520.3.2.2.0400.0.001212–417,2444,6573100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.3.2.2.0600.0.00022–610,5121,3179100/500/1000
3.520.3.2.2.0600.0.00033–611,2172,7228100/500/1000
3.520.3.2.2.0600.0.00044–612,4225,7296100/500/1000
3.520.3.2.2.0600.0.00055–613,9284378100/500/1000
3.520.3.2.2.0600.0.00066–615,2341,1453100/500/1000
3.520.3.2.2.0600.0.00077–615,2392,5495100/500/1000
3.520.3.2.2.0600.0.00088–616,8447,7585100/500/1000
3.520.3.2.2.0600.0.00099–619,7500,5659100/500/1000
3.520.3.2.2.0600.0.001010–619,7553,2702100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.3.2.2.1000.0.00022–1012,5204,5270100/500/1000
3.520.3.2.2.1000.0.00033–1013,4293,5358100/500/1000
3.520.3.2.2.1000.0.00044–1014,9385,4467100/500/1000
3.520.3.2.2.1000.0.00055–1016,6478,2580100/500/1000
3.520.3.2.2.1000.0.00066–1018,2573,6710100/500/1000
3.520.3.2.2.1000.0.00077–1018,2662,6782100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.520.3.2.2.1600.0.00022–1616,9314,5442100/500/1000
3.520.3.2.2.1600.0.00033–1618,1454,7588100/500/1000
3.520.3.2.2.1600.0.00044–1620,1601,2768100/500/1000
3.520.3.2.2.1600.0.00055–1622,4748,7978100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Yeni sekmede açİndir

Notlar:
Elektromanyetik uyumluluk (EMC)
Renk kodu, istenildiği takdirde JZ, OZ, JB, OB olabilir.
Referans Standardı: DIN VDE 0812
