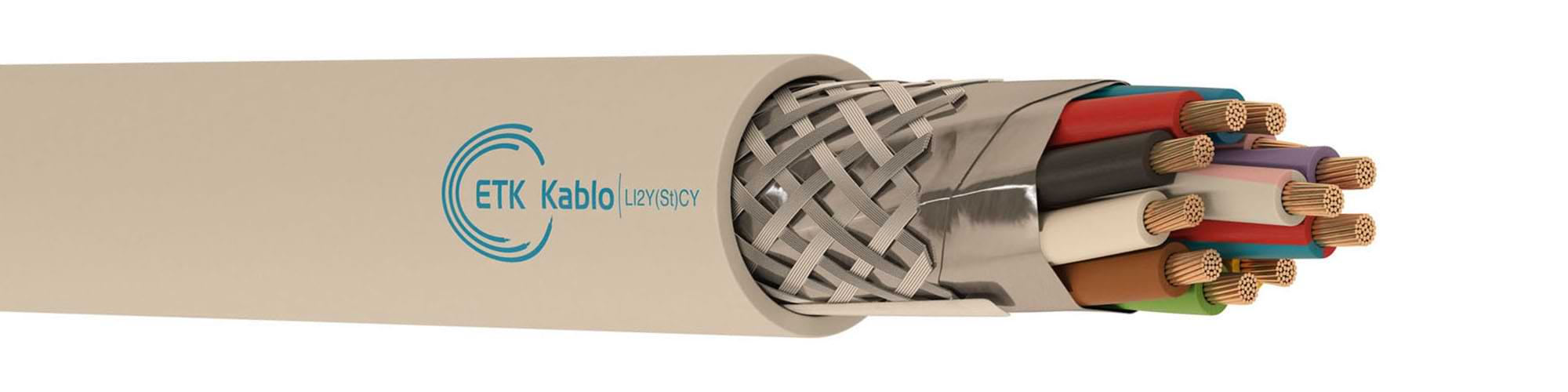

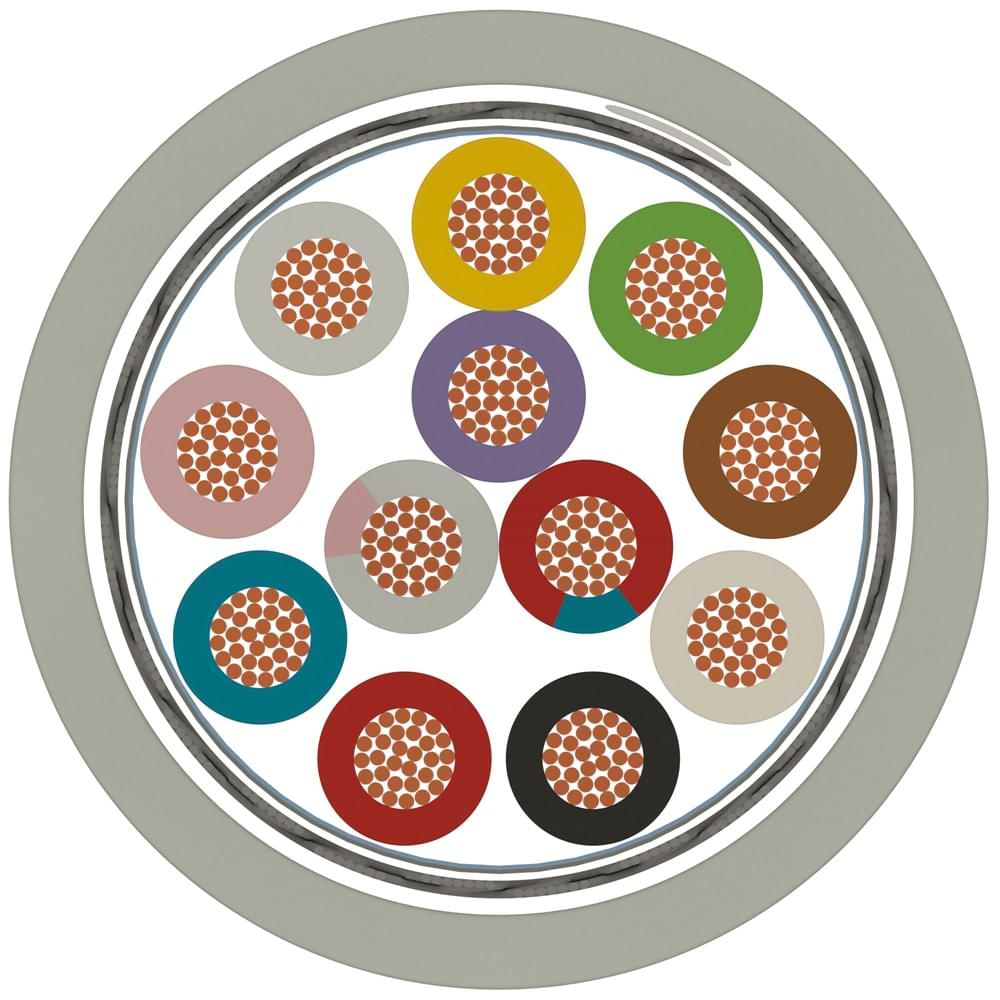

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Solid polietilen (EN 50290-2-23, BS 6234 Tip 03 – ASTM D 1248) (DIN 47100)
3 – Büküm:Katmanlar halinde
4 – Ayırıcı:Polyester bant
5 – Ekran:Al/PET bant, kalaylı bakır örgü
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı PVC dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.050001102501200
0.25 mm²77.850001102501200
0.34 mm²56.050001102501200
0.50 mm²39.05000120300/5002000
0.75 mm²26.05000120300/5002000
1.00 mm²19.55000130300/5002000
1.50 mm²13.35000140300/5002000
2.50 mm²7.985000150300/5002000
Alev Geciktiricilik Testi
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.522.3.1.2.0022.0.00022–0,223,89,720100/500/1000
3.522.3.1.2.0022.0.00033–0,22411,824100/500/1000
3.522.3.1.2.0022.0.00044–0,224,41429100/500/1000
3.522.3.1.2.0022.0.00055–0,224,816,233100/500/1000
3.522.3.1.2.0022.0.00066–0,225,218,438100/500/1000
3.522.3.1.2.0022.0.00077–0,225,220,541100/500/1000
3.522.3.1.2.0022.0.00088–0,225,623,946100/500/1000
3.522.3.1.2.0022.0.00099–0,22626,350100/500/1000
3.522.3.1.2.0022.0.001010–0,226,528,456100/500/1000
3.522.3.1.2.0022.0.001212–0,226,833,765100/500/1000
3.522.3.1.2.0022.0.001414–0,227,138,473100/500/1000
3.522.3.1.2.0022.0.001616–0,227,542,980100/500/1000
3.522.3.1.2.0022.0.001818–0,227,847,487100/500/1000
3.522.3.1.2.0022.0.001919–0,227,849,590100/500/1000
3.522.3.1.2.0022.0.002020–0,228,252,495100/500/1000
3.522.3.1.2.0022.0.002121–0,228,254,598100/500/1000
3.522.3.1.2.0022.0.002424–0,229,162,5113100/500/1000
3.522.3.1.2.0022.0.002525–0,229,164,6116100/500/1000
3.522.3.1.2.0022.0.002727–0,229,369,4123100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.522.3.1.2.0034.0.00022–0,344,613,429100/500/1000
3.522.3.1.2.0034.0.00033–0,344,916,734100/500/1000
3.522.3.1.2.0034.0.00044–0,345,42041100/500/1000
3.522.3.1.2.0034.0.00055–0,345,924,750100/500/1000
3.522.3.1.2.0034.0.00066–0,346,32856100/500/1000
3.522.3.1.2.0034.0.00077–0,346,331,360100/500/1000
3.522.3.1.2.0034.0.00088–0,346,83668100/500/1000
3.522.3.1.2.0034.0.00099–0,347,439,376100/500/1000
3.522.3.1.2.0034.0.001010–0,347,94484100/500/1000
3.522.3.1.2.0034.0.001212–0,348,250,694100/500/1000
3.522.3.1.2.0034.0.001414–0,348,857,3108100/500/1000
3.522.3.1.2.0034.0.001616–0,349,263,9119100/500/1000
3.522.3.1.2.0034.0.001818–0,349,770,6133100/500/1000
3.522.3.1.2.0034.0.001919–0,349,773,9137100/500/1000
3.522.3.1.2.0034.0.002020–0,341177,3144100/500/1000
3.522.3.1.2.0034.0.002121–0,341180,6148100/500/1000
3.522.3.1.2.0034.0.002424–0,341295,2177100/500/1000
3.522.3.1.2.0034.0.002525–0,341298,6181100/500/1000
3.522.3.1.2.0034.0.002727–0,3412105,2191100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.522.3.1.2.0050.0.00022–0,5515,633100/500/1000
3.522.3.1.2.0050.0.00033–0,55,320,140100/500/1000
3.522.3.1.2.0050.0.00044–0,55,824,649100/500/1000
3.522.3.1.2.0050.0.00055–0,56,429,159100/500/1000
3.522.3.1.2.0050.0.00066–0,56,934,869100/500/1000
3.522.3.1.2.0050.0.00077–0,56,939,373100/500/1000
3.522.3.1.2.0050.0.00088–0,57,64485100/500/1000
3.522.3.1.2.0050.0.00099–0,58,851100100/500/1000
3.522.3.1.2.0050.0.001010–0,58,855,4104100/500/1000
3.522.3.1.2.0050.0.001212–0,59,264,7119100/500/1000
3.522.3.1.2.0050.0.001414–0,59,773,8135100/500/1000
3.522.3.1.2.0050.0.001616–0,51183,3151100/500/1000
3.522.3.1.2.0050.0.001818–0,51192,5170100/500/1000
3.522.3.1.2.0050.0.001919–0,51196,9173100/500/1000
3.522.3.1.2.0050.0.002020–0,512102,5187100/500/1000
3.522.3.1.2.0050.0.002121–0,512106,9189100/500/1000
3.522.3.1.2.0050.0.002424–0,513123,5222100/500/1000
3.522.3.1.2.0050.0.002525–0,513127,9232100/500/1000
3.522.3.1.2.0050.0.002727–0,513136,8241100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.522.3.1.2.0075.0.00022–0,755,620,142100/500/1000
3.522.3.1.2.0075.0.00033–0,75626,851100/500/1000
3.522.3.1.2.0075.0.00044–0,756,533,663100/500/1000
3.522.3.1.2.0075.0.00055–0,757,241,478100/500/1000
3.522.3.1.2.0075.0.00066–0,757,748,690100/500/1000
3.522.3.1.2.0075.0.00077–0,757,755,296100/500/1000
3.522.3.1.2.0075.0.00088–0,758,562,8114100/500/1000
3.522.3.1.2.0075.0.00099–0,759,870,6130100/500/1000
3.522.3.1.2.0075.0.001010–0,759,877,7136100/500/1000
3.522.3.1.2.0075.0.001212–0,751191,6156100/500/1000
3.522.3.1.2.0075.0.001414–0,7511105,7179100/500/1000
3.522.3.1.2.0075.0.001616–0,7512120,1199100/500/1000
3.522.3.1.2.0075.0.001818–0,7513136,1227100/500/1000
3.522.3.1.2.0075.0.001919–0,7513142,8233100/500/1000
3.522.3.1.2.0075.0.002020–0,7513150,8250100/500/1000
3.522.3.1.2.0075.0.002121–0,7513157,4254100/500/1000
3.522.3.1.2.0075.0.002424–0,7514177,8289100/500/1000
3.522.3.1.2.0075.0.002525–0,7514184,4303100/500/1000
3.522.3.1.2.0075.0.002727–0,7515197,8319100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.522.3.1.2.0100.0.00022–1623,547100/500/1000
3.522.3.1.2.0100.0.00033–16,43259100/500/1000
3.522.3.1.2.0100.0.00044–1741,474100/500/1000
3.522.3.1.2.0100.0.00055–17,75090100/500/1000
3.522.3.1.2.0100.0.00066–18,359,8106100/500/1000
3.522.3.1.2.0100.0.00077–18,368,1113100/500/1000
3.522.3.1.2.0100.0.00088–19,277,6135100/500/1000
3.522.3.1.2.0100.0.00099–11186,7154100/500/1000
3.522.3.1.2.0100.0.001010–11195160100/500/1000
3.522.3.1.2.0100.0.001212–112112,4185100/500/1000
3.522.3.1.2.0100.0.001414–112132,6215100/500/1000
3.522.3.1.2.0100.0.001616–113150,7240100/500/1000
3.522.3.1.2.0100.0.001818–113166,6269100/500/1000
3.522.3.1.2.0100.0.001919–113174,9276100/500/1000
3.522.3.1.2.0100.0.002020–114183,5296100/500/1000
3.522.3.1.2.0100.0.002121–114191,8300100/500/1000
3.522.3.1.2.0100.0.002424–116219,3345100/500/1000
3.522.3.1.2.0100.0.002525–116227,6362100/500/1000
3.522.3.1.2.0100.0.002727–116244,5377100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.522.3.1.2.0150.0.00022–1,56,534,161100/500/1000
3.522.3.1.2.0150.0.00033–1,56,94777100/500/1000
3.522.3.1.2.0150.0.00044–1,57,660,296100/500/1000
3.522.3.1.2.0150.0.00055–1,58,474,7118100/500/1000
3.522.3.1.2.0150.0.00066–1,5988,8139100/500/1000
3.522.3.1.2.0150.0.00077–1,59101,7150100/500/1000
3.522.3.1.2.0150.0.00088–1,510115,2177100/500/1000
3.522.3.1.2.0150.0.00099–1,512129,4201100/500/1000
3.522.3.1.2.0150.0.001010–1,512142,3212100/500/1000
3.522.3.1.2.0150.0.001212–1,513171,8249100/500/1000
3.522.3.1.2.0150.0.001414–1,513199,1286100/500/1000
3.522.3.1.2.0150.0.001616–1,514224,2317100/500/1000
3.522.3.1.2.0150.0.001818–1,515251,1359100/500/1000
3.522.3.1.2.0150.0.001919–1,515264,1369100/500/1000
3.522.3.1.2.0150.0.002020–1,515278,5396100/500/1000
3.522.3.1.2.0150.0.002121–1,515291,4404100/500/1000
3.522.3.1.2.0150.0.002424–1,517331,1466100/500/1000
3.522.3.1.2.0150.0.002525–1,517344,1489100/500/1000
3.522.3.1.2.0150.0.002727–1,517370,1512100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.522.3.1.2.0250.0.00022–2,57,852,885100/500/1000
3.522.3.1.2.0250.0.00033–2,58,374,7112100/500/1000
3.522.3.1.2.0250.0.00044–2,59,397,4145100/500/1000
3.522.3.1.2.0250.0.00055–2,511120,3183100/500/1000
3.522.3.1.2.0250.0.00066–2,512145,9219100/500/1000
3.522.3.1.2.0250.0.00077–2,512167,4236100/500/1000
3.522.3.1.2.0250.0.00088–2,513190,4280100/500/1000
3.522.3.1.2.0250.0.00099–2,515212,6319100/500/1000
3.522.3.1.2.0250.0.001010–2,515234,1337100/500/1000
3.522.3.1.2.0250.0.001212–2,516277,5392100/500/1000
3.522.3.1.2.0250.0.001414–2,516322,2450100/500/1000
3.522.3.1.2.0250.0.001616–2,517365,8505100/500/1000
3.522.3.1.2.0250.0.001818–2,518411,3572100/500/1000
3.522.3.1.2.0250.0.001919–2,518432,8589100/500/1000
3.522.3.1.2.0250.0.002020–2,519455,5633100/500/1000
3.522.3.1.2.0250.0.002121–2,519477,1645100/500/1000
3.522.3.1.2.0250.0.002424–2,521548,4742100/500/1000
3.522.3.1.2.0250.0.002525–2,521569,9781100/500/1000
3.522.3.1.2.0250.0.002727–2,522616,9821100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Yeni sekmede açİndir

Notlar:
Elektromanyetik uyumluluk (EMC)
Renk kodu, istenildiği takdirde JZ, OZ, JB, OB olabilir.
Referans Standardı: DIN VDE 0812
