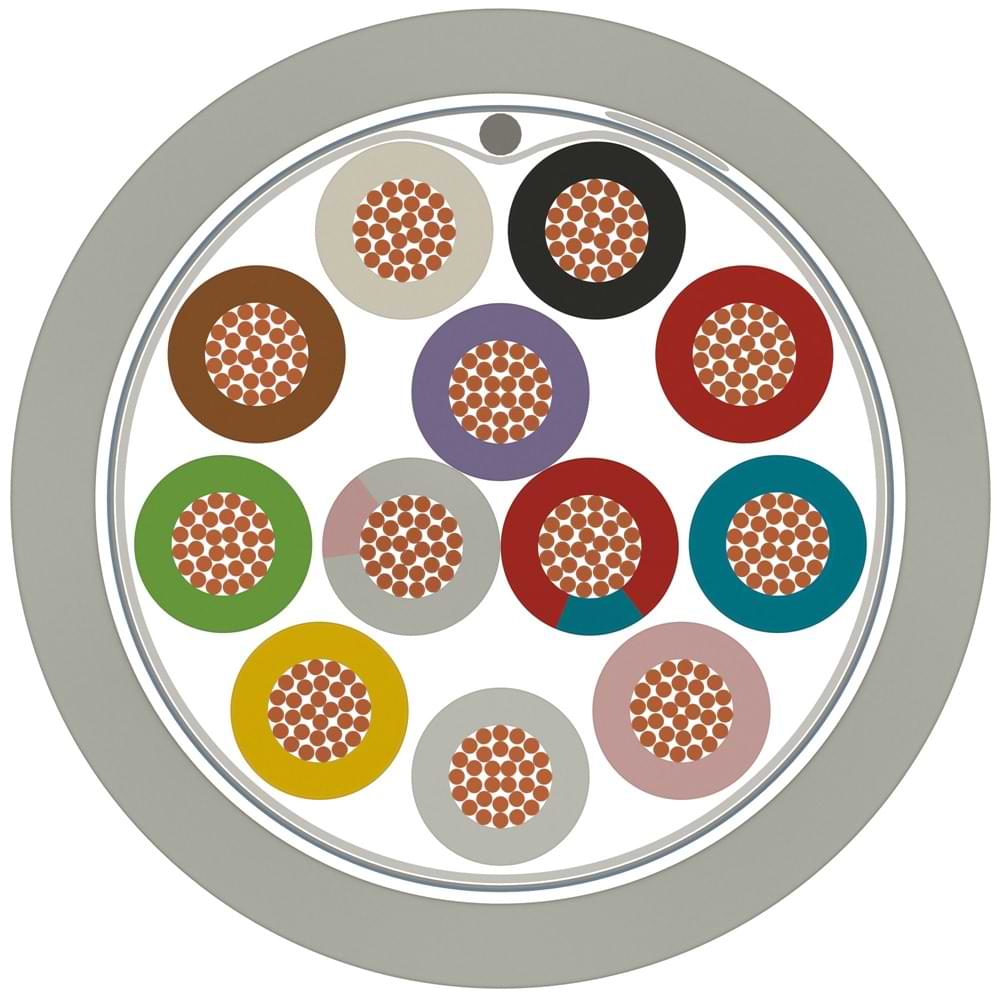

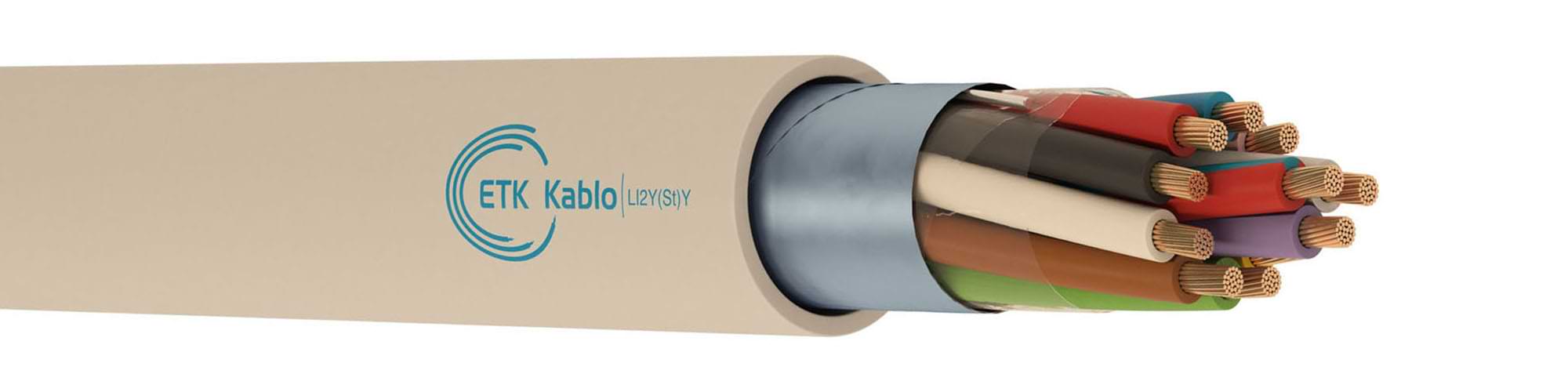

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Solid polietilen (EN 50290-2-23, BS 6234 Tip 03 – ASTM D 1248) (DIN 47100)
3 – Büküm:Katmanlar halinde
4 – Ayırıcı:Polyester bant
5 – Ekran:Kalaylı bakır toprak teli, Al/PET bant
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı PVC dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.050001102501200
0.25 mm²77.850001102501200
0.34 mm²56.050001102501200
0.50 mm²39.05000120300/5002000
0.75 mm²26.05000120300/5002000
1.00 mm²19.55000130300/5002000
1.50 mm²13.35000140300/5002000
2.50 mm²7.985000150300/5002000
Alev Geciktiricilik Testi
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.1.2.0022.0.00022–0,2246,519100/500/1000
3.540.3.1.2.0022.0.00033–0,224,28,622100/500/1000
3.540.3.1.2.0022.0.00044–0,224,510,826100/500/1000
3.540.3.1.2.0022.0.00055–0,22512,931100/500/1000
3.540.3.1.2.0022.0.00066–0,225,31535100/500/1000
3.540.3.1.2.0022.0.00077–0,225,317,138100/500/1000
3.540.3.1.2.0022.0.00088–0,225,819,343100/500/1000
3.540.3.1.2.0022.0.00099–0,226,321,449100/500/1000
3.540.3.1.2.0022.0.001010–0,226,723,554100/500/1000
3.540.3.1.2.0022.0.001212–0,226,927,860100/500/1000
3.540.3.1.2.0022.0.001414–0,227,332,169100/500/1000
3.540.3.1.2.0022.0.001616–0,227,836,378100/500/1000
3.540.3.1.2.0022.0.001818–0,228,140,685100/500/1000
3.540.3.1.2.0022.0.001919–0,228,142,788100/500/1000
3.540.3.1.2.0022.0.002020–0,228,644,995100/500/1000
3.540.3.1.2.0022.0.002121–0,228,64798100/500/1000
3.540.3.1.2.0022.0.002424–0,229,553,4112100/500/1000
3.540.3.1.2.0022.0.002525–0,229,555,5115100/500/1000
3.540.3.1.2.0022.0.002727–0,229,759,8122100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.1.2.0025.0.00022–0,254,2720100/500/1000
3.540.3.1.2.0025.0.00033–0,254,49,424100/500/1000
3.540.3.1.2.0025.0.00044–0,254,811,828100/500/1000
3.540.3.1.2.0025.0.00055–0,255,314,234100/500/1000
3.540.3.1.2.0025.0.00066–0,255,616,639100/500/1000
3.540.3.1.2.0025.0.00077–0,255,31939100/500/1000
3.540.3.1.2.0025.0.00088–0,256,121,448100/500/1000
3.540.3.1.2.0025.0.00099–0,256,623,854100/500/1000
3.540.3.1.2.0025.0.001010–0,257,126,260100/500/1000
3.540.3.1.2.0025.0.001212–0,257,33167100/500/1000
3.540.3.1.2.0025.0.001414–0,257,835,877100/500/1000
3.540.3.1.2.0025.0.001616–0,258,340,687100/500/1000
3.540.3.1.2.0025.0.001818–0,258,645,495100/500/1000
3.540.3.1.2.0025.0.001919–0,258,647,898100/500/1000
3.540.3.1.2.0025.0.002020–0,259,150,2106100/500/1000
3.540.3.1.2.0025.0.002121–0,259,152,6108100/500/1000
3.540.3.1.2.0025.0.002424–0,251159,8125100/500/1000
3.540.3.1.2.0025.0.002525–0,251162,2129100/500/1000
3.540.3.1.2.0025.0.002727–0,251167136100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.1.2.0034.0.00022–0,344,88,926100/500/1000
3.540.3.1.2.0034.0.00033–0,345,112,231100/500/1000
3.540.3.1.2.0034.0.00044–0,345,515,637100/500/1000
3.540.3.1.2.0034.0.00055–0,34618,945100/500/1000
3.540.3.1.2.0034.0.00066–0,346,422,251100/500/1000
3.540.3.1.2.0034.0.00077–0,346,425,655100/500/1000
3.540.3.1.2.0034.0.00088–0,34728,963100/500/1000
3.540.3.1.2.0034.0.00099–0,34832,272100/500/1000
3.540.3.1.2.0034.0.001010–0,348,135,579100/500/1000
3.540.3.1.2.0034.0.001212–0,348,442,289100/500/1000
3.540.3.1.2.0034.0.001414–0,348,948,9101100/500/1000
3.540.3.1.2.0034.0.001616–0,349,355,5112100/500/1000
3.540.3.1.2.0034.0.001818–0,349,862,2126100/500/1000
3.540.3.1.2.0034.0.001919–0,349,865,5130100/500/1000
3.540.3.1.2.0034.0.002020–0,341168,9140100/500/1000
3.540.3.1.2.0034.0.002121–0,341172,2144100/500/1000
3.540.3.1.2.0034.0.002424–0,341282,2169100/500/1000
3.540.3.1.2.0034.0.002525–0,341285,5173100/500/1000
3.540.3.1.2.0034.0.002727–0,341292,2183100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.1.2.0050.0.00022–0,55,31131100/500/1000
3.540.3.1.2.0050.0.00033–0,55,615,438100/500/1000
3.540.3.1.2.0050.0.00044–0,5619,846100/500/1000
3.540.3.1.2.0050.0.00055–0,56,524,255100/500/1000
3.540.3.1.2.0050.0.00066–0,57,128,665100/500/1000
3.540.3.1.2.0050.0.00077–0,57,13369100/500/1000
3.540.3.1.2.0050.0.00088–0,57,937,483100/500/1000
3.540.3.1.2.0050.0.00099–0,58,941,894100/500/1000
3.540.3.1.2.0050.0.001010–0,5946,298100/500/1000
3.540.3.1.2.0050.0.001212–0,59,455113100/500/1000
3.540.3.1.2.0050.0.001414–0,59,963,8130100/500/1000
3.540.3.1.2.0050.0.001616–0,51172,6144100/500/1000
3.540.3.1.2.0050.0.001818–0,51181,4161100/500/1000
3.540.3.1.2.0050.0.001919–0,51185,8164100/500/1000
3.540.3.1.2.0050.0.002020–0,51290,2180100/500/1000
3.540.3.1.2.0050.0.002121–0,51294,6182100/500/1000
3.540.3.1.2.0050.0.002424–0,513107,8205100/500/1000
3.540.3.1.2.0050.0.002525–0,513112,2222100/500/1000
3.540.3.1.2.0050.0.002727–0,514121231100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.1.2.0075.0.00022–0,75617,742100/500/1000
3.540.3.1.2.0075.0.00033–0,756,324,351100/500/1000
3.540.3.1.2.0075.0.00044–0,756,930,963100/500/1000
3.540.3.1.2.0075.0.00055–0,757,537,577100/500/1000
3.540.3.1.2.0075.0.00066–0,758,144,189100/500/1000
3.540.3.1.2.0075.0.00077–0,758,150,795100/500/1000
3.540.3.1.2.0075.0.00088–0,758,957,3113100/500/1000
3.540.3.1.2.0075.0.00099–0,751163,9128100/500/1000
3.540.3.1.2.0075.0.001010–0,751170,5133100/500/1000
3.540.3.1.2.0075.0.001212–0,751183,7154100/500/1000
3.540.3.1.2.0075.0.001414–0,751296,9175100/500/1000
3.540.3.1.2.0075.0.001616–0,7512110,1195100/500/1000
3.540.3.1.2.0075.0.001818–0,7513123,3220100/500/1000
3.540.3.1.2.0075.0.001919–0,7513129,9226100/500/1000
3.540.3.1.2.0075.0.002020–0,7513136,5242100/500/1000
3.540.3.1.2.0075.0.002121–0,7513143,1246100/500/1000
3.540.3.1.2.0075.0.002424–0,7515162,9285100/500/1000
3.540.3.1.2.0075.0.002525–0,7515169,5299100/500/1000
3.540.3.1.2.0075.0.002727–0,7515182,7311100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.1.2.0100.0.00022–16,42147100/500/1000
3.540.3.1.2.0100.0.00033–16,729,359100/500/1000
3.540.3.1.2.0100.0.00044–17,337,573100/500/1000
3.540.3.1.2.0100.0.00055–1845,790100/500/1000
3.540.3.1.2.0100.0.00066–18,754104100/500/1000
3.540.3.1.2.0100.0.00077–18,762,2111100/500/1000
3.540.3.1.2.0100.0.00088–19,570,5132100/500/1000
3.540.3.1.2.0100.0.00099–11178,7150100/500/1000
3.540.3.1.2.0100.0.001010–11187157100/500/1000
3.540.3.1.2.0100.0.001212–112103,5182100/500/1000
3.540.3.1.2.0100.0.001414–112120208100/500/1000
3.540.3.1.2.0100.0.001616–113136,5232100/500/1000
3.540.3.1.2.0100.0.001818–114153262100/500/1000
3.540.3.1.2.0100.0.001919–114161,3269100/500/1000
3.540.3.1.2.0100.0.002020–115169,5289100/500/1000
3.540.3.1.2.0100.0.002121–115177,8293100/500/1000
3.540.3.1.2.0100.0.002424–116202,5336100/500/1000
3.540.3.1.2.0100.0.002525–116210,8353100/500/1000
3.540.3.1.2.0100.0.002727–116227,3368100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.1.2.0150.0.00022–1,56,930,260100/500/1000
3.540.3.1.2.0150.0.00033–1,57,243,176100/500/1000
3.540.3.1.2.0150.0.00044–1,57,955,995100/500/1000
3.540.3.1.2.0150.0.00055–1,58,768,8117100/500/1000
3.540.3.1.2.0150.0.00066–1,59,481,6137100/500/1000
3.540.3.1.2.0150.0.00077–1,59,494,5147100/500/1000
3.540.3.1.2.0150.0.00088–1,511107,3174100/500/1000
3.540.3.1.2.0150.0.00099–1,512120,2198100/500/1000
3.540.3.1.2.0150.0.001010–1,512133,1208100/500/1000
3.540.3.1.2.0150.0.001212–1,513158,8242100/500/1000
3.540.3.1.2.0150.0.001414–1,513184,5278100/500/1000
3.540.3.1.2.0150.0.001616–1,514210,2311100/500/1000
3.540.3.1.2.0150.0.001818–1,515235,9352100/500/1000
3.540.3.1.2.0150.0.001919–1,515248,8362100/500/1000
3.540.3.1.2.0150.0.002020–1,516261,7388100/500/1000
3.540.3.1.2.0150.0.002121–1,516274,5396100/500/1000
3.540.3.1.2.0150.0.002424–1,517313,1457100/500/1000
3.540.3.1.2.0150.0.002525–1,517326480100/500/1000
3.540.3.1.2.0150.0.002727–1,518351,7503100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.1.2.0250.0.00022–2,58,347,486100/500/1000
3.540.3.1.2.0250.0.00033–2,58,868,8112100/500/1000
3.540.3.1.2.0250.0.00044–2,59,690,2142100/500/1000
3.540.3.1.2.0250.0.00055–2,511111,6177100/500/1000
3.540.3.1.2.0250.0.00066–2,512133,1209100/500/1000
3.540.3.1.2.0250.0.00077–2,512154,5227100/500/1000
3.540.3.1.2.0250.0.00088–2,513175,9269100/500/1000
3.540.3.1.2.0250.0.00099–2,515197,4305100/500/1000
3.540.3.1.2.0250.0.001010–2,515218,8322100/500/1000
3.540.3.1.2.0250.0.001212–2,516261,7377100/500/1000
3.540.3.1.2.0250.0.001414–2,517304,5434100/500/1000
3.540.3.1.2.0250.0.001616–2,517347,4488100/500/1000
3.540.3.1.2.0250.0.001818–2,518390,2553100/500/1000
3.540.3.1.2.0250.0.001919–2,518411,7570100/500/1000
3.540.3.1.2.0250.0.002020–2,519433,1613100/500/1000
3.540.3.1.2.0250.0.002121–2,519454,5625100/500/1000
3.540.3.1.2.0250.0.002424–2,522518,8721100/500/1000
3.540.3.1.2.0250.0.002525–2,522540,3759100/500/1000
3.540.3.1.2.0250.0.002727–2,522583,1797100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Yeni sekmede açİndir

Notlar:
Elektromanyetik uyumluluk (EMC)
Renk kodu, istenildiği takdirde JZ, OZ, JB, OB olabilir.
Referans Standardı: DIN VDE 0812
