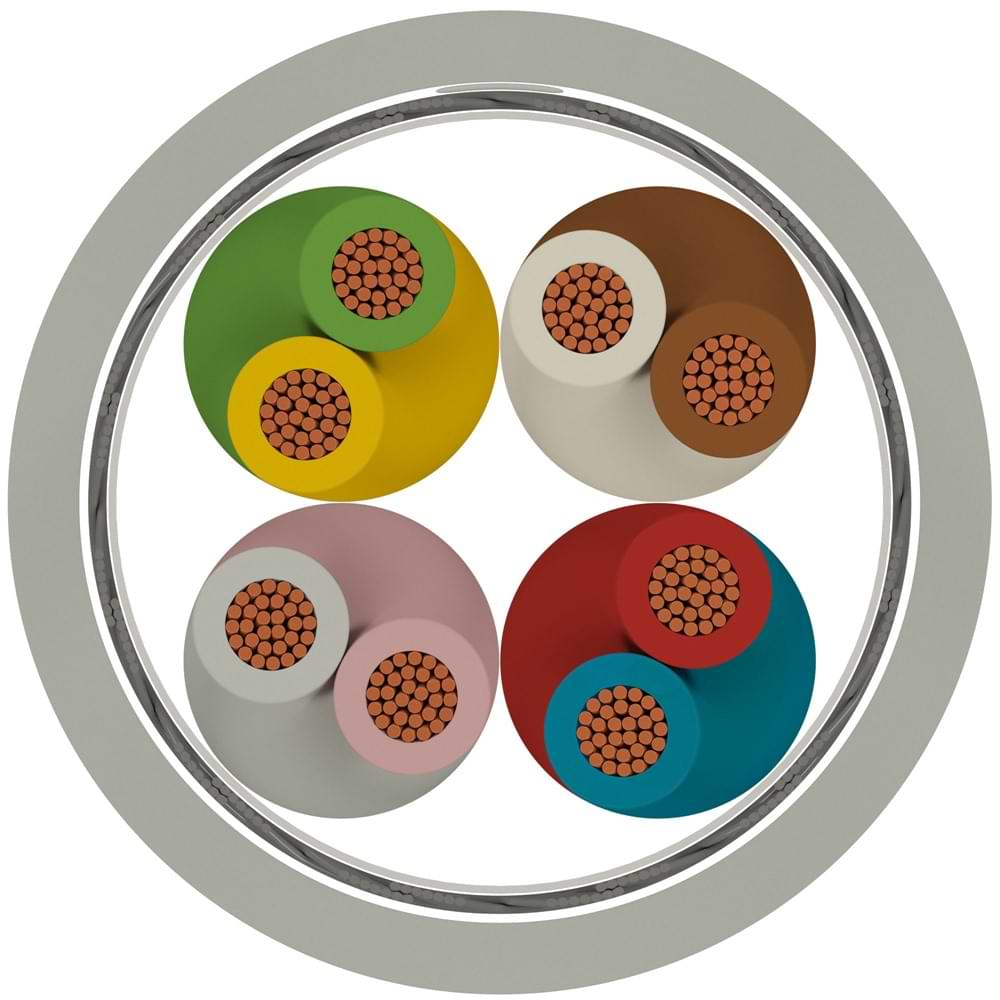

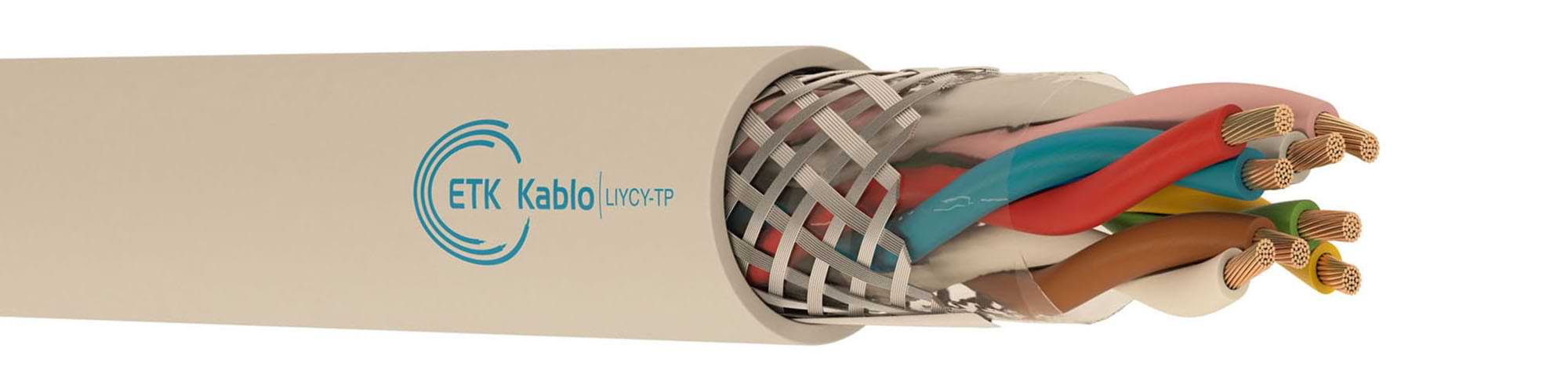

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Büküm:İzoleler çiftler veya üçlüler halinde ve tüm çiftler veya üçlü bükümler bir arada bükülür.
4 – Ayırıcı:Polyester bant
5 – Ekran:Kalaylı bakır örgü
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı PVC dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Alev Geciktiricilik Testi
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0022.0.0002–20,224,915,133100/500/1000
3.521.2.2.2.0022.0.0003–30,225,720,844100/500/1000
3.521.2.2.2.0022.0.0004–40,226,926,558100/500/1000
3.521.2.2.2.0022.0.0005–50,227,432,368100/500/1000
3.521.2.2.2.0022.0.0006–60,228,236,779100/500/1000
3.521.2.2.2.0022.0.0007–70,228,34289100/500/1000
3.521.2.2.2.0022.0.0008–80,22950,3102100/500/1000
3.521.2.2.2.0022.0.0009–90,2210,554,6115100/500/1000
3.521.2.2.2.0022.0.0010–100,2210,659124100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0025.0.0002–20,255,217,537100/500/1000
3.521.2.2.2.0025.0.0003–30,256,122,949100/500/1000
3.521.2.2.2.0025.0.0004–40,257,429,966100/500/1000
3.521.2.2.2.0025.0.0005–50,2583577100/500/1000
3.521.2.2.2.0025.0.0006–60,258,84190100/500/1000
3.521.2.2.2.0025.0.0007–70,258,946,7101100/500/1000
3.521.2.2.2.0025.0.0008–80,259,755,3116100/500/1000
3.521.2.2.2.0025.0.0009–90,2511,459,6130100/500/1000
3.521.2.2.2.0025.0.0010–100,2511,564,5141100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0034.0.0002–20,345,821,544100/500/1000
3.521.2.2.2.0034.0.0003–30,346,830,762100/500/1000
3.521.2.2.2.0034.0.0004–40,348,338,281100/500/1000
3.521.2.2.2.0034.0.0005–50,34946,396100/500/1000
3.521.2.2.2.0034.0.0006–60,349,956,9116100/500/1000
3.521.2.2.2.0034.0.0007–70,349,963,1125100/500/1000
3.521.2.2.2.0034.0.0008–80,3410,970,4143100/500/1000
3.521.2.2.2.0034.0.0009–90,3412,877,3162100/500/1000
3.521.2.2.2.0034.0.0010–100,3412,984,9176100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0050.0.0002–20,56,427,964100/500/1000
3.521.2.2.2.0050.0.0003–30,57,537,373100/500/1000
3.521.2.2.2.0050.0.0004–40,59,251,8102100/500/1000
3.521.2.2.2.0050.0.0005–50,510,160,6119100/500/1000
3.521.2.2.2.0050.0.0006–60,51169,3138100/500/1000
3.521.2.2.2.0050.0.0007–70,511,178,3155100/500/1000
3.521.2.2.2.0050.0.0008–80,512,188,7174100/500/1000
3.521.2.2.2.0050.0.0009–90,514,298,8198100/500/1000
3.521.2.2.2.0050.0.0010–100,514,3108215100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0075.0.0002–20,75737,679100/500/1000
3.521.2.2.2.0075.0.0003–30,75951,995100/500/1000
3.521.2.2.2.0075.0.0004–40,7510,170,3126100/500/1000
3.521.2.2.2.0075.0.0005–50,751182,7147100/500/1000
3.521.2.2.2.0075.0.0006–60,7512,196,7173100/500/1000
3.521.2.2.2.0075.0.0007–70,7512,2111,1196100/500/1000
3.521.2.2.2.0075.0.0008–80,7513,3125,8220100/500/1000
3.521.2.2.2.0075.0.0009–90,7515,6140,7251100/500/1000
3.521.2.2.2.0075.0.0010–100,7515,7154,5274100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0100.0.0002–217,644,592100/500/1000
3.521.2.2.2.0100.0.0003–319,766112100/500/1000
3.521.2.2.2.0100.0.0004–4110,982,6146100/500/1000
3.521.2.2.2.0100.0.0005–5112100,1174100/500/1000
3.521.2.2.2.0100.0.0006–6113,2118,8206100/500/1000
3.521.2.2.2.0100.0.0007–7113,3137,1234100/500/1000
3.521.2.2.2.0100.0.0008–8114,5154,4263100/500/1000
3.521.2.2.2.0100.0.0009–9117,1177,5303100/500/1000
3.521.2.2.2.0100.0.0010–10117,2196,8333100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0150.0.0002–21,58,463,8120100/500/1000
3.521.2.2.2.0150.0.0003–31,510,995150100/500/1000
3.521.2.2.2.0150.0.0004–41,512,2120,4192100/500/1000
3.521.2.2.2.0150.0.0005–51,513,4148,5232100/500/1000
3.521.2.2.2.0150.0.0006–61,514,8176,2275100/500/1000
3.521.2.2.2.0150.0.0007–71,514,9202,9312100/500/1000
3.521.2.2.2.0150.0.0008–81,516,3235,4357100/500/1000
3.521.2.2.2.0150.0.0009–91,519,3264,1406100/500/1000
3.521.2.2.2.0150.0.0010–101,519,4290,8445100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0250.0.0002–22,510,8102,5196100/500/1000
3.521.2.2.2.0250.0.0003–32,513,9148,6244100/500/1000
3.521.2.2.2.0250.0.0004–42,515,5198,4319100/500/1000
3.521.2.2.2.0250.0.0005–52,517,1246,5385100/500/1000
3.521.2.2.2.0250.0.0006–62,518,8291454100/500/1000
3.521.2.2.2.0250.0.0007–72,518,9338,3516100/500/1000
3.521.2.2.2.0250.0.0008–82,520,6383,1581100/500/1000
3.521.2.2.2.0250.0.0009–92,524,4430,6668100/500/1000
3.521.2.2.2.0250.0.0010–102,524,4475,2723100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
