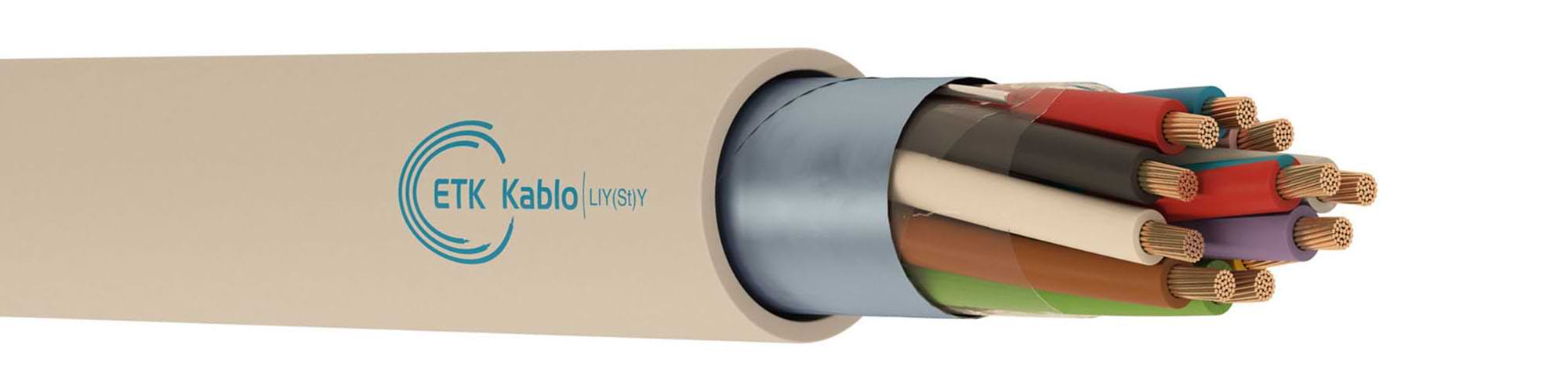

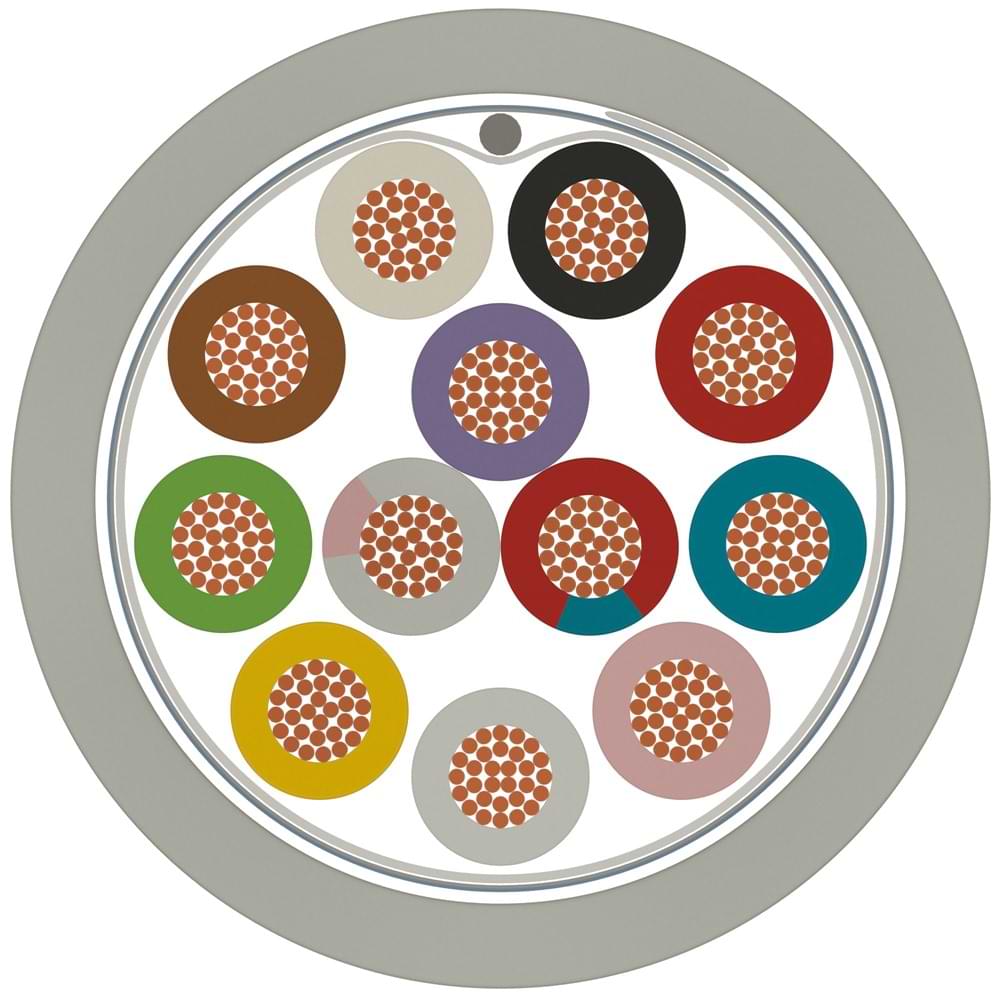

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Büküm:Katmanlar halinde
4 – Ayırıcı:Polyester bant
5 – Ekran:Kalaylı bakır toprak teli, Al/PET bant
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı PVC dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Alev Geciktiricilik Testi
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.2.2.0022.0.00022–0,2246,419100/500/1000
3.540.3.2.2.0022.0.00033–0,224,28,623100/500/1000
3.540.3.2.2.0022.0.00044–0,224,510,728100/500/1000
3.540.3.2.2.0022.0.00055–0,224,912,833100/500/1000
3.540.3.2.2.0022.0.00066–0,225,31538100/500/1000
3.540.3.2.2.0022.0.00077–0,225,317,141100/500/1000
3.540.3.2.2.0022.0.00088–0,225,819,247100/500/1000
3.540.3.2.2.0022.0.00099–0,226,221,353100/500/1000
3.540.3.2.2.0022.0.001010–0,226,723,558100/500/1000
3.540.3.2.2.0022.0.001212–0,226,927,766100/500/1000
3.540.3.2.2.0022.0.001414–0,227,33275100/500/1000
3.540.3.2.2.0022.0.001616–0,227,736,385100/500/1000
3.540.3.2.2.0022.0.001818–0,228,140,693100/500/1000
3.540.3.2.2.0022.0.001919–0,228,142,797100/500/1000
3.540.3.2.2.0022.0.002020–0,228,644,8104100/500/1000
3.540.3.2.2.0022.0.002121–0,228,647107100/500/1000
3.540.3.2.2.0022.0.002424–0,229,553,4123100/500/1000
3.540.3.2.2.0022.0.002525–0,229,555,5127100/500/1000
3.540.3.2.2.0022.0.002727–0,229,759,8134100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.2.2.0025.0.00022–0,254,2721100/500/1000
3.540.3.2.2.0025.0.00033–0,254,49,425100/500/1000
3.540.3.2.2.0025.0.00044–0,254,711,830100/500/1000
3.540.3.2.2.0025.0.00055–0,255,214,237100/500/1000
3.540.3.2.2.0025.0.00066–0,255,616,642100/500/1000
3.540.3.2.2.0025.0.00077–0,255,31942100/500/1000
3.540.3.2.2.0025.0.00088–0,256,121,352100/500/1000
3.540.3.2.2.0025.0.00099–0,256,623,759100/500/1000
3.540.3.2.2.0025.0.001010–0,257,126,165100/500/1000
3.540.3.2.2.0025.0.001212–0,257,330,973100/500/1000
3.540.3.2.2.0025.0.001414–0,257,735,784100/500/1000
3.540.3.2.2.0025.0.001616–0,258,240,695100/500/1000
3.540.3.2.2.0025.0.001818–0,258,645,4105100/500/1000
3.540.3.2.2.0025.0.001919–0,258,647,8108100/500/1000
3.540.3.2.2.0025.0.002020–0,259,150,2116100/500/1000
3.540.3.2.2.0025.0.002121–0,259,152,6119100/500/1000
3.540.3.2.2.0025.0.002424–0,2510,159,8138100/500/1000
3.540.3.2.2.0025.0.002525–0,2510,162,2142100/500/1000
3.540.3.2.2.0025.0.002727–0,2510,367151100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.2.2.0034.0.00022–0,344,88,827100/500/1000
3.540.3.2.2.0034.0.00033–0,34512,233100/500/1000
3.540.3.2.2.0034.0.00044–0,345,415,540100/500/1000
3.540.3.2.2.0034.0.00055–0,345,918,848100/500/1000
3.540.3.2.2.0034.0.00066–0,346,422,255100/500/1000
3.540.3.2.2.0034.0.00077–0,346,425,560100/500/1000
3.540.3.2.2.0034.0.00088–0,34728,869100/500/1000
3.540.3.2.2.0034.0.00099–0,34832,178100/500/1000
3.540.3.2.2.0034.0.001010–0,348,135,586100/500/1000
3.540.3.2.2.0034.0.001212–0,348,342,297100/500/1000
3.540.3.2.2.0034.0.001414–0,348,848,8111100/500/1000
3.540.3.2.2.0034.0.001616–0,349,255,5124100/500/1000
3.540.3.2.2.0034.0.001818–0,349,862,2138100/500/1000
3.540.3.2.2.0034.0.001919–0,349,865,5144100/500/1000
3.540.3.2.2.0034.0.002020–0,3410,468,8154100/500/1000
3.540.3.2.2.0034.0.002121–0,3410,472,2159100/500/1000
3.540.3.2.2.0034.0.002424–0,3411,682,2186100/500/1000
3.540.3.2.2.0034.0.002525–0,3411,685,5191100/500/1000
3.540.3.2.2.0034.0.002727–0,3411,892,2202100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.2.2.0050.0.00022–0,55,31133100/500/1000
3.540.3.2.2.0050.0.00033–0,55,615,441100/500/1000
3.540.3.2.2.0050.0.00044–0,5619,849100/500/1000
3.540.3.2.2.0050.0.00055–0,56,524,260100/500/1000
3.540.3.2.2.0050.0.00066–0,57,128,672100/500/1000
3.540.3.2.2.0050.0.00077–0,57,13375100/500/1000
3.540.3.2.2.0050.0.00088–0,57,837,492100/500/1000
3.540.3.2.2.0050.0.00099–0,58,941,8103100/500/1000
3.540.3.2.2.0050.0.001010–0,5946,2107100/500/1000
3.540.3.2.2.0050.0.001212–0,59,455124100/500/1000
3.540.3.2.2.0050.0.001414–0,59,963,8142100/500/1000
3.540.3.2.2.0050.0.001616–0,510,472,6158100/500/1000
3.540.3.2.2.0050.0.001818–0,510,981,4178100/500/1000
3.540.3.2.2.0050.0.001919–0,510,985,8181100/500/1000
3.540.3.2.2.0050.0.002020–0,511,690,2199100/500/1000
3.540.3.2.2.0050.0.002121–0,511,694,6200100/500/1000
3.540.3.2.2.0050.0.002424–0,512,7107,8227100/500/1000
3.540.3.2.2.0050.0.002525–0,512,9112,2247100/500/1000
3.540.3.2.2.0050.0.002727–0,513,1121255100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.2.2.0075.0.00022–0,755,917,744100/500/1000
3.540.3.2.2.0075.0.00033–0,756,224,354100/500/1000
3.540.3.2.2.0075.0.00044–0,756,830,967100/500/1000
3.540.3.2.2.0075.0.00055–0,757,537,483100/500/1000
3.540.3.2.2.0075.0.00066–0,7584497100/500/1000
3.540.3.2.2.0075.0.00077–0,75850,6102100/500/1000
3.540.3.2.2.0075.0.00088–0,758,857,2122100/500/1000
3.540.3.2.2.0075.0.00099–0,7510,163,8138100/500/1000
3.540.3.2.2.0075.0.001010–0,7510,170,4144100/500/1000
3.540.3.2.2.0075.0.001212–0,7510,583,7166100/500/1000
3.540.3.2.2.0075.0.001414–0,7511,196,9190100/500/1000
3.540.3.2.2.0075.0.001616–0,7511,7110,1211100/500/1000
3.540.3.2.2.0075.0.001818–0,7512,3123,3241100/500/1000
3.540.3.2.2.0075.0.001919–0,7512,3129,9245100/500/1000
3.540.3.2.2.0075.0.002020–0,7513136,5265100/500/1000
3.540.3.2.2.0075.0.002121–0,7513143,1268100/500/1000
3.540.3.2.2.0075.0.002424–0,7514,4162,9310100/500/1000
3.540.3.2.2.0075.0.002525–0,7514,4169,5328100/500/1000
3.540.3.2.2.0075.0.002727–0,7514,7182,7339100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.2.2.0100.0.00022–16,32150100/500/1000
3.540.3.2.2.0100.0.00033–16,729,263100/500/1000
3.540.3.2.2.0100.0.00044–17,337,478100/500/1000
3.540.3.2.2.0100.0.00055–1845,797100/500/1000
3.540.3.2.2.0100.0.00066–18,653,9114100/500/1000
3.540.3.2.2.0100.0.00077–18,662,2120100/500/1000
3.540.3.2.2.0100.0.00088–19,570,4144100/500/1000
3.540.3.2.2.0100.0.00099–110,978,7163100/500/1000
3.540.3.2.2.0100.0.001010–110,987170100/500/1000
3.540.3.2.2.0100.0.001212–111,4103,5197100/500/1000
3.540.3.2.2.0100.0.001414–112120225100/500/1000
3.540.3.2.2.0100.0.001616–112,6136,5252100/500/1000
3.540.3.2.2.0100.0.001818–113,3153287100/500/1000
3.540.3.2.2.0100.0.001919–113,3161,2293100/500/1000
3.540.3.2.2.0100.0.002020–114169,5317100/500/1000
3.540.3.2.2.0100.0.002121–114177,7320100/500/1000
3.540.3.2.2.0100.0.002424–115,5202,5366100/500/1000
3.540.3.2.2.0100.0.002525–115,5210,7388100/500/1000
3.540.3.2.2.0100.0.002727–115,8227,2402100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.2.2.0150.0.00022–1,5730,264100/500/1000
3.540.3.2.2.0150.0.00033–1,57,44382100/500/1000
3.540.3.2.2.0150.0.00044–1,58,155,9103100/500/1000
3.540.3.2.2.0150.0.00055–1,58,968,7129100/500/1000
3.540.3.2.2.0150.0.00066–1,59,681,6151100/500/1000
3.540.3.2.2.0150.0.00077–1,59,694,4161100/500/1000
3.540.3.2.2.0150.0.00088–1,510,6107,3193100/500/1000
3.540.3.2.2.0150.0.00099–1,512,2120,2219100/500/1000
3.540.3.2.2.0150.0.001010–1,512,2133229100/500/1000
3.540.3.2.2.0150.0.001212–1,512,7158,7267100/500/1000
3.540.3.2.2.0150.0.001414–1,513,4184,5306100/500/1000
3.540.3.2.2.0150.0.001616–1,514,1210,2343100/500/1000
3.540.3.2.2.0150.0.001818–1,514,9235,9391100/500/1000
3.540.3.2.2.0150.0.001919–1,514,9248,8401100/500/1000
3.540.3.2.2.0150.0.002020–1,515,7261,6433100/500/1000
3.540.3.2.2.0150.0.002121–1,515,7274,5438100/500/1000
3.540.3.2.2.0150.0.002424–1,517,5313506100/500/1000
3.540.3.2.2.0150.0.002525–1,517,5325,9535100/500/1000
3.540.3.2.2.0150.0.002727–1,517,9351,6558100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.540.3.2.2.0250.0.00022–2,58,247,390100/500/1000
3.540.3.2.2.0250.0.00033–2,58,768,8119100/500/1000
3.540.3.2.2.0250.0.00044–2,59,690,2151100/500/1000
3.540.3.2.2.0250.0.00055–2,510,5111,6190100/500/1000
3.540.3.2.2.0250.0.00066–2,511,4133226100/500/1000
3.540.3.2.2.0250.0.00077–2,511,4154,4242100/500/1000
3.540.3.2.2.0250.0.00088–2,512,6175,9290100/500/1000
3.540.3.2.2.0250.0.00099–2,514,6197,3328100/500/1000
3.540.3.2.2.0250.0.001010–2,514,6218,7344100/500/1000
3.540.3.2.2.0250.0.001212–2,515,2261,6404100/500/1000
3.540.3.2.2.0250.0.001414–2,516,1304,5465100/500/1000
3.540.3.2.2.0250.0.001616–2,516,9347,3523100/500/1000
3.540.3.2.2.0250.0.001818–2,517,9390,2597100/500/1000
3.540.3.2.2.0250.0.001919–2,517,9411,6612100/500/1000
3.540.3.2.2.0250.0.002020–2,518,9433,1663100/500/1000
3.540.3.2.2.0250.0.002121–2,518,9454,5672100/500/1000
3.540.3.2.2.0250.0.002424–2,521,1518,8774100/500/1000
3.540.3.2.2.0250.0.002525–2,521,1540,2823100/500/1000
3.540.3.2.2.0250.0.002727–2,521,6583,1857100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Yeni sekmede açİndir

Notlar:
Elektromanyetik uyumluluk (EMC)
Renk kodu, istenildiği takdirde JZ, OZ, JB, OB olabilir.
Referans Standardı: DIN VDE 0812
