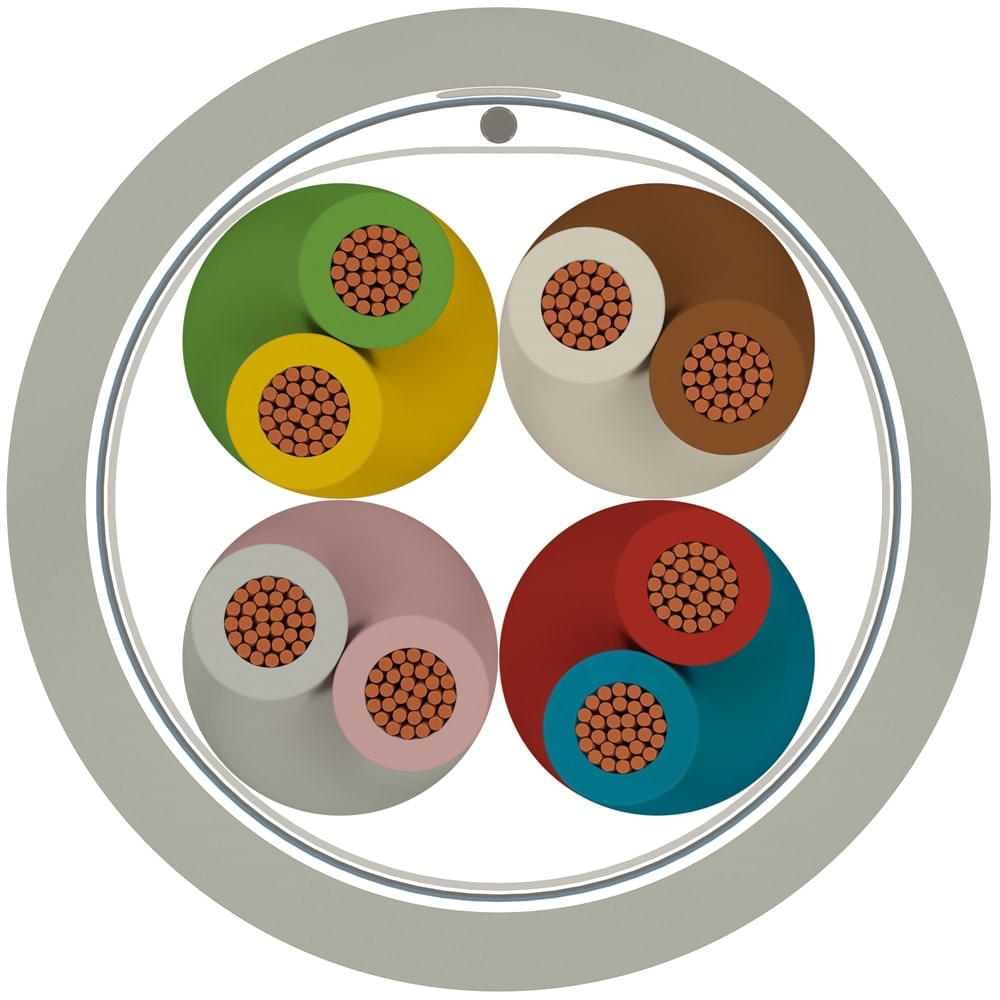

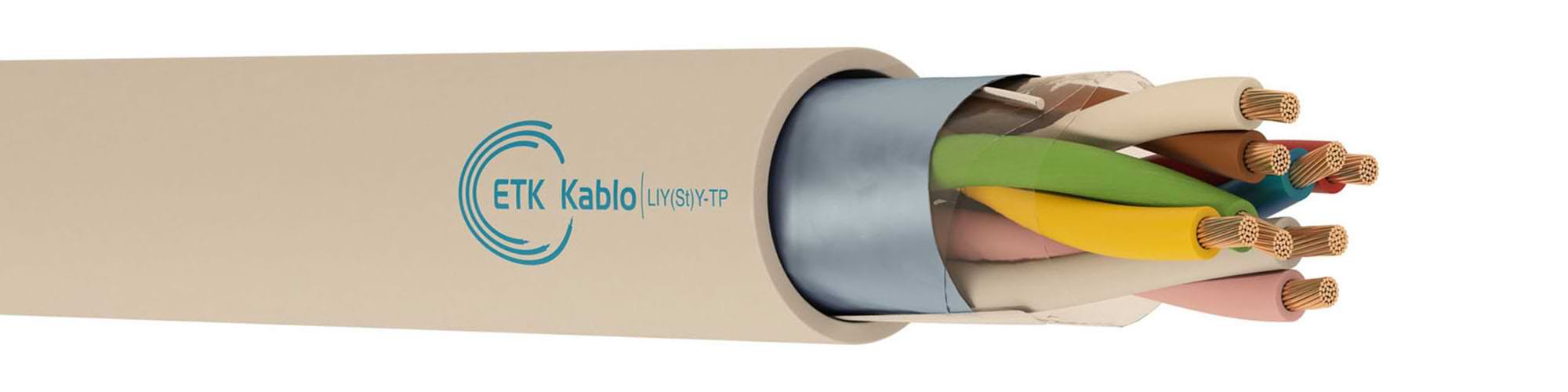

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Büküm:İzoleler çiftler veya üçlüler halinde ve tüm çiftler veya üçlü bükümler bir arada bükülür.
4 – Ayırıcı:Polyester bant
5 – Ekran:Kalaylı bakır toprak teli, Al/PET bant
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı PVC dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Alev Geciktiricilik Testi
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.541.2.2.2.0050.0.0001–10,55,11133100/500/1000
3.541.2.2.2.0050.0.0002–20,56,619,853100/500/1000
3.541.2.2.2.0050.0.0003–30,57,728,772100/500/1000
3.541.2.2.2.0050.0.0004–40,59,537,598100/500/1000
3.541.2.2.2.0050.0.0005–50,59,946,4114100/500/1000
3.541.2.2.2.0050.0.0006–60,510,555,2132100/500/1000
3.541.2.2.2.0050.0.0007–70,511,564153100/500/1000
3.541.2.2.2.0050.0.0008–80,51272,9170100/500/1000
3.541.2.2.2.0050.0.0009–90,512,781,7190100/500/1000
3.541.2.2.2.0050.0.0010–100,513,290,6207100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.541.2.2.2.0075.0.0001–10,755,517,742100/500/1000
3.541.2.2.2.0075.0.0002–20,757,330,969100/500/1000
3.541.2.2.2.0075.0.0003–30,758,444,295100/500/1000
3.541.2.2.2.0075.0.0004–40,7510,457,5126100/500/1000
3.541.2.2.2.0075.0.0005–50,7510,870,7147100/500/1000
3.541.2.2.2.0075.0.0006–60,7511,584171100/500/1000
3.541.2.2.2.0075.0.0007–70,7512,597,3198100/500/1000
3.541.2.2.2.0075.0.0008–80,7513110,5219100/500/1000
3.541.2.2.2.0075.0.0009–90,7513,8123,8245100/500/1000
3.541.2.2.2.0075.0.0010–100,7514,4137,1267100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.541.2.2.2.0100.0.0001–115,92148100/500/1000
3.541.2.2.2.0100.0.0002–217,937,681100/500/1000
3.541.2.2.2.0100.0.0003–319,154,1111100/500/1000
3.541.2.2.2.0100.0.0004–4111,270,7148100/500/1000
3.541.2.2.2.0100.0.0005–5111,787,3173100/500/1000
3.541.2.2.2.0100.0.0006–6112,5103,9203100/500/1000
3.541.2.2.2.0100.0.0007–7113,6120,5235100/500/1000
3.541.2.2.2.0100.0.0008–8114,2137,1260100/500/1000
3.541.2.2.2.0100.0.0009–9115153,7291100/500/1000
3.541.2.2.2.0100.0.0010–10115,6170,2318100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.541.2.2.2.0150.0.0001–11,56,630,262100/500/1000
3.541.2.2.2.0150.0.0002–21,58,856,1107100/500/1000
3.541.2.2.2.0150.0.0003–31,510,381,9149100/500/1000
3.541.2.2.2.0150.0.0004–41,512,6107,8199100/500/1000
3.541.2.2.2.0150.0.0005–51,513,2133,6234100/500/1000
3.541.2.2.2.0150.0.0006–61,514159,4274100/500/1000
3.541.2.2.2.0150.0.0007–71,515,3185,3318100/500/1000
3.541.2.2.2.0150.0.0008–81,516211,1354100/500/1000
3.541.2.2.2.0150.0.0009–91,516,9237396100/500/1000
3.541.2.2.2.0150.0.0010–101,517,6262,8434100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.541.2.2.2.0250.0.0001–12,57,847,588100/500/1000
3.541.2.2.2.0250.0.0002–22,510,690,5156100/500/1000
3.541.2.2.2.0250.0.0003–32,512,4133,6220100/500/1000
3.541.2.2.2.0250.0.0004–42,515,2176,7294100/500/1000
3.541.2.2.2.0250.0.0005–52,516219,7352100/500/1000
3.541.2.2.2.0250.0.0006–62,517262,8414100/500/1000
3.541.2.2.2.0250.0.0007–72,518,6305,9480100/500/1000
3.541.2.2.2.0250.0.0008–82,519,3349538100/500/1000
3.541.2.2.2.0250.0.0009–92,520,5392603100/500/1000
3.541.2.2.2.0250.0.0010–102,521,4435,1662100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Yeni sekmede açİndir

Notlar:
Elektromanyetik uyumluluk (EMC)
Renk kodu, istenildiği takdirde JZ, OZ, JB, OB olabilir.
Referans Standardı: DIN VDE 0812
