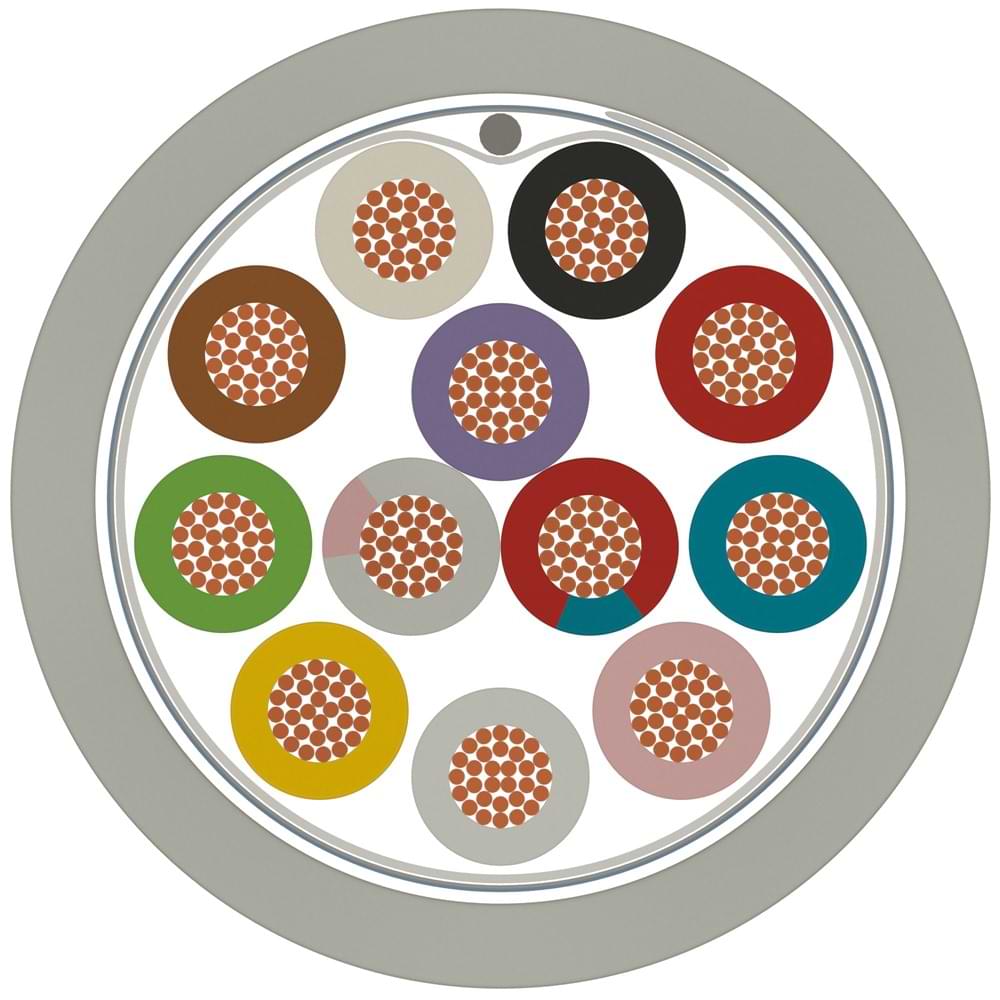

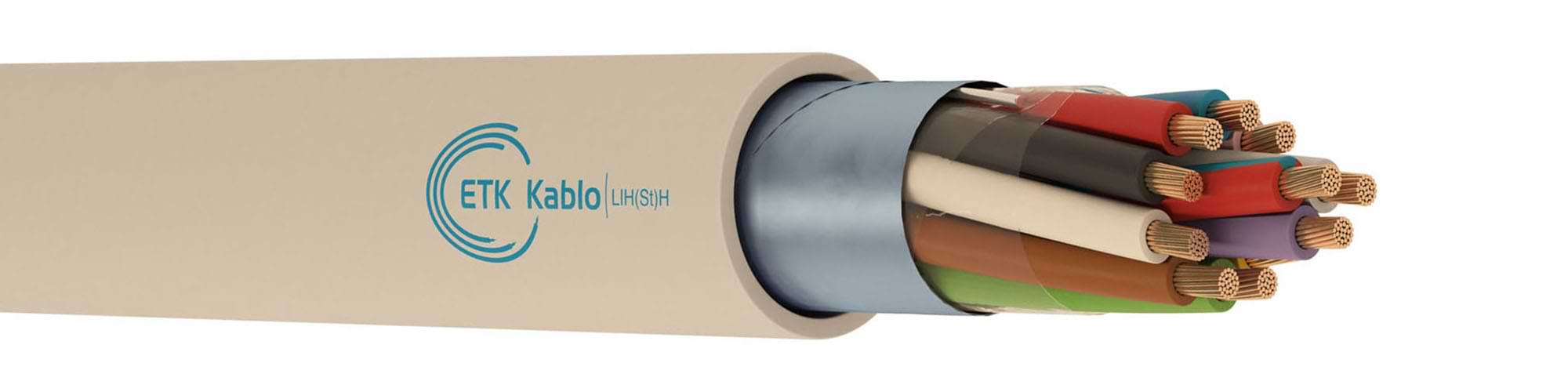

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Halojensiz (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Büküm:Katmanlar halinde
4 – Ayırıcı:Polyester bant
5 – Ekran:Kalaylı bakır toprak teli, Al/PET bant
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı halojensiz dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Duman Yoğunluğu TestiAşındırıcı Gaz TestiHalojensizlik tesiAlev Yayılım TestiAlev Geciktiricilik Testi
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.542.2.3.3.0022.0.00022–0,2246,419100/500/1000
3.542.2.3.3.0022.0.00033–0,224,28,623100/500/1000
3.542.2.3.3.0022.0.00044–0,224,510,727100/500/1000
3.542.2.3.3.0022.0.00055–0,224,912,832100/500/1000
3.542.2.3.3.0022.0.00066–0,225,31537100/500/1000
3.542.2.3.3.0022.0.00077–0,225,317,140100/500/1000
3.542.2.3.3.0022.0.00088–0,225,819,245100/500/1000
3.542.2.3.3.0022.0.00099–0,226,221,352100/500/1000
3.542.2.3.3.0022.0.001010–0,226,723,557100/500/1000
3.542.2.3.3.0022.0.001212–0,226,927,764100/500/1000
3.542.2.3.3.0022.0.001414–0,227,33273100/500/1000
3.542.2.3.3.0022.0.001616–0,227,736,382100/500/1000
3.542.2.3.3.0022.0.001818–0,228,140,690100/500/1000
3.542.2.3.3.0022.0.001919–0,228,142,793100/500/1000
3.542.2.3.3.0022.0.002020–0,228,644,8100100/500/1000
3.542.2.3.3.0022.0.002121–0,228,647103100/500/1000
3.542.2.3.3.0022.0.002424–0,229,553,4119100/500/1000
3.542.2.3.3.0022.0.002525–0,229,555,5122100/500/1000
3.542.2.3.3.0022.0.002727–0,229,759,8129100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.542.2.3.3.0025.0.00022–0,254,2721100/500/1000
3.542.2.3.3.0025.0.00033–0,254,49,425100/500/1000
3.542.2.3.3.0025.0.00044–0,254,711,830100/500/1000
3.542.2.3.3.0025.0.00055–0,255,214,236100/500/1000
3.542.2.3.3.0025.0.00066–0,255,616,641100/500/1000
3.542.2.3.3.0025.0.00077–0,255,618,944100/500/1000
3.542.2.3.3.0025.0.00088–0,256,121,350100/500/1000
3.542.2.3.3.0025.0.00099–0,256,623,757100/500/1000
3.542.2.3.3.0025.0.001010–0,257,126,163100/500/1000
3.542.2.3.3.0025.0.001212–0,257,330,971100/500/1000
3.542.2.3.3.0025.0.001414–0,257,735,781100/500/1000
3.542.2.3.3.0025.0.001616–0,258,240,692100/500/1000
3.542.2.3.3.0025.0.001818–0,258,645,4101100/500/1000
3.542.2.3.3.0025.0.001919–0,258,647,8104100/500/1000
3.542.2.3.3.0025.0.002020–0,259,150,2112100/500/1000
3.542.2.3.3.0025.0.002121–0,259,152,6115100/500/1000
3.542.2.3.3.0025.0.002424–0,2510,159,8133100/500/1000
3.542.2.3.3.0025.0.002525–0,2510,162,2137100/500/1000
3.542.2.3.3.0025.0.002727–0,2510,367145100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.542.2.3.3.0034.0.00022–0,344,88,827100/500/1000
3.542.2.3.3.0034.0.00033–0,34512,233100/500/1000
3.542.2.3.3.0034.0.00044–0,345,415,539100/500/1000
3.542.2.3.3.0034.0.00055–0,345,918,847100/500/1000
3.542.2.3.3.0034.0.00066–0,346,422,254100/500/1000
3.542.2.3.3.0034.0.00077–0,346,425,558100/500/1000
3.542.2.3.3.0034.0.00088–0,34728,866100/500/1000
3.542.2.3.3.0034.0.00099–0,34832,176100/500/1000
3.542.2.3.3.0034.0.001010–0,348,135,583100/500/1000
3.542.2.3.3.0034.0.001212–0,348,342,294100/500/1000
3.542.2.3.3.0034.0.001414–0,348,848,8107100/500/1000
3.542.2.3.3.0034.0.001616–0,349,255,5119100/500/1000
3.542.2.3.3.0034.0.001818–0,349,862,2133100/500/1000
3.542.2.3.3.0034.0.001919–0,349,865,5138100/500/1000
3.542.2.3.3.0034.0.002020–0,3410,468,8148100/500/1000
3.542.2.3.3.0034.0.002121–0,3410,472,2153100/500/1000
3.542.2.3.3.0034.0.002424–0,3411,682,2179100/500/1000
3.542.2.3.3.0034.0.002525–0,3411,685,5184100/500/1000
3.542.2.3.3.0034.0.002727–0,3411,892,2195100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.542.2.3.3.0050.0.00022–0,55,31133100/500/1000
3.542.2.3.3.0050.0.00033–0,55,615,440100/500/1000
3.542.2.3.3.0050.0.00044–0,5619,848100/500/1000
3.542.3.3.3.0050.0.00055–0,56,524,258100/500/1000
3.542.3.3.3.0050.0.00066–0,57,128,669100/500/1000
3.542.3.3.3.0050.0.00077–0,57,13373100/500/1000
3.542.3.3.3.0050.0.00088–0,57,837,488100/500/1000
3.542.3.3.3.0050.0.00099–0,5941,8100100/500/1000
3.542.3.3.3.0050.0.001010–0,5946,2103100/500/1000
3.542.3.3.3.0050.0.001212–0,59,455120100/500/1000
3.542.3.3.3.0050.0.001414–0,59,963,8137100/500/1000
3.542.3.3.3.0050.0.001616–0,510,472,6152100/500/1000
3.542.3.3.3.0050.0.001818–0,510,981,4170100/500/1000
3.542.3.3.3.0050.0.001919–0,510,985,8174100/500/1000
3.542.3.3.3.0050.0.002020–0,511,690,2191100/500/1000
3.542.3.3.3.0050.0.002121–0,511,694,6192100/500/1000
3.542.3.3.3.0050.0.002424–0,512,7107,8218100/500/1000
3.542.3.3.3.0050.0.002525–0,512,9112,2236100/500/1000
3.542.3.3.3.0050.0.002727–0,513,1121245100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.542.2.3.3.0075.0.00022–0,755,917,743100/500/1000
3.542.2.3.3.0075.0.00033–0,756,224,353100/500/1000
3.542.2.3.3.0075.0.00044–0,756,830,966100/500/1000
3.542.3.3.3.0075.0.00055–0,757,537,481100/500/1000
3.542.3.3.3.0075.0.00066–0,7584494100/500/1000
3.542.3.3.3.0075.0.00077–0,75850,699100/500/1000
3.542.3.3.3.0075.0.00088–0,758,857,2118100/500/1000
3.542.3.3.3.0075.0.00099–0,7510,163,8134100/500/1000
3.542.3.3.3.0075.0.001010–0,7510,170,4139100/500/1000
3.542.3.3.3.0075.0.001212–0,7510,583,7161100/500/1000
3.542.3.3.3.0075.0.001414–0,7511,196,9184100/500/1000
3.542.3.3.3.0075.0.001616–0,7511,7110,1205100/500/1000
3.542.3.3.3.0075.0.001818–0,7512,3123,3232100/500/1000
3.542.3.3.3.0075.0.001919–0,7512,3129,9237100/500/1000
3.542.3.3.3.0075.0.002020–0,7513136,5255100/500/1000
3.542.3.3.3.0075.0.002121–0,7513143,1259100/500/1000
3.542.3.3.3.0075.0.002424–0,7514,4162,9300100/500/1000
3.542.3.3.3.0075.0.002525–0,7514,4169,5315100/500/1000
3.542.3.3.3.0075.0.002727–0,7514,7182,7328100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.542.2.3.3.0100.0.00022–16,32149100/500/1000
3.542.2.3.3.0100.0.00033–16,729,262100/500/1000
3.542.3.3.3.0100.0.00044–17,337,476100/500/1000
3.542.3.3.3.0100.0.00055–1845,794100/500/1000
3.542.3.3.3.0100.0.00066–18,653,9110100/500/1000
3.542.3.3.3.0100.0.00077–18,662,2116100/500/1000
3.542.3.3.3.0100.0.00088–19,570,4139100/500/1000
3.542.3.3.3.0100.0.00099–110,978,7158100/500/1000
3.542.3.3.3.0100.0.001010–110,987165100/500/1000
3.542.3.3.3.0100.0.001212–111,4103,5191100/500/1000
3.542.3.3.3.0100.0.001414–112120218100/500/1000
3.542.3.3.3.0100.0.001616–112,6136,5243100/500/1000
3.542.3.3.3.0100.0.001818–113,3153276100/500/1000
3.542.3.3.3.0100.0.001919–113,3161,2283100/500/1000
3.542.3.3.3.0100.0.002020–114169,5305100/500/1000
3.542.3.3.3.0100.0.002121–114177,7308100/500/1000
3.542.3.3.3.0100.0.002424–115,5202,5353100/500/1000
3.542.3.3.3.0100.0.002525–115,5210,7373100/500/1000
3.542.3.3.3.0100.0.002727–115,8227,2388100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.542.3.3.3.0150.0.00022–1,5730,263100/500/1000
3.542.3.3.3.0150.0.00033–1,57,44381100/500/1000
3.542.3.3.3.0150.0.00044–1,58,155,9101100/500/1000
3.542.3.3.3.0150.0.00055–1,58,968,7125100/500/1000
3.542.3.3.3.0150.0.00066–1,59,681,6147100/500/1000
3.542.3.3.3.0150.0.00077–1,59,694,4157100/500/1000
3.542.3.3.3.0150.0.00088–1,510,6107,3187100/500/1000
3.542.3.3.3.0150.0.00099–1,512,2120,2213100/500/1000
3.542.3.3.3.0150.0.001010–1,512,2133223100/500/1000
3.542.3.3.3.0150.0.001212–1,512,7158,7260100/500/1000
3.542.3.3.3.0150.0.001414–1,513,4184,5298100/500/1000
3.542.3.3.3.0150.0.001616–1,514,1210,2334100/500/1000
3.542.3.3.3.0150.0.001818–1,514,9235,9378100/500/1000
3.542.3.3.3.0150.0.001919–1,514,9248,8389100/500/1000
3.542.3.3.3.0150.0.002020–1,515,7261,6419100/500/1000
3.542.3.3.3.0150.0.002121–1,515,7274,5425100/500/1000
3.542.3.3.3.0150.0.002424–1,517,5313491100/500/1000
3.542.3.3.3.0150.0.002525–1,517,5325,9517100/500/1000
3.542.3.3.3.0150.0.002727–1,517,9351,6541100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.542.2.3.3.0250.0.00022–2,58,247,389100/500/1000
3.542.2.3.3.0250.0.00033–2,58,768,8116100/500/1000
3.542.2.3.3.0250.0.00044–2,59,690,2148100/500/1000
3.542.3.3.3.0250.0.00055–2,510,5111,6184100/500/1000
3.542.3.3.3.0250.0.00066–2,511,4133219100/500/1000
3.542.3.3.3.0250.0.00077–2,511,4154,4236100/500/1000
3.542.3.3.3.0250.0.00088–2,512,6175,9281100/500/1000
3.542.3.3.3.0250.0.00099–2,514,6197,3318100/500/1000
3.542.3.3.3.0250.0.001010–2,514,6218,7335100/500/1000
3.542.3.3.3.0250.0.001212–2,515,2261,6392100/500/1000
3.542.3.3.3.0250.0.001414–2,516,1304,5452100/500/1000
3.542.3.3.3.0250.0.001616–2,516,9347,3508100/500/1000
3.542.3.3.3.0250.0.001818–2,517,9390,2577100/500/1000
3.542.3.3.3.0250.0.001919–2,517,9411,6594100/500/1000
3.542.3.3.3.0250.0.002020–2,518,9433,1640100/500/1000
3.542.3.3.3.0250.0.002121–2,518,9454,5651100/500/1000
3.542.3.3.3.0250.0.002424–2,521,1518,8751100/500/1000
3.542.3.3.3.0250.0.002525–2,521,1540,2794100/500/1000
3.542.3.3.3.0250.0.002727–2,521,6583,1831100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Yeni sekmede açİndir

Notlar:
Elektromanyetik uyumluluk (EMC)
Renk kodu, istenildiği takdirde JZ, OZ, JB, OB olabilir.
Referans Standardı: DIN VDE 0812
