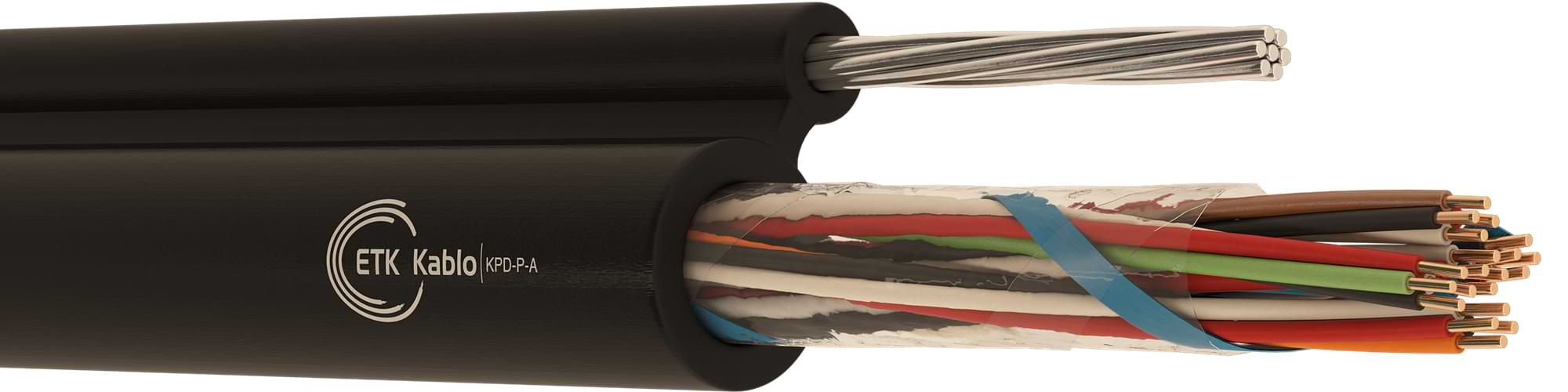

A-02YST2Y Outdoor Telephone Cable

Product Code: KPD-P-A

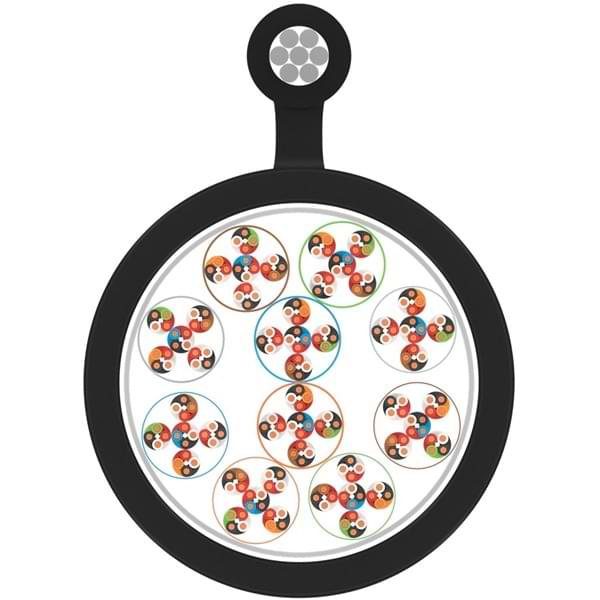

1 – Conductor:Electrolytic annealed solid copper (CCITT Yellow Book Vol. III-2-G.541 B article, IEC 28 and ASTM B 3).
2 – Insulation:Color coded foam skin polyethylene cladded with solid polyethylene (BS 6234 Type 03 – ASTM D 1248).
3 – Stranding:Star quads or pairs are assembled into 10 pairs units. Groups having 25, 50 or 100 pairs are stranded together.
4 – Wrapping:A non-hygroscopic and dielectric polyester tape is applied on the cable core longitudinally or helically.
5 – Messenger Wire:Galvanized steel messenger wire (ASTM A 475-66T).
6 – Outer Jacket:Linear low-density or medium-density, UV resistant black polyethylene outer jacket (ASTM D 1248).
Conductor Diameter
0.40 mm 0.50 mm 0.60 mm 0.63 mm 0.65 mm 0.80 mm 0.90 mm
Conductor Resistance Ω/km (20 °C)
Maximum Average 139,4 89,4 62,1 58573527,6
Maximum Individual 146,6 9364,6 60583728,8
Insulation Resistance MΩ/km (500 VDC) >10000 >10000 >15000 >15000 >15000 >15000 >15000
Mutual Capacitance nF/km (800 Hz)
Maximum Average 50504545454545
Maximum Individual 56565151515151
Capacitance Unbalance pF/500 m
Between Pairs
Maximum Average 1251256060606060
Maximum Individual 350350325325325325325
Between Adjacent Quads
Maximum Average 1251256060606060
Maximum Individual 275275270270270270270
To Screen
Maximum Average 500500325325325325325
Maximum Individual 2000200013001300130013001300
Dielectric Strength
V (DC, 1 minute)
Pair – Pair 1400140020002000200024003000
Pair – Screen 1400140020002000200024003000
KPD-P-A – PD-P-A (Quad)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.131.4.5.1.0040.0.0002–20,44,24,8401000/2000
3.131.4.5.1.0040.0.0004–40,459,5501000/2000
3.131.4.5.1.0040.0.0006–60,46,214,3621000/2000
3.131.4.5.1.0040.0.0010–100,46,423,7741000/2000
KPD-P-A – PD-P-A (Quad)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.131.4.5.1.0050.0.0002–20,54,47,5431000/2000
3.131.4.5.1.0050.0.0004–40,55,614,9791000/2000
3.131.4.5.1.0050.0.0006–60,56,722,3921000/2000
3.131.4.5.1.0050.0.0010–100,56,937,11171000/2000
