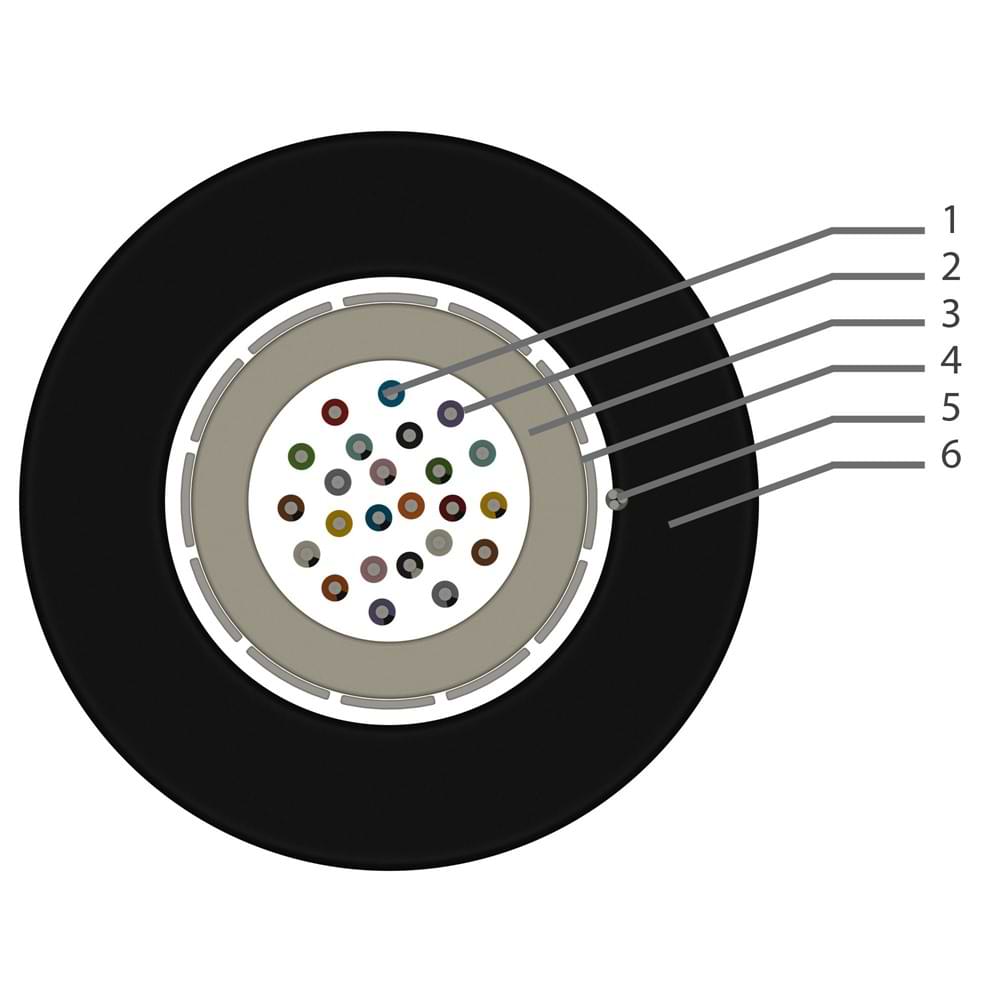

1 – Optical fiber core ¹
2 – Waterproof thixotropic jelly
3 – PBT Tube
4 – Non-metallic strength member (Glass yarn and aramid yarn)
5 – Ripcord
6 – UV resistant polyethylene (HDPE) black outer jacket

Part NumberCore TypeCore CountTube CountTube Diameter (mm)Cable Diameter (mm)Cable Weight (kg/km)
3.200.0.6.1.0900.3.0002SM G.652.D213,47,456
3.200.0.6.1.0900.3.0004SM G.652.D413,47,456
3.200.0.6.1.0900.3.0006SM G.652.D613,47,456
3.200.0.6.1.0900.3.0008SM G.652.D813,47,456
3.200.0.6.1.0900.3.0012SM G.652.D1213,47,456
Part NumberCore TypeCore CountTube CountTube Diameter (mm)Cable Diameter (mm)Cable Weight (kg/km)
3.200.0.6.1.0625.3.0002OM1213,47,456
3.200.0.6.1.0625.3.0004OM1413,47,456
3.200.0.6.1.0625.3.0006OM1613,47,456
3.200.0.6.1.0625.3.0008OM1813,47,456
3.200.0.6.1.0625.3.0012OM11213,47,456
Part NumberCore TypeCore CountTube CountTube Diameter (mm)Cable Diameter (mm)Cable Weight (kg/km)
3.200.0.6.1.0502.3.0002OM2213,47,456
3.200.0.6.1.0502.3.0004OM2413,47,456
3.200.0.6.1.0502.3.0006OM2613,47,456
3.200.0.6.1.0502.3.0008OM2813,47,456
3.200.0.6.1.0502.3.0012OM21213,47,456
Part NumberCore TypeCore CountTube CountTube Diameter (mm)Cable Diameter (mm)Cable Weight (kg/km)
3.200.0.6.1.0503.3.0002OM3213,47,456
3.200.0.6.1.0503.3.0004OM3413,47,456
3.200.0.6.1.0503.3.0006OM3613,47,456
3.200.0.6.1.0503.3.0008OM3813,47,456
3.200.0.6.1.0503.3.0012OM31213,47,456
Test Standard Specified Value Acceptance Criteria
Maximum Installation Tension ² IEC 60794-1-2-E1 1.5 x W(N), min. 3000 N Fiber strain ≤ 0.33%
Maximum Operation Tension IEC 60794-1-2-E1 0.5 x W(N), min. 1000 N Δα ≤ 0.05 dB, No fiber strain
Crush Strength IEC 60794-1-2-E3 1500 N / 100 mm, max. 15 min. Δα ≤ 0.05 dB, No damage
Impact IEC 60794-1-2-E4 10 Nm, 3 impacts, R= 300 mm Δα ≤ 0.05 dB after the test
Torsion IEC 60794-1-2-E7 1 m. 100N, +/- 180°, 10 cycles Δα ≤ 0.05 dB, No damage
Repeated Bending IEC 60794-1-2-E6 R=20x D, 100 N, 35 cycles No damage
Bending Radius IEC 60794-1-2-E11 R=20x D, 4 turns, 3 cycles Δα ≤ 0.05 dB, No damage
Temperature Cycling IEC 60794-1-2-F1 -20°C to +70°C Δα ≤ 0.05 dB/km
Waterproofness IEC 60794-1-2-F5B Sample= 3 m, water column= 1 m No water leakage in 24 hours.
Minimum Bending Radius
Operation20 x kablo Ø
Fixed15 x kablo Ø
Temperature Range
Storage-40°C to +70°CInstallation-30°C to +60°C
Transport-40°C to +70°COperating-20°C to +70°C
MarkingETK Kablo – Date of Manufacture – Fiber Count and Type – Length Marking
PackingWooden drum with protection
Delivery Lengths2 km, 4 km ± %5 tolerance
