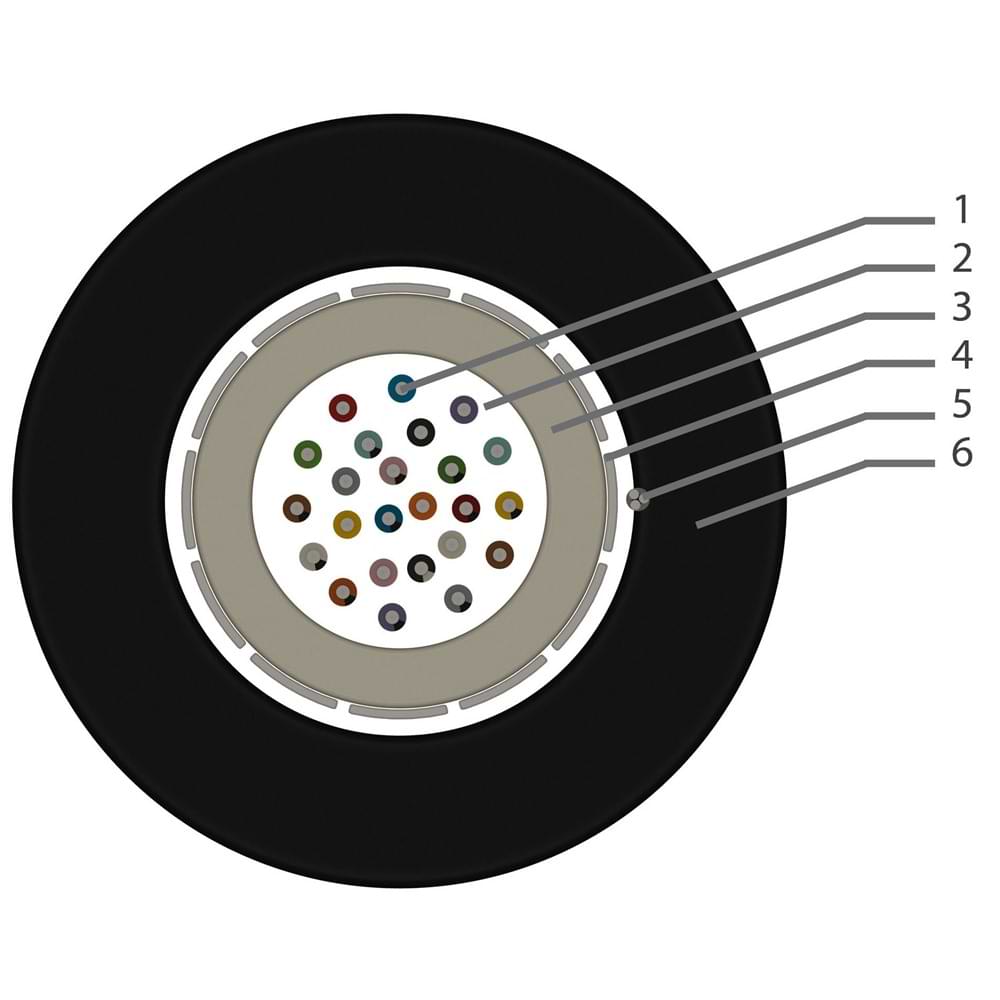

1 – Optical fiber core ¹
2 – Waterproof thixotropic jelly
3 – PBT Tube
4 – Non-metallic strength member (Glass yarn)
5 – Ripcord
6 – UV resistant polyethylene (HDPE) black outer jacket

Part NumberCore TypeCore CountTube CountTube Diameter (mm)Cable Diameter (mm)Cable Weight (kg/km)
3.200.0.6.1.0900.0.0002SM G.652.D213,47,146
3.200.0.6.1.0900.0.0004SM G.652.D413,47,146
3.200.0.6.1.0900.0.0006SM G.652.D613,47,146
3.200.0.6.1.0900.0.0008SM G.652.D813,47,146
3.200.0.6.1.0900.0.0012SM G.652.D1213,47,146
3.200.0.6.1.0900.0.0016SM G.652.D1614,2859
3.200.0.6.1.0900.0.0020SM G.652.D2014,2859
3.200.0.6.1.0900.0.0024SM G.652.D2414,2859
Part NumberCore TypeCore CountTube CountTube Diameter (mm)Cable Diameter (mm)Cable Weight (kg/km)
3.200.0.6.1.0625.0.0002OM1213,47,146
3.200.0.6.1.0625.0.0004OM1413,47,146
3.200.0.6.1.0625.0.0006OM1613,47,146
3.200.0.6.1.0625.0.0008OM1813,47,146
3.200.0.6.1.0625.0.0012OM11213,47,146
3.200.0.6.1.0625.0.0016OM11614,2860
3.200.0.6.1.0625.0.0020OM12014,2859
3.200.0.6.1.0625.0.0024OM12414,2859
Part NumberCore TypeCore CountTube CountTube Diameter (mm)Cable Diameter (mm)Cable Weight (kg/km)
3.200.0.6.1.0502.0.0002OM2213,47,146
3.200.0.6.1.0502.0.0004OM2413,47,146
3.200.0.6.1.0502.0.0006OM2613,47,146
3.200.0.6.1.0502.0.0008OM2813,47,146
3.200.0.6.1.0502.0.0012OM21213,47,146
3.200.0.6.1.0502.0.0016OM21614,2860
3.200.0.6.1.0502.0.0020OM22014,2860
3.200.0.6.1.0502.0.0024OM22414,2859
Part NumberCore TypeCore CountTube CountTube Diameter (mm)Cable Diameter (mm)Cable Weight (kg/km)
3.200.0.6.1.0503.0.0002OM3213,47,146
3.200.0.6.1.0503.0.0004OM3413,47,146
3.200.0.6.1.0503.0.0006OM3613,47,146
3.200.0.6.1.0503.0.0008OM3813,47,146
3.200.0.6.1.0503.0.0012OM31213,47,146
3.200.0.6.1.0503.0.0016OM31614,2860
3.200.0.6.1.0503.0.0020OM32014,2859
3.200.0.6.1.0503.0.0024OM32414,2859
Test StandardSpecified ValueAcceptance Criteria
Maximum Installation Tension ²IEC 60794-1-2-E11.0 x W(N), min. 1200 NFiber strain ≤ 0.33%
Maximum Operation TensionIEC 60794-1-2-E1400 NΔα ≤ 0.05 dB, No fiber strain
Crush StrengthIEC 60794-1-2-E31500 N / 100 mm, max. 15 min.Δα ≤ 0.05 dB, No damage
ImpactIEC 60794-1-2-E410 Nm, 3 impacts, R= 300 mmΔα ≤ 0.05 dB after the test
TorsionIEC 60794-1-2-E71 m. 100N, +/- 180°, 10 cyclesΔα ≤ 0.05 dB, No damage
Repeated BendingIEC 60794-1-2-E6R=20x D, 100 N, 35 cyclesNo damage
Bending RadiusIEC 60794-1-2-E11R=20x D, 4 turns, 3 cyclesΔα ≤ 0.05 dB, No damage
Temperature CyclingIEC 60794-1-2-F1-20°C to +70°CΔα ≤ 0.05 dB/km
WaterproofnessIEC 60794-1-2-F5BSample= 3 m, water column= 1 mNo water leakage in 24 hours.
Minimum Bending Radius
Operation20 x cable Ø
Fixed15 x cable Ø
Temperature Range
Storage-40°C to +70°CInstallation-30°C to +60°C
Transport-40°C to +70°COperating-20°C to +70°C
MarkingETK Kablo – Date of Manufacture – Fiber Count and Type – Length Marking
PackingWooden drum with protection
Delivery Lengths2 km, 4 km ± %5 tolerance
