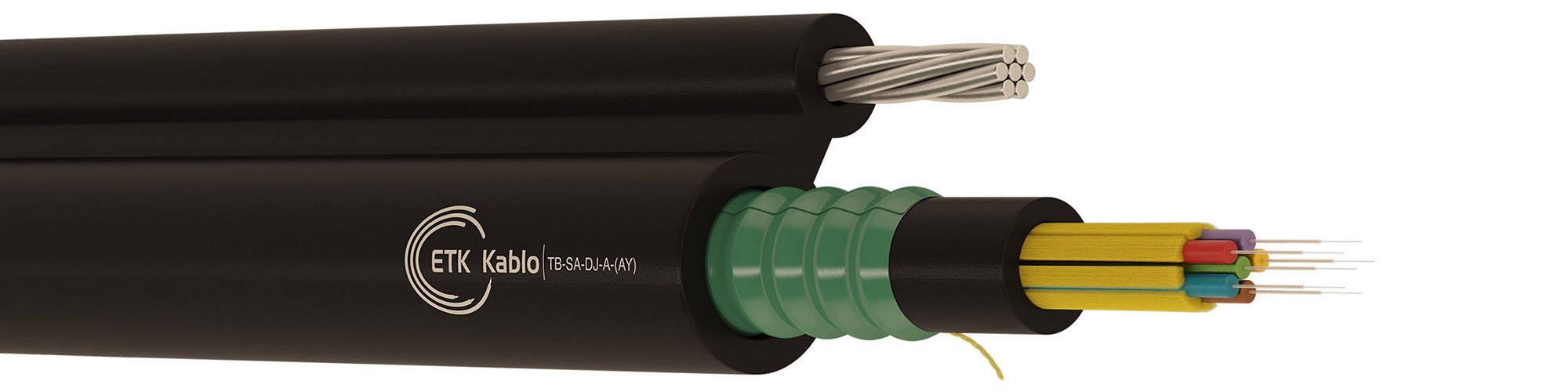

A-V(ZN)H(SR)T2Y Fiber Optic Cable

Product Code: TB-SA-DJ-A

1 – Optik fiber lif ¹
2 – 900 mikron çapında LSOH izolasyon
3 – Metal içermeyen mukavemet elemanı (Glass veya aramid yarn)
4 – Ultraviyole ışınlara dayanıklı halojensiz (LSOH) siyah iç kılıf.
5 – Soyma ipi
6 – Korüge çelik bant
7 – Askı köprüsü
Part NumarasıLif CinsiFiber SayısıKablo Çapı (mm)Ortalama Ağırlık (kg/km)
4.296.0.3.1.0900.0.0002SM G.652.D210,8170
4.296.0.3.1.0900.0.0004SM G.652.D411,2179
4.296.0.3.1.0900.0.0006SM G.652.D611,7190
4.296.0.3.1.0900.0.0008SM G.652.D812,2202
4.296.0.3.1.0900.0.0012SM G.652.D1212,9214
Part NumarasıLif CinsiFiber SayısıKablo Çapı (mm)Ortalama Ağırlık (kg/km)
4.296.0.3.1.0625.0.0002OM1210,8170
4.296.0.3.1.0625.0.0004OM1411,2179
4.296.0.3.1.0625.0.0006OM1611,7190
4.296.0.3.1.0625.0.0008OM1812,2202
4.296.0.3.1.0625.0.0012OM11212,9214
Part NumarasıLif CinsiFiber SayısıKablo Çapı (mm)Ortalama Ağırlık (kg/km)
4.296.0.3.1.0502.0.0002OM2210,8170
4.296.0.3.1.0502.0.0004OM2411,2179
4.296.0.3.1.0502.0.0006OM2611,7190
4.296.0.3.1.0502.0.0008OM2812,2202
4.296.0.3.1.0502.0.0012OM21212,9214
Part NumarasıLif CinsiFiber SayısıKablo Çapı (mm)Ortalama Ağırlık (kg/km)
4.296.0.3.1.0503.0.0002OM3210,8170
4.296.0.3.1.0503.0.0004OM3411,2179
4.296.0.3.1.0503.0.0006OM3611,7190
4.296.0.3.1.0503.0.0008OM3812,2202
4.296.0.3.1.0503.0.0012OM31212,9214
Test StandardıŞartname DeğeriKabul Kriteri
Maksimum Germe Kuvveti ²IEC 60794-1-2-E11.0 x W(N), min. 1500 NFiber uzaması ≤ 0.33%
Maksimum Çalışma KuvvetiIEC 60794-1-2-E10.5 x W(N), min. 750 NΔα ≤ 0.05 dB, fiber uzaması yok
Ezme MukavemetiIEC 60794-1-2-E31000 N / 100 mm, maks. 10 minΔα ≤ 0.05 dB, hasar yok
Darbe MukavemetiIEC 60794-1-2-E410 Nm, 3 darbe, R= 300 mmΔα ≤ 0.05 dB test sonrası
Burulma DayanımıIEC 60794-1-2-E71 m, 100N, +/- 180°, 5 çevrimΔα ≤ 0.05 dB, hasar yok
Tekrar Eden BükülmeIEC 60794-1-2-E6R=20x D, 100 N, 5 çevrimHasar yok
Bükülme ÇapıIEC 60794-1-2-E11R=20x D, 4 döndürme, 3 çevrimΔα ≤ 0.05 dB, hasar yok
Sıcaklık DöngüsüIEC 60794-1-2-F1-20°C to +70°CΔα ≤ 0.05 dB/km
Su Sızdırmazlık
Minimum Bükme Yarıçapı
Hareketli20 x kablo Ø
Sabit15 x kablo Ø
Sıcaklık Aralığı
Depolama-40°C to +70°CKurulum-30°C to +60°C
Taşıma-40°C to +70°CÇalışma-40°C to +70°C
MarkalamaETK Kablo – Üretim Yılı – Fiber Sayısı ve Tipi – Boy İşaretleme Metresi
PaketlemeKorumalı ahşap makara
Sevk Boyları2 km, 4 km ± %5 tolerans
Open in a new tabİndir

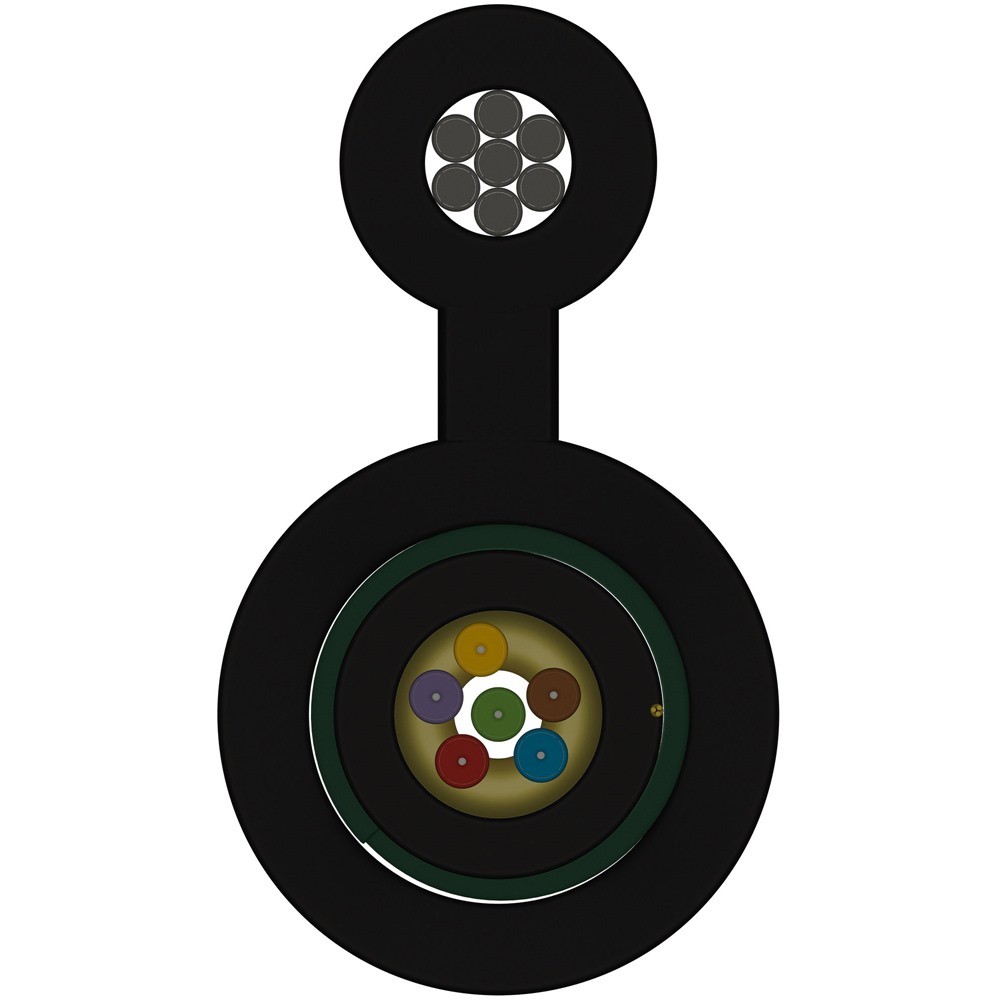

1 – Optical fiber core ¹
2 – HFFR insulated tight-buffered fiber of 900 μm diameter
3 – Non-metallic strength member (Glass yarn or aramid yarn)
4 – UV resistant halogen-free (LSOH) black inner jacket.
5 – Ripcord
6 – Corrugated steel tape
7 – Web
8 – Steel messenger wire
9 – UV resistant halogen-free (LSOH) outer jacket

Part NumberCore TypeFiber CountCable Diameter (mm)Cable Weight (kg/km)
4.296.0.3.1.0900.0.0002SM G.652.D210,8170
4.296.0.3.1.0900.0.0004SM G.652.D411,2179
4.296.0.3.1.0900.0.0006SM G.652.D611,7190
4.296.0.3.1.0900.0.0008SM G.652.D812,2202
4.296.0.3.1.0900.0.0012SM G.652.D1212,9214
Part NumberCore TypeFiber CountCable Diameter (mm)Cable Weight (kg/km)
4.296.0.3.1.0625.0.0002OM1210,8170
4.296.0.3.1.0625.0.0004OM1411,2179
4.296.0.3.1.0625.0.0006OM1611,7190
4.296.0.3.1.0625.0.0008OM1812,2202
4.296.0.3.1.0625.0.0012OM11212,9214
Part NumberCore TypeFiber CountCable Diameter (mm)Cable Weight (kg/km)
4.296.0.3.1.0502.0.0002OM2210,8170
4.296.0.3.1.0502.0.0004OM2411,2179
4.296.0.3.1.0502.0.0006OM2611,7190
4.296.0.3.1.0502.0.0008OM2812,2202
4.296.0.3.1.0502.0.0012OM21212,9214
Part NumberCore TypeFiber CountCable Diameter (mm)Cable Weight (kg/km)
4.296.0.3.1.0503.0.0002OM3210,8170
4.296.0.3.1.0503.0.0004OM3411,2179
4.296.0.3.1.0503.0.0006OM3611,7190
4.296.0.3.1.0503.0.0008OM3812,2202
4.296.0.3.1.0503.0.0012OM31212,9214
Test StandardSpecified ValueAcceptance Criteria
Maximum Installation Tension ²IEC 60794-1-2-E11.0 x W(N), min. 1500 NFiber strainı ≤ 0.33%
Maximum Operation TensionIEC 60794-1-2-E10.5 x W(N), min. 750 NΔα ≤ 0.05 dB, No fiber strain
Crush StrengthIEC 60794-1-2-E31000 N / 100 mm, maks. 10 minΔα ≤ 0.05 dB, No damage
ImpactIEC 60794-1-2-E410 Nm, 3 impacts, R= 300 mmΔα ≤ 0.05 dB after the test
TorsionIEC 60794-1-2-E71 m, 100N, +/- 180°, 10 cyclesΔα ≤ 0.05 dB, No damage
Repeated BendingIEC 60794-1-2-E6R=20x D, 100 N, 35 cyclesNo damage
Bending RadiusIEC 60794-1-2-E11R=20x D, 4 turns, 3 cyclesΔα ≤ 0.05 dB, No damage
Temperature CyclingIEC 60794-1-2-F1-20°C to +70°CΔα ≤ 0.05 dB/km
Minimum Bending Radius
Operation20 x cable Ø
Fixed15 x cable Ø
Temperature Range
Storage-40°C to + 70°CInstallation-30°C to +60°C
Transport-40°C to + 70°COperating-40°C to +70°C
MarkingETK Kablo – Date of Manufacture – Fiber Count and Type – Length Marking
PackingWooden drum with protection
Delivery Lengths2 km, 4 km ± %5 tolerance
