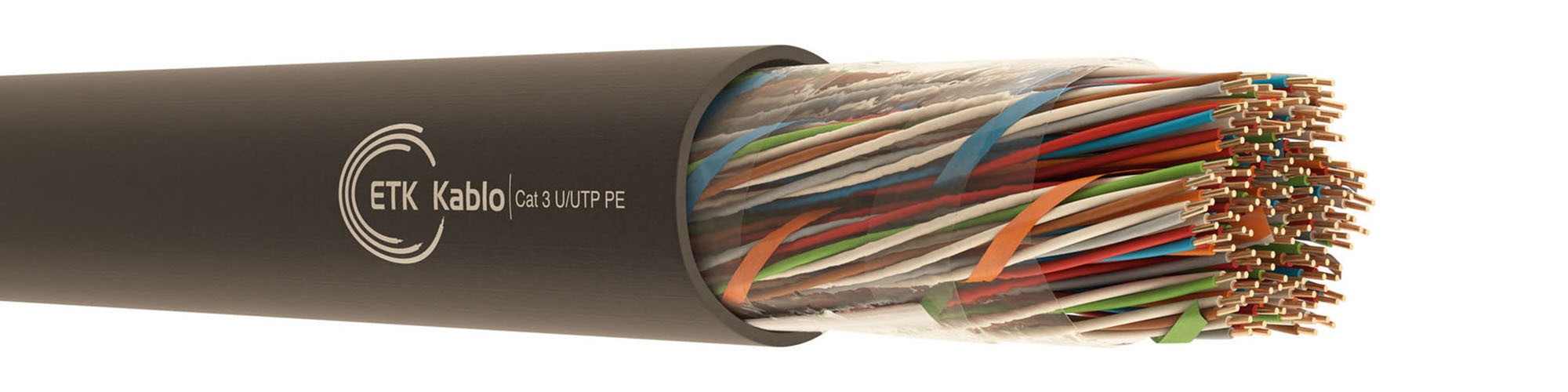

Cat 3 U/UTP PE Ethernet Cable

Product Code: Cat 3 U/UTP PE

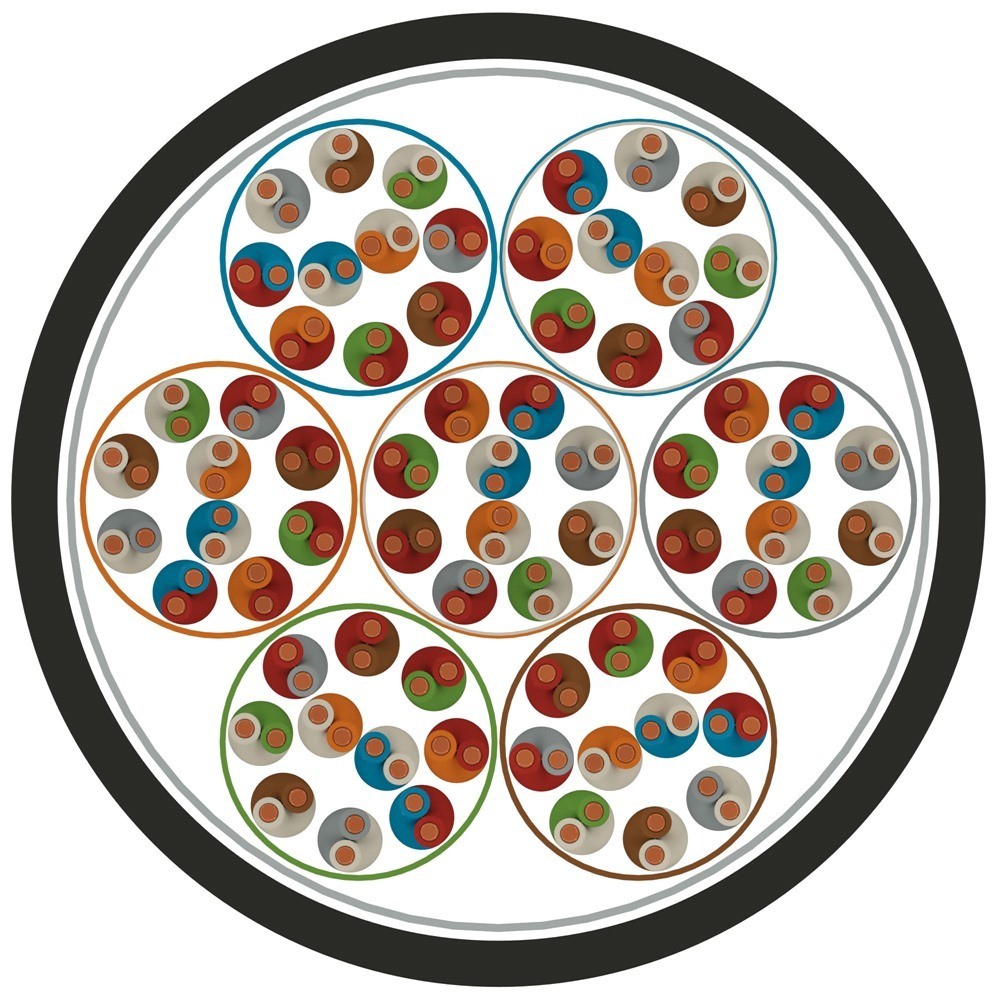

1 – Conductor	:	Electrolytic solid copper conductor
2 – Insulation	:	Solid polyethylene insulation
3 – Stranding	:	In layers up to 10 pairs, 20 pairs to 100 pairs consist of stranding of 10 pair groups wrapped with polypropylene identification tape
4 – Wrapping	:	Polyester tape
5 – Outer Jacket	:	UV resistant polyethylene outer jacket

Conductor Resistance Ω/km (20 °C)	Insulation Resistance MΩ/km (20 °C)	Mutual Capacitance nF/km	Resistance Unbalance	Propagation Velocity	Characteristic Impedance Ω (1-16 MHz)	Operating Voltage V DC	Test Voltage V (DC. 1 minute)
Max. 94	5000	Max. 56	%5	%67-69	100 ±%5	230	1200

Manufacturing
ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801

Cat 3 U-UTP PE (Pair)

Part Number	Pair Count	Conductor Diameter (mm)	Approx. Cable Diameter (mm)	Copper Weight (kg/km)	Approx. Weight (kg/km)	Packing Lengths (m)
3.413.2.1.1.0051.0.0002	2	0,51	3,9	7,8	16	100/500/1000
3.413.2.1.1.0051.0.0003	3	0,51	4,5	11,7	22	100/500/1000
3.413.2.1.1.0051.0.0004	4	0,51	5,3	15,6	28	100/500/1000
3.413.2.1.1.0051.0.0006	6	0,51	5,9	23,5	39	100/500/1000
3.413.2.1.1.0051.0.0008	8	0,51	6,8	31,3	52	100/500/1000
3.413.2.1.1.0051.0.0010	10	0,51	7,8	39,1	74	100/500/1000
3.413.2.1.1.0051.0.0012	12	0,51	10,9	46,9	91	100/500/1000
3.413.2.1.1.0051.0.0016	16	0,51	11,8	63,4	113	100/500/1000
3.413.2.1.1.0051.0.0020	20	0,51	12,7	78,2	139	100/500/1000
3.413.2.1.1.0051.0.0024	24	0,51	13,5	93,8	157	100/500/1000
3.413.2.1.1.0051.0.0025	25	0,51	13,7	97,7	163	100/500/1000
3.413.2.1.1.0051.0.0030	30	0,51	15,1	117,2	197	100/500/1000
3.413.2.1.1.0051.0.0032	32	0,51	15,3	125,1	209	100/500/1000
3.413.2.1.1.0051.0.0048	48	0,51	18,1	187,6	298	100/500/1000
3.413.2.1.1.0051.0.0050	50	0,51	15,1	195,4	293	100/500/1000
3.413.2.1.1.0051.0.0064	64	0,51	20,3	250,1	387	100/500/1000
3.413.2.1.1.0051.0.0075	75	0,51	22,1	298,5	455	100/500/1000
3.413.2.1.1.0051.0.0100	100	0,51	25,6	390,8	588	100/500/1000

Bending Radius	Temperature Range Operating
8.0xD mm	-20°C ~ +60°C

Frequency MHz	Insertion Loss dB/100m (Max.)	Near-end Crosstalk (NEXT) dB (Min.)	Return Loss (RL) dB (Min.)	SRL dB/100m (Min.)	Propagation Delay nS/100m (Max.)
1	2.6	41	23	12	570
4	5.6	32	23	12	552
8	8.5	28	23	12	546.7
10	9.8	26	23	12	545.4
16	13.1	23	23	10	543
