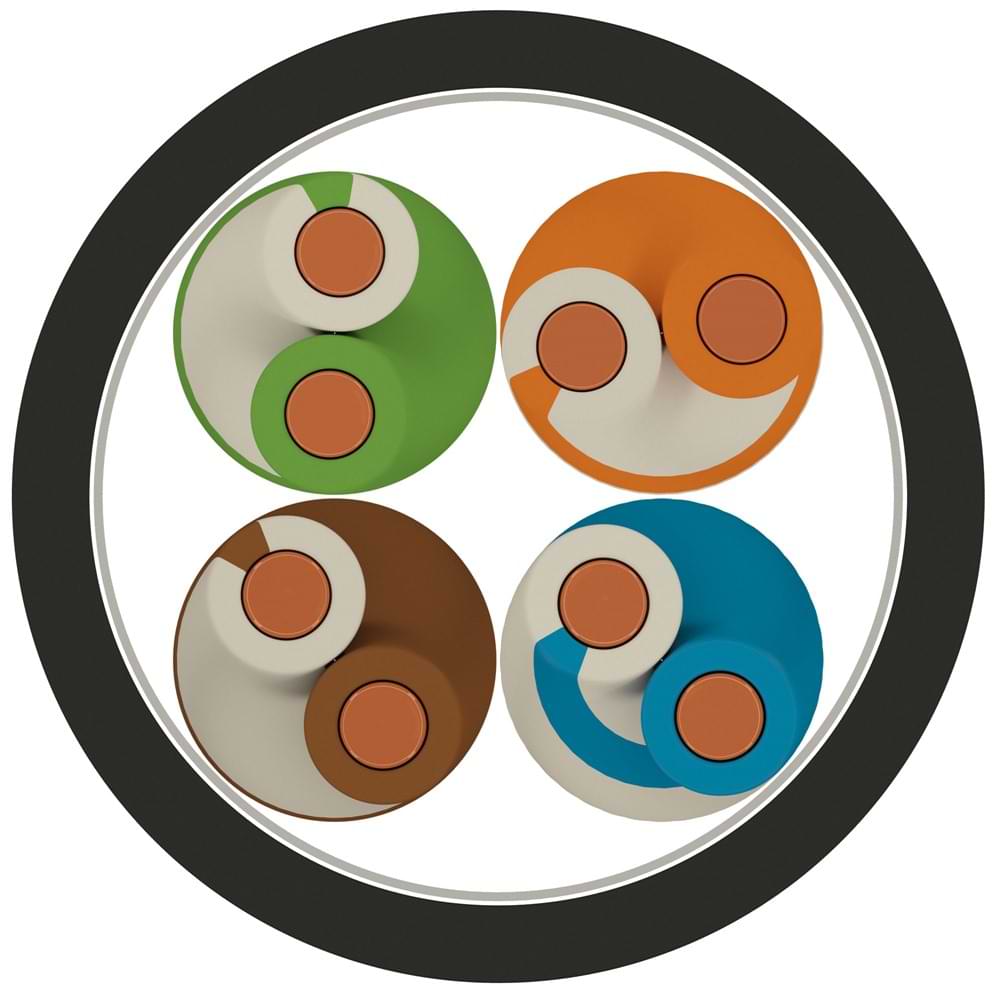

| 1 – Conductor | : | Electrolytic solid copper conductor |
| 2 – Insulation | : | Solid polyethylene insulation |
| 3 – Stranding | : | Insulations are stranded into pairs and all pairs are stranded together |
| 4 – Outer Jacket | : | UV resistant polyethylene outer jacket |
| Conductor Resistance Ω/km (20 °C) | Insulation Resistance MΩ/km (20 °C) | Mutual Capacitance nF/km | Resistance Unbalance | Propagation Velocity | Characteristic Impedance Ω (1-100 MHz) | Operating Voltage V DC | Test Voltage V (DC. 1 minute) |
|---|---|---|---|---|---|---|---|
| Max. 94 | 5000 | Max. 56 | %2 | %67-69 | 100 ±%5 | 250 | 1200 |
| Manufacturing |
|---|
| ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801 |
Cat 5e U-UTP PE (Pair)
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.415.2.1.1.0051.0.0004 | 4 | 0,51 | 5,5 | 15,9 | 31 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 8.0xD mm | -20°C ~ +60°C |
| Frequency MHz | Insertion Loss dB/100m (Max.) | Near-end Crosstalk (NEXT) dB (Min.) | Power-sum Near-end Crosstalk (PSNEXT) dB (Min.) | Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.) | Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.) | Return Loss (RL) dB (Min.) |
|---|---|---|---|---|---|---|
| 1 | 2 | 65,3 | 62,3 | 63,8 | 63,8 | 23 |
| 4 | 4.1 | 56,3 | 53,3 | 51,8 | 51,8 | 23 |
| 8 | 5.8 | 51,8 | 48,8 | 45,7 | 45,7 | 23 |
| 10 | 6.5 | 50,3 | 47,3 | 43,8 | 43,8 | 23 |
| 16 | 8.2 | 47,2 | 44,2 | 39,7 | 39,7 | 23 |
| 20 | 9.3 | 45,8 | 42,8 | 37,8 | 37,8 | 23 |
| 25 | 10.4 | 44,3 | 41,3 | 35,8 | 35,8 | 22 |
| 31.25 | 11.7 | 42,9 | 39,9 | 33,9 | 33,9 | 21 |
| 62.5 | 17 | 38,4 | 35,4 | 27,9 | 27,9 | 18 |
| 100 | 22 | 35,3 | 32,3 | 23,8 | 23,8 | 16 |

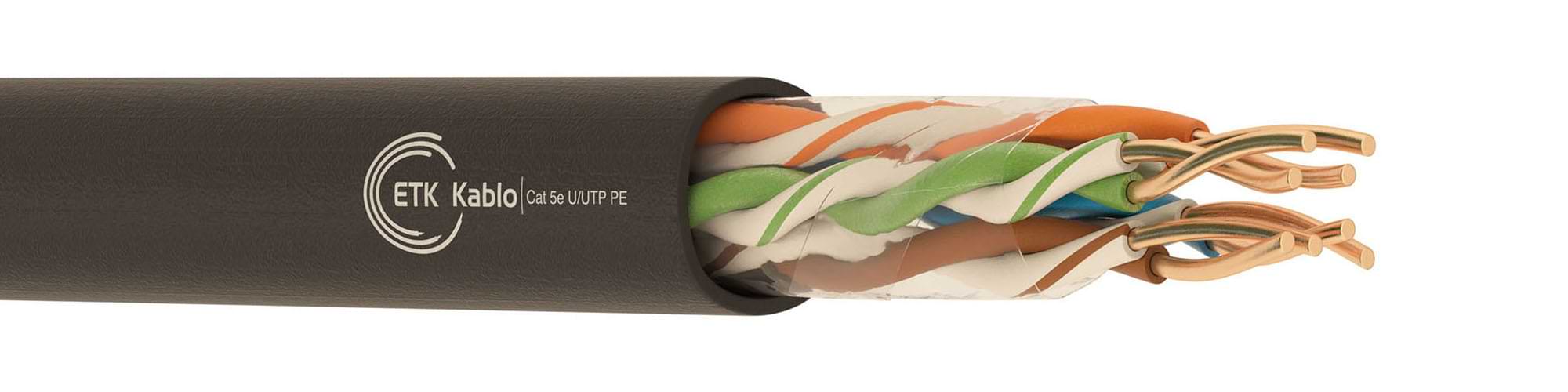

Cat 5e Outdoor Cable for Ethernet Networks
Cat 5e outdoor cable from ETK Kablo combines four unshielded twisted pairs with a UV-resistant polyethylene outer jacket. The Cat 5e U/UTP PE design uses solid copper conductors and supports 1000BASE-T Gigabit Ethernet within a compliant cabling channel.
This PE-jacketed product belongs to our Cat 5e U/UTP cable range. It suits outdoor network routes where the installation calls for a polyethylene sheath and an unshielded cable.
24 AWG Solid Copper Cat 5e UTP Cable
Eight solid copper conductors form four twisted pairs. Each conductor has solid polyethylene insulation, and the pairs sit within the outer PE jacket. U/UTP means that neither the individual pairs nor the cable as a whole have a metallic screen.
| Cable Size | Pair Count | Conductor Count | Conductor Size |
|---|---|---|---|
| Cat 5e U/UTP PE 4x2x24 AWG | 4 | 8 | 24 AWG solid copper |
The product page specifies a conductor diameter of 0.51 mm. When requesting bulk cable, state the total quantity and required packing lengths.
Outdoor LAN and IP Camera Applications
Typical applications include external IP camera connections, outdoor wireless access points and LAN extensions along protected outdoor routes. Select the cable according to the exposure conditions, network equipment and electromagnetic environment.
The UV-resistant jacket addresses sunlight exposure. However, outdoor installation also requires suitable cable supports, protected entry points and connections designed for the environment. Keep the route clear of significant electrical interference sources.
100 MHz Performance and Gigabit Ethernet
The published electrical characteristics cover frequencies through 100 MHz. This is a transmission-frequency specification, not a 100 Mbps speed limit: the product documentation lists 1000BASE-T Gigabit Ethernet as an application.
A conventional structured-cabling channel extends up to 100 metres, typically including up to 90 metres of permanent cabling plus patch and equipment cords. Use compatible Category 5e or higher connecting hardware and test the completed link. A longer drum length does not increase the permitted network channel length.
Frequently Asked Questions
Can this Cat 5e outdoor cable be buried directly?
A PE jacket alone does not establish direct-burial suitability. The listed construction has no armor or specified water-blocking layer. For underground routes, confirm the protection and water-exposure requirements with ETK Kablo before selecting the cable. Where the project requires armor, explore our armored Cat 5e cable range.
Is Cat 5e U/UTP PE a shielded cable?
No. This is an unshielded cable. If the project requires an overall foil screen, refer to our Cat 5e F/UTP cables and select the appropriate jacket for the route.
Is the PE sheath the same as LSOH?
No. This product uses a polyethylene outer jacket. Do not assume that it meets low-smoke or flame-retardancy requirements specified for an LSOH product. For routes entering buildings, check the applicable installation and fire-performance requirements.
Request a Cat 5e U/UTP PE Cable Quotation
Contact ETK Kablo for a quotation for Cat 5e U/UTP PE 4x2x24 AWG cable. Include the quantity, packing lengths, installation route and required project documents. For outdoor camera or access-point projects, also state any Power over Ethernet requirements.
