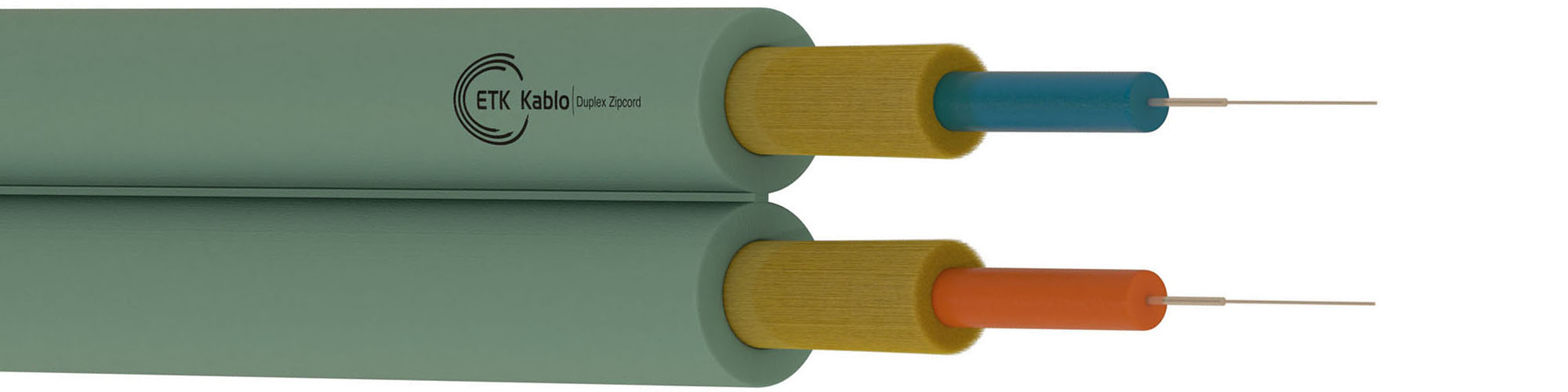

J-V(ZN)H Fiber Optic Cable

Product Code: Duplex Zipcord

1 – Optik fiber lif ¹
2 – 900 mikron çapında LSOH izolasyon
3 –Metal içermeyen mukavemet elemanı (Aramid yarn)
4 – Askı köprüsü
Part NumarasıLif CinsiFiber SayısıKablo Çapı (mm)Ortalama Ağırlık (kg/km)
4.292.0.3.3.0900.0.0001SM G.652.D1210
4.292.0.3.3.0625.0.0001OM11210
4.292.0.3.3.0502.0.0001OM21210
4.292.0.3.3.0503.0.0001OM31210
4.292.0.3.3.0504.0.0001OM41210
4.292.0.3.3.0900.1.0001SM G.652.D12,817
4.292.0.3.3.0625.1.0001OM112,817
4.292.0.3.3.0502.1.0001OM212,817
4.292.0.3.3.0503.1.0001OM312,817
4.292.0.3.3.0504.1.0001OM412,817
Test StandardıŞartname DeğeriKabul Kriteri
Maksimum Germe Kuvveti ²IEC 60794-1-2-E1Maks. 400 NFiber uzaması ≤ 0.33%
Maksimum Çalışma KuvvetiΔα ≤ 0.05 dB, fiber uzaması yok
Ezme MukavemetiIEC 60794-1-2-E31000 N / 100 mm, maks. 10 minΔα ≤ 0.05 dB, hasar yok
Darbe MukavemetiIEC 60794-1-2-E410 Nm, 3 darbe, R= 300 mmΔα ≤ 0.05 dB test sonrası
Burulma DayanımıIEC 60794-1-2-E71 m, 100N, +/- 180°, 5 çevrimΔα ≤ 0.05 dB, hasar yok
Tekrar Eden BükülmeIEC 60794-1-2-E6R=20x D, 100 N, 5 çevrimHasar yok
Bükülme ÇapıIEC 60794-1-2-E11R=20x D, 4 döndürme, 3 çevrimΔα ≤ 0.05 dB, hasar yok
Sıcaklık DöngüsüIEC 60794-1-2-F1-20°C to +70°CΔα ≤ 0.05 dB/km
Minimum Bükme Yarıçapı
Hareketli20 x kablo Ø
Sabit15 x kablo Ø
Sıcaklık Aralığı
Depolama-40°C to +70°CKurulum-30°C to +60°C
Taşıma-40°C to +70°CÇalışma-40°C to +70°C
MarkalamaETK Kablo – Üretim Yılı – Fiber Sayısı ve Tipi – Boy İşaretleme Metresi
PaketlemeKorumalı ahşap makara
Sevk Boyları2 km, 4 km ± %5 tolerans

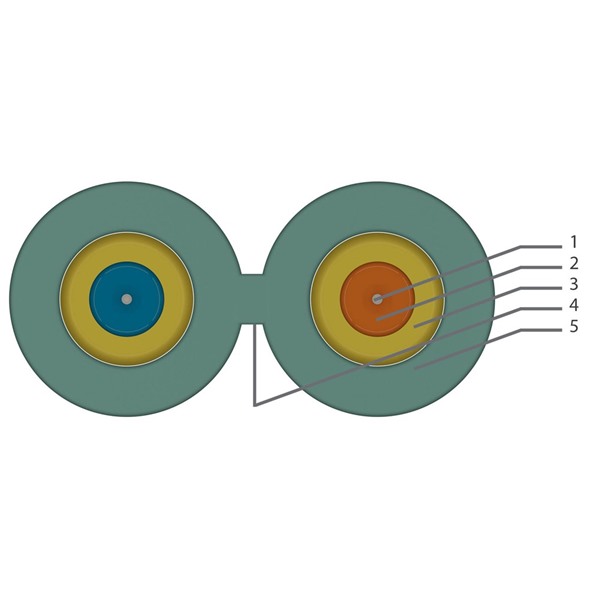

1 – Optical fiber core ¹
2 – HFFR insulated tight-buffered fiber of 900 μm diameter
3 – Non-metallic strength member (Aramid yarn)
4 – Web
5 – UV resistant halogen-free (LSOH) outer jacket

Part NumberCore TypeFiber CountCable Diameter (mm)Cable Weight (kg/km)
4.292.0.3.3.0900.0.0001SM G.652.D1210
4.292.0.3.3.0625.0.0001OM11210
4.292.0.3.3.0502.0.0001OM21210
4.292.0.3.3.0503.0.0001OM31210
4.292.0.3.3.0504.0.0001OM41210
4.292.0.3.3.0900.1.0001SM G.652.D12,817
4.292.0.3.3.0625.1.0001OM112,817
4.292.0.3.3.0502.1.0001OM212,817
4.292.0.3.3.0503.1.0001OM312,817
4.292.0.3.3.0504.1.0001OM412,817
Test StandardSpecified ValueAcceptance Criteria
Maximum Installation Tension ²IEC 60794-1-2-E1Maks. 400 NFiber strainı ≤ 0.33%
Maximum Operation TensionΔα ≤ 0.05 dB, No fiber strain
Crush StrengthIEC 60794-1-2-E31000 N / 100 mm, maks. 10 minΔα ≤ 0.05 dB, No damage
ImpactIEC 60794-1-2-E410 Nm, 3 impacts, R= 300 mmΔα ≤ 0.05 dB after the test
TorsionIEC 60794-1-2-E71 m, 100N, +/- 180°, 10 cyclesΔα ≤ 0.05 dB, No damage
Repeated BendingIEC 60794-1-2-E6R=20x D, 100 N, 35 cyclesNo damage
Bending RadiusIEC 60794-1-2-E11R=20x D, 4 turns, 3 cyclesΔα ≤ 0.05 dB, No damage
Temperature CyclingIEC 60794-1-2-F1-20°C to +70°CΔα ≤ 0.05 dB/km
Minimum Bending Radius
Operation20 x cable Ø
Fixed15 x cable Ø
Temperature Range
Storage-40°C to + 70°CInstallation-30°C to +60°C
Transport-40°C to + 70°COperating-40°C to +70°C
MarkingETK Kablo – Date of Manufacture – Fiber Count and Type – Length Marking
PackingWooden drum with protection
Delivery Lengths2 km, 4 km ± %5 tolerance
