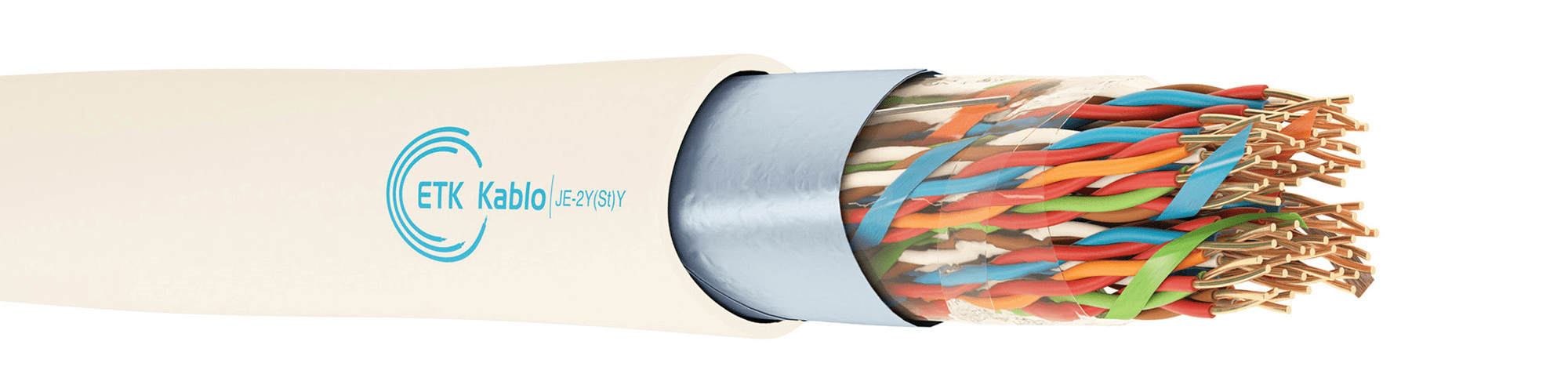

JE-2Y(St)Y xDSL Telecom Cable

Product Code:

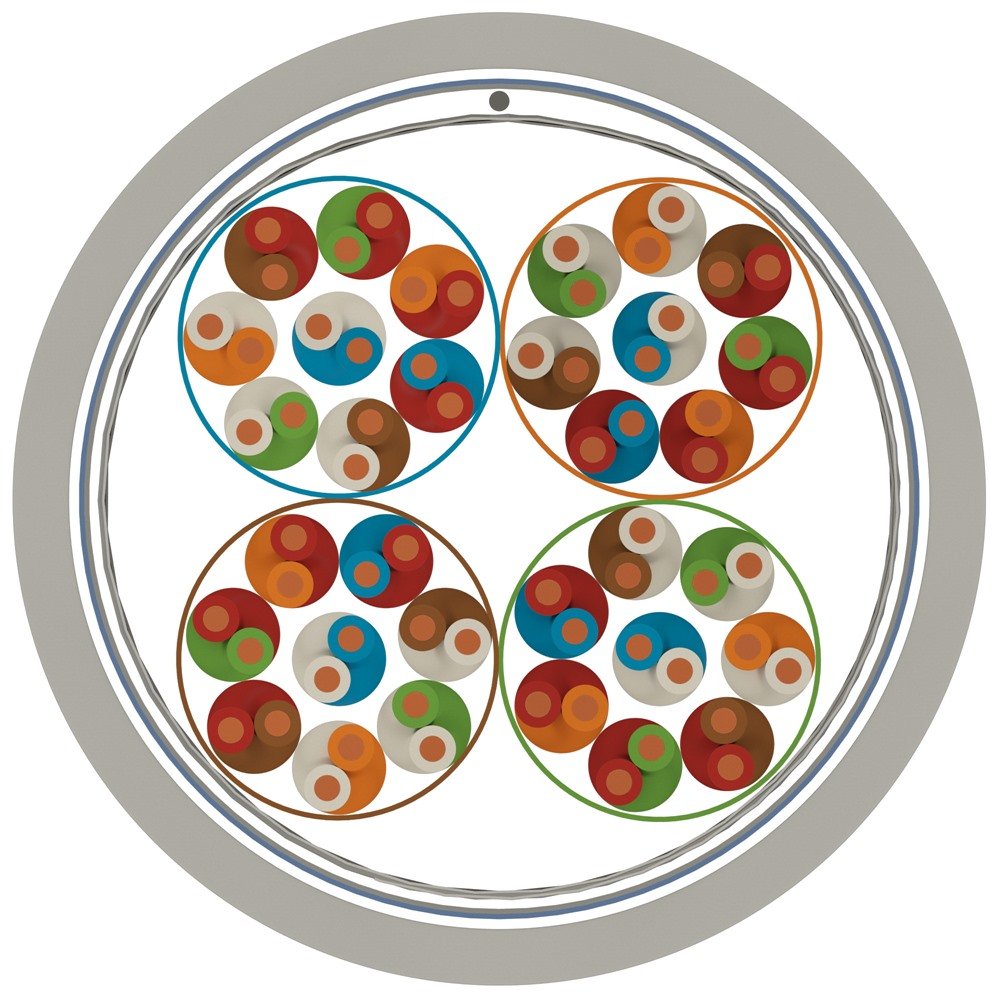

1 – Conductor : Electrolytic solid copper conductor.
2 – Insulation : Solid polyethylene insulation
3 – Stranding : Pair stranding, pairs are stranded into groups
4 – Wrapping : Polyester tape
5 – Screen : Tinned copper earthing wire, Al/PET tape
6 – Outer Jacket : EN 50290-2-22. UV resistant PVC outer jacket. RAL 7035 (Grey)
Conductor
Diameter
Ω/km		Insulation Resistance
MΩxkm
(500 V DC)		Mutual Capacitance
nF/km		Capacitance
Unbalance		Dielectric Strength
V		Operating Voltage
V		Test Voltage
V		Capacitance Unbalance
pF/500m		Characteristic Impedance
Ω
146200056%210002501200200100±10
Flame Retardancy Test
IEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2
Bending RadiusTemperature Range
Operating
10xD mm-40°C~+70°C
Frequency
MHz		Insertion Loss
dB/100m (Max.)		Near-end Crosstalk (NEXT)
Loss dB (Min.)		Propagation Delay
5 n/m
1≤30≥55≤6
10≤100≥45≤5.7
16≤110≥40
20≤120≥38
30≤160≥35
