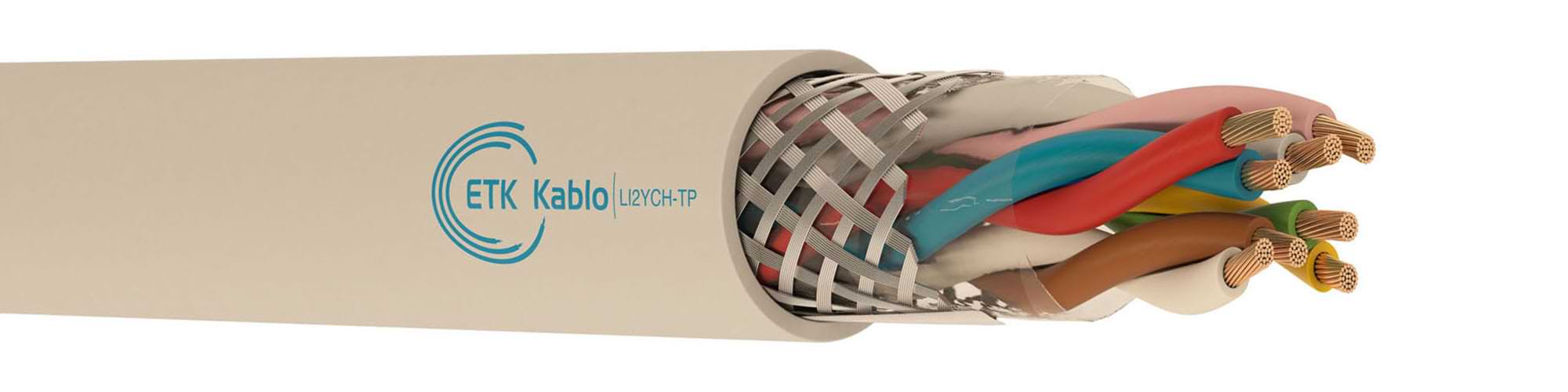

LI2YCH-TP/TT Signal Control Cable

Product Code: LI2YCH-TP/TT

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Solid polietilen (EN 50290-2-23, BS 6234 Tip 03 – ASTM D 1248) (DIN 47100)
3 – Büküm:İzoleler çiftler veya üçlüler halinde ve tüm çiftler veya üçlü bükümler bir arada bükülür.
4 – Ayırıcı:Polyester bant
5 – Ekran:Kalaylı bakır örgü
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı halojensiz dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.050001102501200
0.25 mm²77.850001102501200
0.34 mm²56.050001102501200
0.50 mm²39.05000120300/5002000
0.75 mm²26.05000120300/5002000
1.00 mm²19.55000130300/5002000
1.50 mm²13.35000140300/5002000
2.50 mm²7.985000150300/5002000
Duman Yoğunluğu TestiAşındırıcı Gaz TestiHalojensizlik tesiAlev Yayılım TestiAlev Geciktiricilik Testi
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0022.0.0002–20,224,915,131100/500/1000
3.521.2.2.2.0022.0.0003–30,225,720,841100/500/1000
3.521.2.2.2.0022.0.0004–40,226,926,553100/500/1000
3.521.2.2.2.0022.0.0005–50,227,432,363100/500/1000
3.521.2.2.2.0022.0.0006–60,228,236,773100/500/1000
3.521.2.2.2.0022.0.0007–70,228,34281100/500/1000
3.521.2.2.2.0022.0.0008–80,22950,394100/500/1000
3.521.2.2.2.0022.0.0009–90,2210,554,6106100/500/1000
3.521.2.2.2.0022.0.0010–100,2210,659114100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0025.0.0002–20,255,217,534100/500/1000
3.521.2.2.2.0025.0.0003–30,256,122,945100/500/1000
3.521.2.2.2.0025.0.0004–40,257,429,961100/500/1000
3.521.2.2.2.0025.0.0005–50,2583570100/500/1000
3.521.2.2.2.0025.0.0006–60,258,84183100/500/1000
3.521.2.2.2.0025.0.0007–70,258,946,792100/500/1000
3.521.2.2.2.0025.0.0008–80,259,755,3106100/500/1000
3.521.2.2.2.0025.0.0009–90,2511,459,6119100/500/1000
3.521.2.2.2.0025.0.0010–100,2511,564,5128100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0034.0.0002–20,345,821,541100/500/1000
3.521.2.2.2.0034.0.0003–30,346,830,757100/500/1000
3.521.2.2.2.0034.0.0004–40,348,338,275100/500/1000
3.521.2.2.2.0034.0.0005–50,34946,388100/500/1000
3.521.2.2.2.0034.0.0006–60,349,956,9106100/500/1000
3.521.2.2.2.0034.0.0007–70,349,963,1114100/500/1000
3.521.2.2.2.0034.0.0008–80,3410,970,4130100/500/1000
3.521.2.2.2.0034.0.0009–90,3412,877,3147100/500/1000
3.521.2.2.2.0034.0.0010–100,3412,984,9160100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0050.0.0002–20,56,427,957100/500/1000
3.521.2.2.2.0050.0.0003–30,57,537,367100/500/1000
3.521.2.2.2.0050.0.0004–40,59,251,894100/500/1000
3.521.2.2.2.0050.0.0005–50,510,160,6108100/500/1000
3.521.2.2.2.0050.0.0006–60,51169,3126100/500/1000
3.521.2.2.2.0050.0.0007–70,511,178,3140100/500/1000
3.521.2.2.2.0050.0.0008–80,512,188,7158100/500/1000
3.521.2.2.2.0050.0.0009–90,514,298,8179100/500/1000
3.521.2.2.2.0050.0.0010–100,514,3108195100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0075.0.0002–20,75737,670100/500/1000
3.521.2.2.2.0075.0.0003–30,75951,988100/500/1000
3.521.2.2.2.0075.0.0004–40,7510,170,3116100/500/1000
3.521.2.2.2.0075.0.0005–50,751182,7135100/500/1000
3.521.2.2.2.0075.0.0006–60,7512,196,7159100/500/1000
3.521.2.2.2.0075.0.0007–70,7512,2111,1180100/500/1000
3.521.2.2.2.0075.0.0008–80,7513,3125,8202100/500/1000
3.521.2.2.2.0075.0.0009–90,7515,6140,7230100/500/1000
3.521.2.2.2.0075.0.0010–100,7515,7154,5250100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0100.0.0002–217,644,581100/500/1000
3.521.2.2.2.0100.0.0003–319,766103100/500/1000
3.521.2.2.2.0100.0.0004–4110,982,6134100/500/1000
3.521.2.2.2.0100.0.0005–5112100,1160100/500/1000
3.521.2.2.2.0100.0.0006–6113,2118,8189100/500/1000
3.521.2.2.2.0100.0.0007–7113,3137,1214100/500/1000
3.521.2.2.2.0100.0.0008–8114,5154,4240100/500/1000
3.521.2.2.2.0100.0.0009–9117,1177,5278100/500/1000
3.521.2.2.2.0100.0.0010–10117,2196,8305100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0150.0.0002–21,58,463,8107100/500/1000
3.521.2.2.2.0150.0.0003–31,510,995140100/500/1000
3.521.2.2.2.0150.0.0004–41,512,2120,4178100/500/1000
3.521.2.2.2.0150.0.0005–51,513,4148,5215100/500/1000
3.521.2.2.2.0150.0.0006–61,514,8176,2255100/500/1000
3.521.2.2.2.0150.0.0007–71,514,9202,9289100/500/1000
3.521.2.2.2.0150.0.0008–81,516,3235,4331100/500/1000
3.521.2.2.2.0150.0.0009–91,519,3264,1376100/500/1000
3.521.2.2.2.0150.0.0010–101,519,4290,8412100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.521.2.2.2.0250.0.0002–22,510,8102,5175100/500/1000
3.521.2.2.2.0250.0.0003–32,513,9148,6229100/500/1000
3.521.2.2.2.0250.0.0004–42,515,5198,4298100/500/1000
3.521.2.2.2.0250.0.0005–52,517,1246,5360100/500/1000
3.521.2.2.2.0250.0.0006–62,518,8291424100/500/1000
3.521.2.2.2.0250.0.0007–72,518,9338,3481100/500/1000
3.521.2.2.2.0250.0.0008–82,520,6383,1541100/500/1000
3.521.2.2.2.0250.0.0009–92,524,4430,6622100/500/1000
3.521.2.2.2.0250.0.0010–102,524,4475,2673100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Open in a new tabİndir

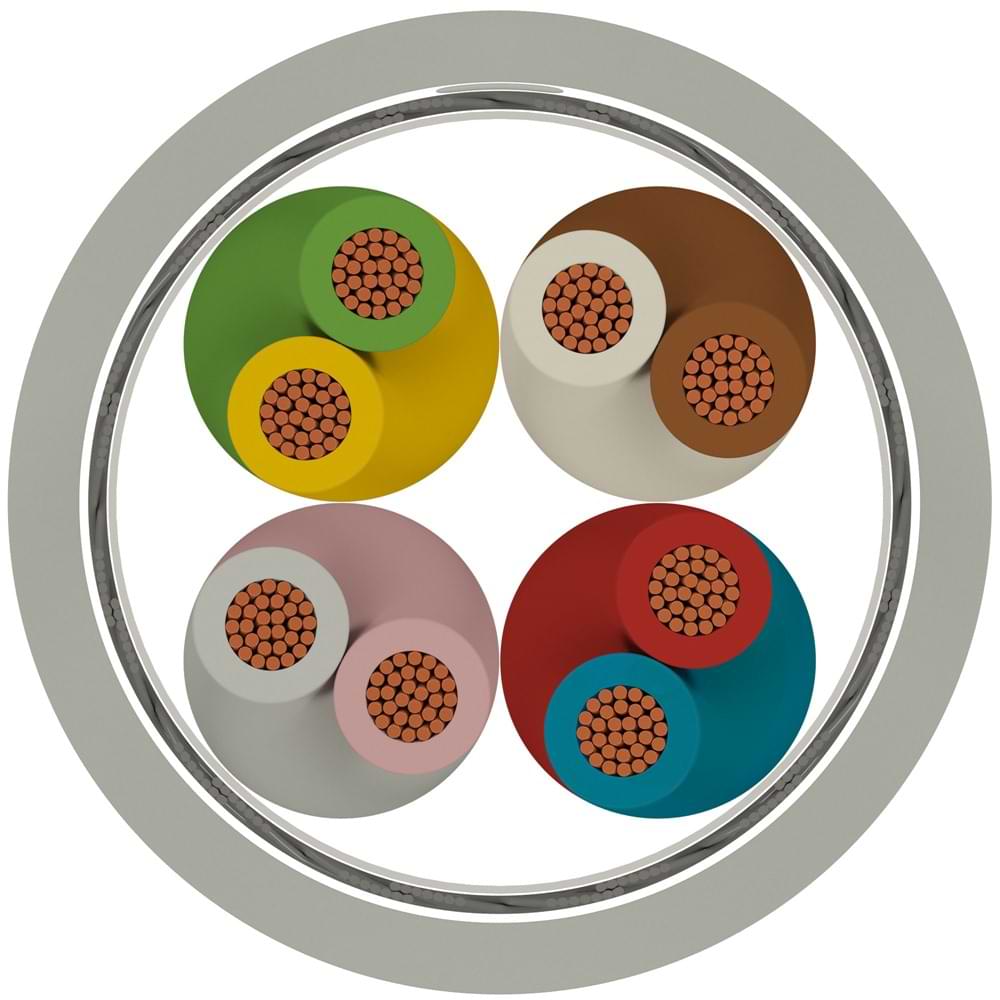

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100)
3 – Stranding:Insulations are stranded into pairs or triads and all pairs or triads are stranded together.
4 – Wrapping:Polyester tape
5 – Screen:Tinned copper braiding
6 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.050001102501200
0.25 mm²77.850001102501200
0.34 mm²56.050001102501200
0.50 mm²39.05000120300/5002000
0.75 mm²26.05000120300/5002000
1.00 mm²19.55000130300/5002000
1.50 mm²13.35000140300/5002000
2.50 mm²7.985000150300/5002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2

Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.521.2.2.2.0022.0.0002–20,224,915,131100/500/1000
3.521.2.2.2.0022.0.0003–30,225,720,841100/500/1000
3.521.2.2.2.0022.0.0004–40,226,926,553100/500/1000
3.521.2.2.2.0022.0.0005–50,227,432,363100/500/1000
3.521.2.2.2.0022.0.0006–60,228,236,773100/500/1000
3.521.2.2.2.0022.0.0007–70,228,34281100/500/1000
3.521.2.2.2.0022.0.0008–80,22950,394100/500/1000
3.521.2.2.2.0022.0.0009–90,2210,554,6106100/500/1000
3.521.2.2.2.0022.0.0010–100,2210,659114100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.521.2.2.2.0025.0.0002–20,255,217,534100/500/1000
3.521.2.2.2.0025.0.0003–30,256,122,945100/500/1000
3.521.2.2.2.0025.0.0004–40,257,429,961100/500/1000
3.521.2.2.2.0025.0.0005–50,2583570100/500/1000
3.521.2.2.2.0025.0.0006–60,258,84183100/500/1000
3.521.2.2.2.0025.0.0007–70,258,946,792100/500/1000
3.521.2.2.2.0025.0.0008–80,259,755,3106100/500/1000
3.521.2.2.2.0025.0.0009–90,2511,459,6119100/500/1000
3.521.2.2.2.0025.0.0010–100,2511,564,5128100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.521.2.2.2.0034.0.0002–20,345,821,541100/500/1000
3.521.2.2.2.0034.0.0003–30,346,830,757100/500/1000
3.521.2.2.2.0034.0.0004–40,348,338,275100/500/1000
3.521.2.2.2.0034.0.0005–50,34946,388100/500/1000
3.521.2.2.2.0034.0.0006–60,349,956,9106100/500/1000
3.521.2.2.2.0034.0.0007–70,349,963,1114100/500/1000
3.521.2.2.2.0034.0.0008–80,3410,970,4130100/500/1000
3.521.2.2.2.0034.0.0009–90,3412,877,3147100/500/1000
3.521.2.2.2.0034.0.0010–100,3412,984,9160100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.521.2.2.2.0050.0.0002–20,56,427,957100/500/1000
3.521.2.2.2.0050.0.0003–30,57,537,367100/500/1000
3.521.2.2.2.0050.0.0004–40,59,251,894100/500/1000
3.521.2.2.2.0050.0.0005–50,510,160,6108100/500/1000
3.521.2.2.2.0050.0.0006–60,51169,3126100/500/1000
3.521.2.2.2.0050.0.0007–70,511,178,3140100/500/1000
3.521.2.2.2.0050.0.0008–80,512,188,7158100/500/1000
3.521.2.2.2.0050.0.0009–90,514,298,8179100/500/1000
3.521.2.2.2.0050.0.0010–100,514,3108195100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.521.2.2.2.0075.0.0002–20,75737,670100/500/1000
3.521.2.2.2.0075.0.0003–30,75951,988100/500/1000
3.521.2.2.2.0075.0.0004–40,7510,170,3116100/500/1000
3.521.2.2.2.0075.0.0005–50,751182,7135100/500/1000
3.521.2.2.2.0075.0.0006–60,7512,196,7159100/500/1000
3.521.2.2.2.0075.0.0007–70,7512,2111,1180100/500/1000
3.521.2.2.2.0075.0.0008–80,7513,3125,8202100/500/1000
3.521.2.2.2.0075.0.0009–90,7515,6140,7230100/500/1000
3.521.2.2.2.0075.0.0010–100,7515,7154,5250100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.521.2.2.2.0100.0.0002–217,644,581100/500/1000
3.521.2.2.2.0100.0.0003–319,766103100/500/1000
3.521.2.2.2.0100.0.0004–4110,982,6134100/500/1000
3.521.2.2.2.0100.0.0005–5112100,1160100/500/1000
3.521.2.2.2.0100.0.0006–6113,2118,8189100/500/1000
3.521.2.2.2.0100.0.0007–7113,3137,1214100/500/1000
3.521.2.2.2.0100.0.0008–8114,5154,4240100/500/1000
3.521.2.2.2.0100.0.0009–9117,1177,5278100/500/1000
3.521.2.2.2.0100.0.0010–10117,2196,8305100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.521.2.2.2.0150.0.0002–21,58,463,8107100/500/1000
3.521.2.2.2.0150.0.0003–31,510,995140100/500/1000
3.521.2.2.2.0150.0.0004–41,512,2120,4178100/500/1000
3.521.2.2.2.0150.0.0005–51,513,4148,5215100/500/1000
3.521.2.2.2.0150.0.0006–61,514,8176,2255100/500/1000
3.521.2.2.2.0150.0.0007–71,514,9202,9289100/500/1000
3.521.2.2.2.0150.0.0008–81,516,3235,4331100/500/1000
3.521.2.2.2.0150.0.0009–91,519,3264,1376100/500/1000
3.521.2.2.2.0150.0.0010–101,519,4290,8412100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.521.2.2.2.0250.0.0002–22,510,8102,5175100/500/1000
3.521.2.2.2.0250.0.0003–32,513,9148,6229100/500/1000
3.521.2.2.2.0250.0.0004–42,515,5198,4298100/500/1000
3.521.2.2.2.0250.0.0005–52,517,1246,5360100/500/1000
3.521.2.2.2.0250.0.0006–62,518,8291424100/500/1000
3.521.2.2.2.0250.0.0007–72,518,9338,3481100/500/1000
3.521.2.2.2.0250.0.0008–82,520,6383,1541100/500/1000
3.521.2.2.2.0250.0.0009–92,524,4430,6622100/500/1000
3.521.2.2.2.0250.0.0010–102,524,4475,2673100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
