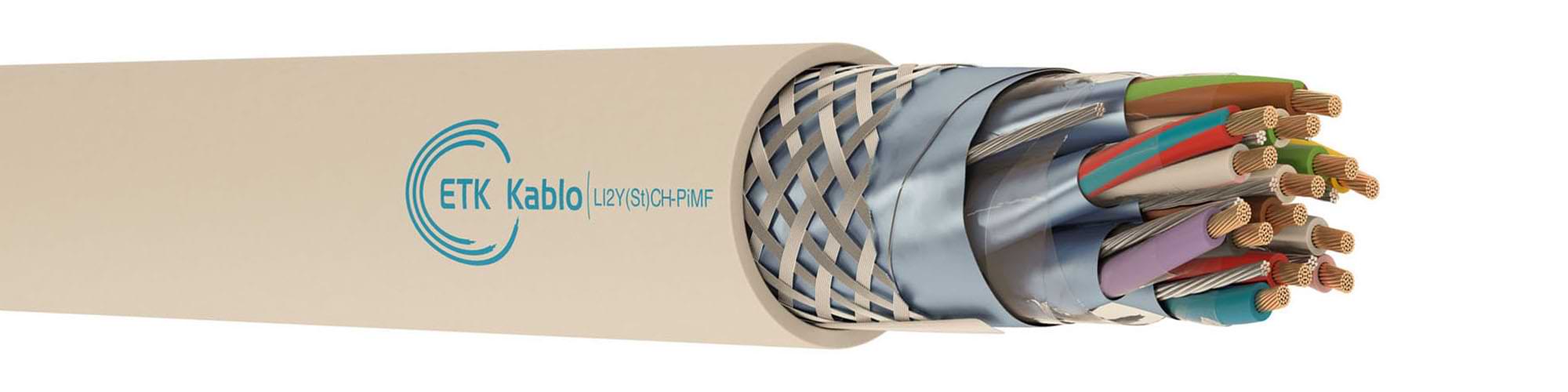

LI2Y(St)CH-PiMF/TiMF Signal Control Cable

Product Code: LI2Y(St)CH-PiMF/TiMF

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Solid polietilen (EN 50290-2-23, BS 6234 Tip 03 – ASTM D 1248) (DIN 47100)
3 – Büküm:Ekranlanmış çiftlerin veya üçlülerin katmanlar halinde bükümü.
4 – Bireysel Sargı:Polyester bant
5 – Bireysel Ekran:Kalaylı bakır toprak teli, Al/PET bant
6 – Sargı:Polyester bant
7 – Ekran:Al/PET bant, kalaylı bakır örgü
8 – Dış Kılıf:Ultraviyole ışınlara dayanıklı halojensiz dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.050001102501200
0.25 mm²77.850001102501200
0.34 mm²56.050001102501200
0.50 mm²39.05000120300/5002000
0.75 mm²26.05000120300/5002000
1.00 mm²19.55000130300/5002000
1.50 mm²13.35000140300/5002000
2.50 mm²7.985000150300/5002000
Duman Yoğunluğu TestiAşındırıcı Gaz TestiHalojensizlik tesiAlev Yayılım TestiAlev Geciktiricilik Testi
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.1.3.0022.0.0002–20,227,226,652100/500/1000
3.550.2.1.3.0022.0.0003–30,227,733,864100/500/1000
3.550.2.1.3.0022.0.0004–40,228,64281100/500/1000
3.550.2.1.3.0022.0.0005–50,229,449,494100/500/1000
3.550.2.1.3.0022.0.0006–60,221157,9110100/500/1000
3.550.2.1.3.0022.0.0007–70,221164,3122100/500/1000
3.550.2.1.3.0022.0.0008–80,221272,1135100/500/1000
3.550.2.1.3.0022.0.0009–90,221381,8155100/500/1000
3.550.2.1.3.0022.0.0010–100,221488,3167100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.1.3.0025.0.0002–20,257,628,455100/500/1000
3.550.2.1.3.0025.0.0003–30,258,136,269100/500/1000
3.550.2.1.3.0025.0.0004–40,259,244,587100/500/1000
3.550.2.1.3.0025.0.0005–50,259,953,3102100/500/1000
3.550.2.1.3.0025.0.0006–60,251162,3119100/500/1000
3.550.2.1.3.0025.0.0007–70,251169,3132100/500/1000
3.550.2.1.3.0025.0.0008–80,251277,6146100/500/1000
3.550.2.1.3.0025.0.0009–90,251488,7169100/500/1000
3.550.2.1.3.0025.0.0010–100,251495,7182100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.1.3.0034.0.0002–20,348,633,266100/500/1000
3.550.2.1.3.0034.0.0003–30,349,243,283100/500/1000
3.550.2.1.3.0034.0.0004–40,341153,8103100/500/1000
3.550.2.1.3.0034.0.0005–50,341264123100/500/1000
3.550.2.1.3.0034.0.0006–60,341375141100/500/1000
3.550.2.1.3.0034.0.0007–70,341383,9156100/500/1000
3.550.2.1.3.0034.0.0008–80,341494,6175100/500/1000
3.550.2.1.3.0034.0.0009–90,3416113,7210100/500/1000
3.550.2.1.3.0034.0.0010–100,3416122,6226100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.1.3.0050.0.0002–20,59,848,488100/500/1000
3.550.2.1.3.0050.0.0003–30,51163,1112100/500/1000
3.550.2.1.3.0050.0.0004–40,51278,2140100/500/1000
3.550.2.1.3.0050.0.0005–50,51394,6165100/500/1000
3.550.2.1.3.0050.0.0006–60,514110,7193100/500/1000
3.550.2.1.3.0050.0.0007–70,514124,4214100/500/1000
3.550.2.1.3.0050.0.0008–80,516145,9245100/500/1000
3.550.2.1.3.0050.0.0009–90,518165,5285100/500/1000
3.550.2.1.3.0050.0.0010–100,518179,2303100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.1.3.0075.0.0002–20,751158,3105100/500/1000
3.550.2.1.3.0075.0.0003–30,751277,7134100/500/1000
3.550.2.1.3.0075.0.0004–40,751398,4172100/500/1000
3.550.2.1.3.0075.0.0005–50,7514119202100/500/1000
3.550.2.1.3.0075.0.0006–60,7516145242100/500/1000
3.550.2.1.3.0075.0.0007–70,7516163,1268100/500/1000
3.550.2.1.3.0075.0.0008–80,7517182,7299100/500/1000
3.550.2.1.3.0075.0.0009–90,7520207,5348100/500/1000
3.550.2.1.3.0075.0.0010–100,7520225,6370100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.1.3.0100.0.0002–211266,2119100/500/1000
3.550.2.1.3.0100.0.0003–311389153100/500/1000
3.550.2.1.3.0100.0.0004–4114113,8194100/500/1000
3.550.2.1.3.0100.0.0005–5115143,1235100/500/1000
3.550.2.1.3.0100.0.0006–6117166,1273100/500/1000
3.550.2.1.3.0100.0.0007–7117187,6304100/500/1000
3.550.2.1.3.0100.0.0008–8118213,4342100/500/1000
3.550.2.1.3.0100.0.0009–916,8246,8397100/500/1000
3.550.2.1.3.0100.0.0010–10121268,3428100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.1.3.0150.0.0002–21,51387,1145100/500/1000
3.550.2.1.3.0150.0.0003–31,514118,5188100/500/1000
3.550.2.1.3.0150.0.0004–41,515156,4243100/500/1000
3.550.2.1.3.0150.0.0005–51,516190,5289100/500/1000
3.550.2.1.3.0150.0.0006–61,518225,6341100/500/1000
3.550.2.1.3.0150.0.0007–71,518256,4380100/500/1000
3.550.2.1.3.0150.0.0008–81,520289,3427100/500/1000
3.550.2.1.3.0150.0.0009–91,523332,8498100/500/1000
3.550.2.1.3.0150.0.0010–101,523363,5534100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.1.3.0250.0.0002–22,513131,9214100/500/1000
3.550.2.1.3.0250.0.0003–32,514181280100/500/1000
3.550.2.1.3.0250.0.0004–42,515233,4356100/500/1000
3.550.2.1.3.0250.0.0005–52,516284424100/500/1000
3.550.2.1.3.0250.0.0006–62,518342,2505100/500/1000
3.550.2.1.3.0250.0.0007–72,518390,1566100/500/1000
3.550.2.1.3.0250.0.0008–82,520441,6637100/500/1000
3.550.2.1.3.0250.0.0009–92,523503,8739100/500/1000
3.550.2.1.3.0250.0.0010–102,523551,8794100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Open in a new tabİndir

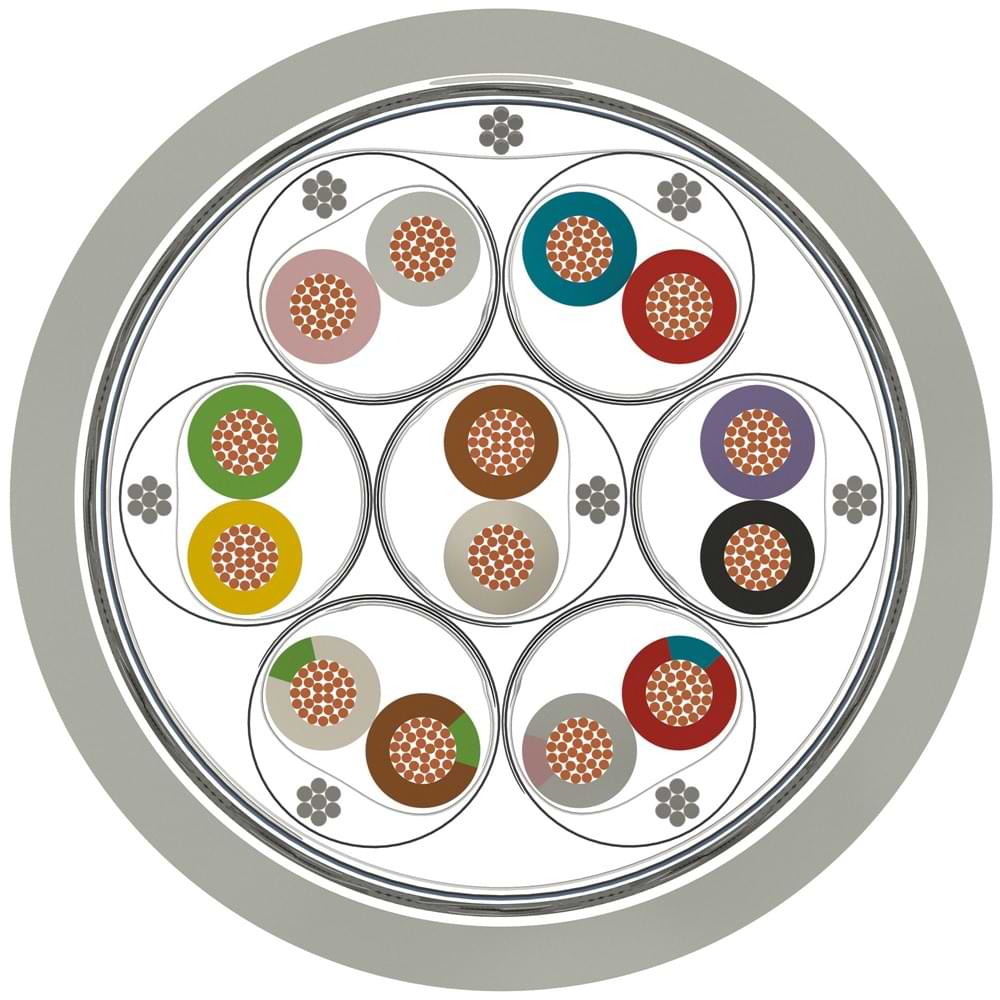

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100)
3 – Stranding:Screened pairs or triads are stranded in layers.
4 – Individual Wrapping:Polyester tape
5 – Individual Screen:Tinned copper earthing wire, Al/PET tape
6 – Wrapping:Polyester tape
7 – Screen:Al/PET tape, tinned copper braiding
8 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.050001102501200
0.25 mm²77.850001102501200
0.34 mm²56.050001102501200
0.50 mm²39.05000120300/5002000
0.75 mm²26.05000120300/5002000
1.00 mm²19.55000130300/5002000
1.50 mm²13.35000140300/5002000
2.50 mm²7.985000150300/5002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.3.0022.0.0002–20,227,226,652100/500/1000
3.550.2.1.3.0022.0.0003–30,227,733,864100/500/1000
3.550.2.1.3.0022.0.0004–40,228,64281100/500/1000
3.550.2.1.3.0022.0.0005–50,229,449,494100/500/1000
3.550.2.1.3.0022.0.0006–60,221157,9110100/500/1000
3.550.2.1.3.0022.0.0007–70,221164,3122100/500/1000
3.550.2.1.3.0022.0.0008–80,221272,1135100/500/1000
3.550.2.1.3.0022.0.0009–90,221381,8155100/500/1000
3.550.2.1.3.0022.0.0010–100,221488,3167100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.3.0025.0.0002–20,257,628,455100/500/1000
3.550.2.1.3.0025.0.0003–30,258,136,269100/500/1000
3.550.2.1.3.0025.0.0004–40,259,244,587100/500/1000
3.550.2.1.3.0025.0.0005–50,259,953,3102100/500/1000
3.550.2.1.3.0025.0.0006–60,251162,3119100/500/1000
3.550.2.1.3.0025.0.0007–70,251169,3132100/500/1000
3.550.2.1.3.0025.0.0008–80,251277,6146100/500/1000
3.550.2.1.3.0025.0.0009–90,251488,7169100/500/1000
3.550.2.1.3.0025.0.0010–100,251495,7182100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.3.0034.0.0002–20,348,633,266100/500/1000
3.550.2.1.3.0034.0.0003–30,349,243,283100/500/1000
3.550.2.1.3.0034.0.0004–40,341153,8103100/500/1000
3.550.2.1.3.0034.0.0005–50,341264123100/500/1000
3.550.2.1.3.0034.0.0006–60,341375141100/500/1000
3.550.2.1.3.0034.0.0007–70,341383,9156100/500/1000
3.550.2.1.3.0034.0.0008–80,341494,6175100/500/1000
3.550.2.1.3.0034.0.0009–90,3416113,7210100/500/1000
3.550.2.1.3.0034.0.0010–100,3416122,6226100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.3.0050.0.0002–20,59,848,488100/500/1000
3.550.2.1.3.0050.0.0003–30,51163,1112100/500/1000
3.550.2.1.3.0050.0.0004–40,51278,2140100/500/1000
3.550.2.1.3.0050.0.0005–50,51394,6165100/500/1000
3.550.2.1.3.0050.0.0006–60,514110,7193100/500/1000
3.550.2.1.3.0050.0.0007–70,514124,4214100/500/1000
3.550.2.1.3.0050.0.0008–80,516145,9245100/500/1000
3.550.2.1.3.0050.0.0009–90,518165,5285100/500/1000
3.550.2.1.3.0050.0.0010–100,518179,2303100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.3.0075.0.0002–20,751158,3105100/500/1000
3.550.2.1.3.0075.0.0003–30,751277,7134100/500/1000
3.550.2.1.3.0075.0.0004–40,751398,4172100/500/1000
3.550.2.1.3.0075.0.0005–50,7514119202100/500/1000
3.550.2.1.3.0075.0.0006–60,7516145242100/500/1000
3.550.2.1.3.0075.0.0007–70,7516163,1268100/500/1000
3.550.2.1.3.0075.0.0008–80,7517182,7299100/500/1000
3.550.2.1.3.0075.0.0009–90,7520207,5348100/500/1000
3.550.2.1.3.0075.0.0010–100,7520225,6370100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.3.0100.0.0002–211266,2119100/500/1000
3.550.2.1.3.0100.0.0003–311389153100/500/1000
3.550.2.1.3.0100.0.0004–4114113,8194100/500/1000
3.550.2.1.3.0100.0.0005–5115143,1235100/500/1000
3.550.2.1.3.0100.0.0006–6117166,1273100/500/1000
3.550.2.1.3.0100.0.0007–7117187,6304100/500/1000
3.550.2.1.3.0100.0.0008–8118213,4342100/500/1000
3.550.2.1.3.0100.0.0009–916,8246,8397100/500/1000
3.550.2.1.3.0100.0.0010–10121268,3428100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.3.0150.0.0002–21,51387,1145100/500/1000
3.550.2.1.3.0150.0.0003–31,514118,5188100/500/1000
3.550.2.1.3.0150.0.0004–41,515156,4243100/500/1000
3.550.2.1.3.0150.0.0005–51,516190,5289100/500/1000
3.550.2.1.3.0150.0.0006–61,518225,6341100/500/1000
3.550.2.1.3.0150.0.0007–71,518256,4380100/500/1000
3.550.2.1.3.0150.0.0008–81,520289,3427100/500/1000
3.550.2.1.3.0150.0.0009–91,523332,8498100/500/1000
3.550.2.1.3.0150.0.0010–101,523363,5534100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.3.0250.0.0002–22,513131,9214100/500/1000
3.550.2.1.3.0250.0.0003–32,514181280100/500/1000
3.550.2.1.3.0250.0.0004–42,515233,4356100/500/1000
3.550.2.1.3.0250.0.0005–52,516284424100/500/1000
3.550.2.1.3.0250.0.0006–62,518342,2505100/500/1000
3.550.2.1.3.0250.0.0007–72,518390,1566100/500/1000
3.550.2.1.3.0250.0.0008–82,520441,6637100/500/1000
3.550.2.1.3.0250.0.0009–92,523503,8739100/500/1000
3.550.2.1.3.0250.0.0010–102,523551,8794100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
