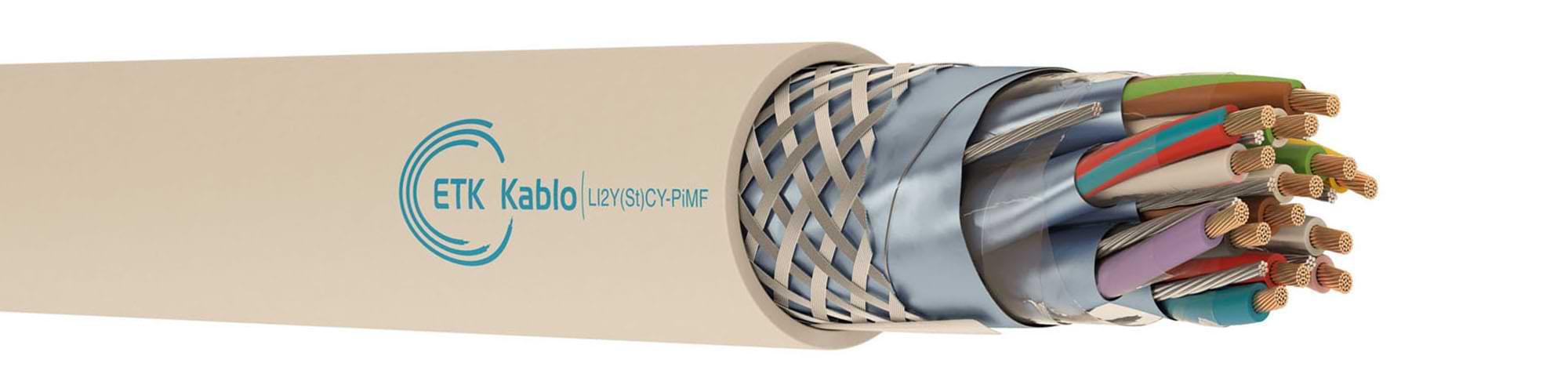

LI2Y(St)CY-PiMF/TiMF Signal Control Cable

Product Code: LI2Y(St)CY-PiMF/TiMF

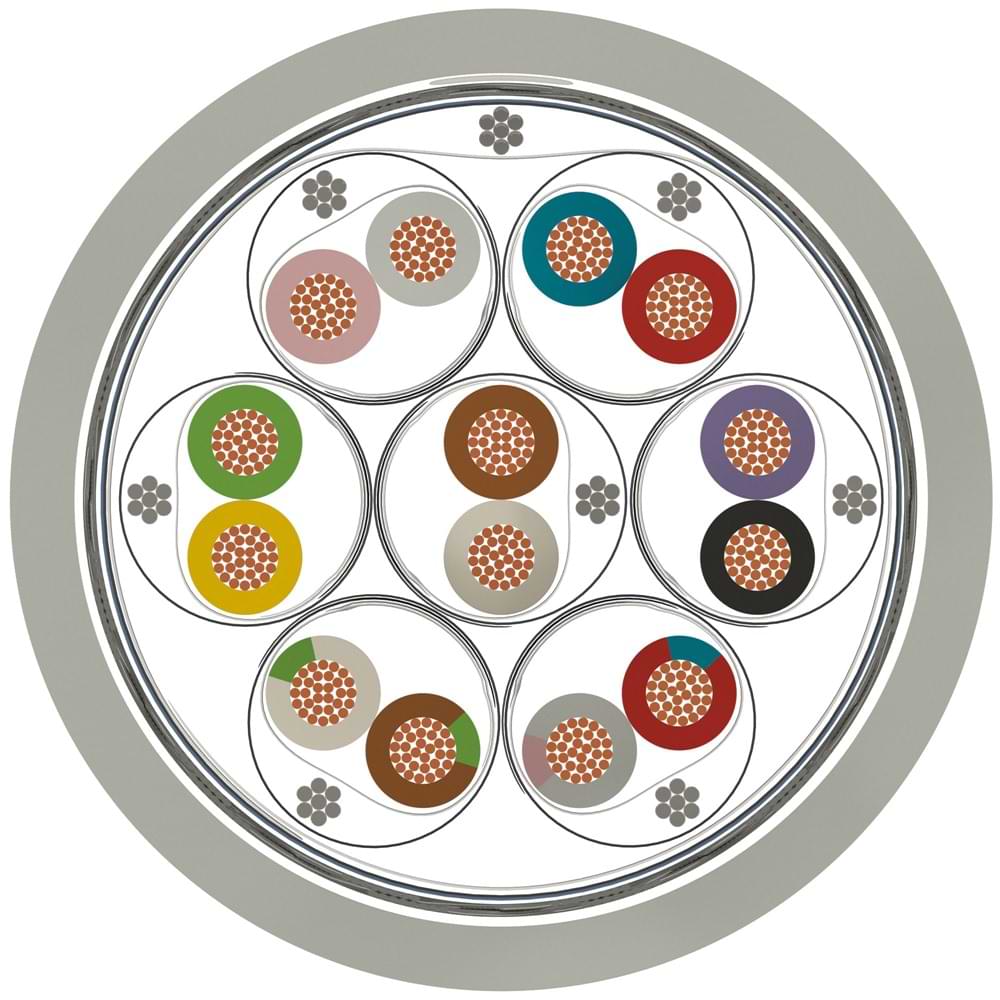

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Solid polyethylene (EN 50290-2-23, BS 6234 Type 03 – ASTM D 1248) (DIN 47100)
3 – Stranding:Screened pairs or triads are stranded in layers.
4 – Individual Wrapping:Polyester tape
5 – Individual Screen:Tinned copper earthing wire, Al/PET tape
6 – Wrapping:Polyester tape
7 – Screen:Al/PET tape, tinned copper braiding
8 – Outer Jacket:UV resistant PVC outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.050001102501200
0.25 mm²77.850001102501200
0.34 mm²56.050001102501200
0.50 mm²39.05000120300/5002000
0.75 mm²26.05000120300/5002000
1.00 mm²19.55000130300/5002000
1.50 mm²13.35000140300/5002000
2.50 mm²7.985000150300/5002000
Flame Retardancy Test
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.2.0022.0.0002–20,227,226,652100/500/1000
3.550.2.1.2.0022.0.0003–30,227,733,865100/500/1000
3.550.2.1.2.0022.0.0004–40,228,64282100/500/1000
3.550.2.1.2.0022.0.0005–50,229,449,495100/500/1000
3.550.2.1.2.0022.0.0006–60,221157,9112100/500/1000
3.550.2.1.2.0022.0.0007–70,221164,3123100/500/1000
3.550.2.1.2.0022.0.0008–80,221272,1137100/500/1000
3.550.2.1.2.0022.0.0009–90,221381,8157100/500/1000
3.550.2.1.2.0022.0.0010–100,221488,3169100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.2.0025.0.0002–20,257,628,456100/500/1000
3.550.2.1.2.0025.0.0003–30,258,136,270100/500/1000
3.550.2.1.2.0025.0.0004–40,259,244,588100/500/1000
3.550.2.1.2.0025.0.0005–50,259,953,3103100/500/1000
3.550.2.1.2.0025.0.0006–60,251162,3121100/500/1000
3.550.2.1.2.0025.0.0007–70,251169,3133100/500/1000
3.550.2.1.2.0025.0.0008–80,251277,6148100/500/1000
3.550.2.1.2.0025.0.0009–90,251488,7171100/500/1000
3.550.2.1.2.0025.0.0010–100,251495,7184100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.2.0034.0.0002–20,348,633,267100/500/1000
3.550.2.1.2.0034.0.0003–30,349,243,284100/500/1000
3.550.2.1.2.0034.0.0004–40,341153,8104100/500/1000
3.550.2.1.2.0034.0.0005–50,341264124100/500/1000
3.550.2.1.2.0034.0.0006–60,341375142100/500/1000
3.550.2.1.2.0034.0.0007–70,341383,9158100/500/1000
3.550.2.1.2.0034.0.0008–80,341494,6176100/500/1000
3.550.2.1.2.0034.0.0009–90,3416113,7212100/500/1000
3.550.2.1.2.0034.0.0010–100,3416122,6228100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.2.0050.0.0002–20,59,648,390100/500/1000
3.550.2.1.2.0050.0.0003–30,51163,1113100/500/1000
3.550.2.1.2.0050.0.0004–40,51278,2142100/500/1000
3.550.2.1.2.0050.0.0005–50,51394,6167100/500/1000
3.550.2.1.2.0050.0.0006–60,513,7110,7196100/500/1000
3.550.2.1.2.0050.0.0007–70,514124,4217100/500/1000
3.550.2.1.2.0050.0.0008–80,516145,9248100/500/1000
3.550.2.1.2.0050.0.0009–90,518165,5288100/500/1000
3.550.2.1.2.0050.0.0010–100,517,7179,2307100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.2.0075.0.0002–20,7510,558,5109100/500/1000
3.550.2.1.2.0075.0.0003–30,751277,7136100/500/1000
3.550.2.1.2.0075.0.0004–40,751398,4174100/500/1000
3.550.2.1.2.0075.0.0005–50,7514119204100/500/1000
3.550.2.1.2.0075.0.0006–60,7516145245100/500/1000
3.550.2.1.2.0075.0.0007–70,7516163,1271100/500/1000
3.550.2.1.2.0075.0.0008–80,7517182,7302100/500/1000
3.550.2.1.2.0075.0.0009–90,7520207,5351100/500/1000
3.550.2.1.2.0075.0.0010–100,7520225,6374100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.2.0100.0.0002–211266,2121100/500/1000
3.550.2.1.2.0100.0.0003–311389155100/500/1000
3.550.2.1.2.0100.0.0004–4114113,8196100/500/1000
3.550.2.1.2.0100.0.0005–5115143,1237100/500/1000
3.550.2.1.2.0100.0.0006–6117166,1276100/500/1000
3.550.2.1.2.0100.0.0007–7117187,6307100/500/1000
3.550.2.1.2.0100.0.0008–8118213,4345100/500/1000
3.550.2.1.2.0100.0.0009–916,8246,8400100/500/1000
3.550.2.1.2.0100.0.0010–10121268,3432100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.2.0150.0.0002–21,51387,1147100/500/1000
3.550.2.1.2.0150.0.0003–31,514118,5190100/500/1000
3.550.2.1.2.0150.0.0004–41,515156,4246100/500/1000
3.550.2.1.2.0150.0.0005–51,516190,5292100/500/1000
3.550.2.1.2.0150.0.0006–61,518225,6344100/500/1000
3.550.2.1.2.0150.0.0007–71,518256,4384100/500/1000
3.550.2.1.2.0150.0.0008–81,520289,3430100/500/1000
3.550.2.1.2.0150.0.0009–91,523332,8503100/500/1000
3.550.2.1.2.0150.0.0010–101,523363,5538100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.1.2.0250.0.0002–22,513131,9216100/500/1000
3.550.2.1.2.0250.0.0003–32,514181282100/500/1000
3.550.2.1.2.0250.0.0004–42,515233,4359100/500/1000
3.550.2.1.2.0250.0.0005–52,516284428100/500/1000
3.550.2.1.2.0250.0.0006–62,518342,2509100/500/1000
3.550.2.1.2.0250.0.0007–72,518390,1571100/500/1000
3.550.2.1.2.0250.0.0008–82,520441,6642100/500/1000
3.550.2.1.2.0250.0.0009–92,523503,8744100/500/1000
3.550.2.1.2.0250.0.0010–102,523551,8800100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
