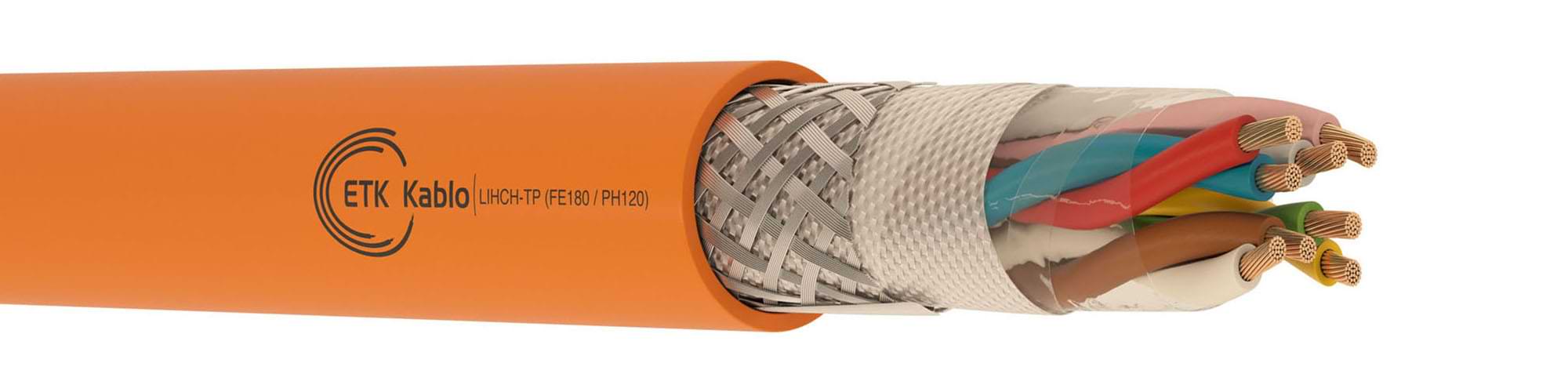

LIHCH-TP FE180 PH120 Fire Resistant Cable

Product Code: LIHCH-TP FE180 PH120

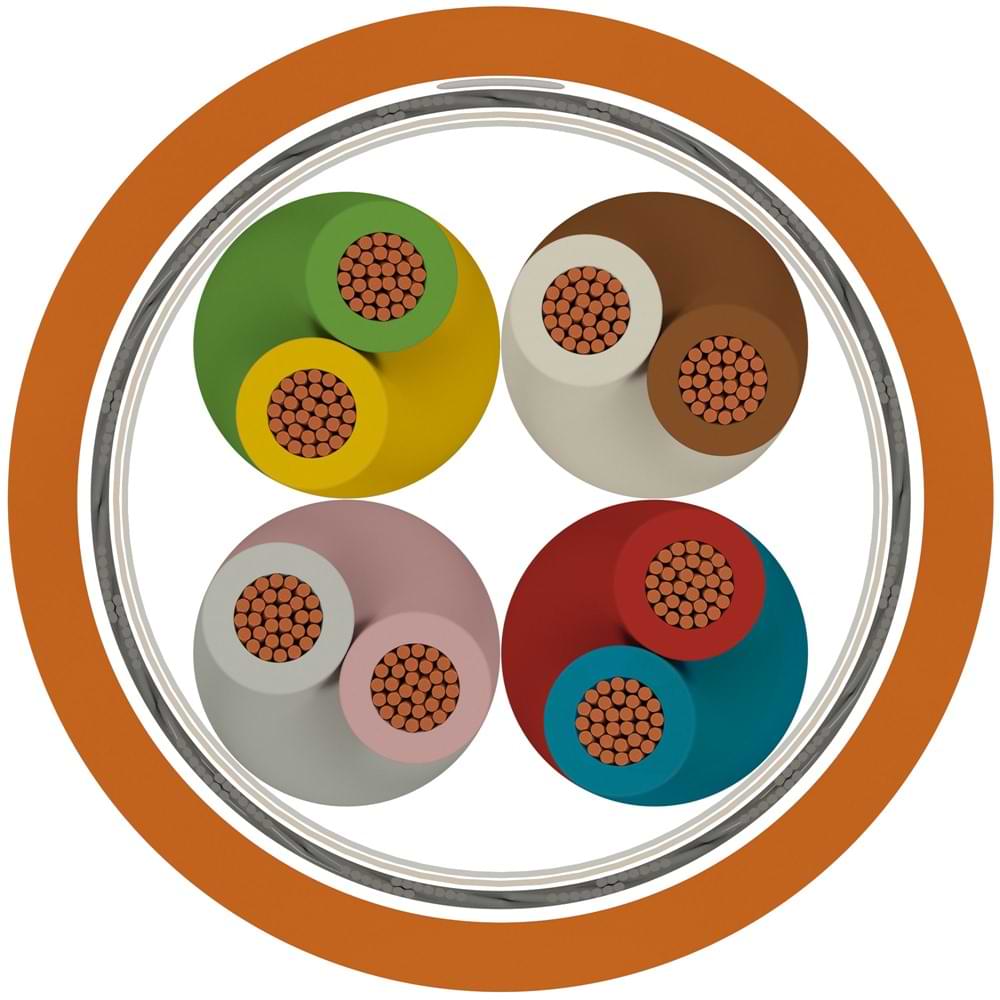

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Cross-linked polymer compound in ceramic form (DIN 47100)
3 – Stranding:Insulations are stranded into pairs, four pairs are stranded together into groups, groups are stranded in layers.
4 – Wrapping:Polyester tape, glass yarn tape
5 – Screen:Tinned copper braiding
6 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 2008 (Orange)
Conductor
Diameter		Conductor Resistance
Ω/km
(20 °C)		Insulation
Resistance
(@500V DC)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.50 mm²39.01001003002000
0.75 mm²26.01001003002000
1.00 mm²19.51001003002000
1.50 mm²13.31001003002000
2.50 mm²8.01001003002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Circuit Integrity Test
(FE180)		Circuit Integrity with Shock Test
(PH120)
IEC 60331-21EN 50200,
VDE 0482-200,
BS EN 50200
Part NumberPair CountConductor Diameter (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.518.2.4.3.0050.0.000220,5728,368100/500/1000
3.518.2.4.3.0050.0.000330,58,138,183100/500/1000
3.518.2.4.3.0050.0.000440,59,951,4113100/500/1000
3.518.2.4.3.0050.0.000550,510,861,2131100/500/1000
3.518.2.4.3.0050.0.000660,511,869,7152100/500/1000
3.518.2.4.3.0050.0.000770,511,978,6168100/500/1000
3.518.2.4.3.0050.0.000880,512,889,4186100/500/1000
3.518.2.4.3.0050.0.000990,515100,9217100/500/1000
3.518.2.4.3.0050.0.0010100,515,1109,7234100/500/1000
3.518.2.4.3.0050.0.0012120,515,6129,4266100/500/1000
3.518.2.4.3.0050.0.0014140,516,4147,8299100/500/1000
3.518.2.4.3.0050.0.0016160,517,5174,7345100/500/1000
Part NumberPair CountConductor Diameter (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.518.2.4.3.0075.0.000220,757,637,381100/500/1000
3.518.2.4.3.0075.0.000330,758,852,3102100/500/1000
3.518.2.4.3.0075.0.000440,7510,871,2139100/500/1000
3.518.2.4.3.0075.0.000550,7511,783161100/500/1000
3.518.2.4.3.0075.0.000660,7512,997,4189100/500/1000
3.518.2.4.3.0075.0.000770,7512,9111,6211100/500/1000
3.518.2.4.3.0075.0.000880,7514126,7234100/500/1000
3.518.2.4.3.0075.0.000990,7516,4143,5272100/500/1000
3.518.2.4.3.0075.0.0010100,7516,5156,8295100/500/1000
3.518.2.4.3.0075.0.0012120,7517,2189,7342100/500/1000
3.518.2.4.3.0075.0.0014140,7518,1217389100/500/1000
3.518.2.4.3.0075.0.0016160,7519,1244,6434100/500/1000
Part NumberPair CountConductor Diameter (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.518.2.4.3.0100.0.0002218,244,894100/500/1000
3.518.2.4.3.0100.0.0003319,566,3122100/500/1000
3.518.2.4.3.0100.0.00044111,683159100/500/1000
3.518.2.4.3.0100.0.00055112,7100,7188100/500/1000
3.518.2.4.3.0100.0.00066113,9120,1223100/500/1000
3.518.2.4.3.0100.0.00077114138250100/500/1000
3.518.2.4.3.0100.0.00088115,2155,6277100/500/1000
3.518.2.4.3.0100.0.00099117,9180,6326100/500/1000
3.518.2.4.3.0100.0.001010118199,8356100/500/1000
3.518.2.4.3.0100.0.001212118,7239,8412100/500/1000
3.518.2.4.3.0100.0.001414119,7274,4470100/500/1000
3.518.2.4.3.0100.0.001616120,9309,2524100/500/1000
Part NumberPair CountConductor Diameter (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.518.2.4.3.0150.0.000221,58,964,2118100/500/1000
3.518.2.4.3.0150.0.000331,511,396160100/500/1000
3.518.2.4.3.0150.0.000441,512,6121203100/500/1000
3.518.2.4.3.0150.0.000551,513,9149,6244100/500/1000
3.518.2.4.3.0150.0.000661,515,3177,9289100/500/1000
3.518.2.4.3.0150.0.000771,515,4203,7325100/500/1000
3.518.2.4.3.0150.0.000881,516,7236,6367100/500/1000
3.518.2.4.3.0150.0.000991,519,7268,3425100/500/1000
3.518.2.4.3.0150.0.0010101,519,8294,2463100/500/1000
3.518.2.4.3.0150.0.0012121,520,5353,1539100/500/1000
3.518.2.4.3.0150.0.0014141,521,6404,8610100/500/1000
3.518.2.4.3.0150.0.0016161,523459,9692100/500/1000
Part NumberPair CountConductor Diameter (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.518.2.4.3.0250.0.000222,511,2102,7190100/500/1000
3.518.2.4.3.0250.0.000332,514,4149,8258100/500/1000
3.518.2.4.3.0250.0.000442,516199,4334100/500/1000
3.518.2.4.3.0250.0.000552,517,5248,3402100/500/1000
3.518.2.4.3.0250.0.000662,519,2293,3472100/500/1000
3.518.2.4.3.0250.0.000772,519,3339,4533100/500/1000
3.518.2.4.3.0250.0.000882,521385594100/500/1000
3.518.2.4.3.0250.0.000992,524,9436,8694100/500/1000
3.518.2.4.3.0250.0.0010102,524,9479,9747100/500/1000
3.518.2.4.3.0250.0.0012122,525,7572,8866100/500/1000
Bending RadiusTemperature Range
Operating
10xD mm-40°C ~ +70°C
