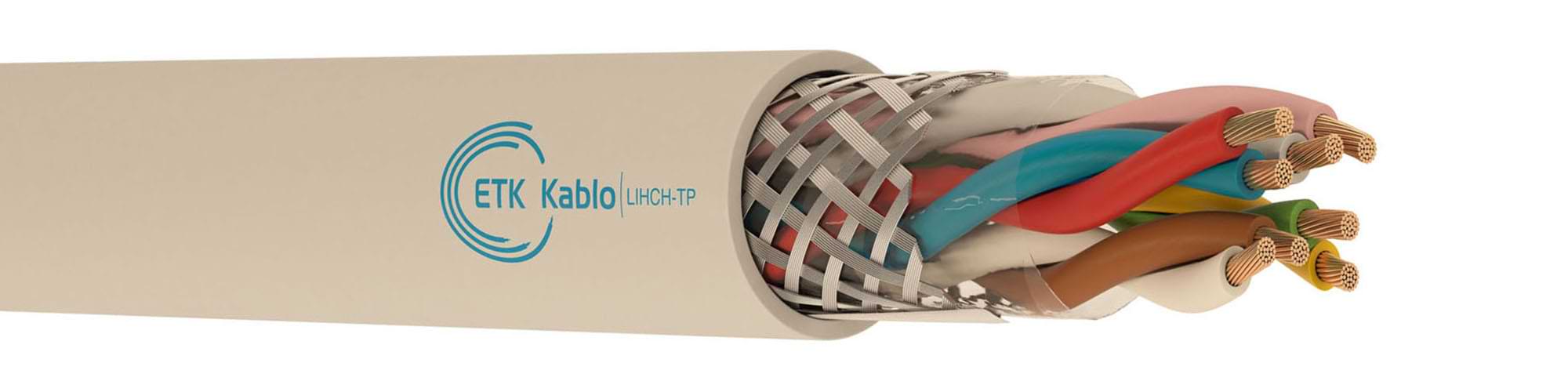

LIHCH-TP/TT Signal Control Cable

Product Code: LIHCH-TP/TT

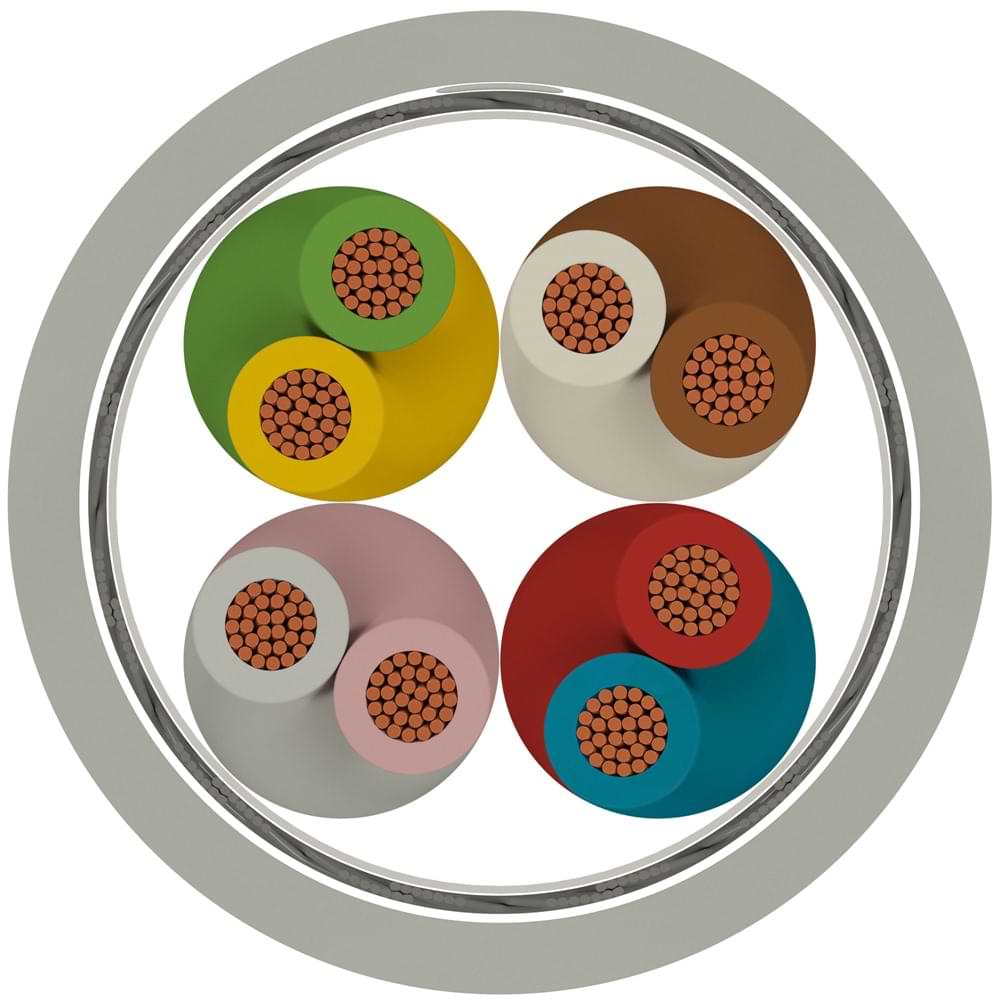

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Halojensiz (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Büküm:İzoleler çiftler veya üçlüler halinde ve tüm çiftler veya üçlü bükümler bir arada bükülür.
4 – Ayırıcı:Polyester bant
5 – Ekran:Kalaylı bakır örgü
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı halojensiz dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Duman Yoğunluğu TestiAşındırıcı Gaz TestiHalojensizlik tesiAlev Yayılım TestiAlev Geciktiricilik Testi
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.533.2.3.3.0022.0.0002–20,224,915,132100/500/1000
3.533.2.3.3.0022.0.0003–30,225,720,844100/500/1000
3.533.2.3.3.0022.0.0004–40,226,926,557100/500/1000
3.533.2.3.3.0022.0.0005–50,227,432,366100/500/1000
3.533.2.3.3.0022.0.0006–60,228,236,777100/500/1000
3.533.2.3.3.0022.0.0007–70,228,34286100/500/1000
3.533.2.3.3.0022.0.0008–80,22950,3100100/500/1000
3.533.2.3.3.0022.0.0009–90,2210,554,6112100/500/1000
3.533.2.3.3.0022.0.0010–100,2210,659121100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.533.2.3.3.0025.0.0002–20,255,221,239100/500/1000
3.533.2.3.3.0025.0.0003–30,256,122,948100/500/1000
3.533.2.3.3.0025.0.0004–40,257,436,270100/500/1000
3.533.2.3.3.0025.0.0005–50,2583575100/500/1000
3.533.2.3.3.0025.0.0006–60,258,84188100/500/1000
3.533.2.3.3.0025.0.0007–70,258,946,798100/500/1000
3.533.2.3.3.0025.0.0008–80,259,755,3113100/500/1000
3.533.2.3.3.0025.0.0009–90,2511,459,6126100/500/1000
3.533.2.3.3.0025.0.0010–100,2511,564,5137100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.533.2.3.3.0034.0.0002–20,345,821,543100/500/1000
3.533.2.3.3.0034.0.0003–30,346,830,760100/500/1000
3.533.2.3.3.0034.0.0004–40,348,338,279100/500/1000
3.533.2.3.3.0034.0.0005–50,34946,393100/500/1000
3.533.2.3.3.0034.0.0006–60,349,956,3112100/500/1000
3.533.2.3.3.0034.0.0007–70,341063,1124100/500/1000
3.533.2.3.3.0034.0.0008–80,3410,970,4139100/500/1000
3.533.2.3.3.0034.0.0009–90,3412,877,3157100/500/1000
3.533.2.3.3.0034.0.0010–100,3412,984,9171100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.533.2.3.3.0050.0.0002–20,56,427,961100/500/1000
3.533.2.3.3.0050.0.0003–30,57,537,371100/500/1000
3.533.2.3.3.0050.0.0004–40,59,251,899100/500/1000
3.533.2.3.3.0050.0.0005–50,510,160,6115100/500/1000
3.533.2.3.3.0050.0.0006–60,51169,3134100/500/1000
3.533.2.3.3.0050.0.0007–70,511,178,3150100/500/1000
3.533.2.3.3.0050.0.0008–80,512,188,7168100/500/1000
3.533.2.3.3.0050.0.0009–90,514,298,8191100/500/1000
3.533.2.3.3.0050.0.0010–100,514,3108208100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.533.2.3.3.0075.0.0002–20,75737,174100/500/1000
3.533.2.3.3.0075.0.0003–30,758,251,990100/500/1000
3.533.2.3.3.0075.0.0004–40,7510,170,4123100/500/1000
3.533.2.3.3.0075.0.0005–50,751182,7143100/500/1000
3.533.2.3.3.0075.0.0006–60,7512,196,7168100/500/1000
3.533.2.3.3.0075.0.0007–70,7512,2111,1190100/500/1000
3.533.2.3.3.0075.0.0008–80,7513,3125,8214100/500/1000
3.533.2.3.3.0075.0.0009–90,7515,6140,7243100/500/1000
3.533.2.3.3.0075.0.0010–100,7515,7154,5265100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.533.2.3.3.0100.0.0002–217,644,587100/500/1000
3.533.2.3.3.0100.0.0003–318,966108100/500/1000
3.533.2.3.3.0100.0.0004–4110,982,7142100/500/1000
3.533.2.3.3.0100.0.0005–5112100,1169100/500/1000
3.533.2.3.3.0100.0.0006–6113,2118,8200100/500/1000
3.533.2.3.3.0100.0.0007–7113,3137,1227100/500/1000
3.533.2.3.3.0100.0.0008–8114,5154,4254100/500/1000
3.533.2.3.3.0100.0.0009–9117,1177,5294100/500/1000
3.533.2.3.3.0100.0.0010–10117,2196,8322100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.533.2.3.3.0150.0.0002–21,58,463,8114100/500/1000
3.533.2.3.3.0150.0.0003–31,510,995146100/500/1000
3.533.2.3.3.0150.0.0004–41,512,2120,4187100/500/1000
3.533.2.3.3.0150.0.0005–51,513,4148,5225100/500/1000
3.533.2.3.3.0150.0.0006–61,514,8176,2268100/500/1000
3.533.2.3.3.0150.0.0007–71,514,9202,9304100/500/1000
3.533.2.3.3.0150.0.0008–81,516,3235,4347100/500/1000
3.533.2.3.3.0150.0.0009–91,519,3264,1395100/500/1000
3.533.2.3.3.0150.0.0010–101,519,4290,8432100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.533.2.3.3.0250.0.0002–22,510,8102,5187100/500/1000
3.533.2.3.3.0250.0.0003–32,513,9148,6240100/500/1000
3.533.2.3.3.0250.0.0004–42,515,5198,4312100/500/1000
3.533.2.3.3.0250.0.0005–52,517,1246,5377100/500/1000
3.533.2.3.3.0250.0.0006–62,518,8291444100/500/1000
3.533.2.3.3.0250.0.0007–72,518,9338,3503100/500/1000
3.533.2.3.3.0250.0.0008–82,520,6383,1567100/500/1000
3.533.2.3.3.0250.0.0009–92,524,4430,6652100/500/1000
3.533.2.3.3.0250.0.0010–102,524,4475,2704100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Open in a new tabİndir
1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Halogen-free (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Stranding:Insulations are stranded into pairs or triads and all pairs or triads are stranded together.
4 – Wrapping:Polyester tape
5 – Screen:Tinned copper braiding
6 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.533.2.3.3.0022.0.0002–20,224,915,132100/500/1000
3.533.2.3.3.0022.0.0003–30,225,720,844100/500/1000
3.533.2.3.3.0022.0.0004–40,226,926,557100/500/1000
3.533.2.3.3.0022.0.0005–50,227,432,366100/500/1000
3.533.2.3.3.0022.0.0006–60,228,236,777100/500/1000
3.533.2.3.3.0022.0.0007–70,228,34286100/500/1000
3.533.2.3.3.0022.0.0008–80,22950,3100100/500/1000
3.533.2.3.3.0022.0.0009–90,2210,554,6112100/500/1000
3.533.2.3.3.0022.0.0010–100,2210,659121100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.533.2.3.3.0025.0.0002–20,255,221,239100/500/1000
3.533.2.3.3.0025.0.0003–30,256,122,948100/500/1000
3.533.2.3.3.0025.0.0004–40,257,436,270100/500/1000
3.533.2.3.3.0025.0.0005–50,2583575100/500/1000
3.533.2.3.3.0025.0.0006–60,258,84188100/500/1000
3.533.2.3.3.0025.0.0007–70,258,946,798100/500/1000
3.533.2.3.3.0025.0.0008–80,259,755,3113100/500/1000
3.533.2.3.3.0025.0.0009–90,2511,459,6126100/500/1000
3.533.2.3.3.0025.0.0010–100,2511,564,5137100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.533.2.3.3.0034.0.0002–20,345,821,543100/500/1000
3.533.2.3.3.0034.0.0003–30,346,830,760100/500/1000
3.533.2.3.3.0034.0.0004–40,348,338,279100/500/1000
3.533.2.3.3.0034.0.0005–50,34946,393100/500/1000
3.533.2.3.3.0034.0.0006–60,349,956,3112100/500/1000
3.533.2.3.3.0034.0.0007–70,341063,1124100/500/1000
3.533.2.3.3.0034.0.0008–80,3410,970,4139100/500/1000
3.533.2.3.3.0034.0.0009–90,3412,877,3157100/500/1000
3.533.2.3.3.0034.0.0010–100,3412,984,9171100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.533.2.3.3.0050.0.0002–20,56,427,961100/500/1000
3.533.2.3.3.0050.0.0003–30,57,537,371100/500/1000
3.533.2.3.3.0050.0.0004–40,59,251,899100/500/1000
3.533.2.3.3.0050.0.0005–50,510,160,6115100/500/1000
3.533.2.3.3.0050.0.0006–60,51169,3134100/500/1000
3.533.2.3.3.0050.0.0007–70,511,178,3150100/500/1000
3.533.2.3.3.0050.0.0008–80,512,188,7168100/500/1000
3.533.2.3.3.0050.0.0009–90,514,298,8191100/500/1000
3.533.2.3.3.0050.0.0010–100,514,3108208100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.533.2.3.3.0075.0.0002–20,75737,174100/500/1000
3.533.2.3.3.0075.0.0003–30,758,251,990100/500/1000
3.533.2.3.3.0075.0.0004–40,7510,170,4123100/500/1000
3.533.2.3.3.0075.0.0005–50,751182,7143100/500/1000
3.533.2.3.3.0075.0.0006–60,7512,196,7168100/500/1000
3.533.2.3.3.0075.0.0007–70,7512,2111,1190100/500/1000
3.533.2.3.3.0075.0.0008–80,7513,3125,8214100/500/1000
3.533.2.3.3.0075.0.0009–90,7515,6140,7243100/500/1000
3.533.2.3.3.0075.0.0010–100,7515,7154,5265100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.533.2.3.3.0100.0.0002–217,644,587100/500/1000
3.533.2.3.3.0100.0.0003–318,966108100/500/1000
3.533.2.3.3.0100.0.0004–4110,982,7142100/500/1000
3.533.2.3.3.0100.0.0005–5112100,1169100/500/1000
3.533.2.3.3.0100.0.0006–6113,2118,8200100/500/1000
3.533.2.3.3.0100.0.0007–7113,3137,1227100/500/1000
3.533.2.3.3.0100.0.0008–8114,5154,4254100/500/1000
3.533.2.3.3.0100.0.0009–9117,1177,5294100/500/1000
3.533.2.3.3.0100.0.0010–10117,2196,8322100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.533.2.3.3.0150.0.0002–21,58,463,8114100/500/1000
3.533.2.3.3.0150.0.0003–31,510,995146100/500/1000
3.533.2.3.3.0150.0.0004–41,512,2120,4187100/500/1000
3.533.2.3.3.0150.0.0005–51,513,4148,5225100/500/1000
3.533.2.3.3.0150.0.0006–61,514,8176,2268100/500/1000
3.533.2.3.3.0150.0.0007–71,514,9202,9304100/500/1000
3.533.2.3.3.0150.0.0008–81,516,3235,4347100/500/1000
3.533.2.3.3.0150.0.0009–91,519,3264,1395100/500/1000
3.533.2.3.3.0150.0.0010–101,519,4290,8432100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.533.2.3.3.0250.0.0002–22,510,8102,5187100/500/1000
3.533.2.3.3.0250.0.0003–32,513,9148,6240100/500/1000
3.533.2.3.3.0250.0.0004–42,515,5198,4312100/500/1000
3.533.2.3.3.0250.0.0005–52,517,1246,5377100/500/1000
3.533.2.3.3.0250.0.0006–62,518,8291444100/500/1000
3.533.2.3.3.0250.0.0007–72,518,9338,3503100/500/1000
3.533.2.3.3.0250.0.0008–82,520,6383,1567100/500/1000
3.533.2.3.3.0250.0.0009–92,524,4430,6652100/500/1000
3.533.2.3.3.0250.0.0010–102,524,4475,2704100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
