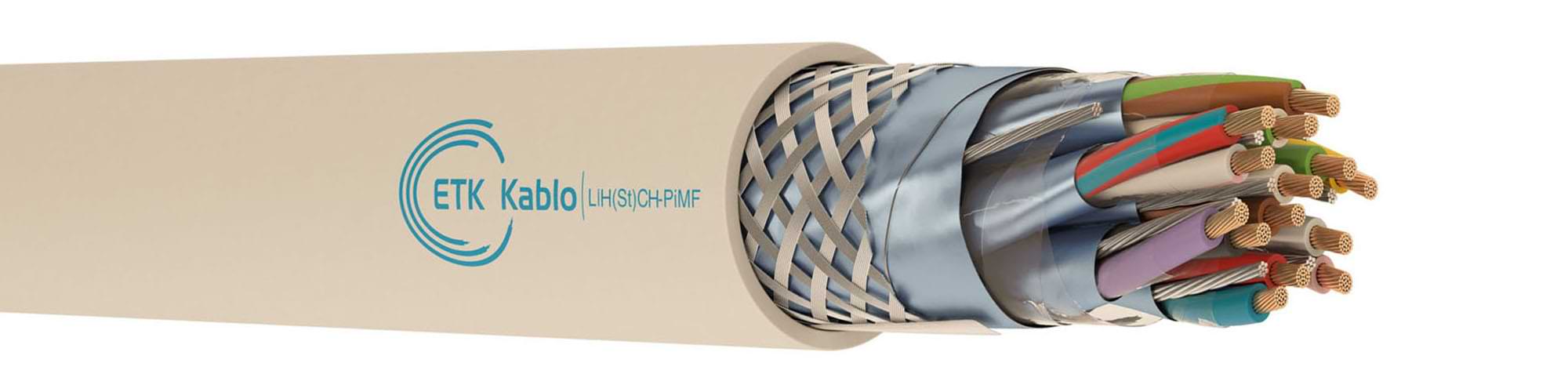

LIH(St)CH-PiMF/TiMF Signal Control Cable

Product Code: LIH(St)CH-PiMF/TiMF

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Halojensiz (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Büküm:Ekranlanmış çiftlerin veya üçlülerin katmanlar halinde bükümü.
4 – Bireysel Sargı:Polyester bant
5 – Bireysel Ekran:Kalaylı bakır toprak teli, Al/PET bant
6 – Sargı:Polyester bant
7 – Ekran:Al/PET bant, kalaylı bakır örgü
8 – Dış Kılıf:Ultraviyole ışınlara dayanıklı halojensiz dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Duman Yoğunluğu TestiAşındırıcı Gaz TestiHalojensizlik tesiAlev Yayılım TestiAlev Geciktiricilik Testi
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.3.3.0022.0.0002–20,227,226,653100/500/1000
3.550.2.3.3.0022.0.0003–30,227,733,866100/500/1000
3.550.2.3.3.0022.0.0004–40,228,64283100/500/1000
3.550.2.3.3.0022.0.0005–50,229,449,496100/500/1000
3.550.2.3.3.0022.0.0006–60,221157,9113100/500/1000
3.550.2.3.3.0022.0.0007–70,221164,3125100/500/1000
3.550.2.3.3.0022.0.0008–80,221272,1139100/500/1000
3.550.2.3.3.0022.0.0009–90,221381,8159100/500/1000
3.550.2.3.3.0022.0.0010–100,221488,3172100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.3.3.0025.0.0002–20,257,628,456100/500/1000
3.550.2.3.3.0025.0.0003–30,258,136,271100/500/1000
3.550.2.3.3.0025.0.0004–40,259,244,589100/500/1000
3.550.2.3.3.0025.0.0005–50,259,953,3104100/500/1000
3.550.2.3.3.0025.0.0006–60,251162,3122100/500/1000
3.550.2.3.3.0025.0.0007–70,251169,3135100/500/1000
3.550.2.3.3.0025.0.0008–80,251277,6151100/500/1000
3.550.2.3.3.0025.0.0009–90,251488,7174100/500/1000
3.550.2.3.3.0025.0.0010–100,251495,7188100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.3.3.0034.0.0002–20,348,633,267100/500/1000
3.550.2.3.3.0034.0.0003–30,349,243,285100/500/1000
3.550.2.3.3.0034.0.0004–40,341153,8105100/500/1000
3.550.2.3.3.0034.0.0005–50,341264126100/500/1000
3.550.2.3.3.0034.0.0006–60,341375145100/500/1000
3.550.2.3.3.0034.0.0007–70,341383,9161100/500/1000
3.550.2.3.3.0034.0.0008–80,341494,6180100/500/1000
3.550.2.3.3.0034.0.0009–90,3416113,7216100/500/1000
3.550.2.3.3.0034.0.0010–100,3416122,6233100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.3.3.0050.0.0002–20,59,848,490100/500/1000
3.550.2.3.3.0050.0.0003–30,51163,1115100/500/1000
3.550.2.3.3.0050.0.0004–40,51278,2144100/500/1000
3.550.2.3.3.0050.0.0005–50,51394,6170100/500/1000
3.550.2.3.3.0050.0.0006–60,514110,7199100/500/1000
3.550.2.3.3.0050.0.0007–70,514124,4221100/500/1000
3.550.2.3.3.0050.0.0008–80,516145,9252100/500/1000
3.550.2.3.3.0050.0.0009–90,518165,5293100/500/1000
3.550.2.3.3.0050.0.0010–100,518179,2312100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.3.3.0075.0.0002–20,751158,3107100/500/1000
3.550.2.3.3.0075.0.0003–30,751277,7137100/500/1000
3.550.2.3.3.0075.0.0004–40,751398,4176100/500/1000
3.550.2.3.3.0075.0.0005–50,7514119207100/500/1000
3.550.2.3.3.0075.0.0006–60,7516145248100/500/1000
3.550.2.3.3.0075.0.0007–70,7516163,1275100/500/1000
3.550.2.3.3.0075.0.0008–80,7517182,7307100/500/1000
3.550.2.3.3.0075.0.0009–90,7520207,5357100/500/1000
3.550.2.3.3.0075.0.0010–100,7520225,6381100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.3.3.0100.0.0002–211266,2122100/500/1000
3.550.2.3.3.0100.0.0003–311389157100/500/1000
3.550.2.3.3.0100.0.0004–4114113,8199100/500/1000
3.550.2.3.3.0100.0.0005–5115143,1241100/500/1000
3.550.2.3.3.0100.0.0006–6117166,1281100/500/1000
3.550.2.3.3.0100.0.0007–7117187,6313100/500/1000
3.550.2.3.3.0100.0.0008–8118213,4352100/500/1000
3.550.2.3.3.0100.0.0009–916,8246,8408100/500/1000
3.550.2.3.3.0100.0.0010–10121268,3441100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.3.3.0150.0.0002–21,51387,1148100/500/1000
3.550.2.3.3.0150.0.0003–31,514118,5192100/500/1000
3.550.2.3.3.0150.0.0004–41,515156,4248100/500/1000
3.550.2.3.3.0150.0.0005–51,516190,5296100/500/1000
3.550.2.3.3.0150.0.0006–61,518225,6348100/500/1000
3.550.2.3.3.0150.0.0007–71,518256,4389100/500/1000
3.550.2.3.3.0150.0.0008–81,520289,3437100/500/1000
3.550.2.3.3.0150.0.0009–91,523332,8510100/500/1000
3.550.2.3.3.0150.0.0010–101,523363,5547100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.550.2.3.3.0250.0.0002–22,513131,9218100/500/1000
3.550.2.3.3.0250.0.0003–32,514181286100/500/1000
3.550.2.3.3.0250.0.0004–42,515233,4365100/500/1000
3.550.2.3.3.0250.0.0005–52,516284435100/500/1000
3.550.2.3.3.0250.0.0006–62,518342,2518100/500/1000
3.550.2.3.3.0250.0.0007–72,518390,1581100/500/1000
3.550.2.3.3.0250.0.0008–82,520441,6654100/500/1000
3.550.2.3.3.0250.0.0009–92,523503,8758100/500/1000
3.550.2.3.3.0250.0.0010–102,523551,8816100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Open in a new tabİndir

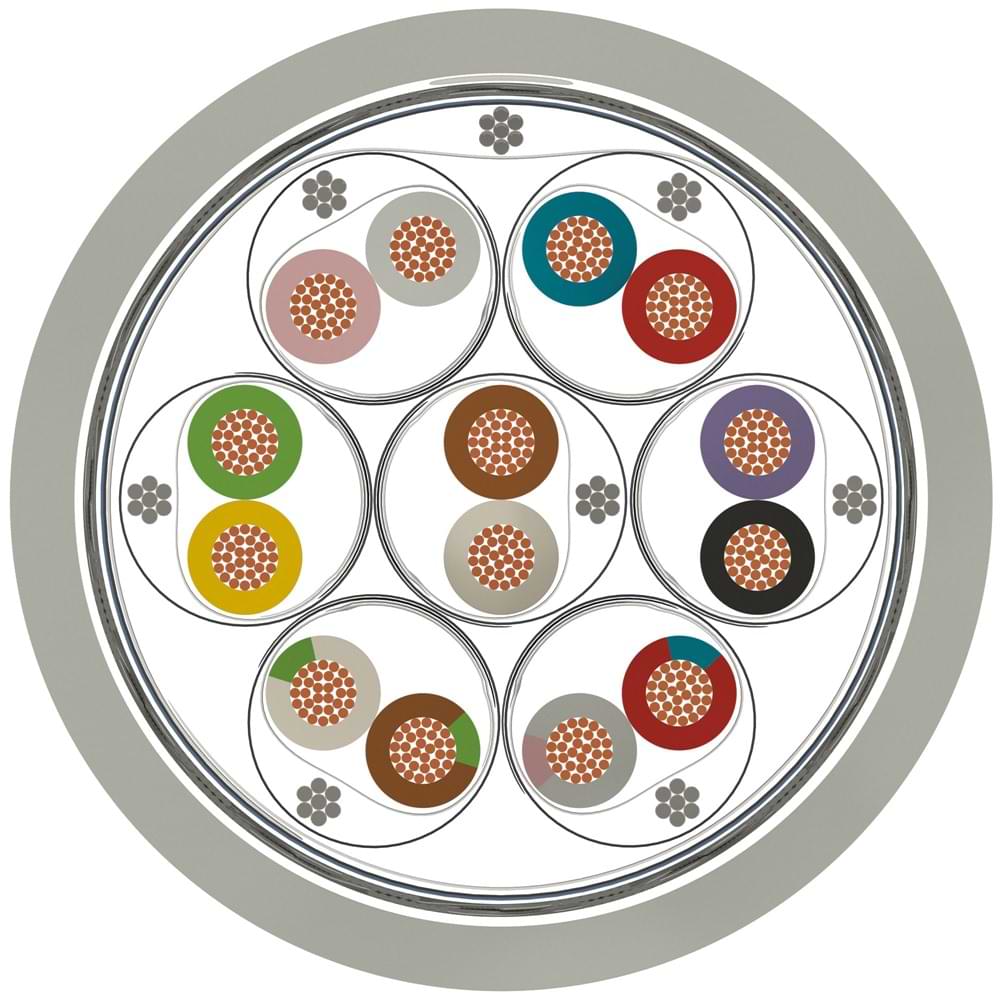

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Halogen-free (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Stranding:Screened pairs or triads are stranded in layers.
4 – Individual Wrapping:Polyester tape
5 – Individual Screen:Tinned copper earthing wire, Al/PET tape
6 – Wrapping:Polyester tape
7 – Screen:Al/PET tape, tinned copper braiding
8 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.3.3.0022.0.0002–20,227,226,653100/500/1000
3.550.2.3.3.0022.0.0003–30,227,733,866100/500/1000
3.550.2.3.3.0022.0.0004–40,228,64283100/500/1000
3.550.2.3.3.0022.0.0005–50,229,449,496100/500/1000
3.550.2.3.3.0022.0.0006–60,221157,9113100/500/1000
3.550.2.3.3.0022.0.0007–70,221164,3125100/500/1000
3.550.2.3.3.0022.0.0008–80,221272,1139100/500/1000
3.550.2.3.3.0022.0.0009–90,221381,8159100/500/1000
3.550.2.3.3.0022.0.0010–100,221488,3172100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.3.3.0025.0.0002–20,257,628,456100/500/1000
3.550.2.3.3.0025.0.0003–30,258,136,271100/500/1000
3.550.2.3.3.0025.0.0004–40,259,244,589100/500/1000
3.550.2.3.3.0025.0.0005–50,259,953,3104100/500/1000
3.550.2.3.3.0025.0.0006–60,251162,3122100/500/1000
3.550.2.3.3.0025.0.0007–70,251169,3135100/500/1000
3.550.2.3.3.0025.0.0008–80,251277,6151100/500/1000
3.550.2.3.3.0025.0.0009–90,251488,7174100/500/1000
3.550.2.3.3.0025.0.0010–100,251495,7188100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.3.3.0034.0.0002–20,348,633,267100/500/1000
3.550.2.3.3.0034.0.0003–30,349,243,285100/500/1000
3.550.2.3.3.0034.0.0004–40,341153,8105100/500/1000
3.550.2.3.3.0034.0.0005–50,341264126100/500/1000
3.550.2.3.3.0034.0.0006–60,341375145100/500/1000
3.550.2.3.3.0034.0.0007–70,341383,9161100/500/1000
3.550.2.3.3.0034.0.0008–80,341494,6180100/500/1000
3.550.2.3.3.0034.0.0009–90,3416113,7216100/500/1000
3.550.2.3.3.0034.0.0010–100,3416122,6233100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.3.3.0050.0.0002–20,59,848,490100/500/1000
3.550.2.3.3.0050.0.0003–30,51163,1115100/500/1000
3.550.2.3.3.0050.0.0004–40,51278,2144100/500/1000
3.550.2.3.3.0050.0.0005–50,51394,6170100/500/1000
3.550.2.3.3.0050.0.0006–60,514110,7199100/500/1000
3.550.2.3.3.0050.0.0007–70,514124,4221100/500/1000
3.550.2.3.3.0050.0.0008–80,516145,9252100/500/1000
3.550.2.3.3.0050.0.0009–90,518165,5293100/500/1000
3.550.2.3.3.0050.0.0010–100,518179,2312100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.3.3.0075.0.0002–20,751158,3107100/500/1000
3.550.2.3.3.0075.0.0003–30,751277,7137100/500/1000
3.550.2.3.3.0075.0.0004–40,751398,4176100/500/1000
3.550.2.3.3.0075.0.0005–50,7514119207100/500/1000
3.550.2.3.3.0075.0.0006–60,7516145248100/500/1000
3.550.2.3.3.0075.0.0007–70,7516163,1275100/500/1000
3.550.2.3.3.0075.0.0008–80,7517182,7307100/500/1000
3.550.2.3.3.0075.0.0009–90,7520207,5357100/500/1000
3.550.2.3.3.0075.0.0010–100,7520225,6381100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.3.3.0100.0.0002–211266,2122100/500/1000
3.550.2.3.3.0100.0.0003–311389157100/500/1000
3.550.2.3.3.0100.0.0004–4114113,8199100/500/1000
3.550.2.3.3.0100.0.0005–5115143,1241100/500/1000
3.550.2.3.3.0100.0.0006–6117166,1281100/500/1000
3.550.2.3.3.0100.0.0007–7117187,6313100/500/1000
3.550.2.3.3.0100.0.0008–8118213,4352100/500/1000
3.550.2.3.3.0100.0.0009–916,8246,8408100/500/1000
3.550.2.3.3.0100.0.0010–10121268,3441100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.3.3.0150.0.0002–21,51387,1148100/500/1000
3.550.2.3.3.0150.0.0003–31,514118,5192100/500/1000
3.550.2.3.3.0150.0.0004–41,515156,4248100/500/1000
3.550.2.3.3.0150.0.0005–51,516190,5296100/500/1000
3.550.2.3.3.0150.0.0006–61,518225,6348100/500/1000
3.550.2.3.3.0150.0.0007–71,518256,4389100/500/1000
3.550.2.3.3.0150.0.0008–81,520289,3437100/500/1000
3.550.2.3.3.0150.0.0009–91,523332,8510100/500/1000
3.550.2.3.3.0150.0.0010–101,523363,5547100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.3.3.0250.0.0002–22,513131,9218100/500/1000
3.550.2.3.3.0250.0.0003–32,514181286100/500/1000
3.550.2.3.3.0250.0.0004–42,515233,4365100/500/1000
3.550.2.3.3.0250.0.0005–52,516284435100/500/1000
3.550.2.3.3.0250.0.0006–62,518342,2518100/500/1000
3.550.2.3.3.0250.0.0007–72,518390,1581100/500/1000
3.550.2.3.3.0250.0.0008–82,520441,6654100/500/1000
3.550.2.3.3.0250.0.0009–92,523503,8758100/500/1000
3.550.2.3.3.0250.0.0010–102,523551,8816100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
