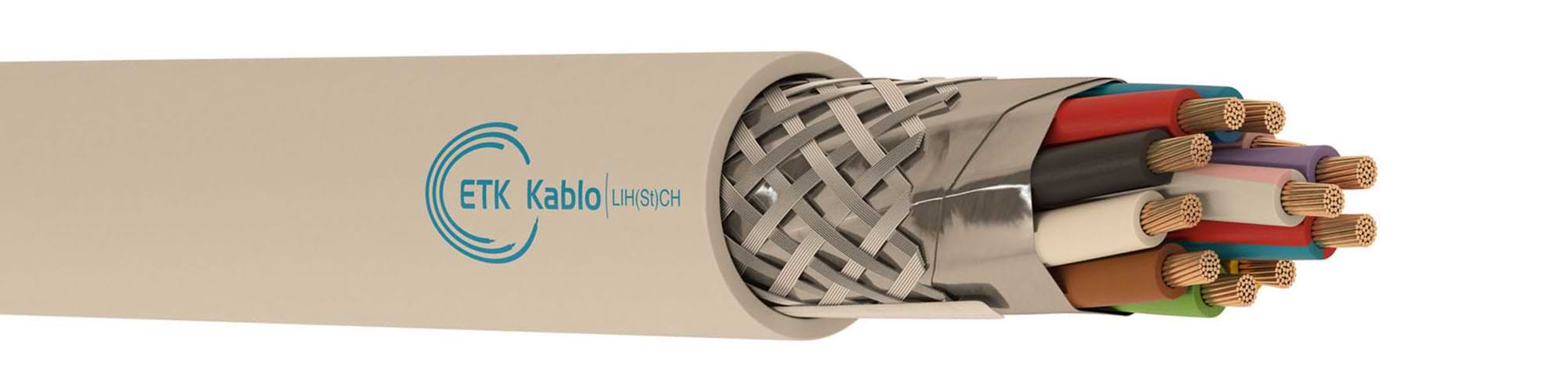

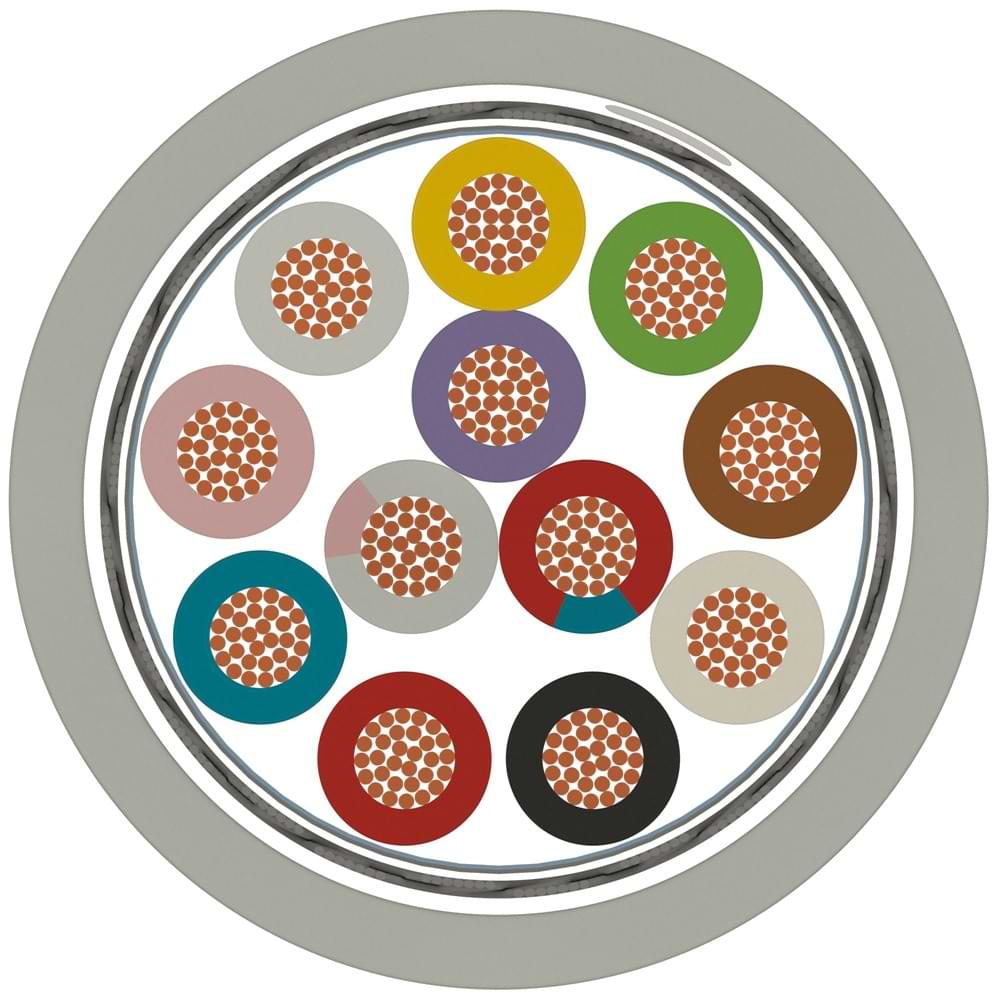

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Halojensiz (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Büküm:Katmanlar halinde
4 – Ayırıcı:Polyester bant
5 – Ekran:Al/PET bant, kalaylı bakır örgü
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı halojensiz dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Duman Yoğunluğu TestiAşındırıcı Gaz TestiHalojensizlik tesiAlev Yayılım TestiAlev Geciktiricilik Testi
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.537.2.3.3.0022.0.00022–0,223,88,320100/500/1000
3.537.2.3.3.0022.0.00033–0,22410,423100/500/1000
3.537.2.3.3.0022.0.00044–0,224,412,729100/500/1000
3.537.2.3.3.0022.0.00055–0,224,716,134100/500/1000
3.537.2.3.3.0022.0.00066–0,225,218,440100/500/1000
3.537.2.3.3.0022.0.00077–0,225,220,543100/500/1000
3.537.2.3.3.0022.0.00088–0,225,622,747100/500/1000
3.537.2.3.3.0022.0.00099–0,225,926,253100/500/1000
3.537.2.3.3.0022.0.001010–0,226,528,459100/500/1000
3.537.2.3.3.0022.0.001212–0,226,832,868100/500/1000
3.537.2.3.3.0022.0.001414–0,227,138,477100/500/1000
3.537.2.3.3.0022.0.001616–0,227,442,985100/500/1000
3.537.2.3.3.0022.0.001818–0,227,847,392100/500/1000
3.537.2.3.3.0022.0.001919–0,227,849,495100/500/1000
3.537.2.3.3.0022.0.002020–0,228,252,3101100/500/1000
3.537.2.3.3.0022.0.002121–0,228,254,5104100/500/1000
3.537.2.3.3.0022.0.002424–0,229,162,4120100/500/1000
3.537.2.3.3.0022.0.002525–0,229,164,5123100/500/1000
3.537.2.3.3.0022.0.002727–0,229,369,4131100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.537.2.3.3.0034.0.00022–0,344,61128100/500/1000
3.537.2.3.3.0034.0.00033–0,344,815,434100/500/1000
3.537.2.3.3.0034.0.00044–0,345,318,742100/500/1000
3.537.2.3.3.0034.0.00055–0,345,822,450100/500/1000
3.537.2.3.3.0034.0.00066–0,346,326,958100/500/1000
3.537.2.3.3.0034.0.00077–0,346,330,163100/500/1000
3.537.2.3.3.0034.0.00088–0,346,833,669100/500/1000
3.537.2.3.3.0034.0.00099–0,347,338,179100/500/1000
3.537.2.3.3.0034.0.001010–0,347,941,787100/500/1000
3.537.2.3.3.0034.0.001212–0,348,148,998100/500/1000
3.537.2.3.3.0034.0.001414–0,348,756,1114100/500/1000
3.537.2.3.3.0034.0.001616–0,349,163,5126100/500/1000
3.537.2.3.3.0034.0.001818–0,349,771141100/500/1000
3.537.2.3.3.0034.0.001919–0,349,774,4146100/500/1000
3.537.2.3.3.0034.0.002020–0,3410,278154100/500/1000
3.537.2.3.3.0034.0.002121–0,3410,281,4159100/500/1000
3.537.2.3.3.0034.0.002424–0,3411,493186100/500/1000
3.537.2.3.3.0034.0.002525–0,3411,496,4190100/500/1000
3.537.2.3.3.0034.0.002727–0,3411,6103,2201100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.537.2.3.3.0050.0.00022–0,5514,233100/500/1000
3.537.2.3.3.0050.0.00033–0,55,318,640100/500/1000
3.537.2.3.3.0050.0.00044–0,55,924,653100/500/1000
3.537.3.3.3.0050.0.00055–0,56,429,162100/500/1000
3.537.3.3.3.0050.0.00066–0,56,934,873100/500/1000
3.537.3.3.3.0050.0.00077–0,56,939,277100/500/1000
3.537.3.3.3.0050.0.00088–0,57,543,990100/500/1000
3.537.3.3.3.0050.0.00099–0,58,850,9106100/500/1000
3.537.3.3.3.0050.0.001010–0,58,855,4110100/500/1000
3.537.3.3.3.0050.0.001212–0,59,264,7126100/500/1000
3.537.3.3.3.0050.0.001414–0,59,773,7144100/500/1000
3.537.3.3.3.0050.0.001616–0,510,283,3160100/500/1000
3.537.3.3.3.0050.0.001818–0,510,892,5181100/500/1000
3.537.3.3.3.0050.0.001919–0,510,896,9184100/500/1000
3.537.3.3.3.0050.0.002020–0,511,4102,5200100/500/1000
3.537.3.3.3.0050.0.002121–0,511,4106,9201100/500/1000
3.537.3.3.3.0050.0.002424–0,512,7120,9233100/500/1000
3.537.3.3.3.0050.0.002525–0,512,7125,3245100/500/1000
3.537.3.3.3.0050.0.002727–0,513134,4254100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.537.2.3.3.0075.0.00022–0,755,618,842100/500/1000
3.537.2.3.3.0075.0.00033–0,755,926,754100/500/1000
3.537.2.3.3.0075.0.00044–0,756,533,566100/500/1000
3.537.3.3.3.0075.0.00055–0,757,141,482100/500/1000
3.537.3.3.3.0075.0.00066–0,757,748,595100/500/1000
3.537.3.3.3.0075.0.00077–0,757,755,2101100/500/1000
3.537.3.3.3.0075.0.00088–0,758,562,7121100/500/1000
3.537.3.3.3.0075.0.00099–0,759,870,5137100/500/1000
3.537.3.3.3.0075.0.001010–0,759,877,7143100/500/1000
3.537.3.3.3.0075.0.001212–0,7510,291,5165100/500/1000
3.537.3.3.3.0075.0.001414–0,7510,8105,6189100/500/1000
3.537.3.3.3.0075.0.001616–0,7511,3120,1210100/500/1000
3.537.3.3.3.0075.0.001818–0,7512136,1241100/500/1000
3.537.3.3.3.0075.0.001919–0,7512142,7246100/500/1000
3.537.3.3.3.0075.0.002020–0,7512,7150,7265100/500/1000
3.537.3.3.3.0075.0.002121–0,7512,7157,4268100/500/1000
3.537.3.3.3.0075.0.002424–0,7514176,3304100/500/1000
3.537.3.3.3.0075.0.002525–0,7514182,9320100/500/1000
3.537.3.3.3.0075.0.002727–0,7514,4197,7337100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.537.2.3.3.0100.0.00022–1623,549100/500/1000
3.537.2.3.3.0100.0.00033–16,33262100/500/1000
3.537.3.3.3.0100.0.00044–1741,377100/500/1000
3.537.3.3.3.0100.0.00055–17,749,995100/500/1000
3.537.3.3.3.0100.0.00066–18,359,8113100/500/1000
3.537.3.3.3.0100.0.00077–18,368,1119100/500/1000
3.537.3.3.3.0100.0.00088–19,277,5143100/500/1000
3.537.3.3.3.0100.0.00099–110,686,7162100/500/1000
3.537.3.3.3.0100.0.001010–110,694,9169100/500/1000
3.537.3.3.3.0100.0.001212–111112,4196100/500/1000
3.537.3.3.3.0100.0.001414–111,7132,6227100/500/1000
3.537.3.3.3.0100.0.001616–112,3150,7253100/500/1000
3.537.3.3.3.0100.0.001818–113164,3283100/500/1000
3.537.3.3.3.0100.0.001919–113172,5289100/500/1000
3.537.3.3.3.0100.0.002020–113,7183,4314100/500/1000
3.537.3.3.3.0100.0.002121–113,7191,7317100/500/1000
3.537.3.3.3.0100.0.002424–115,2219,3365100/500/1000
3.537.3.3.3.0100.0.002525–115,2227,6384100/500/1000
3.537.3.3.3.0100.0.002727–115,5244,4399100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.537.2.3.3.0150.0.00022–1,56,73364100/500/1000
3.537.2.3.3.0150.0.00033–1,57,146,982100/500/1000
3.537.2.3.3.0150.0.00044–1,57,860,2103100/500/1000
3.537.3.3.3.0150.0.00055–1,58,674,6128100/500/1000
3.537.3.3.3.0150.0.00066–1,59,388,7151100/500/1000
3.537.3.3.3.0150.0.00077–1,59,3101,6161100/500/1000
3.537.3.3.3.0150.0.00088–1,510,2115,2191100/500/1000
3.537.3.3.3.0150.0.00099–1,511,9129,4218100/500/1000
3.537.3.3.3.0150.0.001010–1,511,9142,3228100/500/1000
3.537.3.3.3.0150.0.001212–1,512,4171,8268100/500/1000
3.537.3.3.3.0150.0.001414–1,513,1199308100/500/1000
3.537.3.3.3.0150.0.001616–1,513,8224,2343100/500/1000
3.537.3.3.3.0150.0.001818–1,514,6251,1388100/500/1000
3.537.3.3.3.0150.0.001919–1,514,6264399100/500/1000
3.537.3.3.3.0150.0.002020–1,515,4276,8429100/500/1000
3.537.3.3.3.0150.0.002121–1,515,4289,7435100/500/1000
3.537.3.3.3.0150.0.002424–1,517,2331,1503100/500/1000
3.537.3.3.3.0150.0.002525–1,517,2344529100/500/1000
3.537.3.3.3.0150.0.002727–1,517,6370,1553100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.537.2.3.3.0250.0.00022–2,57,852,889100/500/1000
3.537.2.3.3.0250.0.00033–2,58,374,7117100/500/1000
3.537.2.3.3.0250.0.00044–2,59,297,3151100/500/1000
3.537.3.3.3.0250.0.00055–2,510,3120,3192100/500/1000
3.537.3.3.3.0250.0.00066–2,511,2145,8231100/500/1000
3.537.3.3.3.0250.0.00077–2,511,2167,4247100/500/1000
3.537.3.3.3.0250.0.00088–2,512,4190,3294100/500/1000
3.537.3.3.3.0250.0.00099–2,514,5212,6336100/500/1000
3.537.3.3.3.0250.0.001010–2,514,5234,1352100/500/1000
3.537.3.3.3.0250.0.001212–2,515,1277,4410100/500/1000
3.537.3.3.3.0250.0.001414–2,515,9322,1472100/500/1000
3.537.3.3.3.0250.0.001616–2,516,8365,8529100/500/1000
3.537.3.3.3.0250.0.001818–2,517,8408,3599100/500/1000
3.537.3.3.3.0250.0.001919–2,517,8432,8618100/500/1000
3.537.3.3.3.0250.0.002020–2,518,8455,5666100/500/1000
3.537.3.3.3.0250.0.002121–2,518,8477677100/500/1000
3.537.3.3.3.0250.0.002424–2,520,9548,3779100/500/1000
3.537.3.3.3.0250.0.002525–2,520,9569,9822100/500/1000
3.537.3.3.3.0250.0.002727–2,521,4616,8862100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Open in a new tabİndir
1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Halogen-free (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Stranding:In layers
4 – Wrapping:Polyester tape
5 – Screen:Al/PET tape, tinned copper braiding
6 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.537.2.3.3.0022.0.00022–0,223,88,320100/500/1000
3.537.2.3.3.0022.0.00033–0,22410,423100/500/1000
3.537.2.3.3.0022.0.00044–0,224,412,729100/500/1000
3.537.2.3.3.0022.0.00055–0,224,716,134100/500/1000
3.537.2.3.3.0022.0.00066–0,225,218,440100/500/1000
3.537.2.3.3.0022.0.00077–0,225,220,543100/500/1000
3.537.2.3.3.0022.0.00088–0,225,622,747100/500/1000
3.537.2.3.3.0022.0.00099–0,225,926,253100/500/1000
3.537.2.3.3.0022.0.001010–0,226,528,459100/500/1000
3.537.2.3.3.0022.0.001212–0,226,832,868100/500/1000
3.537.2.3.3.0022.0.001414–0,227,138,477100/500/1000
3.537.2.3.3.0022.0.001616–0,227,442,985100/500/1000
3.537.2.3.3.0022.0.001818–0,227,847,392100/500/1000
3.537.2.3.3.0022.0.001919–0,227,849,495100/500/1000
3.537.2.3.3.0022.0.002020–0,228,252,3101100/500/1000
3.537.2.3.3.0022.0.002121–0,228,254,5104100/500/1000
3.537.2.3.3.0022.0.002424–0,229,162,4120100/500/1000
3.537.2.3.3.0022.0.002525–0,229,164,5123100/500/1000
3.537.2.3.3.0022.0.002727–0,229,369,4131100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.537.2.3.3.0034.0.00022–0,344,61128100/500/1000
3.537.2.3.3.0034.0.00033–0,344,815,434100/500/1000
3.537.2.3.3.0034.0.00044–0,345,318,742100/500/1000
3.537.2.3.3.0034.0.00055–0,345,822,450100/500/1000
3.537.2.3.3.0034.0.00066–0,346,326,958100/500/1000
3.537.2.3.3.0034.0.00077–0,346,330,163100/500/1000
3.537.2.3.3.0034.0.00088–0,346,833,669100/500/1000
3.537.2.3.3.0034.0.00099–0,347,338,179100/500/1000
3.537.2.3.3.0034.0.001010–0,347,941,787100/500/1000
3.537.2.3.3.0034.0.001212–0,348,148,998100/500/1000
3.537.2.3.3.0034.0.001414–0,348,756,1114100/500/1000
3.537.2.3.3.0034.0.001616–0,349,163,5126100/500/1000
3.537.2.3.3.0034.0.001818–0,349,771141100/500/1000
3.537.2.3.3.0034.0.001919–0,349,774,4146100/500/1000
3.537.2.3.3.0034.0.002020–0,3410,278154100/500/1000
3.537.2.3.3.0034.0.002121–0,3410,281,4159100/500/1000
3.537.2.3.3.0034.0.002424–0,3411,493186100/500/1000
3.537.2.3.3.0034.0.002525–0,3411,496,4190100/500/1000
3.537.2.3.3.0034.0.002727–0,3411,6103,2201100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.537.2.3.3.0050.0.00022–0,5514,233100/500/1000
3.537.2.3.3.0050.0.00033–0,55,318,640100/500/1000
3.537.2.3.3.0050.0.00044–0,55,924,653100/500/1000
3.537.3.3.3.0050.0.00055–0,56,429,162100/500/1000
3.537.3.3.3.0050.0.00066–0,56,934,873100/500/1000
3.537.3.3.3.0050.0.00077–0,56,939,277100/500/1000
3.537.3.3.3.0050.0.00088–0,57,543,990100/500/1000
3.537.3.3.3.0050.0.00099–0,58,850,9106100/500/1000
3.537.3.3.3.0050.0.001010–0,58,855,4110100/500/1000
3.537.3.3.3.0050.0.001212–0,59,264,7126100/500/1000
3.537.3.3.3.0050.0.001414–0,59,773,7144100/500/1000
3.537.3.3.3.0050.0.001616–0,510,283,3160100/500/1000
3.537.3.3.3.0050.0.001818–0,510,892,5181100/500/1000
3.537.3.3.3.0050.0.001919–0,510,896,9184100/500/1000
3.537.3.3.3.0050.0.002020–0,511,4102,5200100/500/1000
3.537.3.3.3.0050.0.002121–0,511,4106,9201100/500/1000
3.537.3.3.3.0050.0.002424–0,512,7120,9233100/500/1000
3.537.3.3.3.0050.0.002525–0,512,7125,3245100/500/1000
3.537.3.3.3.0050.0.002727–0,513134,4254100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.537.2.3.3.0075.0.00022–0,755,618,842100/500/1000
3.537.2.3.3.0075.0.00033–0,755,926,754100/500/1000
3.537.2.3.3.0075.0.00044–0,756,533,566100/500/1000
3.537.3.3.3.0075.0.00055–0,757,141,482100/500/1000
3.537.3.3.3.0075.0.00066–0,757,748,595100/500/1000
3.537.3.3.3.0075.0.00077–0,757,755,2101100/500/1000
3.537.3.3.3.0075.0.00088–0,758,562,7121100/500/1000
3.537.3.3.3.0075.0.00099–0,759,870,5137100/500/1000
3.537.3.3.3.0075.0.001010–0,759,877,7143100/500/1000
3.537.3.3.3.0075.0.001212–0,7510,291,5165100/500/1000
3.537.3.3.3.0075.0.001414–0,7510,8105,6189100/500/1000
3.537.3.3.3.0075.0.001616–0,7511,3120,1210100/500/1000
3.537.3.3.3.0075.0.001818–0,7512136,1241100/500/1000
3.537.3.3.3.0075.0.001919–0,7512142,7246100/500/1000
3.537.3.3.3.0075.0.002020–0,7512,7150,7265100/500/1000
3.537.3.3.3.0075.0.002121–0,7512,7157,4268100/500/1000
3.537.3.3.3.0075.0.002424–0,7514176,3304100/500/1000
3.537.3.3.3.0075.0.002525–0,7514182,9320100/500/1000
3.537.3.3.3.0075.0.002727–0,7514,4197,7337100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.537.2.3.3.0100.0.00022–1623,549100/500/1000
3.537.2.3.3.0100.0.00033–16,33262100/500/1000
3.537.3.3.3.0100.0.00044–1741,377100/500/1000
3.537.3.3.3.0100.0.00055–17,749,995100/500/1000
3.537.3.3.3.0100.0.00066–18,359,8113100/500/1000
3.537.3.3.3.0100.0.00077–18,368,1119100/500/1000
3.537.3.3.3.0100.0.00088–19,277,5143100/500/1000
3.537.3.3.3.0100.0.00099–110,686,7162100/500/1000
3.537.3.3.3.0100.0.001010–110,694,9169100/500/1000
3.537.3.3.3.0100.0.001212–111112,4196100/500/1000
3.537.3.3.3.0100.0.001414–111,7132,6227100/500/1000
3.537.3.3.3.0100.0.001616–112,3150,7253100/500/1000
3.537.3.3.3.0100.0.001818–113164,3283100/500/1000
3.537.3.3.3.0100.0.001919–113172,5289100/500/1000
3.537.3.3.3.0100.0.002020–113,7183,4314100/500/1000
3.537.3.3.3.0100.0.002121–113,7191,7317100/500/1000
3.537.3.3.3.0100.0.002424–115,2219,3365100/500/1000
3.537.3.3.3.0100.0.002525–115,2227,6384100/500/1000
3.537.3.3.3.0100.0.002727–115,5244,4399100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.537.2.3.3.0150.0.00022–1,56,73364100/500/1000
3.537.2.3.3.0150.0.00033–1,57,146,982100/500/1000
3.537.2.3.3.0150.0.00044–1,57,860,2103100/500/1000
3.537.3.3.3.0150.0.00055–1,58,674,6128100/500/1000
3.537.3.3.3.0150.0.00066–1,59,388,7151100/500/1000
3.537.3.3.3.0150.0.00077–1,59,3101,6161100/500/1000
3.537.3.3.3.0150.0.00088–1,510,2115,2191100/500/1000
3.537.3.3.3.0150.0.00099–1,511,9129,4218100/500/1000
3.537.3.3.3.0150.0.001010–1,511,9142,3228100/500/1000
3.537.3.3.3.0150.0.001212–1,512,4171,8268100/500/1000
3.537.3.3.3.0150.0.001414–1,513,1199308100/500/1000
3.537.3.3.3.0150.0.001616–1,513,8224,2343100/500/1000
3.537.3.3.3.0150.0.001818–1,514,6251,1388100/500/1000
3.537.3.3.3.0150.0.001919–1,514,6264399100/500/1000
3.537.3.3.3.0150.0.002020–1,515,4276,8429100/500/1000
3.537.3.3.3.0150.0.002121–1,515,4289,7435100/500/1000
3.537.3.3.3.0150.0.002424–1,517,2331,1503100/500/1000
3.537.3.3.3.0150.0.002525–1,517,2344529100/500/1000
3.537.3.3.3.0150.0.002727–1,517,6370,1553100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.537.2.3.3.0250.0.00022–2,57,852,889100/500/1000
3.537.2.3.3.0250.0.00033–2,58,374,7117100/500/1000
3.537.2.3.3.0250.0.00044–2,59,297,3151100/500/1000
3.537.3.3.3.0250.0.00055–2,510,3120,3192100/500/1000
3.537.3.3.3.0250.0.00066–2,511,2145,8231100/500/1000
3.537.3.3.3.0250.0.00077–2,511,2167,4247100/500/1000
3.537.3.3.3.0250.0.00088–2,512,4190,3294100/500/1000
3.537.3.3.3.0250.0.00099–2,514,5212,6336100/500/1000
3.537.3.3.3.0250.0.001010–2,514,5234,1352100/500/1000
3.537.3.3.3.0250.0.001212–2,515,1277,4410100/500/1000
3.537.3.3.3.0250.0.001414–2,515,9322,1472100/500/1000
3.537.3.3.3.0250.0.001616–2,516,8365,8529100/500/1000
3.537.3.3.3.0250.0.001818–2,517,8408,3599100/500/1000
3.537.3.3.3.0250.0.001919–2,517,8432,8618100/500/1000
3.537.3.3.3.0250.0.002020–2,518,8455,5666100/500/1000
3.537.3.3.3.0250.0.002121–2,518,8477677100/500/1000
3.537.3.3.3.0250.0.002424–2,520,9548,3779100/500/1000
3.537.3.3.3.0250.0.002525–2,520,9569,9822100/500/1000
3.537.3.3.3.0250.0.002727–2,521,4616,8862100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
Open in a new tabDownload

LIH(St)CH Halogen-Free Shielded Signal & Control Cable

ETK Kablo’s LIH(St)CH cable is a halogen-free, shielded signal and control cable engineered for industrial automation, process control, and safety-critical environments. With both a collective foil screen (St) and a copper braid (C), it delivers outstanding protection against electromagnetic interference (EMI), ensuring clean, uninterrupted signal transmission even in high-noise industrial zones.

This cable features fine stranded copper conductors and an LSOH (Low Smoke Zero Halogen) outer sheath, offering excellent flexibility during installation and enhanced fire safety in public or enclosed spaces. The dual shielding structure ensures reliable performance in areas with parallel power cabling, frequency converters, or large motor systems.

LIH(St)CH is ideal for fixed indoor installations in dry or slightly humid environments and is widely used in control panels, building automation systems, railway technology, HVAC control, and factory machinery. Its flame-retardant and non-corrosive sheath protects both people and sensitive equipment in case of fire, making it suitable for infrastructure with strict safety requirements.

ETK Kablo’s LIH(St)CH cable is manufactured in compliance with IEC 60332-1 and other international standards governing halogen-free and flame-retardant cable systems. Available in various conductor configurations and cross-sections, it is the trusted choice for engineers and system integrators requiring durable, interference-resistant signal cabling.

Choose ETK Kablo’s LIH(St)CH — the shielded, halogen-free signal and control cable built for precision, safety, and industrial reliability.
