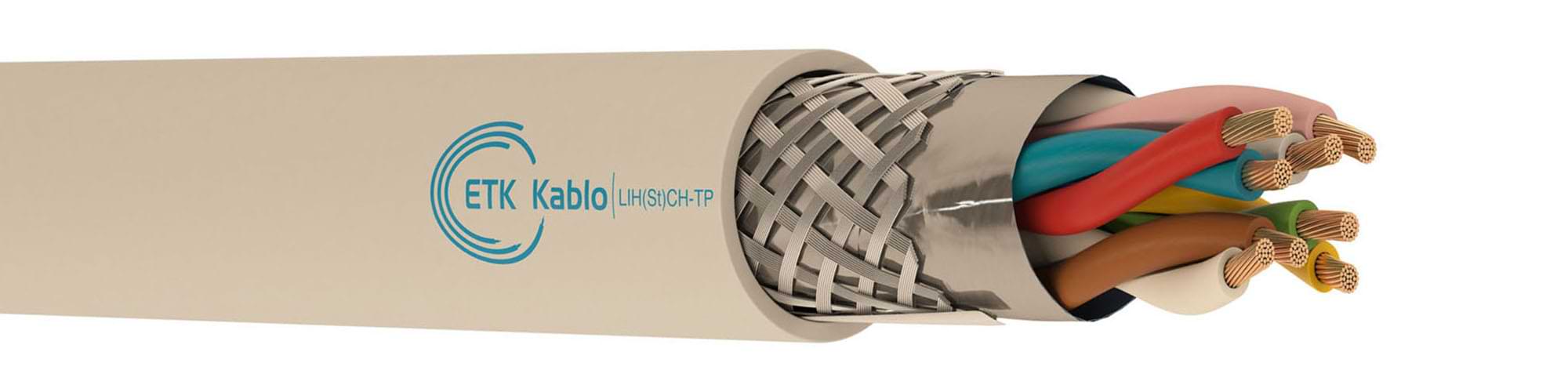

LIH(St)CH-TP/TT Signal Control Cable

Product Code: LIH(St)CH-TP/TT

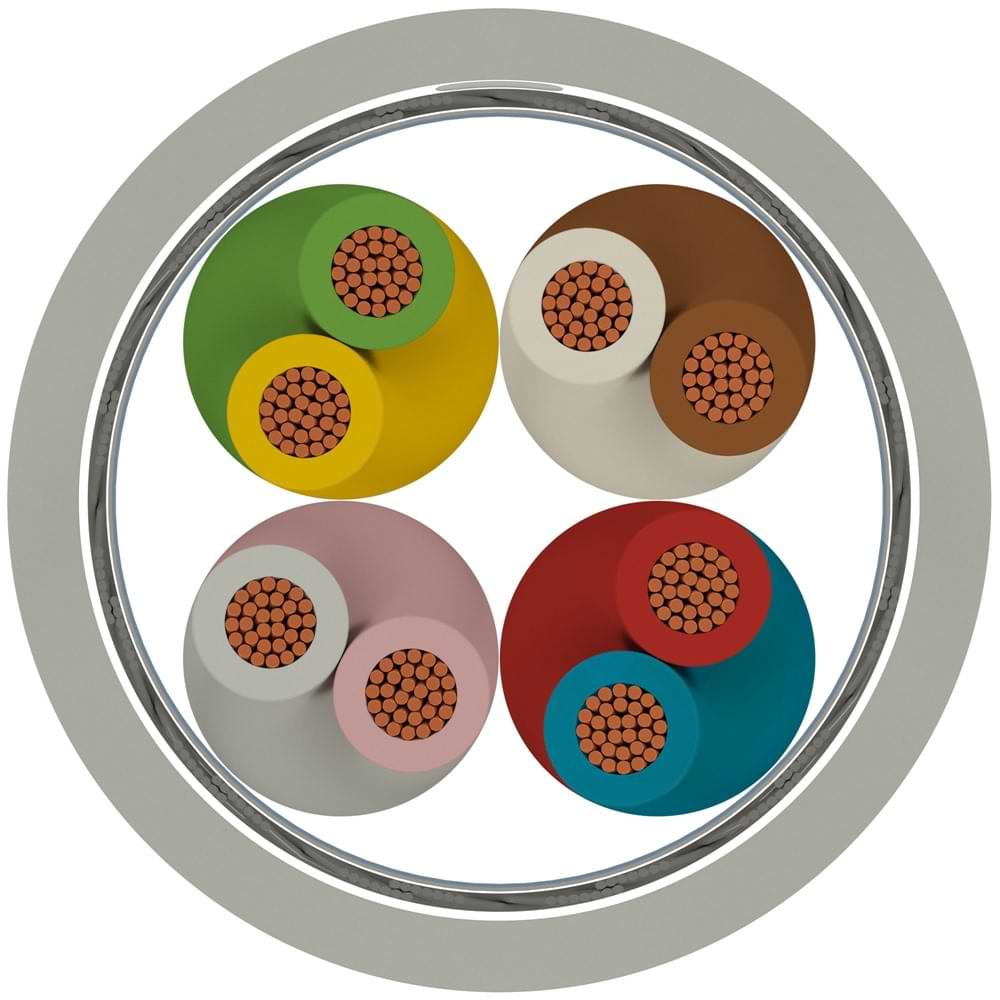

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Halogen-free (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Stranding:Insulations are stranded into pairs or triads and all pairs or triads are stranded together.
4 – Wrapping:Polyester tape
5 – Screen:Al/PET tape, tinned copper braiding
6 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.538.2.3.3.0050.0.0001–10,55,214,335100/500/1000
3.538.2.3.3.0050.0.0002–20,56,724,856100/500/1000
3.538.2.3.3.0050.0.0003–30,57,735,173100/500/1000
3.538.2.3.3.0050.0.0004–40,59,546,4102100/500/1000
3.538.2.3.3.0050.0.0005–50,59,955,5117100/500/1000
3.538.2.3.3.0050.0.0006–60,510,564,7134100/500/1000
3.538.2.3.3.0050.0.0007–70,511,475,1155100/500/1000
3.538.2.3.3.0050.0.0008–80,511,984,1171100/500/1000
3.538.2.3.3.0050.0.0009–90,512,694,4191100/500/1000
3.538.2.3.3.0050.0.0010–100,513,1103,6207100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.538.2.3.3.0075.0.0001–10,755,718,943100/500/1000
3.538.2.3.3.0075.0.0002–20,757,534,772100/500/1000
3.538.2.3.3.0075.0.0003–30,758,649,298100/500/1000
3.538.2.3.3.0075.0.0004–40,7510,665,1132100/500/1000
3.538.2.3.3.0075.0.0005–50,751179,3152100/500/1000
3.538.2.3.3.0075.0.0006–60,7511,792,8176100/500/1000
3.538.2.3.3.0075.0.0007–70,7512,7107,7203100/500/1000
3.538.2.3.3.0075.0.0008–80,7513,2121,4224100/500/1000
3.538.2.3.3.0075.0.0009–90,7514136,6250100/500/1000
3.538.2.3.3.0075.0.0010–100,7514,6150,4272100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.538.2.3.3.0100.0.0001–116,123,350100/500/1000
3.538.2.3.3.0100.0.0002–218,14284100/500/1000
3.538.2.3.3.0100.0.0003–319,360,1115100/500/1000
3.538.2.3.3.0100.0.0004–4111,479,5154100/500/1000
3.538.2.3.3.0100.0.0005–5111,997,4179100/500/1000
3.538.2.3.3.0100.0.0006–6112,7114,4207100/500/1000
3.538.2.3.3.0100.0.0007–7113,8131,7239100/500/1000
3.538.2.3.3.0100.0.0008–8114,4150,3266100/500/1000
3.538.2.3.3.0100.0.0009–9115,2167,5296100/500/1000
3.538.2.3.3.0100.0.0010–10115,8184,8322100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.538.2.3.3.0150.0.0001–11,56,83365100/500/1000
3.538.2.3.3.0150.0.0002–21,5961,8111100/500/1000
3.538.2.3.3.0150.0.0003–31,510,589,2153100/500/1000
3.538.2.3.3.0150.0.0004–41,512,8118,4205100/500/1000
3.538.2.3.3.0150.0.0005–51,513,4144,6240100/500/1000
3.538.2.3.3.0150.0.0006–61,514,2172,5281100/500/1000
3.538.2.3.3.0150.0.0007–71,515,5199,5324100/500/1000
3.538.2.3.3.0150.0.0008–81,516,2225,9360100/500/1000
3.538.2.3.3.0150.0.0009–91,517,1252,6401100/500/1000
3.538.2.3.3.0150.0.0010–101,517,8281,4440100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.538.2.3.3.0250.0.0001–12,5851,992100/500/1000
3.538.2.3.3.0250.0.0002–22,510,899,1161100/500/1000
3.538.2.3.3.0250.0.0003–32,512,6144,2226100/500/1000
3.538.2.3.3.0250.0.0004–42,515,4191302100/500/1000
3.538.2.3.3.0250.0.0005–52,516,2234,8357100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
