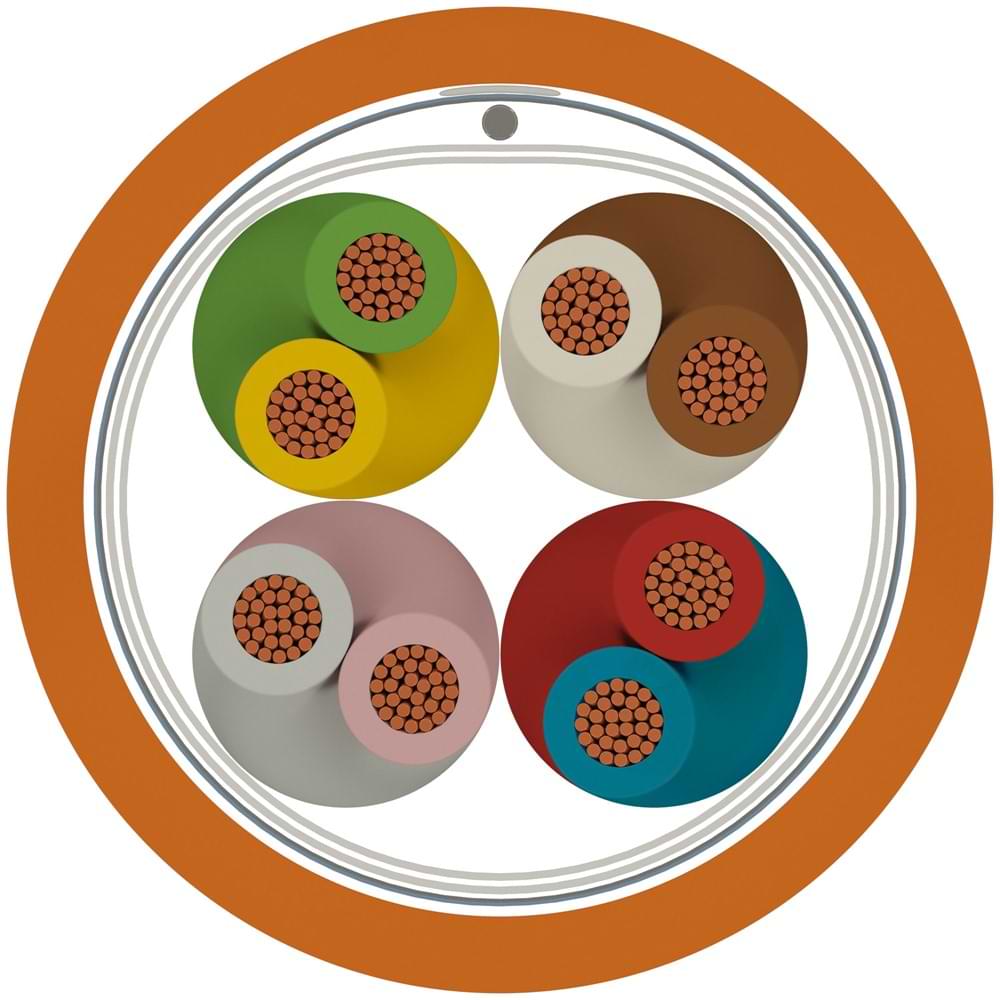

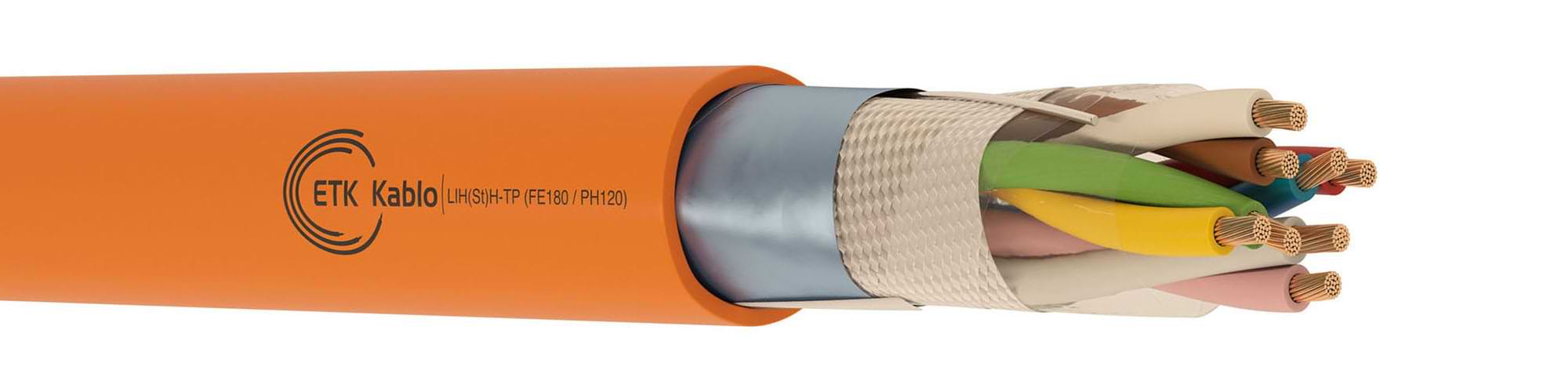

| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Cross-linked polymer compound in ceramic form (DIN 47100) |
| 3 – Stranding | : | Insulations are stranded into pairs, four pairs are stranded together into groups, groups are stranded in layers. |
| 4 – Wrapping | : | Polyester tape, glass yarn tape |
| 5 – Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Outer Jacket | : | UV resistant halogen-free outer jacket. RAL 2008 (Orange) |
| Conductor Diameter | Conductor Resistance Ω/km (20 °C) | Insulation Resistance (@500V DC) MΩ/km | Mutual Capacitance nF/km | Operating Voltage V DC | Test Voltage (@ 1 minute) V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 39.0 | 100 | 100 | 300 | 2000 |
| 0.75 mm² | 26.0 | 100 | 100 | 300 | 2000 |
| 1.00 mm² | 19.5 | 100 | 100 | 300 | 2000 |
| 1.50 mm² | 13.3 | 100 | 100 | 300 | 2000 |
| 2.50 mm² | 8.0 | 100 | 100 | 300 | 2000 |
| Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Propagation Test | Flame Retardancy Test |
|---|---|---|---|---|
| IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2 | IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3 | IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1 | IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24 | IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Circuit Integrity Test (FE180) | Circuit Integrity with Shock Test (PH120) |
|---|---|
| IEC 60331-21 | EN 50200, VDE 0482-200, BS EN 50200 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.546.2.4.3.0050.0.0001 | 1 | 0,5 | 5,5 | 11 | 42 | 100/500/1000 |
| 3.546.2.4.3.0050.0.0002 | 2 | 0,5 | 7,3 | 19,9 | 68 | 100/500/1000 |
| 3.546.2.4.3.0050.0.0003 | 3 | 0,5 | 8,4 | 28,7 | 90 | 100/500/1000 |
| 3.546.2.4.3.0050.0.0004 | 4 | 0,5 | 10,1 | 37,6 | 120 | 100/500/1000 |
| 3.546.2.4.3.0050.0.0005 | 5 | 0,5 | 10,6 | 46,4 | 136 | 100/500/1000 |
| 3.546.2.4.3.0050.0.0006 | 6 | 0,5 | 11,2 | 55,2 | 157 | 100/500/1000 |
| 3.546.2.4.3.0050.0.0007 | 7 | 0,5 | 12,2 | 64,1 | 180 | 100/500/1000 |
| 3.546.2.4.3.0050.0.0008 | 8 | 0,5 | 12,6 | 72,9 | 197 | 100/500/1000 |
| 3.546.2.4.3.0050.0.0009 | 9 | 0,5 | 13,3 | 81,8 | 219 | 100/500/1000 |
| 3.546.2.4.3.0050.0.0010 | 10 | 0,5 | 13,7 | 90,6 | 230 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.546.2.4.3.0075.0.0001 | 1 | 0,75 | 5,9 | 17,7 | 51 | 100/500/1000 |
| 3.546.2.4.3.0075.0.0002 | 2 | 0,75 | 7,9 | 31 | 84 | 100/500/1000 |
| 3.546.2.4.3.0075.0.0003 | 3 | 0,75 | 9,1 | 44,2 | 112 | 100/500/1000 |
| 3.546.2.4.3.0075.0.0004 | 4 | 0,75 | 11 | 57,5 | 148 | 100/500/1000 |
| 3.546.2.4.3.0075.0.0005 | 5 | 0,75 | 11,5 | 70,8 | 170 | 100/500/1000 |
| 3.546.2.4.3.0075.0.0006 | 6 | 0,75 | 12,2 | 84 | 196 | 100/500/1000 |
| 3.546.2.4.3.0075.0.0007 | 7 | 0,75 | 13,2 | 97,3 | 225 | 100/500/1000 |
| 3.546.2.4.3.0075.0.0008 | 8 | 0,75 | 13,7 | 110,6 | 248 | 100/500/1000 |
| 3.546.2.4.3.0075.0.0009 | 9 | 0,75 | 14,5 | 123,9 | 275 | 100/500/1000 |
| 3.546.2.4.3.0075.0.0010 | 10 | 0,75 | 15,1 | 137,1 | 299 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.546.2.4.3.0100.0.0001 | 1 | 1 | 6,2 | 21 | 57 | 100/500/1000 |
| 3.546.2.4.3.0100.0.0002 | 2 | 1 | 8,3 | 37,6 | 95 | 100/500/1000 |
| 3.546.2.4.3.0100.0.0003 | 3 | 1 | 9,6 | 54,2 | 127 | 100/500/1000 |
| 3.546.2.4.3.0100.0.0004 | 4 | 1 | 11,7 | 70,8 | 168 | 100/500/1000 |
| 3.546.2.4.3.0100.0.0005 | 5 | 1 | 12,2 | 87,4 | 194 | 100/500/1000 |
| 3.546.2.4.3.0100.0.0006 | 6 | 1 | 12,9 | 103,9 | 225 | 100/500/1000 |
| 3.546.2.4.3.0100.0.0007 | 7 | 1 | 14 | 120,5 | 259 | 100/500/1000 |
| 3.546.2.4.3.0100.0.0008 | 8 | 1 | 14,6 | 137,1 | 286 | 100/500/1000 |
| 3.546.2.4.3.0100.0.0009 | 9 | 1 | 15,4 | 153,7 | 318 | 100/500/1000 |
| 3.546.2.4.3.0100.0.0010 | 10 | 1 | 16,1 | 170,3 | 346 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.546.2.4.3.0150.0.0001 | 1 | 1,5 | 7,1 | 30,3 | 76 | 100/500/1000 |
| 3.546.2.4.3.0150.0.0002 | 2 | 1,5 | 9,3 | 56,1 | 122 | 100/500/1000 |
| 3.546.2.4.3.0150.0.0003 | 3 | 1,5 | 10,7 | 82 | 167 | 100/500/1000 |
| 3.546.2.4.3.0150.0.0004 | 4 | 1,5 | 13,1 | 107,8 | 221 | 100/500/1000 |
| 3.546.2.4.3.0150.0.0005 | 5 | 1,5 | 13,6 | 133,6 | 258 | 100/500/1000 |
| 3.546.2.4.3.0150.0.0006 | 6 | 1,5 | 14,5 | 159,5 | 299 | 100/500/1000 |
| 3.546.2.4.3.0150.0.0007 | 7 | 1,5 | 15,8 | 185,3 | 345 | 100/500/1000 |
| 3.546.2.4.3.0150.0.0008 | 8 | 1,5 | 16,4 | 211,2 | 383 | 100/500/1000 |
| 3.546.2.4.3.0150.0.0009 | 9 | 1,5 | 17,3 | 237 | 426 | 100/500/1000 |
| 3.546.2.4.3.0150.0.0010 | 10 | 1,5 | 18,1 | 262,9 | 465 | 100/500/1000 |
| Part Number | Pair Count | Conductor Diameter (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.546.2.4.3.0250.0.0001 | 1 | 2,5 | 8,3 | 47,5 | 104 | 100/500/1000 |
| 3.546.2.4.3.0250.0.0002 | 2 | 2,5 | 11 | 90,6 | 175 | 100/500/1000 |
| 3.546.2.4.3.0250.0.0003 | 3 | 2,5 | 12,8 | 133,6 | 242 | 100/500/1000 |
| 3.546.2.4.3.0250.0.0004 | 4 | 2,5 | 15,6 | 176,7 | 318 | 100/500/1000 |
| 3.546.2.4.3.0250.0.0005 | 5 | 2,5 | 16,4 | 219,8 | 380 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 10xD mm | -40°C ~ +70°C |
