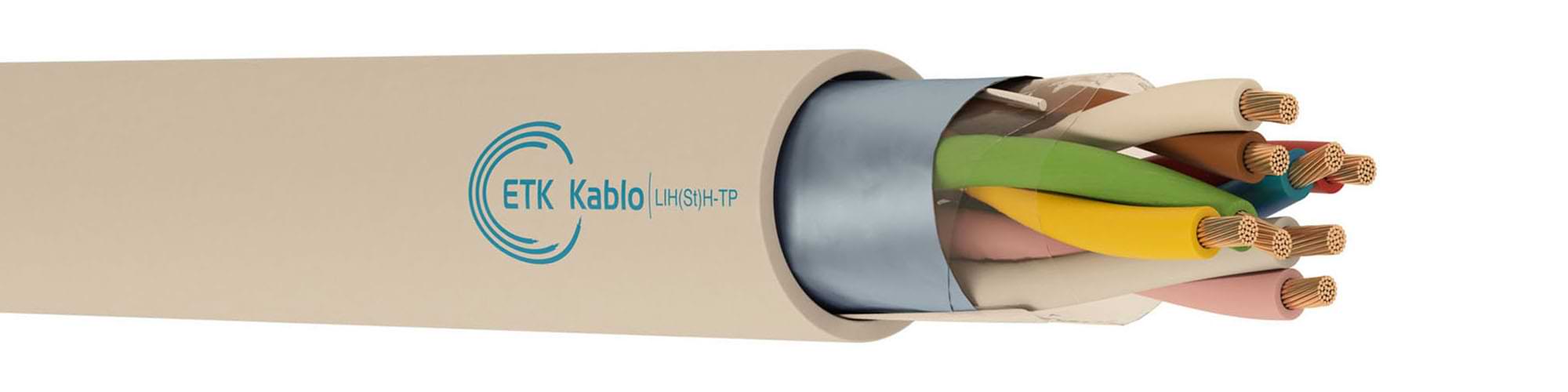

LIH(St)H-TP/TT Signal Control Cable

Product Code: LIH(St)H-TP/TT

1 – İletken:Bükülü elektrolitik bakır iletken (Sınıf 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – İzole:Halojensiz (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Büküm:İzoleler çiftler veya üçlüler halinde ve tüm çiftler veya üçlü bükümler bir arada bükülür.
4 – Ayırıcı:Polyester bant
5 – Ekran:Kalaylı bakır toprak teli, Al/PET bant
6 – Dış Kılıf:Ultraviyole ışınlara dayanıklı halojensiz dış kılıf. RAL 7035 (Gri)
İletken
Kesiti		İletken Direnci
Ω/km (20 °C)		İzolasyon Direnci
M Ω/km (20 °C)		Efektif Kapasite

nF/m		Çalışma Voltajı
V DC		Test Voltajı

(@ 1 dakika)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Duman Yoğunluğu TestiAşındırıcı Gaz TestiHalojensizlik tesiAlev Yayılım TestiAlev Geciktiricilik Testi
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.543.2.3.3.0050.0.0001–10,55,11132100/500/1000
3.543.2.3.3.0050.0.0002–20,56,619,852100/500/1000
3.543.2.3.3.0050.0.0003–30,57,728,770100/500/1000
3.543.2.3.3.0050.0.0004–40,59,537,595100/500/1000
3.543.2.3.3.0050.0.0005–50,59,946,4110100/500/1000
3.543.2.3.3.0050.0.0006–60,510,555,2128100/500/1000
3.543.2.3.3.0050.0.0007–70,511,564148100/500/1000
3.543.2.3.3.0050.0.0008–80,51272,9163100/500/1000
3.543.2.3.3.0050.0.0009–90,512,781,7183100/500/1000
3.543.2.3.3.0050.0.0010–100,513,290,6199100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.543.2.3.3.0075.0.0001–10,755,417,740100/500/1000
3.543.2.3.3.0075.0.0002–20,757,330,968100/500/1000
3.543.2.3.3.0075.0.0003–30,758,444,292100/500/1000
3.543.2.3.3.0075.0.0004–40,7510,457,5124100/500/1000
3.543.2.3.3.0075.0.0005–50,7510,870,7143100/500/1000
3.543.2.3.3.0075.0.0006–60,7511,584166100/500/1000
3.543.2.3.3.0075.0.0007–70,7512,597,3192100/500/1000
3.543.2.3.3.0075.0.0008–80,7513110,5213100/500/1000
3.543.2.3.3.0075.0.0009–90,7513,8123,8237100/500/1000
3.543.2.3.3.0075.0.0010–100,7514,4137,1259100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.543.2.3.3.0100.0.0001–115,82146100/500/1000
3.543.2.3.3.0100.0.0002–217,937,679100/500/1000
3.543.2.3.3.0100.0.0003–319,154,1109100/500/1000
3.543.2.3.3.0100.0.0004–4111,270,7145100/500/1000
3.543.2.3.3.0100.0.0005–5111,787,3169100/500/1000
3.543.2.3.3.0100.0.0006–6112,5103,9197100/500/1000
3.543.2.3.3.0100.0.0007–7113,6120,5228100/500/1000
3.543.2.3.3.0100.0.0008–8114,2137,1252100/500/1000
3.543.2.3.3.0100.0.0009–9115153,7282100/500/1000
3.543.2.3.3.0100.0.0010–10115,6170,2308100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.543.2.3.3.0150.0.0001–11,56,730,263100/500/1000
3.543.2.3.3.0150.0.0002–21,58,856,1105100/500/1000
3.543.2.3.3.0150.0.0003–31,510,381,9146100/500/1000
3.543.2.3.3.0150.0.0004–41,512,6107,8194100/500/1000
3.543.2.3.3.0150.0.0005–51,513,2133,6229100/500/1000
3.543.2.3.3.0150.0.0006–61,514159,4268100/500/1000
3.543.2.3.3.0150.0.0007–71,515,3185,3310100/500/1000
3.543.2.3.3.0150.0.0008–81,516211,1345100/500/1000
3.543.2.3.3.0150.0.0009–91,516,9237386100/500/1000
3.543.2.3.3.0150.0.0010–101,517,6262,8422100/500/1000
Part Numarasıİletken SayısıPer Sayısıİletken Kesiti (mm²)Ortalama Dış Çap (mm)Bakır Ağırlığı (kg/km)Ortalama Ağırlık (kg/km)Makara Boyu (m)
3.543.2.3.3.0250.0.0001–12,57,947,589100/500/1000
3.543.2.3.3.0250.0.0002–22,510,690,5153100/500/1000
3.543.2.3.3.0250.0.0003–32,512,4133,6215100/500/1000
3.543.2.3.3.0250.0.0004–42,515,2176,7287100/500/1000
3.543.2.3.3.0250.0.0005–52,516219,7343100/500/1000
3.543.2.3.3.0250.0.0006–62,517262,8403100/500/1000
3.543.2.3.3.0250.0.0007–72,518,6305,9468100/500/1000
3.543.2.3.3.0250.0.0008–82,519,3349524100/500/1000
3.543.2.3.3.0250.0.0009–92,520,5392586100/500/1000
3.543.2.3.3.0250.0.0010–102,521,4435,1644100/500/1000
Bükülme YarıçapıÇalışma Sıcaklığı
Aralığı
7.5xD mm-30°C ~ +70°C
Open in a new tabİndir

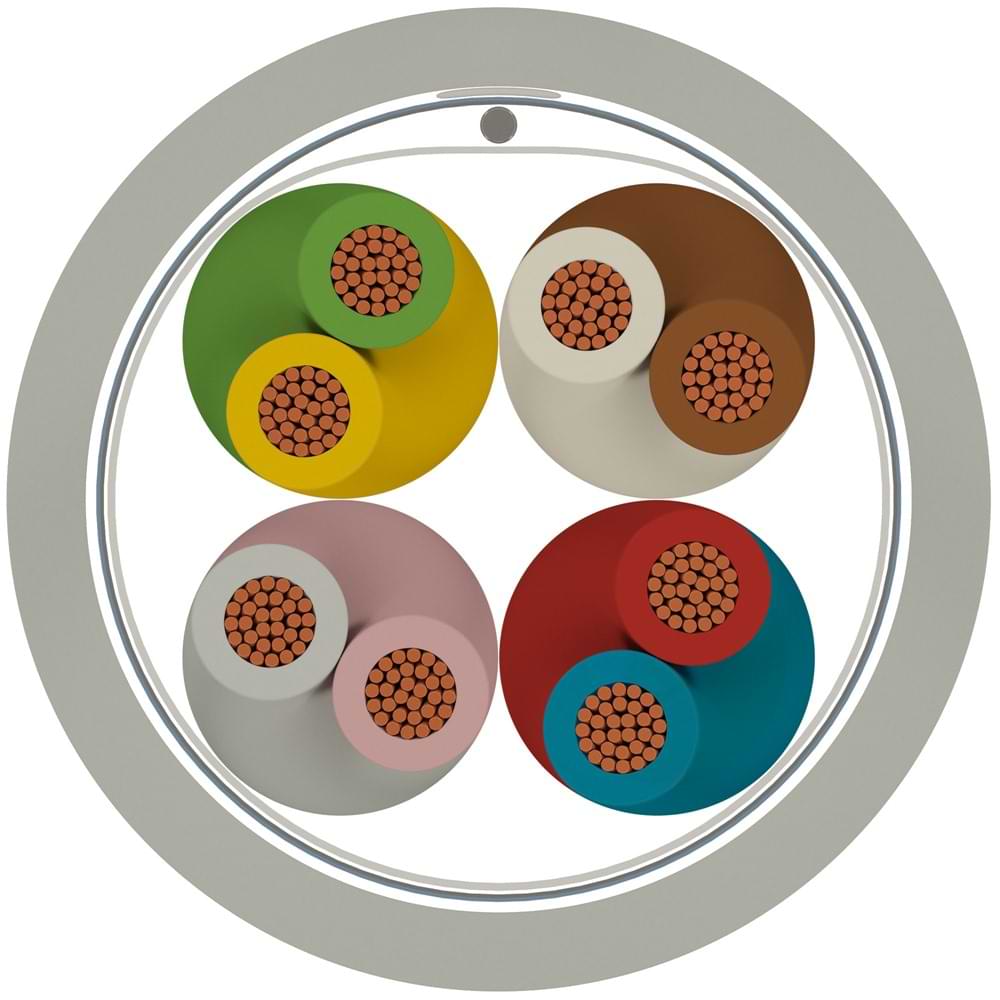

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Halogen-free (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Stranding:Insulations are stranded into pairs or triads and all pairs or triads are stranded together.
4 – Wrapping:Polyester tape
5 – Screen:Tinned copper earthing wire, Al/PET tape
6 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.543.2.3.3.0050.0.0001–10,55,11132100/500/1000
3.543.2.3.3.0050.0.0002–20,56,619,852100/500/1000
3.543.2.3.3.0050.0.0003–30,57,728,770100/500/1000
3.543.2.3.3.0050.0.0004–40,59,537,595100/500/1000
3.543.2.3.3.0050.0.0005–50,59,946,4110100/500/1000
3.543.2.3.3.0050.0.0006–60,510,555,2128100/500/1000
3.543.2.3.3.0050.0.0007–70,511,564148100/500/1000
3.543.2.3.3.0050.0.0008–80,51272,9163100/500/1000
3.543.2.3.3.0050.0.0009–90,512,781,7183100/500/1000
3.543.2.3.3.0050.0.0010–100,513,290,6199100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.543.2.3.3.0075.0.0001–10,755,417,740100/500/1000
3.543.2.3.3.0075.0.0002–20,757,330,968100/500/1000
3.543.2.3.3.0075.0.0003–30,758,444,292100/500/1000
3.543.2.3.3.0075.0.0004–40,7510,457,5124100/500/1000
3.543.2.3.3.0075.0.0005–50,7510,870,7143100/500/1000
3.543.2.3.3.0075.0.0006–60,7511,584166100/500/1000
3.543.2.3.3.0075.0.0007–70,7512,597,3192100/500/1000
3.543.2.3.3.0075.0.0008–80,7513110,5213100/500/1000
3.543.2.3.3.0075.0.0009–90,7513,8123,8237100/500/1000
3.543.2.3.3.0075.0.0010–100,7514,4137,1259100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.543.2.3.3.0100.0.0001–115,82146100/500/1000
3.543.2.3.3.0100.0.0002–217,937,679100/500/1000
3.543.2.3.3.0100.0.0003–319,154,1109100/500/1000
3.543.2.3.3.0100.0.0004–4111,270,7145100/500/1000
3.543.2.3.3.0100.0.0005–5111,787,3169100/500/1000
3.543.2.3.3.0100.0.0006–6112,5103,9197100/500/1000
3.543.2.3.3.0100.0.0007–7113,6120,5228100/500/1000
3.543.2.3.3.0100.0.0008–8114,2137,1252100/500/1000
3.543.2.3.3.0100.0.0009–9115153,7282100/500/1000
3.543.2.3.3.0100.0.0010–10115,6170,2308100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.543.2.3.3.0150.0.0001–11,56,730,263100/500/1000
3.543.2.3.3.0150.0.0002–21,58,856,1105100/500/1000
3.543.2.3.3.0150.0.0003–31,510,381,9146100/500/1000
3.543.2.3.3.0150.0.0004–41,512,6107,8194100/500/1000
3.543.2.3.3.0150.0.0005–51,513,2133,6229100/500/1000
3.543.2.3.3.0150.0.0006–61,514159,4268100/500/1000
3.543.2.3.3.0150.0.0007–71,515,3185,3310100/500/1000
3.543.2.3.3.0150.0.0008–81,516211,1345100/500/1000
3.543.2.3.3.0150.0.0009–91,516,9237386100/500/1000
3.543.2.3.3.0150.0.0010–101,517,6262,8422100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.543.2.3.3.0250.0.0001–12,57,947,589100/500/1000
3.543.2.3.3.0250.0.0002–22,510,690,5153100/500/1000
3.543.2.3.3.0250.0.0003–32,512,4133,6215100/500/1000
3.543.2.3.3.0250.0.0004–42,515,2176,7287100/500/1000
3.543.2.3.3.0250.0.0005–52,516219,7343100/500/1000
3.543.2.3.3.0250.0.0006–62,517262,8403100/500/1000
3.543.2.3.3.0250.0.0007–72,518,6305,9468100/500/1000
3.543.2.3.3.0250.0.0008–82,519,3349524100/500/1000
3.543.2.3.3.0250.0.0009–92,520,5392586100/500/1000
3.543.2.3.3.0250.0.0010–102,521,4435,1644100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
Open in a new tabDownload
