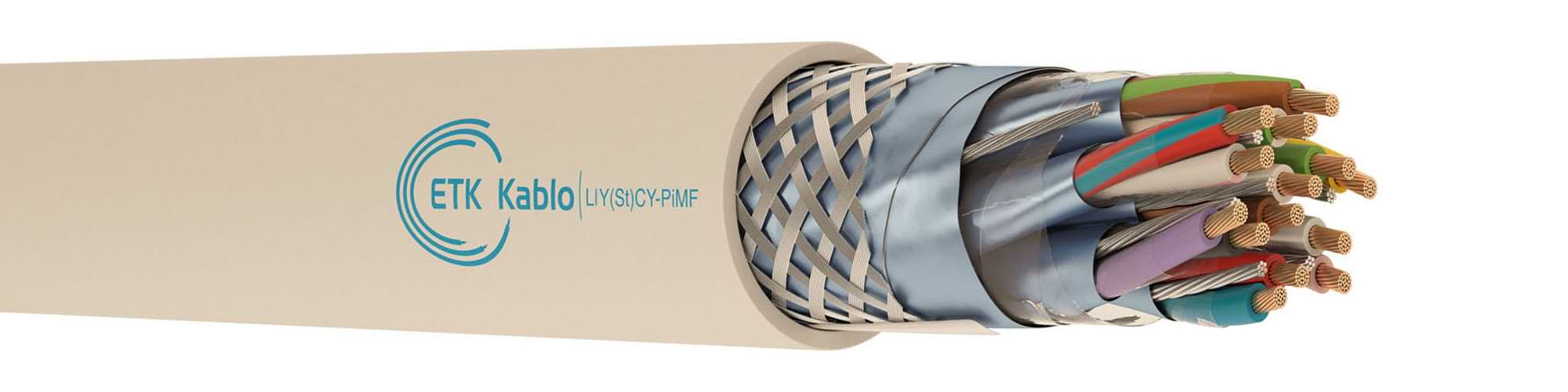

LIY(St)CY-PiMF/TiMF Signal Control Cable

Product Code: LIY(St)CY-PiMF/TiMF

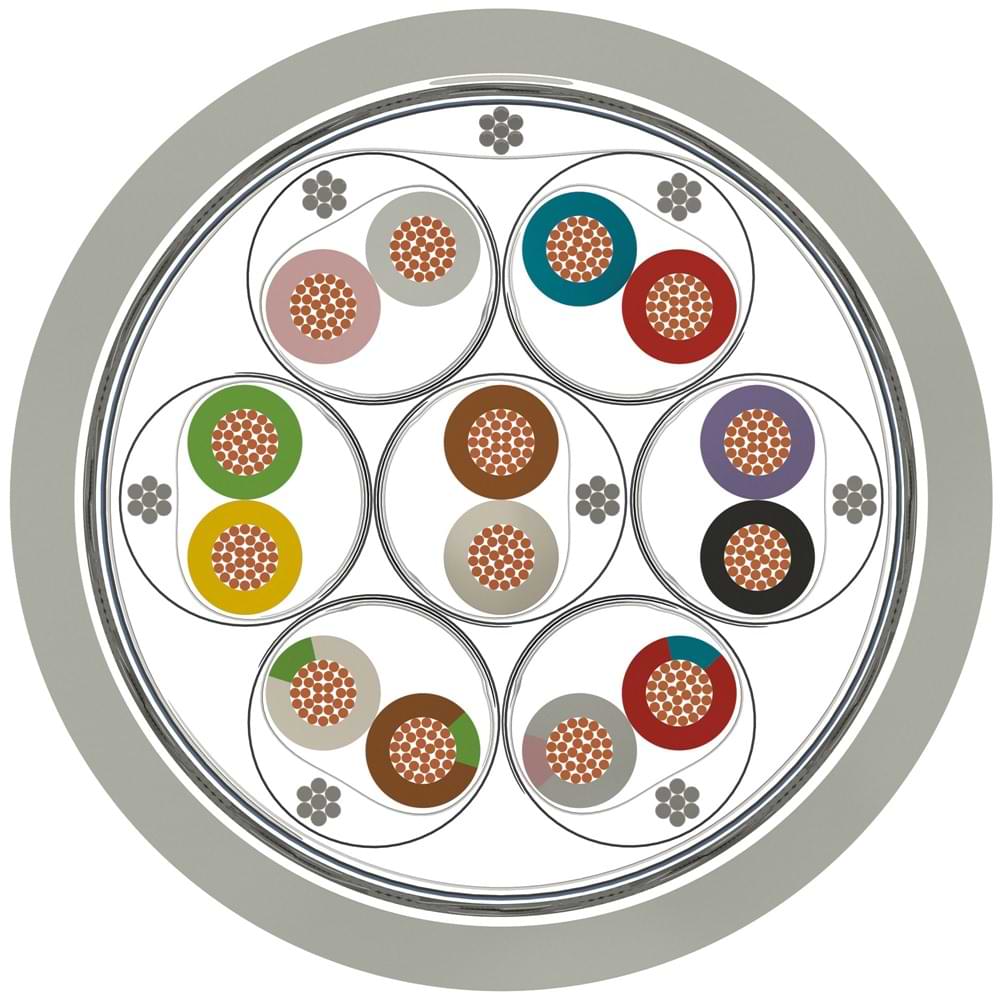

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Stranding:Screened pairs or triads are stranded in layers.
4 – Individual Wrapping:Polyester tape
5 – Individual Screen:Tinned copper earthing wire, Al/PET tape
6 – Wrapping:Polyester tape
7 – Screen:Al/PET tape, tinned copper braiding
8 – Outer Jacket:UV resistant PVC outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Flame Retardancy Test
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.2.2.0022.0.0002–20,227,226,554100/500/1000
3.550.2.2.2.0022.0.0003–30,227,733,768100/500/1000
3.550.2.2.2.0022.0.0004–40,228,641,986100/500/1000
3.550.2.2.2.0022.0.0005–50,229,349,3100100/500/1000
3.550.2.2.2.0022.0.0006–60,2210,257,8117100/500/1000
3.550.2.2.2.0022.0.0007–70,2210,364,3130100/500/1000
3.550.2.2.2.0022.0.0008–80,2211,172,1144100/500/1000
3.550.2.2.2.0022.0.0009–90,221381,8166100/500/1000
3.550.2.2.2.0022.0.0010–100,2213,188,3179100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.2.2.0025.0.0002–20,257,528,358100/500/1000
3.550.2.2.2.0025.0.0003–30,258,136,273100/500/1000
3.550.2.2.2.0025.0.0004–40,25944,592100/500/1000
3.550.2.2.2.0025.0.0005–50,259,853,3108100/500/1000
3.550.2.2.2.0025.0.0006–60,2510,862,2127100/500/1000
3.550.2.2.2.0025.0.0007–70,2510,969,2141100/500/1000
3.550.2.2.2.0025.0.0008–80,2511,777,6157100/500/1000
3.550.2.2.2.0025.0.0009–90,2513,788,7181100/500/1000
3.550.2.2.2.0025.0.0010–100,2513,895,7195100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.2.2.0034.0.0002–20,348,433,170100/500/1000
3.550.2.2.2.0034.0.0003–30,34943,289100/500/1000
3.550.2.2.2.0034.0.0004–40,349,953,7110100/500/1000
3.550.2.2.2.0034.0.0005–50,3410,964131100/500/1000
3.550.2.2.2.0034.0.0006–60,3411,875151100/500/1000
3.550.2.2.2.0034.0.0007–70,3411,983,9168100/500/1000
3.550.2.2.2.0034.0.0008–80,3412,994,6188100/500/1000
3.550.2.2.2.0034.0.0009–90,3415,3113,7226100/500/1000
3.550.2.2.2.0034.0.0010–100,3415,4122,5243100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.2.2.0050.0.0002–20,59,648,393100/500/1000
3.550.2.2.2.0050.0.0003–30,510,363,1119100/500/1000
3.550.2.2.2.0050.0.0004–40,511,478,1149100/500/1000
3.550.2.2.2.0050.0.0005–50,512,594,6176100/500/1000
3.550.2.2.2.0050.0.0006–60,513,7110,7207100/500/1000
3.550.2.2.2.0050.0.0007–70,513,8124,4230100/500/1000
3.550.2.2.2.0050.0.0008–80,515145,9263100/500/1000
3.550.2.2.2.0050.0.0009–90,517,7165,5305100/500/1000
3.550.2.2.2.0050.0.0010–100,517,7179,2325100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.2.2.0075.0.0002–20,7510,558,3113100/500/1000
3.550.2.2.2.0075.0.0003–30,7511,377,6141100/500/1000
3.550.2.2.2.0075.0.0004–40,7512,598,4182100/500/1000
3.550.2.2.2.0075.0.0005–50,7513,7118,9215100/500/1000
3.550.2.2.2.0075.0.0006–60,7515144,9258100/500/1000
3.550.2.2.2.0075.0.0007–70,7515,1163,1286100/500/1000
3.550.2.2.2.0075.0.0008–80,7516,4182,7319100/500/1000
3.550.2.2.2.0075.0.0009–90,7519,3207,4371100/500/1000
3.550.2.2.2.0075.0.0010–100,7519,3225,6396100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.2.2.0100.0.0002–2111,366,1126100/500/1000
3.550.2.2.2.0100.0.0003–3112,188,9163100/500/1000
3.550.2.2.2.0100.0.0004–4113,4113,7207100/500/1000
3.550.2.2.2.0100.0.0005–5114,7143,1250100/500/1000
3.550.2.2.2.0100.0.0006–6116,1166,1292100/500/1000
3.550.2.2.2.0100.0.0007–7116,2187,5325100/500/1000
3.550.2.2.2.0100.0.0008–8117,6213,4366100/500/1000
3.550.2.2.2.0100.0.0009–9120,7246,8424100/500/1000
3.550.2.2.2.0100.0.0010–10120,8268,2459100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.2.2.0150.0.0002–21,512,487,4157100/500/1000
3.550.2.2.2.0150.0.0003–31,513,3118,8204100/500/1000
3.550.2.2.2.0150.0.0004–41,514,8156,7264100/500/1000
3.550.2.2.2.0150.0.0005–51,516,3191,1315100/500/1000
3.550.2.2.2.0150.0.0006–61,517,8226,4372100/500/1000
3.550.2.2.2.0150.0.0007–71,517,9257,1416100/500/1000
3.550.2.2.2.0150.0.0008–81,519,5290,2467100/500/1000
3.550.2.2.2.0150.0.0009–91,523334,1544100/500/1000
3.550.2.2.2.0150.0.0010–101,523364,8584100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.550.2.2.2.0250.0.0002–22,514,8131,9226100/500/1000
3.550.2.2.2.0250.0.0003–32,515,9180,9297100/500/1000
3.550.2.2.2.0250.0.0004–42,517,6233,4378100/500/1000
3.550.2.2.2.0250.0.0005–52,519,4284452100/500/1000
3.550.2.2.2.0250.0.0006–62,521,3342,1538100/500/1000
3.550.2.2.2.0250.0.0007–72,521,4390,1604100/500/1000
3.550.2.2.2.0250.0.0008–82,523,3441,5680100/500/1000
3.550.2.2.2.0250.0.0009–92,527,5503,8787100/500/1000
3.550.2.2.2.0250.0.0010–102,527,5551,7848100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
