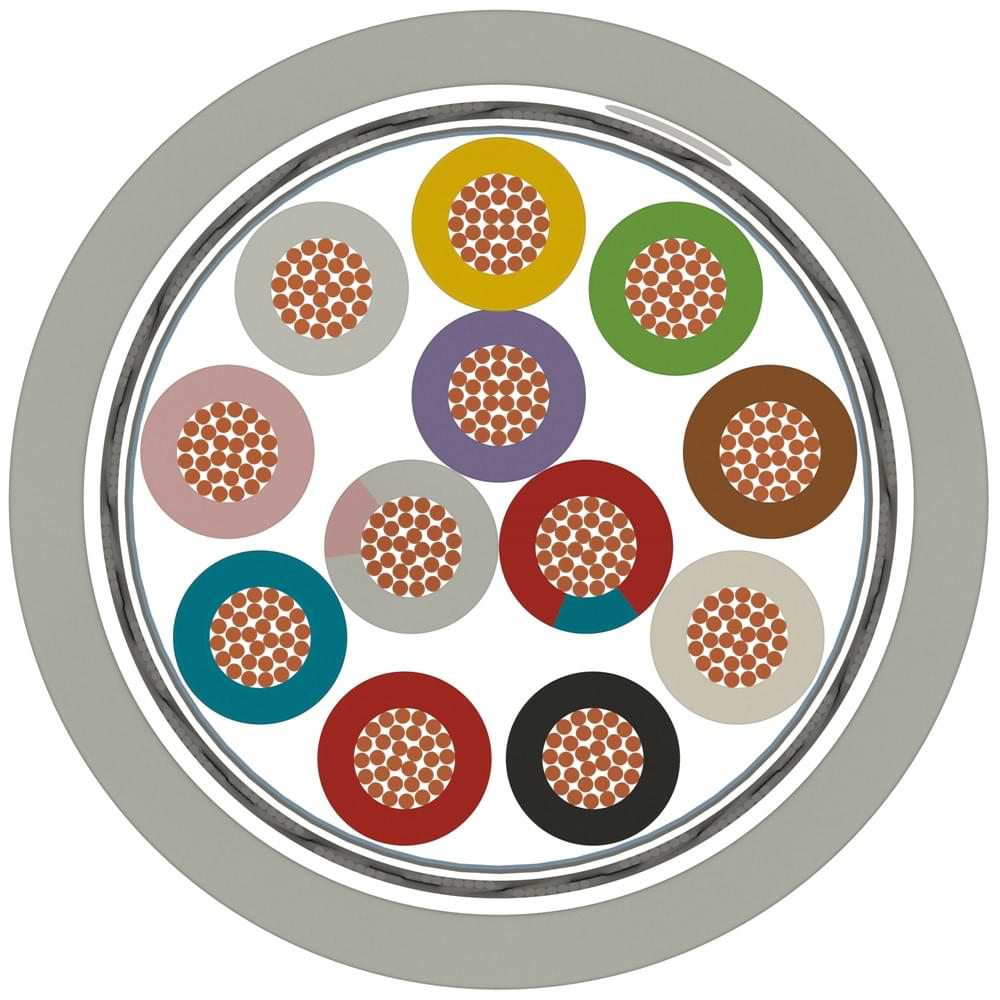

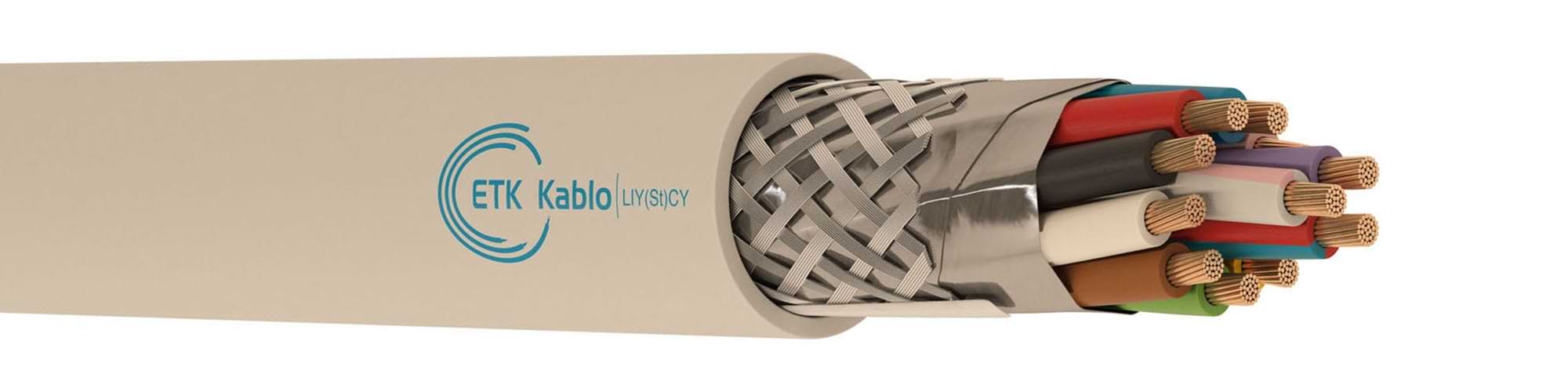

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Stranding:In layers
4 – Wrapping:Polyester tape
5 – Screen:Al/PET tape, tinned copper braiding
6 – Outer Jacket:UV resistant PVC outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Flame Retardancy Test
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.522.2.2.2.0022.0.00022–0,223,88,320100/500/1000
3.522.2.2.2.0022.0.00033–0,22410,424100/500/1000
3.522.2.2.2.0022.0.00044–0,224,412,829100/500/1000
3.522.2.2.2.0022.0.00055–0,224,716,135100/500/1000
3.522.2.2.2.0022.0.00066–0,225,218,441100/500/1000
3.522.2.2.2.0022.0.00077–0,225,220,544100/500/1000
3.522.2.2.2.0022.0.00088–0,225,62349100/500/1000
3.522.2.2.2.0022.0.00099–0,225,926,255100/500/1000
3.522.2.2.2.0022.0.001010–0,226,528,461100/500/1000
3.522.2.2.2.0022.0.001212–0,226,933,573100/500/1000
3.522.2.2.2.0022.0.001414–0,227,138,479100/500/1000
3.522.2.2.2.0022.0.001616–0,227,442,987100/500/1000
3.522.2.2.2.0022.0.001818–0,227,847,396100/500/1000
3.522.2.2.2.0022.0.001919–0,227,849,499100/500/1000
3.522.2.2.2.0022.0.002020–0,228,252,3105100/500/1000
3.522.2.2.2.0022.0.002121–0,228,254,5108100/500/1000
3.522.2.2.2.0022.0.002424–0,229,162,4125100/500/1000
3.522.2.2.2.0022.0.002525–0,229,164,5128100/500/1000
3.522.2.2.2.0022.0.002727–0,229,369,4136100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.522.2.2.2.0034.0.00022–0,344,611,729100/500/1000
3.522.2.2.2.0034.0.00033–0,344,815,435100/500/1000
3.522.2.2.2.0034.0.00044–0,345,318,943100/500/1000
3.522.2.2.2.0034.0.00055–0,345,822,652100/500/1000
3.522.2.2.2.0034.0.00066–0,346,326,959100/500/1000
3.522.2.2.2.0034.0.00077–0,346,330,265100/500/1000
3.522.2.2.2.0034.0.00088–0,346,833,672100/500/1000
3.522.2.2.2.0034.0.00099–0,347,338,181100/500/1000
3.522.2.2.2.0034.0.001010–0,347,941,789100/500/1000
3.522.2.2.2.0034.0.001212–0,348,148,9101100/500/1000
3.522.2.2.2.0034.0.001414–0,348,756,1118100/500/1000
3.522.2.2.2.0034.0.001616–0,349,164,1131100/500/1000
3.522.2.2.2.0034.0.001818–0,349,771147100/500/1000
3.522.2.2.2.0034.0.001919–0,349,774,4152100/500/1000
3.522.2.2.2.0034.0.002020–0,3410,278159100/500/1000
3.522.2.2.2.0034.0.002121–0,3410,281,4165100/500/1000
3.522.2.2.2.0034.0.002424–0,3411,493192100/500/1000
3.522.2.2.2.0034.0.002525–0,3411,496,4198100/500/1000
3.522.2.2.2.0034.0.002727–0,3411,6103,2209100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.522.2.2.2.0050.0.00022–0,5514,234100/500/1000
3.522.2.2.2.0050.0.00033–0,55,318,641100/500/1000
3.522.2.2.2.0050.0.00044–0,55,823,752100/500/1000
3.522.3.2.2.0050.0.00055–0,56,429,164100/500/1000
3.522.3.2.2.0050.0.00066–0,56,934,876100/500/1000
3.522.3.2.2.0050.0.00077–0,56,939,279100/500/1000
3.522.3.2.2.0050.0.00088–0,57,543,994100/500/1000
3.522.3.2.2.0050.0.00099–0,58,850,9110100/500/1000
3.522.3.2.2.0050.0.001010–0,58,855,4113100/500/1000
3.522.3.2.2.0050.0.001212–0,59,264,7131100/500/1000
3.522.3.2.2.0050.0.001414–0,59,773,7149100/500/1000
3.522.3.2.2.0050.0.001616–0,510,283,3166100/500/1000
3.522.3.2.2.0050.0.001818–0,510,892,5188100/500/1000
3.522.3.2.2.0050.0.001919–0,510,896,9192100/500/1000
3.522.3.2.2.0050.0.002020–0,511,4102,5208100/500/1000
3.522.3.2.2.0050.0.002121–0,511,4106,9209100/500/1000
3.522.3.2.2.0050.0.002424–0,512,7120,9242100/500/1000
3.522.3.2.2.0050.0.002525–0,512,7125,3256100/500/1000
3.522.3.2.2.0050.0.002727–0,513134,4264100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.522.2.2.2.0075.0.00022–0,755,619,243100/500/1000
3.522.2.2.2.0075.0.00033–0,755,925,954100/500/1000
3.522.2.2.2.0075.0.00044–0,756,533,667100/500/1000
3.522.3.2.2.0075.0.00055–0,757,141,484100/500/1000
3.522.3.2.2.0075.0.00066–0,757,748,598100/500/1000
3.522.3.2.2.0075.0.00077–0,757,755,2103100/500/1000
3.522.3.2.2.0075.0.00088–0,758,562,7125100/500/1000
3.522.3.2.2.0075.0.00099–0,759,870,5142100/500/1000
3.522.3.2.2.0075.0.001010–0,759,877,7147100/500/1000
3.522.3.2.2.0075.0.001212–0,7510,291,5170100/500/1000
3.522.3.2.2.0075.0.001414–0,7510,8105,6195100/500/1000
3.522.3.2.2.0075.0.001616–0,7511,3120,1217100/500/1000
3.522.3.2.2.0075.0.001818–0,7512136,1249100/500/1000
3.522.3.2.2.0075.0.001919–0,7512142,7254100/500/1000
3.522.3.2.2.0075.0.002020–0,7512,7150,7275100/500/1000
3.522.3.2.2.0075.0.002121–0,7512,7157,4277100/500/1000
3.522.3.2.2.0075.0.002424–0,7514174,8313100/500/1000
3.522.3.2.2.0075.0.002525–0,7514181,5331100/500/1000
3.522.3.2.2.0075.0.002727–0,7514,4197,7349100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.522.2.2.2.0100.0.00022–1623,550100/500/1000
3.522.2.2.2.0100.0.00033–16,33263100/500/1000
3.522.3.2.2.0100.0.00044–1741,379100/500/1000
3.522.3.2.2.0100.0.00055–17,749,998100/500/1000
3.522.3.2.2.0100.0.00066–18,359,8116100/500/1000
3.522.3.2.2.0100.0.00077–18,368,1123100/500/1000
3.522.3.2.2.0100.0.00088–19,277,5148100/500/1000
3.522.3.2.2.0100.0.00099–110,686,7168100/500/1000
3.522.3.2.2.0100.0.001010–110,694,9174100/500/1000
3.522.3.2.2.0100.0.001212–111112,4202100/500/1000
3.522.3.2.2.0100.0.001414–111,7132,6234100/500/1000
3.522.3.2.2.0100.0.001616–112,3150,7261100/500/1000
3.522.3.2.2.0100.0.001818–113164,3293100/500/1000
3.522.3.2.2.0100.0.001919–113172,5299100/500/1000
3.522.3.2.2.0100.0.002020–113,7183,4326100/500/1000
3.522.3.2.2.0100.0.002121–113,7191,7329100/500/1000
3.522.3.2.2.0100.0.002424–115,2219,3377100/500/1000
3.522.3.2.2.0100.0.002525–115,2227,6400100/500/1000
3.522.3.2.2.0100.0.002727–115,5244,4414100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.522.2.2.2.0150.0.00022–1,56,732,864100/500/1000
3.522.2.2.2.0150.0.00033–1,57,146,283100/500/1000
3.522.2.2.2.0150.0.00044–1,57,860,2105100/500/1000
3.522.3.2.2.0150.0.00055–1,58,674,6131100/500/1000
3.522.3.2.2.0150.0.00066–1,59,388,7155100/500/1000
3.522.3.2.2.0150.0.00077–1,59,3101,6165100/500/1000
3.522.3.2.2.0150.0.00088–1,510,2115,2197100/500/1000
3.522.3.2.2.0150.0.00099–1,511,9129,4224100/500/1000
3.522.3.2.2.0150.0.001010–1,511,9142,3234100/500/1000
3.522.3.2.2.0150.0.001212–1,512,4171,8276100/500/1000
3.522.3.2.2.0150.0.001414–1,513,1199316100/500/1000
3.522.3.2.2.0150.0.001616–1,513,8224,2352100/500/1000
3.522.3.2.2.0150.0.001818–1,514,6251,1401100/500/1000
3.522.3.2.2.0150.0.001919–1,514,6264411100/500/1000
3.522.3.2.2.0150.0.002020–1,515,4278,5445100/500/1000
3.522.3.2.2.0150.0.002121–1,515,4289,7448100/500/1000
3.522.3.2.2.0150.0.002424–1,517,2331,1518100/500/1000
3.522.3.2.2.0150.0.002525–1,517,2344548100/500/1000
3.522.3.2.2.0150.0.002727–1,517,6370,1570100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.522.2.2.2.0250.0.00022–2,57,852,890100/500/1000
3.522.2.2.2.0250.0.00033–2,58,374,7119100/500/1000
3.522.2.2.2.0250.0.00044–2,59,297,3155100/500/1000
3.522.3.2.2.0250.0.00055–2,510,3120,3197100/500/1000
3.522.3.2.2.0250.0.00066–2,511,2145,8238100/500/1000
3.522.3.2.2.0250.0.00077–2,511,2167,4254100/500/1000
3.522.3.2.2.0250.0.00088–2,512,4190,3304100/500/1000
3.522.3.2.2.0250.0.00099–2,514,5212,6346100/500/1000
3.522.3.2.2.0250.0.001010–2,514,5234,1362100/500/1000
3.522.3.2.2.0250.0.001212–2,515,1277,4422100/500/1000
3.522.3.2.2.0250.0.001414–2,515,9322,1485100/500/1000
3.522.3.2.2.0250.0.001616–2,516,8365,8545100/500/1000
3.522.3.2.2.0250.0.001818–2,517,8411,2621100/500/1000
3.522.3.2.2.0250.0.001919–2,517,8432,8636100/500/1000
3.522.3.2.2.0250.0.002020–2,518,8455,5689100/500/1000
3.522.3.2.2.0250.0.002121–2,518,8477697100/500/1000
3.522.3.2.2.0250.0.002424–2,520,9548,3802100/500/1000
3.522.3.2.2.0250.0.002525–2,520,9569,9851100/500/1000
3.522.3.2.2.0250.0.002727–2,521,4616,8889100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
Open in a new tabDownload
