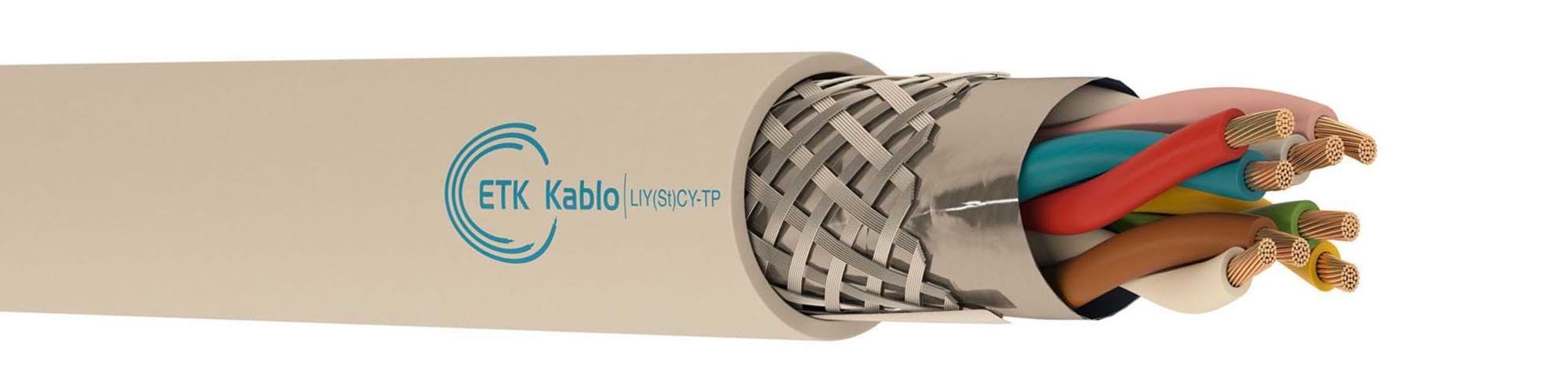

LIY(St)CY-TP/TT Signal Control Cable

Product Code: LIY(St)CY-TP/TT

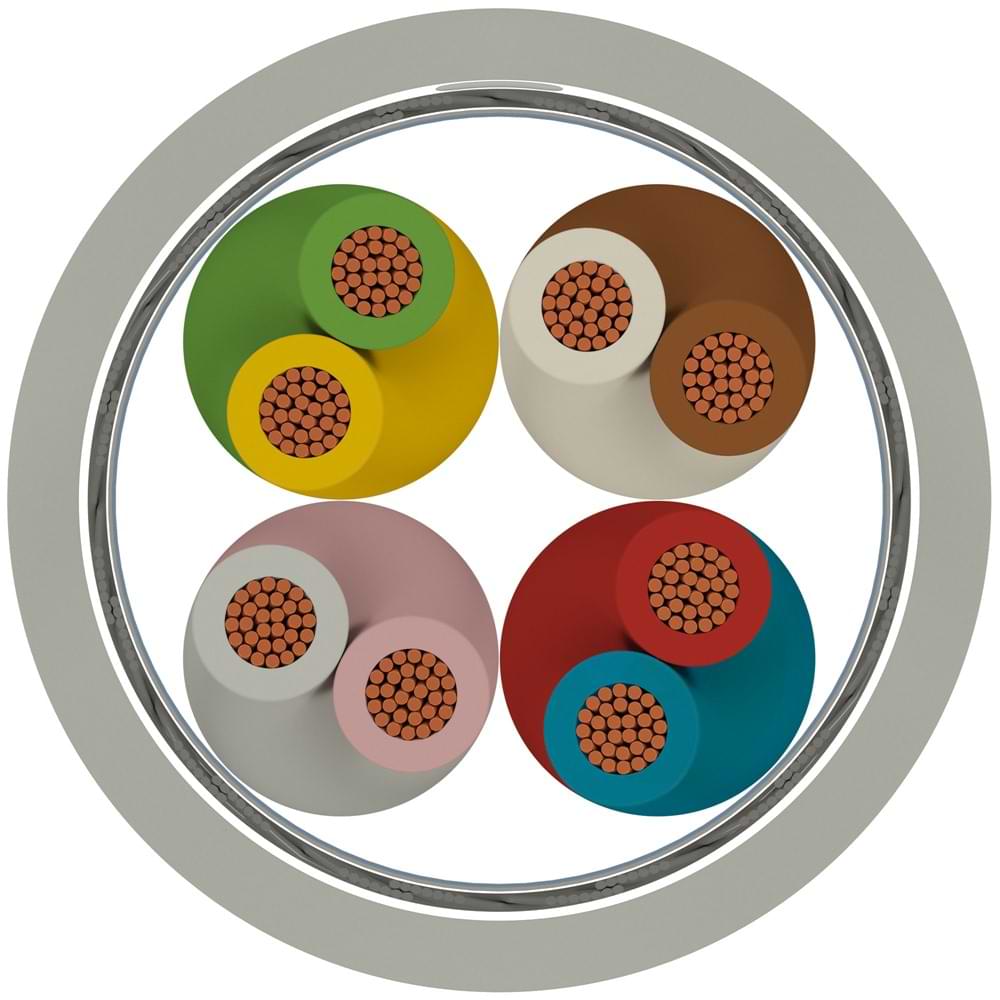

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Stranding:Insulations are stranded into pairs or triads and all pairs or triads are stranded together.
4 – Wrapping:Polyester tape
5 – Screen:Al/PET tape, tinned copper braiding
6 – Outer Jacket:UV resistant PVC outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Flame Retardancy Test
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.523.2.2.2.0050.0.0001–10,55,114,334100/500/1000
3.523.2.2.2.0050.0.0002–20,56,824,857100/500/1000
3.523.2.2.2.0050.0.0003–30,57,935,378100/500/1000
3.523.2.2.2.0050.0.0004–40,59,646,4105100/500/1000
3.523.2.2.2.0050.0.0005–50,51055,6121100/500/1000
3.523.2.2.2.0050.0.0006–60,510,765,1141100/500/1000
3.523.2.2.2.0050.0.0007–70,511,675,1163100/500/1000
3.523.2.2.2.0050.0.0008–80,512,185,3180100/500/1000
3.523.2.2.2.0050.0.0009–90,512,894,5201100/500/1000
3.523.2.2.2.0050.0.0010–100,513,4105,9220100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.523.2.2.2.0075.0.0001–10,755,618,843100/500/1000
3.523.2.2.2.0075.0.0002–20,757,835,375100/500/1000
3.523.2.2.2.0075.0.0003–30,758,448,797100/500/1000
3.523.2.2.2.0075.0.0004–40,759,363,8125100/500/1000
3.523.2.2.2.0075.0.0005–50,7510,277,6149100/500/1000
3.523.2.2.2.0075.0.0006–60,7511,192,5176100/500/1000
3.523.2.2.2.0075.0.0007–70,7511,2105,8197100/500/1000
3.523.2.2.2.0075.0.0008–80,7512,1120,5222100/500/1000
3.523.2.2.2.0075.0.0009–90,7514,3136,8258100/500/1000
3.523.2.2.2.0075.0.0010–100,7514,3150276100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.523.2.2.2.0100.0.0001–11622,649100/500/1000
3.523.2.2.2.0100.0.0002–218,342,684100/500/1000
3.523.2.2.2.0100.0.0003–31960,4115100/500/1000
3.523.2.2.2.0100.0.0004–411078,2148100/500/1000
3.523.2.2.2.0100.0.0005–511195,9176100/500/1000
3.523.2.2.2.0100.0.0006–6112,1113,9208100/500/1000
3.523.2.2.2.0100.0.0007–7112,2130,5234100/500/1000
3.523.2.2.2.0100.0.0008–8113,2147,8263100/500/1000
3.523.2.2.2.0100.0.0009–9115,5169,8307100/500/1000
3.523.2.2.2.0100.0.0010–10115,5184,3328100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.523.2.2.2.0150.0.0001–11,56,732,764100/500/1000
3.523.2.2.2.0150.0.0002–21,59,362,6112100/500/1000
3.523.2.2.2.0150.0.0003–31,59,188,2138100/500/1000
3.523.2.2.2.0150.0.0004–41,510,1114,6177100/500/1000
3.523.2.2.2.0150.0.0005–51,511,1142,2213100/500/1000
3.523.2.2.2.0150.0.0006–61,512,2169,5252100/500/1000
3.523.2.2.2.0150.0.0007–71,512,3195,3285100/500/1000
3.523.2.2.2.0150.0.0008–81,513,3221,8321100/500/1000
3.523.2.2.2.0150.0.0009–91,515,6253,2372100/500/1000
3.523.2.2.2.0150.0.0010–101,515,6279402100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.523.2.2.2.0250.0.0001–12,57,951,992100/500/1000
3.523.2.2.2.0250.0.0002–22,510,798,2162100/500/1000
3.523.2.2.2.0250.0.0003–32,512,5144229100/500/1000
3.523.2.2.2.0250.0.0004–42,515,4190,8306100/500/1000
3.523.2.2.2.0250.0.0005–52,516,1234,6364100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
Open in a new tabDownload
