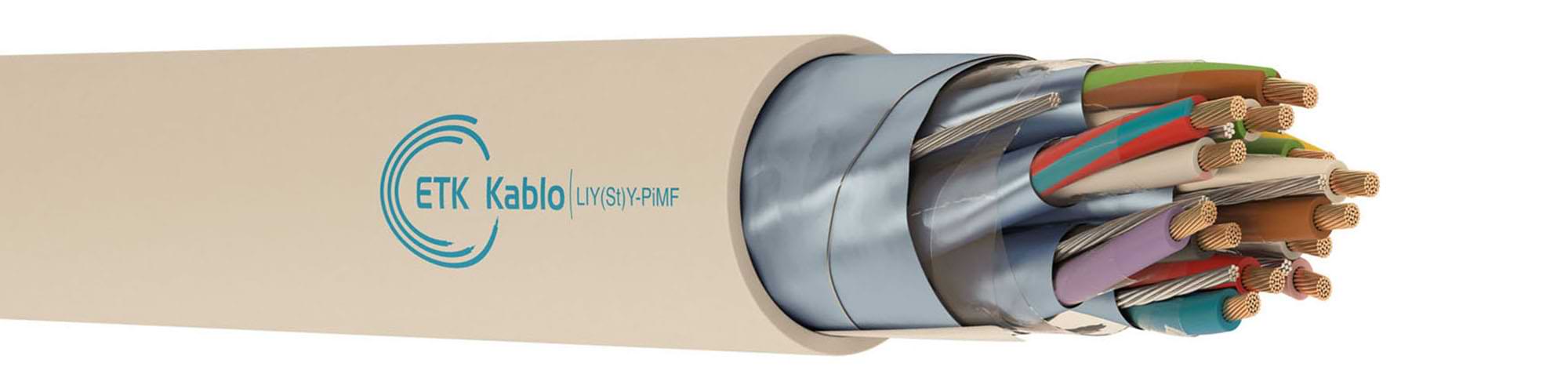

LIY(St)Y-PiMF/TiMF Signal Control Cable

Product Code: LIY(St)Y-PiMF/TiMF

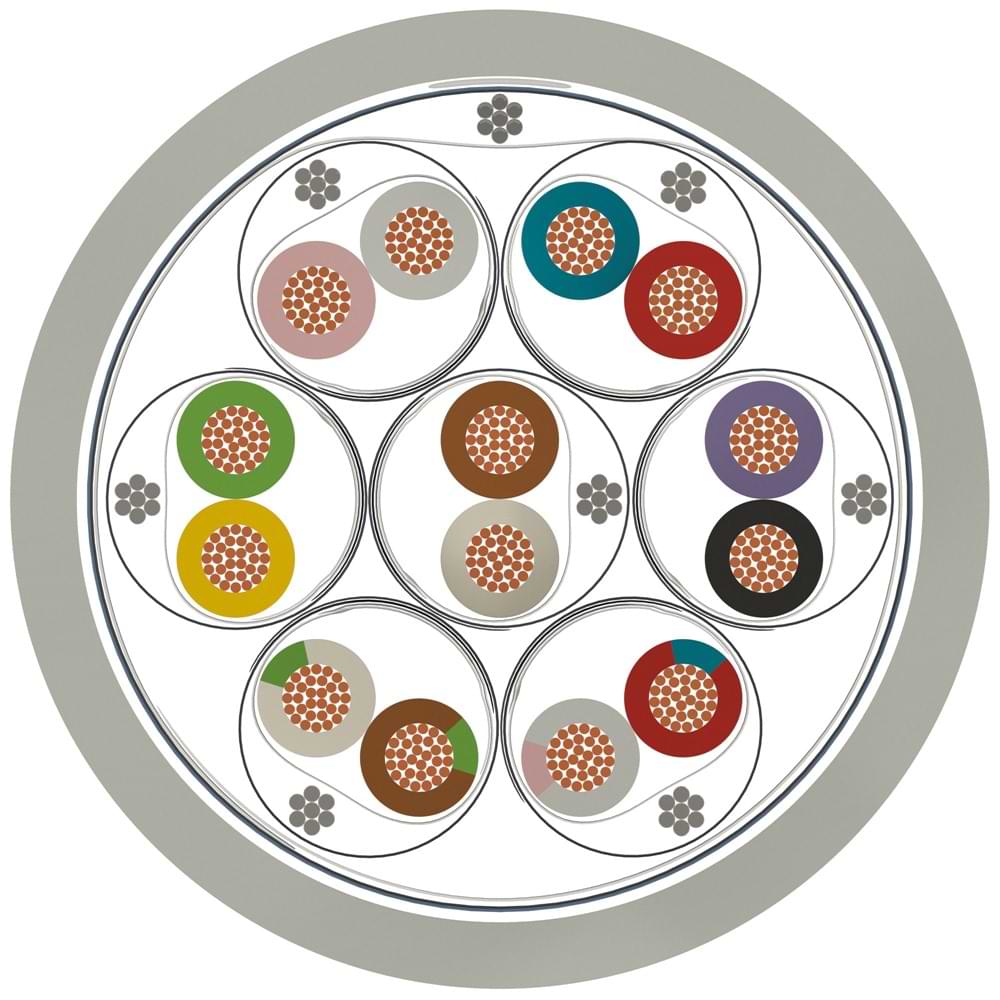

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Stranding:Screened pairs or triads are stranded in layers.
4 – Individual Wrapping:Polyester tape
5 – Individual Screen:Tinned copper earthing wire, Al/PET tape
6 – Wrapping:Polyester tape
7 – Screen:Tinned copper earthing wire, Al/PET tape
8 – Outer Jacket:UV resistant PVC outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Flame Retardancy Test
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.551.2.2.2.0022.0.0002–20,22715,143100/500/1000
3.551.2.2.2.0022.0.0003–30,227,521,556100/500/1000
3.551.2.2.2.0022.0.0004–40,228,42872100/500/1000
3.551.2.2.2.0022.0.0005–50,229,134,485100/500/1000
3.551.2.2.2.0022.0.0006–60,221040,9101100/500/1000
3.551.2.2.2.0022.0.0007–70,2210,147,3113100/500/1000
3.551.2.2.2.0022.0.0008–80,2210,953,8127100/500/1000
3.551.2.2.2.0022.0.0009–90,2212,860,2145100/500/1000
3.551.2.2.2.0022.0.0010–100,2212,966,7158100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.551.2.2.2.0025.0.0002–20,257,316,146100/500/1000
3.551.2.2.2.0025.0.0003–30,257,923,161100/500/1000
3.551.2.2.2.0025.0.0004–40,258,830,178100/500/1000
3.551.2.2.2.0025.0.0005–50,259,637,193100/500/1000
3.551.2.2.2.0025.0.0006–60,2510,644,1110100/500/1000
3.551.2.2.2.0025.0.0007–70,2510,751,1123100/500/1000
3.551.2.2.2.0025.0.0008–80,2511,558,1138100/500/1000
3.551.2.2.2.0025.0.0009–90,2513,565,1158100/500/1000
3.551.2.2.2.0025.0.0010–100,2513,672173100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.551.2.2.2.0034.0.0002–20,348,219,957100/500/1000
3.551.2.2.2.0034.0.0003–30,348,828,775100/500/1000
3.551.2.2.2.0034.0.0004–40,349,737,694100/500/1000
3.551.2.2.2.0034.0.0005–50,3410,746,5114100/500/1000
3.551.2.2.2.0034.0.0006–60,3411,655,3132100/500/1000
3.551.2.2.2.0034.0.0007–70,3411,764,2149100/500/1000
3.551.2.2.2.0034.0.0008–80,3412,773,1167100/500/1000
3.551.2.2.2.0034.0.0009–90,341581,9195100/500/1000
3.551.2.2.2.0034.0.0010–100,3415,190,8213100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.551.2.2.2.0050.0.0002–20,59,432,378100/500/1000
3.551.2.2.2.0050.0.0003–30,510,146102100/500/1000
3.551.2.2.2.0050.0.0004–40,511,259,7131100/500/1000
3.551.2.2.2.0050.0.0005–50,512,373,4156100/500/1000
3.551.2.2.2.0050.0.0006–60,513,587,1184100/500/1000
3.551.2.2.2.0050.0.0007–70,513,6100,9207100/500/1000
3.551.2.2.2.0050.0.0008–80,514,8114,6232100/500/1000
3.551.2.2.2.0050.0.0009–90,517,4128,3270100/500/1000
3.551.2.2.2.0050.0.0010–100,517,4142289100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.551.2.2.2.0075.0.0002–20,7510,341,193100/500/1000
3.551.2.2.2.0075.0.0003–30,7511,159,2123100/500/1000
3.551.2.2.2.0075.0.0004–40,7512,377,4162100/500/1000
3.551.2.2.2.0075.0.0005–50,7513,595,5193100/500/1000
3.551.2.2.2.0075.0.0006–60,7514,8113,7228100/500/1000
3.551.2.2.2.0075.0.0007–70,7514,9131,8256100/500/1000
3.551.2.2.2.0075.0.0008–80,7516,2150288100/500/1000
3.551.2.2.2.0075.0.0009–90,7519,1168,1333100/500/1000
3.551.2.2.2.0075.0.0010–100,7519,1186,2358100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.551.2.2.2.0100.0.0002–2111,147,7108100/500/1000
3.551.2.2.2.0100.0.0003–3111,969,2144100/500/1000
3.551.2.2.2.0100.0.0004–4113,290,7185100/500/1000
3.551.2.2.2.0100.0.0005–5114,5112,1221100/500/1000
3.551.2.2.2.0100.0.0006–6115,9133,6261100/500/1000
3.551.2.2.2.0100.0.0007–7116155294100/500/1000
3.551.2.2.2.0100.0.0008–8117,4176,5331100/500/1000
3.551.2.2.2.0100.0.0009–9120,4198378100/500/1000
3.551.2.2.2.0100.0.0010–10120,5219,4412100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.551.2.2.2.0150.0.0002–21,512,266,3137100/500/1000
3.551.2.2.2.0150.0.0003–31,513,197183100/500/1000
3.551.2.2.2.0150.0.0004–41,514,6127,7236100/500/1000
3.551.2.2.2.0150.0.0005–51,516158,4284100/500/1000
3.551.2.2.2.0150.0.0006–61,517,6189,1336100/500/1000
3.551.2.2.2.0150.0.0007–71,517,7219,8380100/500/1000
3.551.2.2.2.0150.0.0008–81,519,2250,6429100/500/1000
3.551.2.2.2.0150.0.0009–91,522,8281,3494100/500/1000
3.551.2.2.2.0150.0.0010–101,522,8312534100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.551.2.2.2.0250.0.0002–22,514,6100,7196100/500/1000
3.551.2.2.2.0250.0.0003–32,515,7148,7266100/500/1000
3.551.2.2.2.0250.0.0004–42,517,4196,6343100/500/1000
3.551.2.2.2.0250.0.0005–52,519,1244,6414100/500/1000
3.551.2.2.2.0250.0.0006–62,521292,5491100/500/1000
3.551.2.2.2.0250.0.0007–72,521,1340,4557100/500/1000
3.551.2.2.2.0250.0.0008–82,523388,4629100/500/1000
3.551.2.2.2.0250.0.0009–92,527,5503,8787100/500/1000
3.551.2.2.2.0250.0.0010–102,527,3484,3784100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
