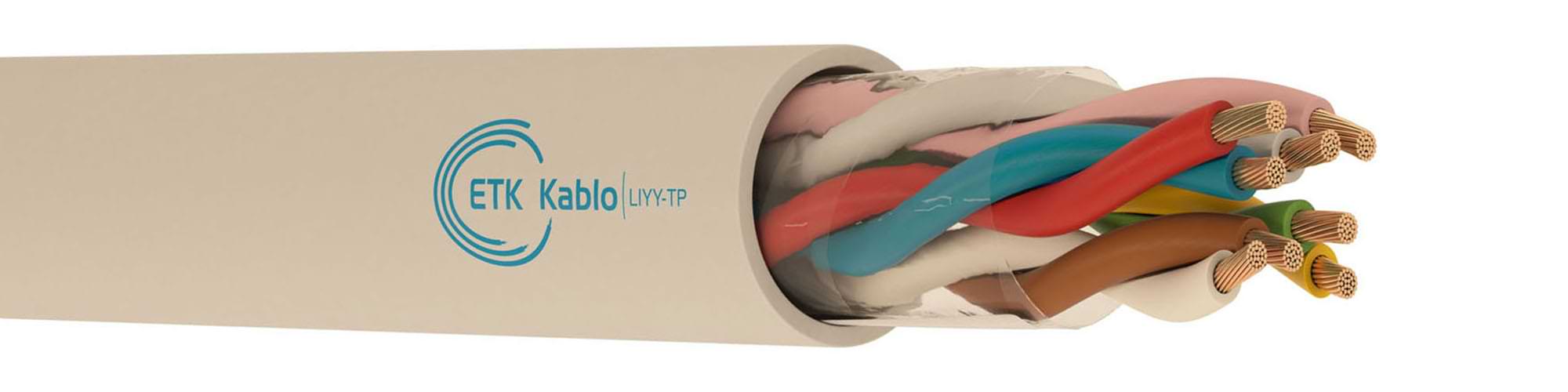

LIYY-TP/TT Signal Control Cable

Product Code: LIYY-TP/TT

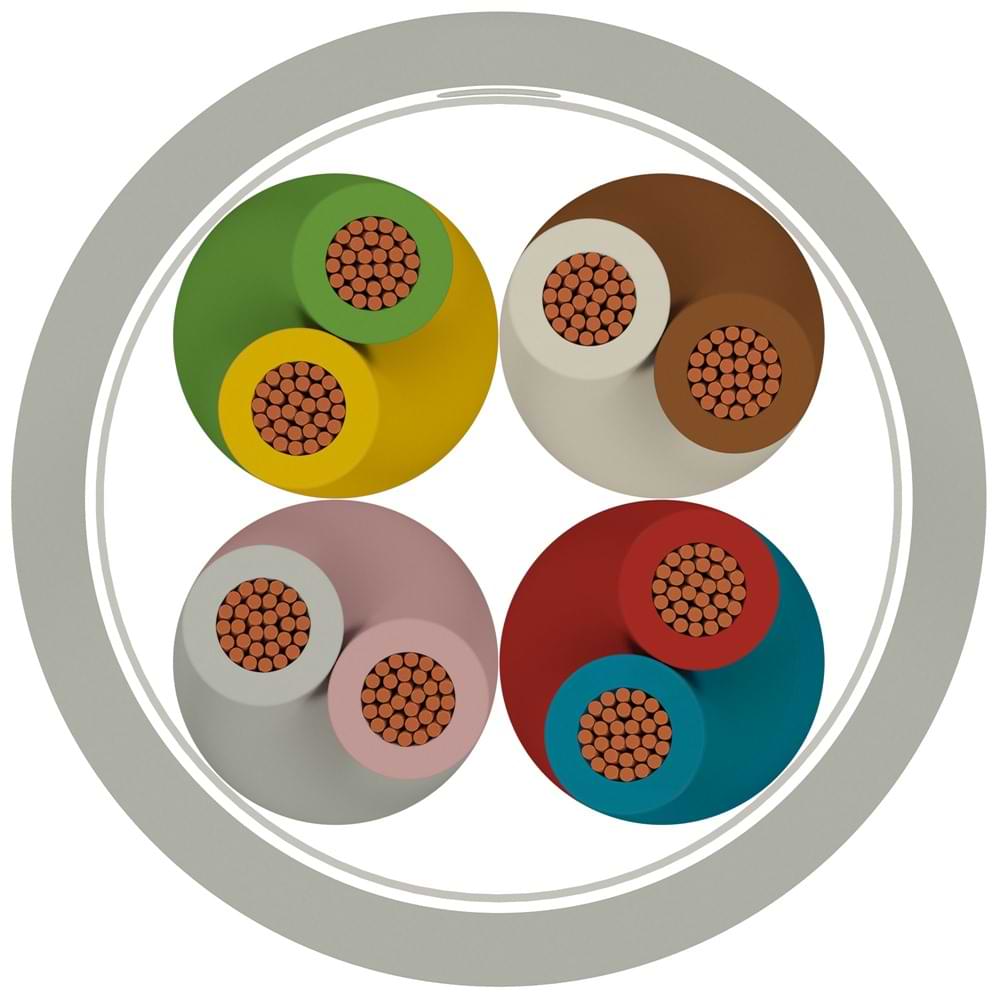

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Stranding:Insulations are stranded into pairs or triads and all pairs or triads are stranded together.
4 – Wrapping:Polyester tape
5 – Outer Jacket:UV resistant PVC outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Flame Retardancy Test
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.511.2.2.2.0050.0.0001–10,54,98,826100/500/1000
3.511.2.2.2.0050.0.0002–20,56,417,745100/500/1000
3.511.2.2.2.0050.0.0003–30,57,526,566100/500/1000
3.511.2.2.2.0050.0.0004–40,59,235,490100/500/1000
3.511.2.2.2.0050.0.0005–50,59,644,2106100/500/1000
3.511.2.2.2.0050.0.0006–60,510,253,1124100/500/1000
3.511.2.2.2.0050.0.0007–70,511,161,9144100/500/1000
3.511.2.2.2.0050.0.0008–80,511,670,8160100/500/1000
3.511.2.2.2.0050.0.0009–90,512,379,6179100/500/1000
3.511.2.2.2.0050.0.0010–100,512,888,5195100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.511.2.2.2.0075.0.0001–10,755,413,336100/500/1000
3.511.2.2.2.0075.0.0002–20,757,226,563100/500/1000
3.511.2.2.2.0075.0.0003–30,758,439,888100/500/1000
3.511.2.2.2.0075.0.0004–40,7510,353,1119100/500/1000
3.511.2.2.2.0075.0.0005–50,7510,766,3140100/500/1000
3.511.2.2.2.0075.0.0006–60,7511,479,6164100/500/1000
3.511.2.2.2.0075.0.0007–70,7512,492,9190100/500/1000
3.511.2.2.2.0075.0.0008–80,7512,9106,2211100/500/1000
3.511.2.2.2.0075.0.0009–90,7513,7119,4237100/500/1000
3.511.2.2.2.0075.0.0010–100,7514,3132,7259100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.511.2.2.2.0100.0.0001–115,716,641100/500/1000
3.511.2.2.2.0100.0.0002–217,733,272100/500/1000
3.511.2.2.2.0100.0.0003–318,949,8102100/500/1000
3.511.2.2.2.0100.0.0004–411166,3138100/500/1000
3.511.2.2.2.0100.0.0005–5111,582,9163100/500/1000
3.511.2.2.2.0100.0.0006–6112,399,5192100/500/1000
3.511.2.2.2.0100.0.0007–7113,4116,1223100/500/1000
3.511.2.2.2.0100.0.0008–8114132,7249100/500/1000
3.511.2.2.2.0100.0.0009–9114,8149,3279100/500/1000
3.511.2.2.2.0100.0.0010–10115,4165,9306100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.511.2.2.2.0150.0.0001–11,56,425,855100/500/1000
3.511.2.2.2.0150.0.0002–21,58,651,798100/500/1000
3.511.2.2.2.0150.0.0003–31,510,177,5139100/500/1000
3.511.2.2.2.0150.0.0004–41,512,4103,4188100/500/1000
3.511.2.2.2.0150.0.0005–51,513129,2223100/500/1000
3.511.2.2.2.0150.0.0006–61,513,8155,1263100/500/1000
3.511.2.2.2.0150.0.0007–71,515,1180,9306100/500/1000
3.511.2.2.2.0150.0.0008–81,515,8206,8342100/500/1000
3.511.2.2.2.0150.0.0009–91,516,7232,6384100/500/1000
3.511.2.2.2.0150.0.0010–101,517,4258,4421100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.511.2.2.2.0250.0.0001–12,57,643,180100/500/1000
3.511.2.2.2.0250.0.0002–22,510,586,1149100/500/1000
3.511.2.2.2.0250.0.0003–32,512,4129,2216100/500/1000
3.511.2.2.2.0250.0.0004–42,515,2172,3290100/500/1000
3.511.2.2.2.0250.0.0005–52,516215,4347100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
