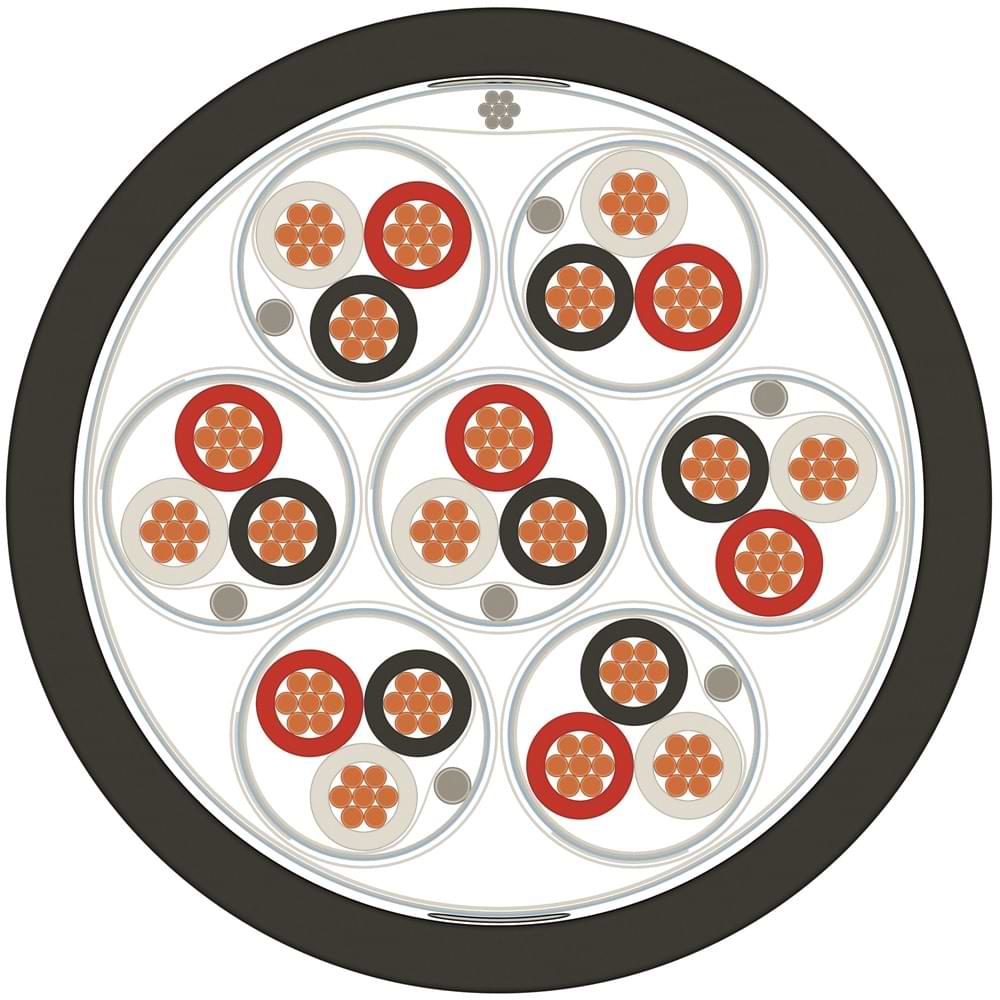

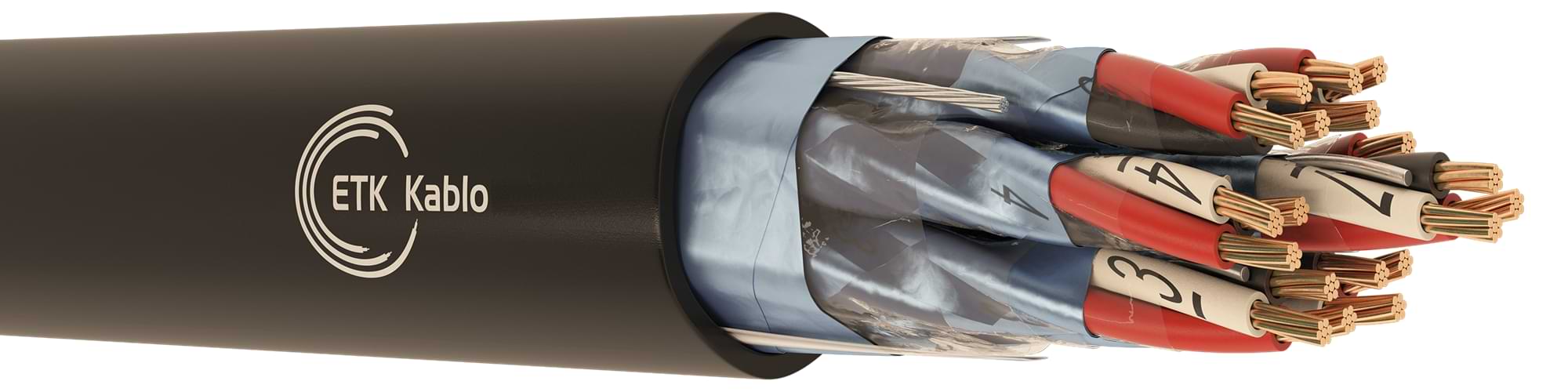

| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 2) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | Polyethylene (BS EN 50290-2, VDE 0207 YI1), Black, White, Red; Number coded (BS 5308-2) |
| 3 – Individual Stranding | : | Insulations stranding into pairs or triads |
| 4 – Individual Wrapping | : | Polyester tape |
| 5 – Individual Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Overall Stranding | : | Screened pairs or triads are stranded in layers. |
| 7 – Overall Wrapping | : | Polyester tape |
| 8 – Overall Screen | : | Tinned copper earthing wire, Al/PET tape |
| 9 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 9005 (Black) |
| Conductor Diameter | Conductor Resistance Ω/km (20 °C) | Insulation Resistance (@500V DC) MΩ/km | Mutual Capacitance nF/km | Operating Voltage V DC | Test Voltage (@ 1 minute) V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 36.0 | 5000 | 160 | 300/500 | 2000 |
| 0.75 mm² | 24.5 | 5000 | 160 | 300/500 | 2000 |
| 1.00 mm² | 18.1 | 5000 | 170 | 300/500 | 2000 |
| 1.50 mm² | 12.1 | 5000 | 170 | 300/500 | 2000 |
| 2.50 mm² | 7.41 | 5000 | 170 | 300/500 | 2000 |
| Manufacturing Referance | Flame Retardancy Test |
|---|---|
| EN 50288-7 or IEC 60502-1 | IEC 60332-1-2 |
| Part Number | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.562.2.1.2.0050.0.0002 | 2 | 0.5 | 9.1 | 33 | 88 | 100/500/1000 |
| 3.562.2.1.2.0050.0.0004 | 4 | 0.5 | 10.6 | 61 | 135 | 100/500/1000 |
| 3.562.2.1.2.0050.0.0008 | 8 | 0.5 | 14.1 | 117 | 245 | 100/500/1000 |
| 3.562.2.1.2.0050.0.0010 | 10 | 0.5 | 16.7 | 145 | 308 | 100/500/1000 |
| 3.562.2.1.2.0050.0.0012 | 12 | 0.5 | 17.2 | 173 | 352 | 100/500/1000 |
| 3.562.2.1.2.0050.0.0016 | 16 | 0.5 | 19.3 | 229 | 461 | 100/500/1000 |
| 3.562.2.1.2.0050.0.0020 | 20 | 0.5 | 21.4 | 284 | 551 | 100/500/1000 |
| 3.562.2.1.2.0050.0.0024 | 24 | 0.5 | 24.0 | 340 | 660 | 100/500/1000 |
| Part Number | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.562.2.1.2.0075.0.0002 | 2 | 0.75 | 9.8 | 43 | 107 | 100/500/1000 |
| 3.562.2.1.2.0075.0.0004 | 4 | 0.75 | 11.6 | 81 | 165 | 100/500/1000 |
| 3.562.2.1.2.0075.0.0008 | 8 | 0.75 | 15.2 | 156 | 290 | 100/500/1000 |
| 3.562.2.1.2.0075.0.0010 | 10 | 0.75 | 18.1 | 194 | 370 | 100/500/1000 |
| 3.562.2.1.2.0075.0.0012 | 12 | 0.75 | 18.7 | 232 | 425 | 100/500/1000 |
| 3.562.2.1.2.0075.0.0016 | 16 | 0.75 | 21.1 | 307 | 555 | 100/500/1000 |
| 3.562.2.1.2.0075.0.0020 | 20 | 0.75 | 23.5 | 383 | 680 | 100/500/1000 |
| 3.562.2.1.2.0075.0.0024 | 24 | 0.75 | 26.3 | 459 | 810 | 100/500/1000 |
| Part Number | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.562.2.1.2.0100.0.0002 | 2 | 1 | 10.5 | 53 | 122 | 100/500/1000 |
| 3.562.2.1.2.0100.0.0004 | 4 | 1 | 12.5 | 101 | 194 | 100/500/1000 |
| 3.562.2.1.2.0100.0.0008 | 8 | 1 | 16.7 | 197 | 357 | 100/500/1000 |
| 3.562.2.1.2.0100.0.0010 | 10 | 1 | 19.7 | 244 | 448 | 100/500/1000 |
| 3.562.2.1.2.0100.0.0012 | 12 | 1 | 20.4 | 292 | 516 | 100/500/1000 |
| 3.562.2.1.2.0100.0.0016 | 16 | 1 | 22.8 | 388 | 676 | 100/500/1000 |
| 3.562.2.1.2.0100.0.0020 | 20 | 1 | 25.6 | 484 | 826 | 100/500/1000 |
| 3.562.2.1.2.0100.0.0024 | 24 | 1 | 28.7 | 579 | 988 | 100/500/1000 |
| Part Number | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.562.2.1.2.0130.0.0002 | 2 | 1.3 | 11.5 | 64 | 148 | 100/500/1000 |
| 3.562.2.1.2.0130.0.0004 | 4 | 1.3 | 13.3 | 124 | 224 | 100/500/1000 |
| 3.562.2.1.2.0130.0.0008 | 8 | 1.3 | 17.8 | 243 | 415 | 100/500/1000 |
| 3.562.2.1.2.0130.0.0010 | 10 | 1.3 | 21.1 | 302 | 521 | 100/500/1000 |
| 3.562.2.1.2.0130.0.0012 | 12 | 1.3 | 22.0 | 362 | 612 | 100/500/1000 |
| 3.562.2.1.2.0130.0.0016 | 16 | 1.3 | 24.7 | 481 | 803 | 100/500/1000 |
| 3.562.2.1.2.0130.0.0020 | 20 | 1.3 | 27.6 | 600 | 980 | 100/500/1000 |
| 3.562.2.1.2.0130.0.0024 | 24 | 1.3 | 31.0 | 719 | 1173 | 100/500/1000 |
| Part Number | Pair Count | Conductor Cross-section (mm²) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.562.2.1.2.0150.0.0002 | 2 | 1.5 | 11.8 | 71 | 161 | 100/500/1000 |
| 3.562.2.1.2.0150.0.0004 | 4 | 1.5 | 14.1 | 137 | 250 | 100/500/1000 |
| 3.562.2.1.2.0150.0.0008 | 8 | 1.5 | 18.4 | 268 | 454 | 100/500/1000 |
| 3.562.2.1.2.0150.0.0010 | 10 | 1.5 | 22.0 | 334 | 580 | 100/500/1000 |
| 3.562.2.1.2.0150.0.0012 | 12 | 1.5 | 22.8 | 400 | 675 | 100/500/1000 |
| 3.562.2.1.2.0150.0.0016 | 16 | 1.5 | 25.6 | 532 | 880 | 100/500/1000 |
| 3.562.2.1.2.0150.0.0020 | 20 | 1.5 | 28.7 | 663 | 1076 | 100/500/1000 |
| 3.562.2.1.2.0150.0.0024 | 24 | 1.5 | 32.1 | 795 | 1290 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +70°C |
