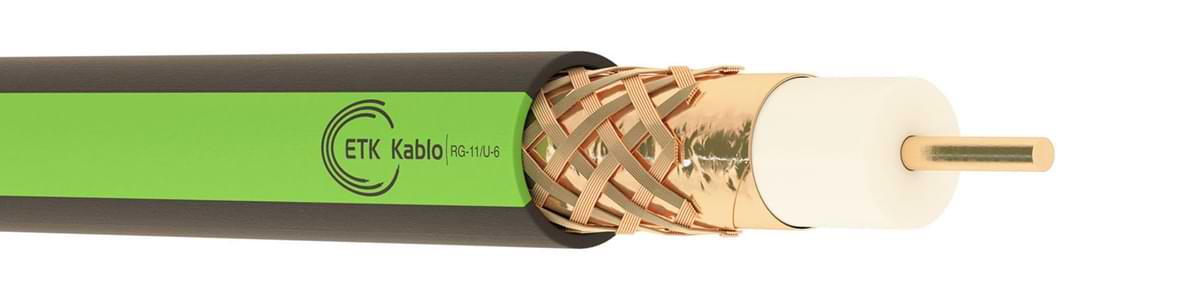

RG-11/U-6 Coaxial Cable

Product Code: RG-11/U-6

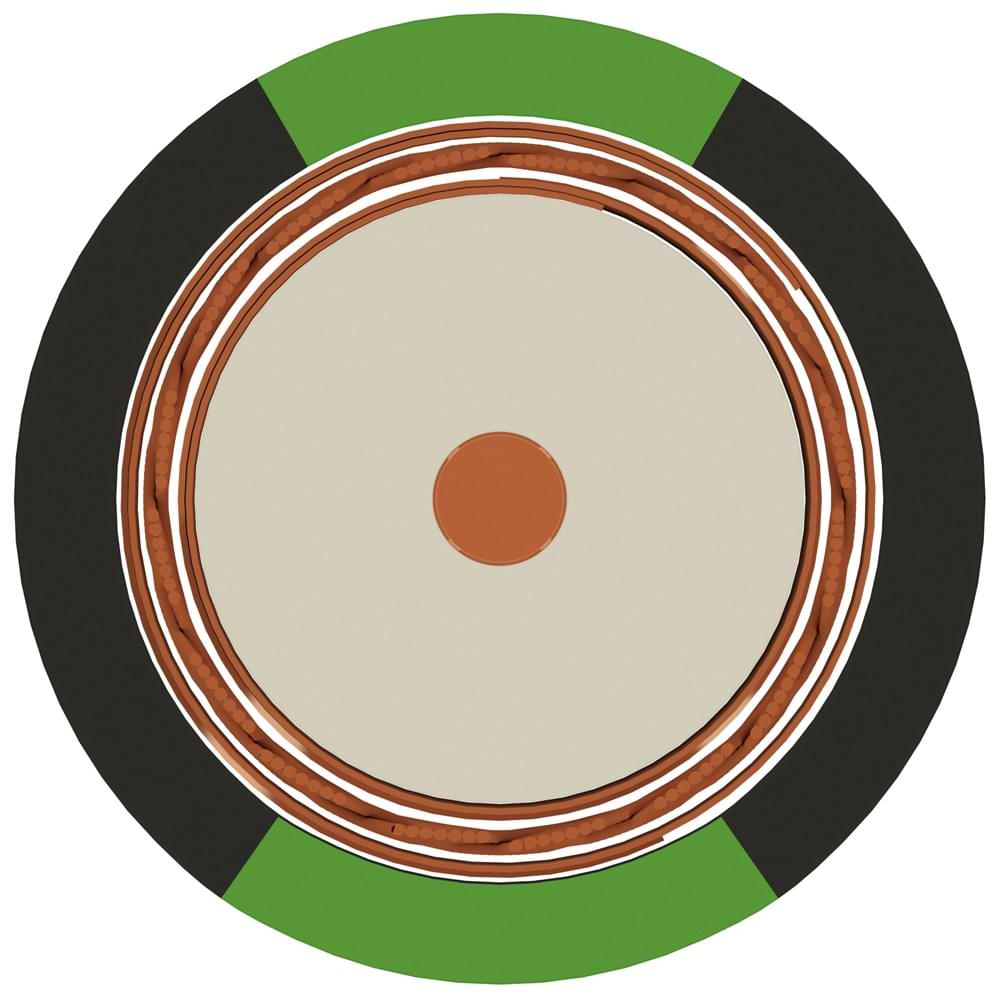

1 – Conductor:1.6 mm ø electrolytic solid copper conductor
2 – Insulation:7.2 mm ø physical foam polyethylene
3 – Screen :Cu/PET tape
4 – 2nd Screen:Electrolytic copper braiding
5 – Outer Jacket:UV resistant PVC, halogen-free, polyethylene outer jacket
Inner Conductor Resistance
(20°C)		Outer Conductor Resistance
(20°C)		Insulation
Resistance		Mutual
Capacitance		Propagation
Velocity		Operating
Voltage		Test
Voltage		Characteristic
Impedance
<8.70<10.8>200053±20,842553±3
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Retardancy Test
IEC 61034-2
VDE 0482-1034-2
EN 61034-2		IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3		IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1		IEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2
Part NumberConductor CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.711.2.5.2.0160.0.116011.610.233,2109100/500/1000
Bending RadiusTemperature Range
Operating
15xD mm-40°C~+70°C
