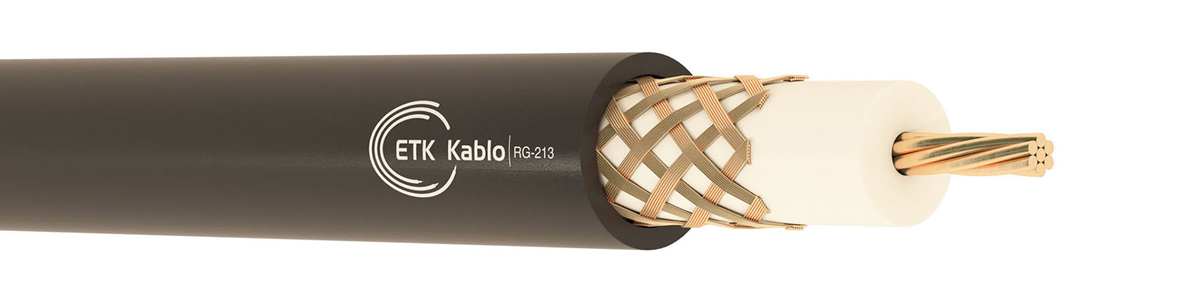

RG-213 Coaxial Cable

Product Code: RG-213

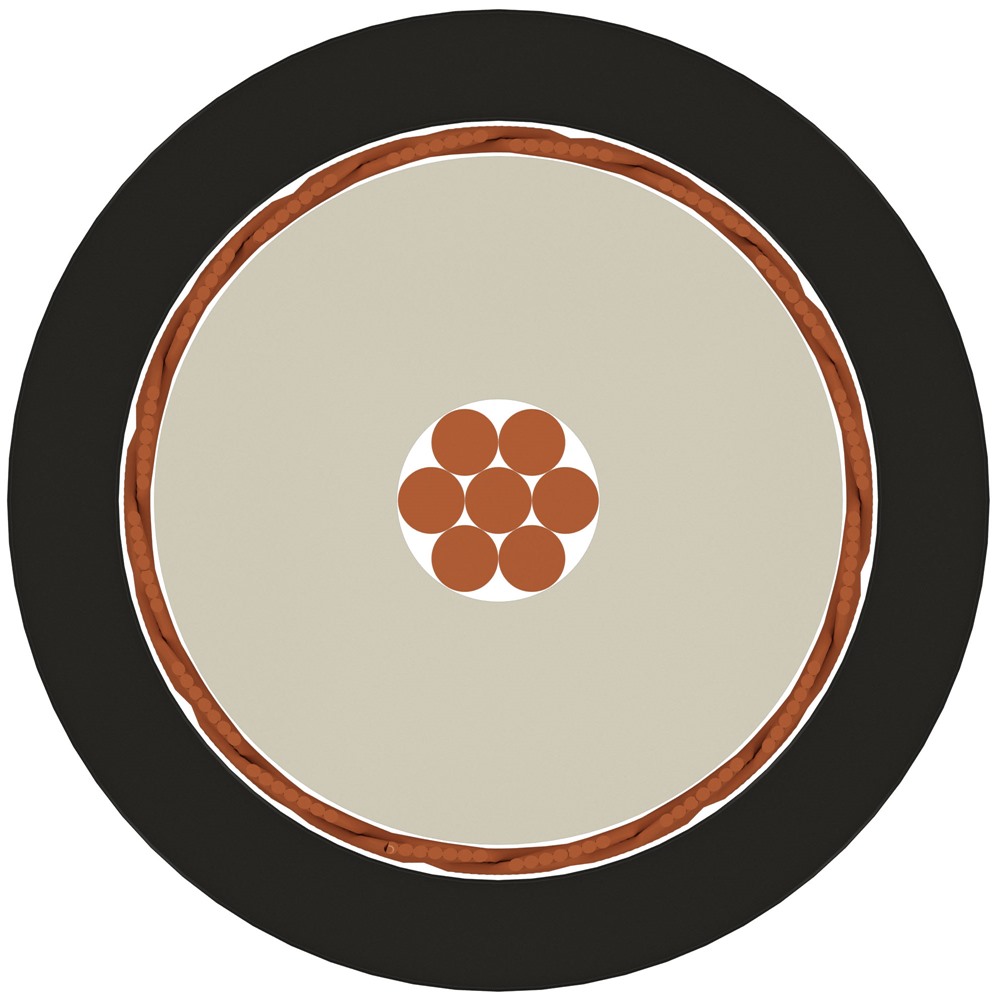

1 – Conductor:7×0,70 mm ø stranded copper conductor
2 – Insulation:7.25 mm ø solid polyethylene
3 – Screen:Electrolytic copper braiding
4 – Outer Jacket:UV resistant PVC, halogen-free, polyethylene outer jacket
Inner Conductor Resistance
(20°C)		Insulation
Resistance		Mutual
Capacitance		Propagation
Velocity		Operating
Voltage		Test
Voltage		Characteristic
Impedance
< 5.7>20001000,6651050±2
Manufacturing Std.Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Retardancy Test
MIL-C-17IEC 61034-2
VDE 0482-1034-2
EN 61034-2		IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3		IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1		IEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2
Part NumberConductor CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.703.0.0.2.0070.0.213070.710.365,8155100/500/1000
Bending RadiusTemperature Range
Operating
15xD mm-40°C~+70°C
