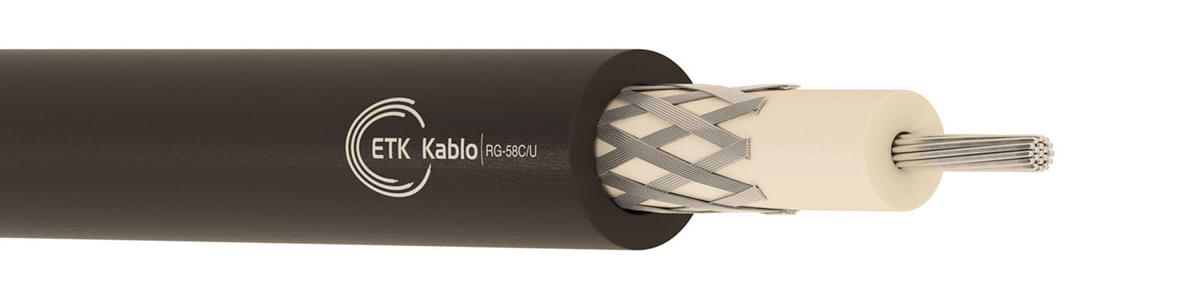

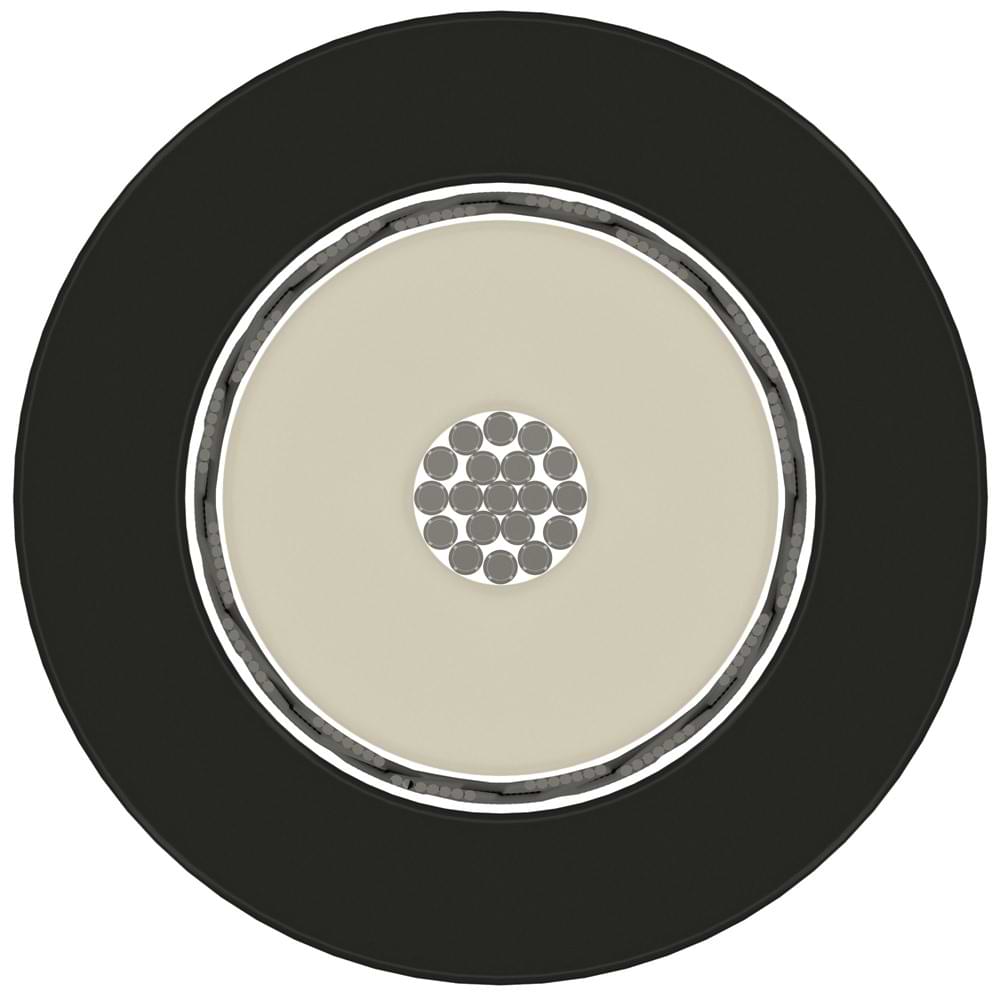

| 1 – Conductor | : | 19×0.18 mm ø stranded tinned copper conductor |
| 2 – Insulation | : | 2.95 mm ø solid polyethylene |
| 3 – Screen | : | Tinned copper braiding |
| 4 – Outer Jacket | : | UV resistant PVC, halogen-free, polyethylene outer jacket |
| Insulation Resistance | Mutual Capacitance | Propagation Velocity | Operating Voltage | Test Voltage | Characteristic Impedance |
|---|---|---|---|---|---|
| >2000 | 101±2 | 0,66 | 2.5 | 5 | 50±3 |
| Manufacturing Std. | Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Retardancy Test |
|---|---|---|---|---|
| MIL-C-17 | IEC 61034-2 VDE 0482-1034-2 EN 61034-2 | IEC 60754-2 VDE 0482-267-2-3 EN 50267-2-3 | IEC 60754-1 VDE 0482-267-2-1 EN 50267-2-1 | IEC 60332-1-2 VDE 0482-332-1-2 EN 60332-1-2 |
| Part Number | Conductor Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.708.0.1.2.1918.1.5800 | 19 | 0.18 | 5 | 20,4 | 42 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 15xD mm | -40°C~+70°C |
