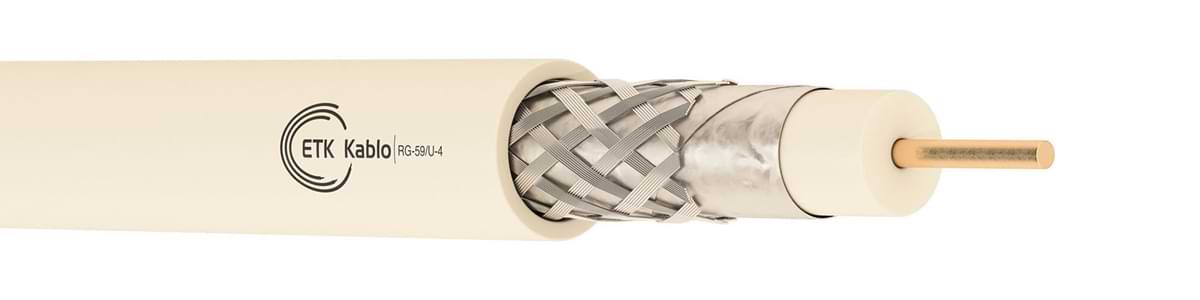

RG-59/U-4 Coaxial Cable

Product Code: RG-59/U-4

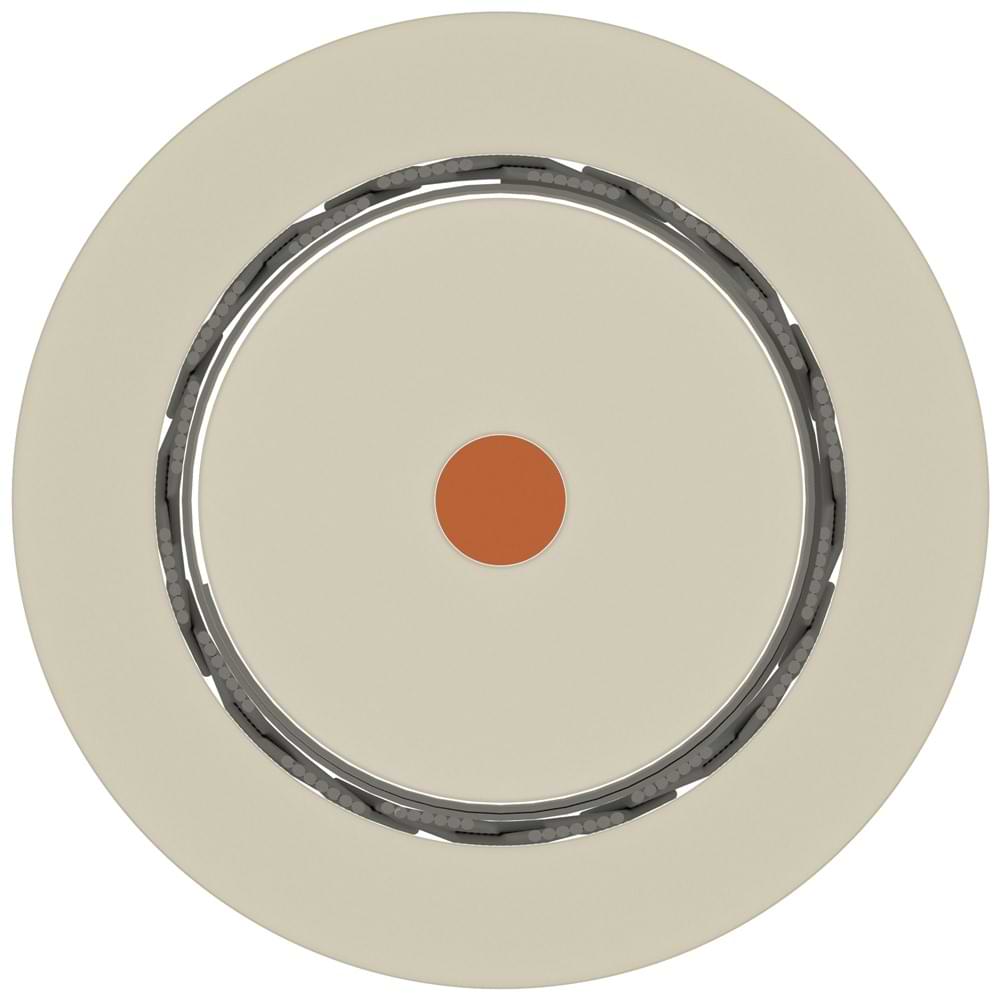

1 – Conductor:0.80 mm ø electrolytic solid copper conductor
2 – Insulation:3.70 mm ø physical foam polyethylene
3 – Screen:Al/PET tape
4 – 2nd Screen:Aluminum braiding
5 – Outer Jacket:UV resistant PVC, halogen-free, polyethylene outer jacket
Inner Conductor Resistance
(20°C)		Outer Conductor Resistance
(20°C)		Insulation
Resistance		Mutual
Capacitance		Propagation
Velocity		Operating
Voltage		Test
Voltage		Characteristic
Impedance
<36.0<49.7>200053±20,841.12.575±3
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Retardancy Test
IEC 61034-2
VDE 0482-1034-2
EN 61034-2		IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3		IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1		IEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2
Part NumberConductor CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.705.1.5.2.0080.3.594010.8618.338100/500/1000
Bending RadiusTemperature Range
Operating
15xD mm-40°C~+70°C
