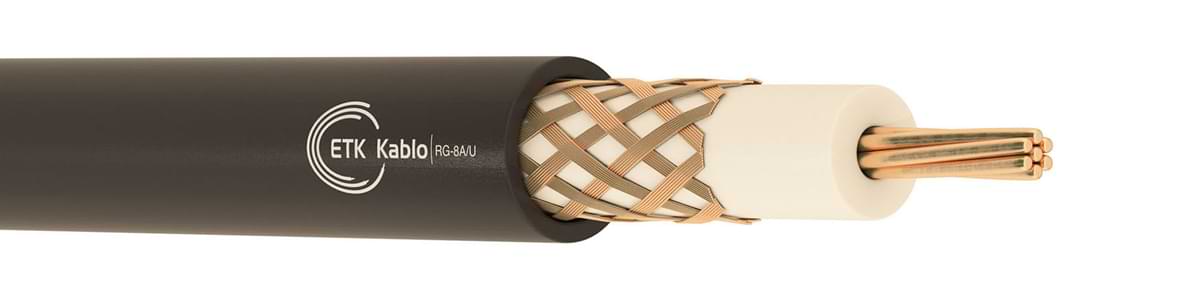

RG-8A/U Coaxial Cable

Product Code: RG-8A/U

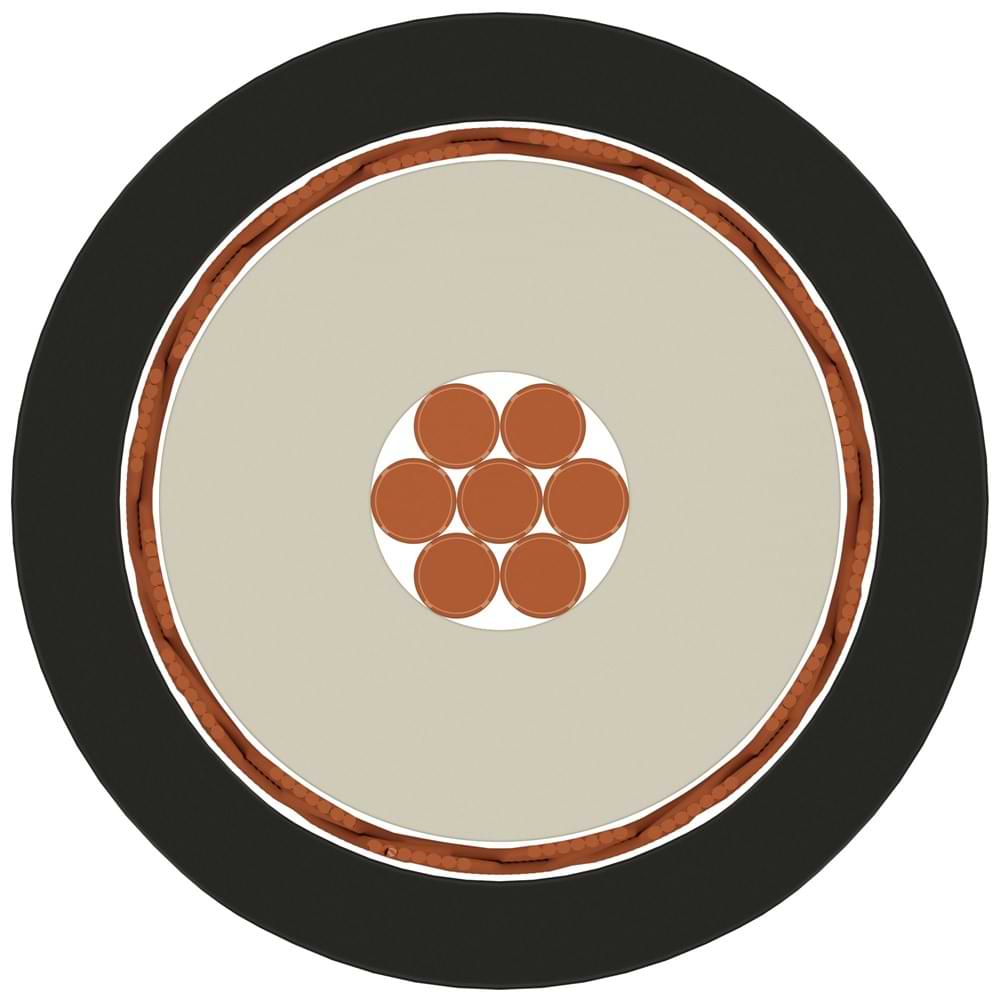

1 – Conductor:7x 0.73 mm ø stranded copper conductor
2 – Insulation:7.25 mm ø solid polyethylene
3 – Screen:Annealed copper wire braiding
4 – Outer Jacket:UV resistant PVC, halogen-free, polyethylene outer jacket
Insulation
Resistance		Mutual
Capacitance		Propagation
Velocity		Operating
Voltage		Test
Voltage		Characteristic
Impedance
>2000950,662550±2
Manufacturing Std.Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Retardancy Test
MIL-C-17IEC 61034-2
VDE 0482-1034-2
EN 61034-2		IEC 60754-2
VDE 0482-267-2-3
EN 50267-2-3		IEC 60754-1
VDE 0482-267-2-1
EN 50267-2-1		IEC 60332-1-2
VDE 0482-332-1-2
EN 60332-1-2
Part NumberConductor CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.701.0.0.2.0773.0.080070.7310.365153100/500/1000
Bending RadiusTemperature Range
Operating
15xD mm-40°C~+70°C
