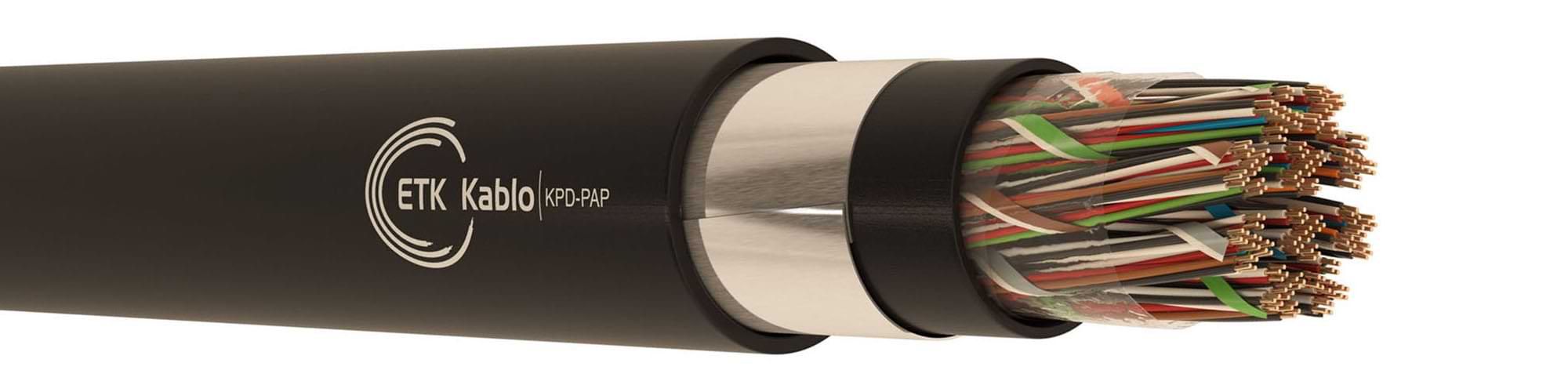

A-02YS2Y(L)2Y Outdoor Telephone Cable

Product Code: KPD-PAP

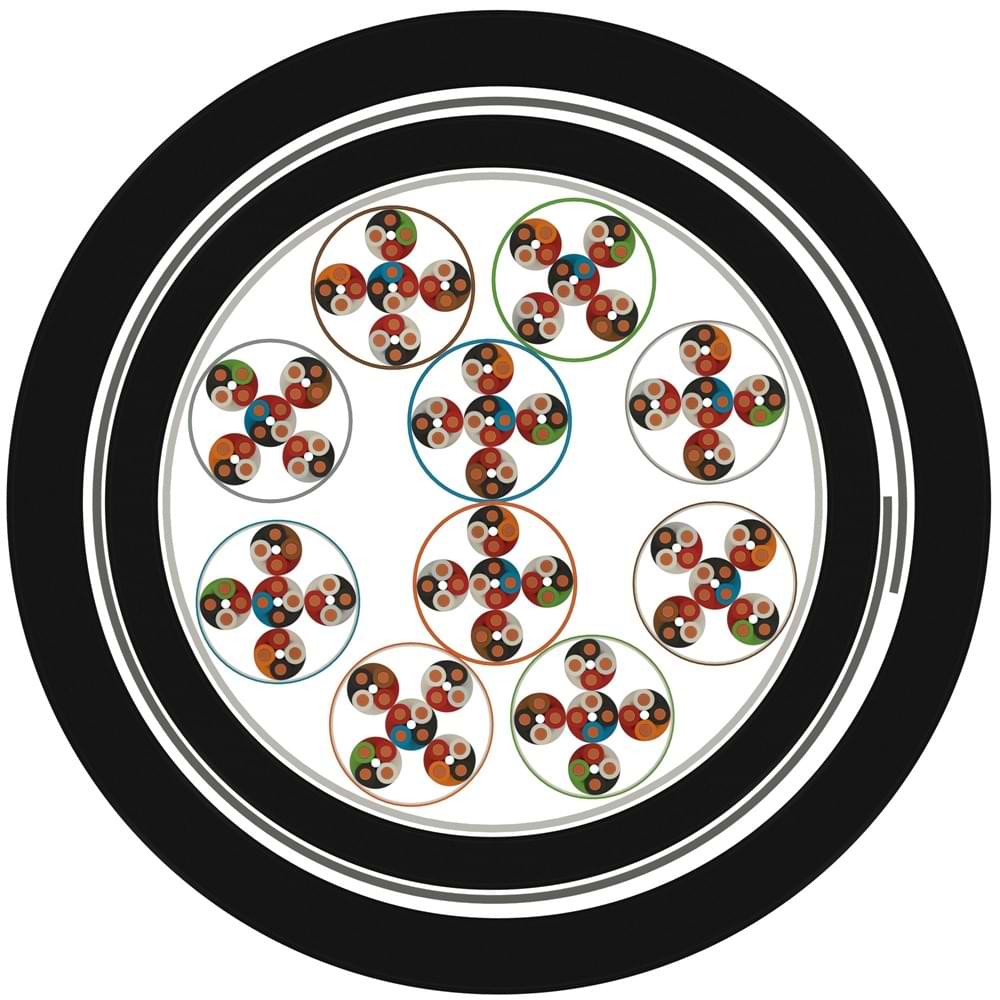

1 – Conductor:Electrolytic annealed solid copper (CCITT Yellow Book Vol. III-2-G.541 B article, IEC 28 and ASTM B 3).
2 – Insulation:Color coded foam skin polyethylene cladded with solid polyethylene (BS 6234 Type 03 – ASTM D 1248).
3 – Stranding:Star quads or pairs are assembled into 10 pairs units. Groups having 25, 50 or 100 pairs are stranded together.
4 – Wrapping:A non-hygroscopic and dielectric polyester tape is applied on the cable core longitudinally or helically.
5 – Inner Jacket:Linear low-density or medium-density, UV resistant black polyethylene inner jacket (ASTM D 1248).
6 – Screen:Both sides are coated with copolymer coated flat aluminum tape over cable core longitudinally for screening.
7 – Outer Jacket:Linear low-density or medium-density, UV resistant black polyethylene outer jacket (ASTM D 1248).
Conductor Diameter
0.40 mm 0.50 mm 0.60 mm 0.63 mm 0.65 mm 0.80 mm 0.90 mm
Conductor Resistance Ω/km (20 °C)
Maximum Average 139,4 89,4 62,1 58573527,6
Maximum Individual 146,6 9364,6 60583728,8
Insulation Resistance MΩ/km (500 VDC) >10000 >10000 >15000 >15000 >15000 >15000 >15000
Mutual Capacitance nF/km (800 Hz)
Maximum Average 50504545454545
Maximum Individual 56565151515151
Capacitance Unbalance pF/500 m
Between Pairs
Maximum Average 1251256060606060
Maximum Individual 350350325325325325325
Between Adjacent Quads
Maximum Average 1251256060606060
Maximum Individual 275275270270270270270
To Screen
Maximum Average 500500325325325325325
Maximum Individual 2000200013001300130013001300
Dielectric Strength
V (DC, 1 minute)
Pair – Pair 1400140020002000200024003000
Pair – Screen 1400140020002000200024003000
V (DC, 3 second)
Pair – Screen 9000900090009000900090009000
KPD-PAP (Quad)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.110.4.5.1.0040.0.0002–20,47,84,8561000/2000
3.110.4.5.1.0040.0.0004–40,48,29,5641000/2000
3.110.4.5.1.0040.0.0006–60,49,114,3781000/2000
3.110.4.5.1.0040.0.0010–100,49,323,7901000/2000
3.110.4.5.1.0040.0.0020–200,410,847,41311200
3.110.4.5.1.0040.0.0030–300,41371,11781200
3.110.4.5.1.0040.0.0040–400,413,894,82121200
3.110.4.5.1.0040.0.0050–500,414,7118,52491200
3.110.4.5.1.0040.0.0070–700,416165,93131200
3.110.4.5.1.0040.0.0080–800,416,7189,63481200
3.110.4.5.1.0040.0.0100–1000,418,3241,64221200
3.110.4.5.1.0040.0.0150–1500,422362,45961000
3.110.4.5.1.0040.0.0200–2000,423,9483,27541000
3.110.4.5.1.0040.0.0250–2500,426,26049211000
3.110.4.5.1.0040.0.0300–3000,428,4724,810921000
3.110.4.5.1.0040.0.0350–3500,429,5845,512421000
3.110.4.5.1.0040.0.0400–4000,431,5966,31407500
3.110.4.5.1.0040.0.0500–5000,435,71207,91745500
3.110.4.5.1.0040.0.0600–6000,438,51449,52062500
3.110.4.5.1.0040.0.0700–7000,440,116912356400
3.110.4.5.1.0040.0.0800–8000,443,31932,62700400
3.110.4.5.1.0040.0.0900–9000,446,42174,23015400
3.110.4.5.1.0040.0.1000–10000,449,12415,83358400
3.110.4.5.1.0040.0.1200–12000,452,22898,93952300
3.110.4.5.1.0040.0.1500–15000,458,63623,64908300
3.110.4.5.1.0040.0.1600–16000,460,13865,25206300
3.110.4.5.1.0040.0.1800–18000,464,44348,35864300
3.110.4.5.1.0040.0.2100–21000,468,550736757250
3.110.4.5.1.0040.0.2400–24000,471,25797,87623250
KPD-PAP (Quad)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.110.4.5.1.0050.0.0002–20,58,17,5621000/2000
3.110.4.5.1.0050.0.0004–40,58,614,9731000/2000
3.110.4.5.1.0050.0.0006–60,59,722,3921000/2000
3.110.4.5.1.0050.0.0010–100,59,737,11091000/2000
3.110.4.5.1.0050.0.0020–200,511,774,11671200
3.110.4.5.1.0050.0.0030–300,514,2111,12331200
3.110.4.5.1.0050.0.0040–400,515,1148,12811200
3.110.4.5.1.0050.0.0050–500,516,4185,23351200
3.110.4.5.1.0050.0.0070–700,517,9259,24341200
3.110.4.5.1.0050.0.0080–800,518,8296,24811200
3.110.4.5.1.0050.0.0100–1000,520,7377,55881000
3.110.4.5.1.0050.0.0150–1500,524,9566,28431000
3.110.4.5.1.0050.0.0200–2000,527,475510831000
3.110.4.5.1.0050.0.0250–2500,530943,713271000
3.110.4.5.1.0050.0.0300–3000,532,41132,41566500
3.110.4.5.1.0050.0.0350–3500,533,71321,11789500
3.110.4.5.1.0050.0.0400–4000,536,21509,92043500
3.110.4.5.1.0050.0.0500–5000,541,31887,32547400
3.110.4.5.1.0050.0.0600–6000,544,52264,83015400
3.110.4.5.1.0050.0.0700–7000,546,42642,23459400
3.110.4.5.1.0050.0.0800–8000,550,13019,73959300
3.110.4.5.1.0050.0.0900–9000,553,73397,14425300
3.110.4.5.1.0050.0.1000–10000,556,83774,64926300
3.110.4.5.1.0050.0.1200–12000,561,14529,55867300
3.110.4.5.1.0050.0.1500–15000,568,25661,97262250
3.110.4.5.1.0050.0.1600–16000,570,36039,37732250
3.110.4.5.1.0050.0.1800–18000,574,96794,28678250
KPD-PAP (Quad)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.110.4.5.1.0060.0.0002–20,68,810,7721000/2000
3.110.4.5.1.0060.0.0004–40,69,421,4901000/2000
3.110.4.5.1.0060.0.0006–60,610,9321141200
3.110.4.5.1.0060.0.0010–100,611,253,41431200
3.110.4.5.1.0060.0.0020–200,613,6106,72251200
3.110.4.5.1.0060.0.0030–300,6171603161200
3.110.4.5.1.0060.0.0040–400,618,3213,33901200
3.110.4.5.1.0060.0.0050–500,619,7266,64651200
3.110.4.5.1.0060.0.0070–700,621,9373,26111000
3.110.4.5.1.0060.0.0080–800,623,2426,66851000
3.110.4.5.1.0060.0.0100–1000,625,9543,68511000
3.110.4.5.1.0060.0.0150–1500,632815,41241500
3.110.4.5.1.0060.0.0200–2000,635,41087,11605500
3.110.4.5.1.0060.0.0250–2500,638,91358,91968500
3.110.4.5.1.0060.0.0300–3000,642,21630,72338400
3.110.4.5.1.0060.0.0350–3500,644,11902,42683400
3.110.4.5.1.0060.0.0400–4000,6472174,23031400
3.110.4.5.1.0060.0.0500–5000,653,72717,73788300
3.110.4.5.1.0060.0.0600–6000,658,43261,34521300
3.110.4.5.1.0060.0.0700–7000,661,53804,85233300
3.110.4.5.1.0060.0.0800–8000,665,64348,35922250
3.110.4.5.1.0060.0.0900–9000,669,64891,96520250
KPD-PAP (Quad)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.110.4.5.1.0080.0.0002–20,89,719891000/2000
3.110.4.5.1.0080.0.0004–40,810,5381181200
3.110.4.5.1.0080.0.0006–60,812,556,91571200
3.110.4.5.1.0080.0.0010–100,812,994,82051200
3.110.4.5.1.0080.0.0020–200,816,1189,63421200
3.110.4.5.1.0080.0.0030–300,820,8284,45001000
3.110.4.5.1.0080.0.0040–400,822,6379,26241000
3.110.4.5.1.0080.0.0050–500,824,8473,97571000
3.110.4.5.1.0080.0.0070–700,827,4663,510011000
3.110.4.5.1.0080.0.0080–800,829,5758,311451000
3.110.4.5.1.0080.0.0100–1000,833,1966,31427500
3.110.4.5.1.0080.0.0150–1500,841,51449,52117400
3.110.4.5.1.0080.0.0200–2000,845,71932,62729400
3.110.4.5.1.0080.0.0250–2500,850,82415,83380300
3.110.4.5.1.0080.0.0300–3000,855,32898,94033300
3.110.4.5.1.0080.0.0350–3500,857,633824617300
3.110.4.5.1.0080.0.0400–4000,862,13865,25279300
3.110.4.5.1.0080.0.0500–5000,870,84831,56569250
3.110.4.5.1.0080.0.0600–6000,876,95797,87830250
KPD-PAP (Quad)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.110.4.5.1.0090.0.0002–20,99,924961000/2000
3.110.4.5.1.0090.0.0004–40,910,8481311200
3.110.4.5.1.0090.0.0006–60,912,9721771200
3.110.4.5.1.0090.0.0010–100,913,41202361200
3.110.4.5.1.0090.0.0020–200,916,82404001200
3.110.4.5.1.0090.0.0030–300,921,8359,95851000
3.110.4.5.1.0090.0.0040–400,923,7479,97361000
3.110.4.5.1.0090.0.0050–500,926599,88991000
3.110.4.5.1.0090.0.0070–700,929,3839,712111000
3.110.4.5.1.0090.0.0080–800,931,3959,71377500
3.110.4.5.1.0090.0.0100–1000,935,512231739500
3.110.4.5.1.0090.0.0150–1500,943,81834,52538400
3.110.4.5.1.0090.0.0200–2000,948,924463331400
3.110.4.5.1.0090.0.0250–2500,953,73057,44078300
3.110.4.5.1.0090.0.0300–3000,958,43668,94865300
3.110.4.5.1.0090.0.0350–3500,961,54280,45639300
3.110.4.5.1.0090.0.0400–4000,965,74891,96386250
3.110.4.5.1.0090.0.0500–5000,975,56114,88018250
3.110.4.5.1.0090.0.0600–6000,982,17337,89555200
KPD-PAP (Pair)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.111.1.5.1.0040.0.0002–20,47,84,8551000/2000
3.111.1.5.1.0040.0.0004–40,48,69,5701000/2000
3.111.1.5.1.0040.0.0005–50,48,711,9731000/2000
3.111.1.5.1.0040.0.0006–60,49,514,3811000/2000
3.111.1.5.1.0040.0.0010–100,49,523,7931000/2000
3.111.1.5.1.0040.0.0020–200,411,447,41381200
3.111.1.5.1.0040.0.0025–250,412,759,31621200
3.111.1.5.1.0040.0.0030–300,413,571,11851200
3.111.1.5.1.0040.0.0040–400,414,494,82191200
3.111.1.5.1.0040.0.0050–500,415,4118,52571200
3.111.1.5.1.0040.0.0070–700,416,8165,93251200
3.111.1.5.1.0040.0.0080–800,417,6189,63591200
3.111.1.5.1.0040.0.0100–1000,419,3241,64351200
3.111.1.5.1.0040.0.0150–1500,423,3362,46171000
3.111.1.5.1.0040.0.0200–2000,425,5483,27831000
3.111.1.5.1.0040.0.0250–2500,428,26049651000
3.111.1.5.1.0040.0.0300–3000,430,1724,81127500
3.111.1.5.1.0040.0.0350–3500,431,5845,51290500
3.111.1.5.1.0040.0.0400–4000,433,5966,31450500
3.111.1.5.1.0040.0.0500–5000,4381207,91798500
3.111.1.5.1.0040.0.0600–6000,4411449,52124400
3.111.1.5.1.0040.0.0700–7000,443,116912450400
3.111.1.5.1.0040.0.0800–8000,446,11932,62780400
3.111.1.5.1.0040.0.0900–9000,450,12174,23145300
3.111.1.5.1.0040.0.1000–10000,452,42415,83459300
3.111.1.5.1.0040.0.1200–12000,456,32898,94115300
3.111.1.5.1.0040.0.1500–15000,463,13623,65103300
3.111.1.5.1.0040.0.1600–16000,464,83865,25410300
3.111.1.5.1.0040.0.1800–18000,469,44348,36095250
3.111.1.5.1.0040.0.2100–21000,473,950737010250
3.111.1.5.1.0040.0.2400–24000,476,75797,87901250
KPD-PAP (Pair)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.111.1.5.1.0050.0.0002–20,58,17,5601000/2000
3.111.1.5.1.0050.0.0004–40,59,114,9781000/2000
3.111.1.5.1.0050.0.0005–50,59,218,6831000/2000
3.111.1.5.1.0050.0.0006–60,510,122,3961200
3.111.1.5.1.0050.0.0010–100,510,137,11131200
3.111.1.5.1.0050.0.0020–200,512,374,11751200
3.111.1.5.1.0050.0.0025–250,514,292,62171200
3.111.1.5.1.0050.0.0030–300,514,8111,12401200
3.111.1.5.1.0050.0.0040–400,515,9148,12911200
3.111.1.5.1.0050.0.0050–500,517185,23431200
3.111.1.5.1.0050.0.0070–700,518,7259,24421200
3.111.1.5.1.0050.0.0080–800,519,7296,24941200
3.111.1.5.1.0050.0.0100–1000,521,9377,56101000
3.111.1.5.1.0050.0.0150–1500,526,5566,28721000
3.111.1.5.1.0050.0.0200–2000,529,375511241000
3.111.1.5.1.0050.0.0250–2500,532943,71369500
3.111.1.5.1.0050.0.0300–3000,534,91132,41635500
3.111.1.5.1.0050.0.0350–3500,536,31321,11864500
3.111.1.5.1.0050.0.0400–4000,538,81509,92117500
3.111.1.5.1.0050.0.0500–5000,544,11887,32628400
3.111.1.5.1.0050.0.0600–6000,547,62264,83109400
3.111.1.5.1.0050.0.0700–7000,550,22642,23604300
3.111.1.5.1.0050.0.0800–8000,553,53019,74075300
3.111.1.5.1.0050.0.0900–9000,558,13397,14606300
3.111.1.5.1.0050.0.1000–10000,561,43774,65125300
3.111.1.5.1.0050.0.1200–12000,565,44529,56038250
3.111.1.5.1.0050.0.1500–15000,573,35661,97496250
3.111.1.5.1.0050.0.1600–16000,575,96039,38020250
3.111.1.5.1.0050.0.1800–18000,580,56794,28953200
KPD-PAP (Pair)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.111.1.5.1.0060.0.0002–20,68,810,7711000/2000
3.111.1.5.1.0060.0.0004–40,610,121,4961200
3.111.1.5.1.0060.0.0005–50,610,326,71051200
3.111.1.5.1.0060.0.0006–60,611,4321191200
3.111.1.5.1.0060.0.0010–100,611,653,41471200
3.111.1.5.1.0060.0.0020–200,614,5106,72381200
3.111.1.5.1.0060.0.0025–250,616,2133,32821200
3.111.1.5.1.0060.0.0030–300,617,91603301200
3.111.1.5.1.0060.0.0040–400,619,3213,34081200
3.111.1.5.1.0060.0.0050–500,621,1266,64881000
3.111.1.5.1.0060.0.0070–700,623,3373,26361000
3.111.1.5.1.0060.0.0080–800,624,8426,67201000
3.111.1.5.1.0060.0.0100–1000,627,6543,68821000
3.111.1.5.1.0060.0.0150–1500,634,1815,41290500
3.111.1.5.1.0060.0.0200–2000,637,81087,11667500
3.111.1.5.1.0060.0.0250–2500,6421358,92069400
3.111.1.5.1.0060.0.0300–3000,645,41630,72441400
3.111.1.5.1.0060.0.0350–3500,647,31902,42785400
3.111.1.5.1.0060.0.0400–4000,6512174,23188300
3.111.1.5.1.0060.0.0500–5000,658,22717,73970300
3.111.1.5.1.0060.0.0600–6000,663,33261,34731300
3.111.1.5.1.0060.0.0700–7000,6663804,85415250
3.111.1.5.1.0060.0.0800–8000,671,14348,36183250
3.111.1.5.1.0060.0.0900–9000,677,14891,96979250
KPD-PAP (Pair)
Part NumberNumber of ConductorsPair CountConductor Diameter (mm)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.111.1.5.1.0063.0.0002–20,638,911,8751000/2000
3.111.1.5.1.0063.0.0004–40,6310,323,61011200
3.111.1.5.1.0063.0.0005–50,6310,429,41081200
3.111.1.5.1.0063.0.0006–60,6311,735,31261200
3.111.1.5.1.0063.0.0010–100,6311,858,81561200
3.111.1.5.1.0063.0.0020–200,6314,9117,62531200
3.111.1.5.1.0063.0.0025–250,6316,71473001200
3.111.1.5.1.0063.0.0030–300,6318,4176,43541200
3.111.1.5.1.0063.0.0040–400,6319,9235,24361200
3.111.1.5.1.0063.0.0050–500,6321,7293,95271000
3.111.1.5.1.0063.0.0070–700,6324411,56851000
3.111.1.5.1.0063.0.0080–800,6325,6470,37751000
3.111.1.5.1.0063.0.0100–1000,6328,9599,39721000
3.111.1.5.1.0063.0.0150–1500,6335,7898,91418500
3.111.1.5.1.0063.0.0200–2000,6339,31198,51817500
3.111.1.5.1.0063.0.0250–2500,6343,51498,22242400
3.111.1.5.1.0063.0.0300–3000,63471797,82647400
3.111.1.5.1.0063.0.0350–3500,6348,92097,43026400
3.111.1.5.1.0063.0.0400–4000,6352,823973464300
3.111.1.5.1.0063.0.0500–5000,6360,32996,34313300
3.111.1.5.1.0063.0.0600–6000,6365,63595,55142250
3.111.1.5.1.0063.0.0700–7000,63694194,85950250
Open in a new tabİndir
