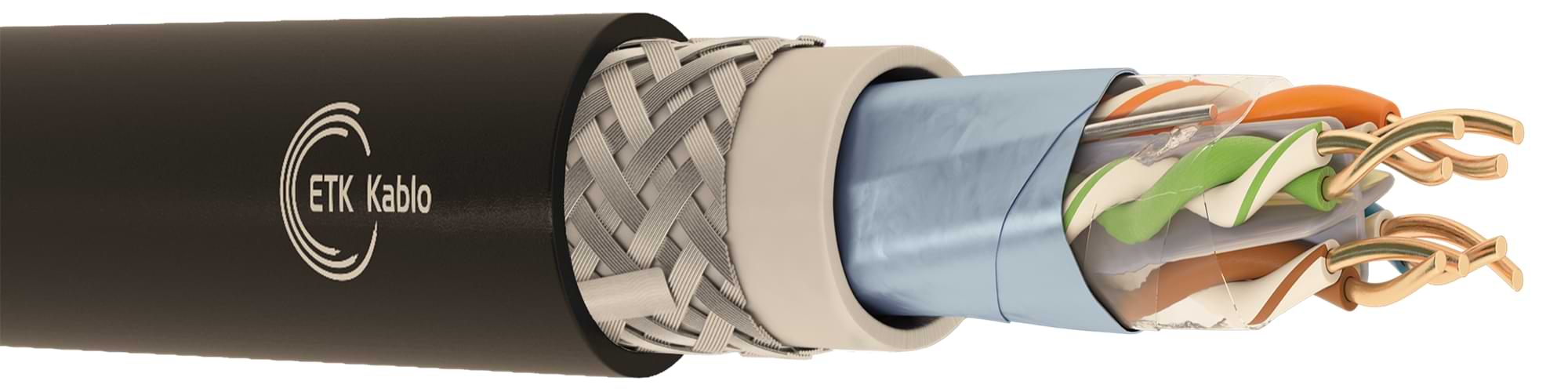

Cat 6 F/UTP LSOH SWB LSOH Ethernet Cable

Name: ETK Kablo A.Ş.
Address: Müstesna Sk. No.: 37, Osmangazi Mahallesi, Sancaktepe, İstanbul, 34887, TR
Telephone: +90-216-311-1034
Price range: $$

Product Code: Cat 6 F/UTP LSOH SWB LSOH

1 – İletken	:	Elektrolitik mono bakır iletken
2 – İzole	:	Solid polietilen izolasyon
3 – Büküm	:	İzoleler çiftler halinde bükülür
4 – Seperatör	:	Çiftler yıldız biçimli seperatörle beraber bükülür
5 – Ekran	:	Kalaylı bakır toprak teli, Al/PET bant
6 – İç Kılıf	:	Ultraviyole ışınlara dayanıklı halojensiz iç kılıf
7 – Zırh	:	Çelik tel örgü
8 – Dış Kılıf	:	Ultraviyole ışınlara dayanıklı halojensiz dış kılıf

İletken Direnci Ω/km (20 °C)	İzolasyon Direnci MΩ/km (20 °C)	Efektif Kapasite nF/m	Direnç Dengesizliği	Yayılma Hızı	Karakteristik Empedans Ω (1-250 MHz)	Çalışma Voltajı V DC	Test Voltajı V (DC. 1 dakika)
Max. 94	5000	Max. 56	%2	%67-69	100 ±%5	250	1200

Üretim Standartları	Duman Yoğunluğu Testi	Alev Geciktiricilik Testi	Aşındırıcı Gaz Testi	Halojensizlik tesi
ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801	IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2	IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2	IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3	IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1

Bükülme Yarıçapı	Çalışma Sıcaklığı Aralığı
8.0xD mm	-20°C ~ +60°C

Frekans MHz	Ek Kaybı dB/100m (Max.)	Near-end Crosstalk (NEXT) Kaybı dB (Min.)	Power-sum Near-end Crosstalk (PSNEXT) Kaybı dB (Min.)	Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.)	Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.)	Dönüş Kaybı (RL) dB (Min.)
1	2	74.3	72.3	67.8	64.8	20
4	3.8	65.3	63.3	55.8	52.8	23
8	5.3	60.8	58.8	49.7	46.7	24.5
10	6	59.3	57.3	47.8	44.8	25
16	7.6	56.2	54.2	43.7	40.7	25
20	8.5	54.8	52.8	41.8	38.8	24.3
25	9.5	53.3	51.3	39.8	36.8	23.6
31.25	10.7	51.9	49.9	37.9	34.9	21.5
62.5	15.4	47.4	45.4	31.9	28.9	20.1
100	19.8	44.3	42.3	27.8	24.8	18
200	29	39.8	37.8	21.8	18.8	17.3
250	32.8	38.3	36.3	19.8	16.8	16.8

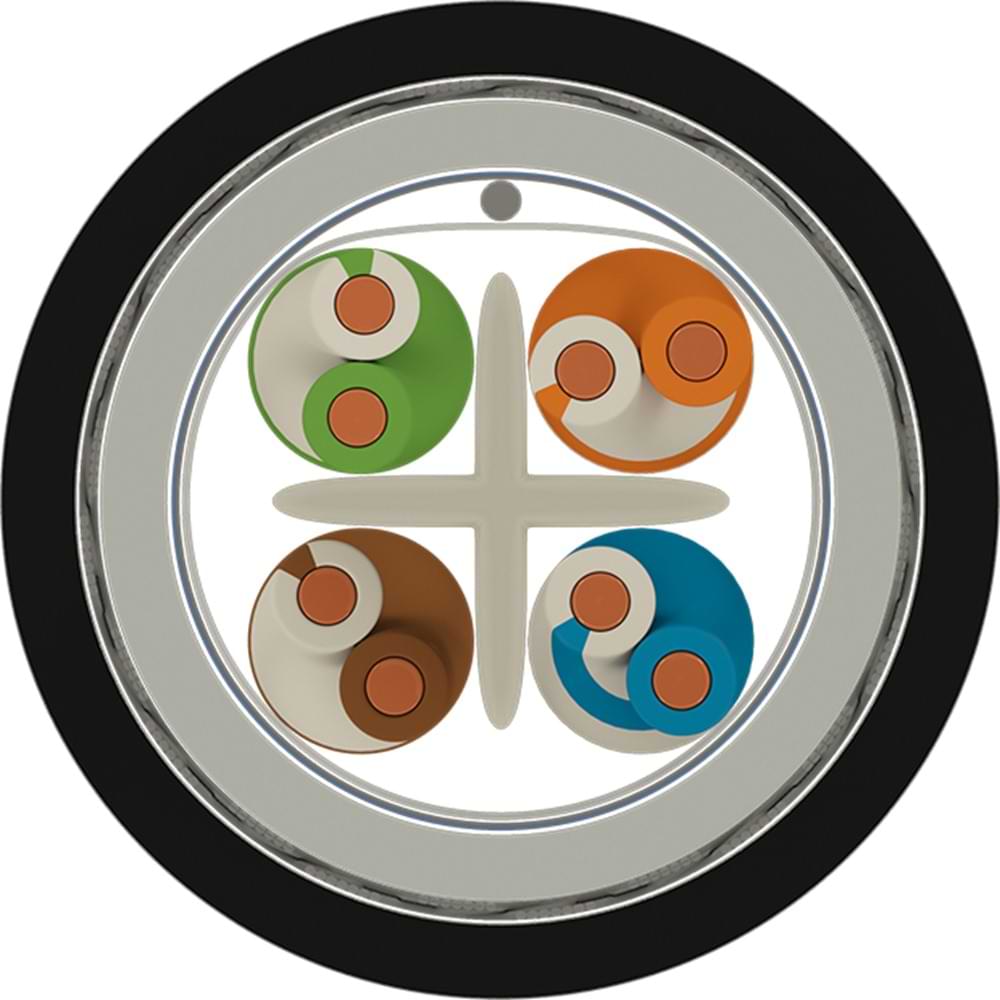

1 – Conductor	:	Electrolytic solid copper conductor
2 – Insulation	:	Solid polyethylene insulation
3 – Stranding	:	Insulations are stranded into pairs
4 – Seperator	:	Pairs are stranded together with star shaped separator
5 – Screen	:	Tinned copper earthing wire, Al/PET tape
6 – Inner Jacket	:	UV resistant halogen-free inner jacket
7 – Armor	:	Steel wire braiding
8 – Outer Jacket	:	UV resistant halogen-free outer jacket

Conductor Resistance Ω/km (20 °C)	Insulation Resistance MΩ/km (20 °C)	Mutual Capacitance nF/km	Resistance Unbalance	Propagation Velocity	Characteristic Impedance Ω (1-250 MHz)	Operating Voltage V DC	Test Voltage V (DC. 1 minute)
Max. 94	5000	Max. 56	%2	%67-69	100 ±%5	250	1200

Manufacturing	Smoke Density Test	Flame Retardancy Test	Corrosive Gas Test	Halogen-free Test
ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801	IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2	IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2	IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3	IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1

Bending Radius	Temperature Range Operating
8.0xD mm	-20°C ~ +60°C

Frequency MHz	Insertion Loss dB/100m (Max.)	Near-end Crosstalk (NEXT) dB (Min.)	Power-sum Near-end Crosstalk (PSNEXT) dB (Min.)	Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.)	Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.)	Return Loss (RL) dB (Min.)
1	2	74.3	72.3	67.8	64.8	20
4	3.8	65.3	63.3	55.8	52.8	23
8	5.3	60.8	58.8	49.7	46.7	24.5
10	6	59.3	57.3	47.8	44.8	25
16	7.6	56.2	54.2	43.7	40.7	25
20	8.5	54.8	52.8	41.8	38.8	24.3
25	9.5	53.3	51.3	39.8	36.8	23.6
31.25	10.7	51.9	49.9	37.9	34.9	21.5
62.5	15.4	47.4	45.4	31.9	28.9	20.1
100	19.8	44.3	42.3	27.8	24.8	18
200	29	39.8	37.8	21.8	18.8	17.3
250	32.8	38.3	36.3	19.8	16.8	16.8
