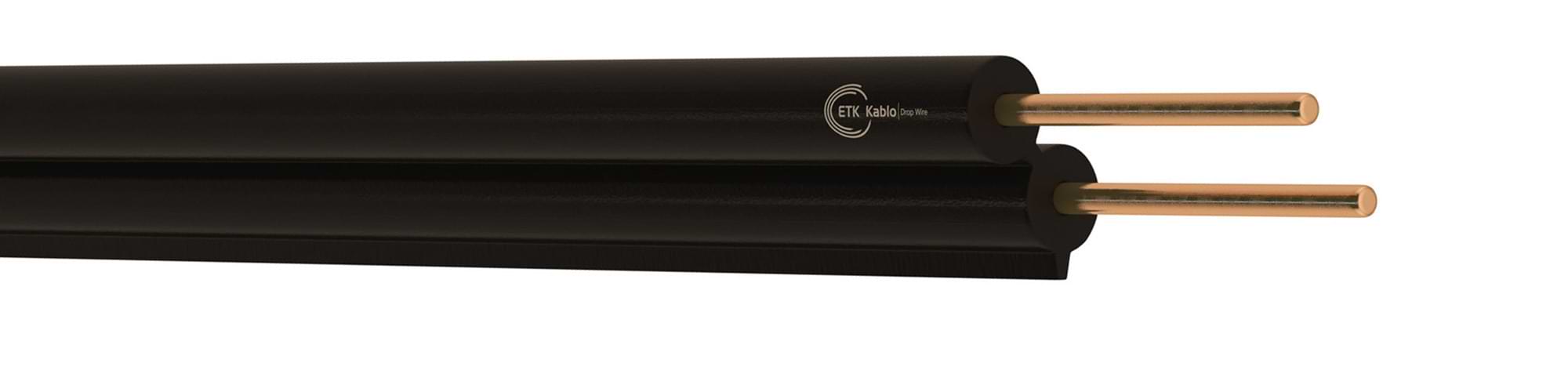

1 – Conductor – Electrolytic solid copper (TS 2, IEC28, ASTM B3).
2 – Outer Jacket – Linear low-density or medium-density, UV resistant black polyethylene outer jacket (ASTM D 1248).
| Conductor Diameter | |
|---|---|
| 0.80 mm | |
| Conductor Resistance Ω/km (20 °C) | |
| Maximum Average | 28,96 |
| Insulation Resistance MΩ/km (500 V DC) | >15000 |
| Dielectric Strength | |
| V (DC, 1 minute) | |
| Pair – Pair | 5600 |
| Pair – Screen | 5600 |
| Drop Wire | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Dimensions | a | d | r | s | g | l | m | n | o |
| Nominal Values | 0.8 mm | 2.8 mm | 0.3 mm | 0.5 mm | 3.1 mm | 5.9 mm | 0.7 mm | 0.6 mm | 0.3 mm |
| 1.0 mm | 3.0 mm | 0.3 mm | 0.5 mm | 3.3 mm | 6.3 mm | 0.7 mm | 0.6 mm | 0.3 mm | |
| Tolerance | 0.012 mm | 0.1 mm | 0.1 mm | 0.2 mm | 0.2 mm | 0.5 mm | 0.1 mm | 0.1 mm | 0.1 mm |
| Drop Wire | |||||||
|---|---|---|---|---|---|---|---|
| Part Number | Conductor Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) | |
| 3.180.0.0.1.0080.0.0002 | 2 | 0,8 | 2,9 | 9,7 | 21 | 1000/2000 | |
| 3.180.0.0.1.0100.0.0002 | 2 | 1 | 3,1 | 15,1 | 28 | 1000/2000 | |
| 3.181.0.0.1.0080.0.0002 | 2 | 0,8 | 2,9 | 9,7 | 21 | 1000/2000 | |
| 3.181.0.0.1.0100.0.0002 | 2 | 1 | 3,1 | 15,1 | 28 | 1000/2000 | |
