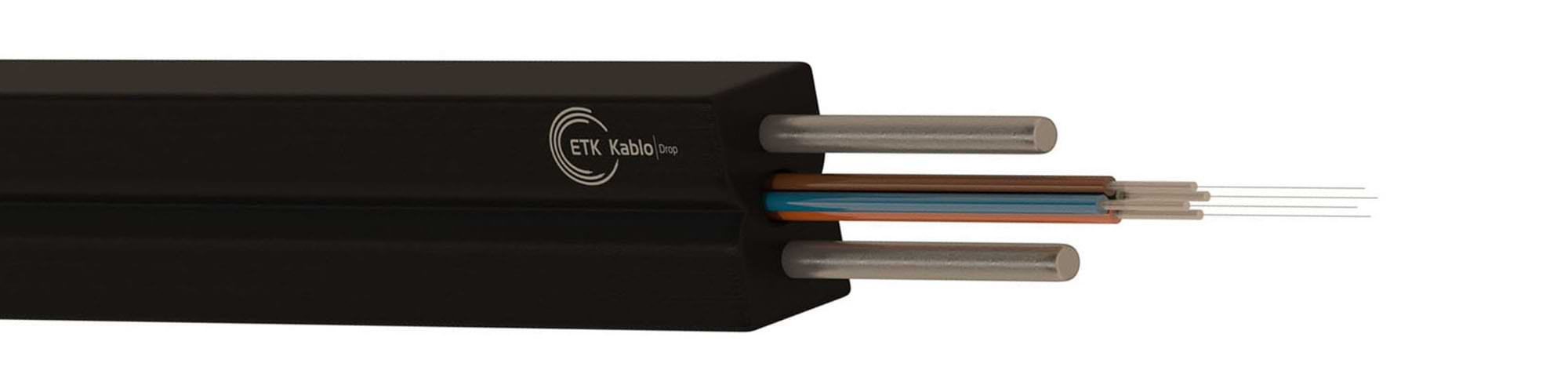

FTTH Fiber Optic Cable

Product Code: Drop

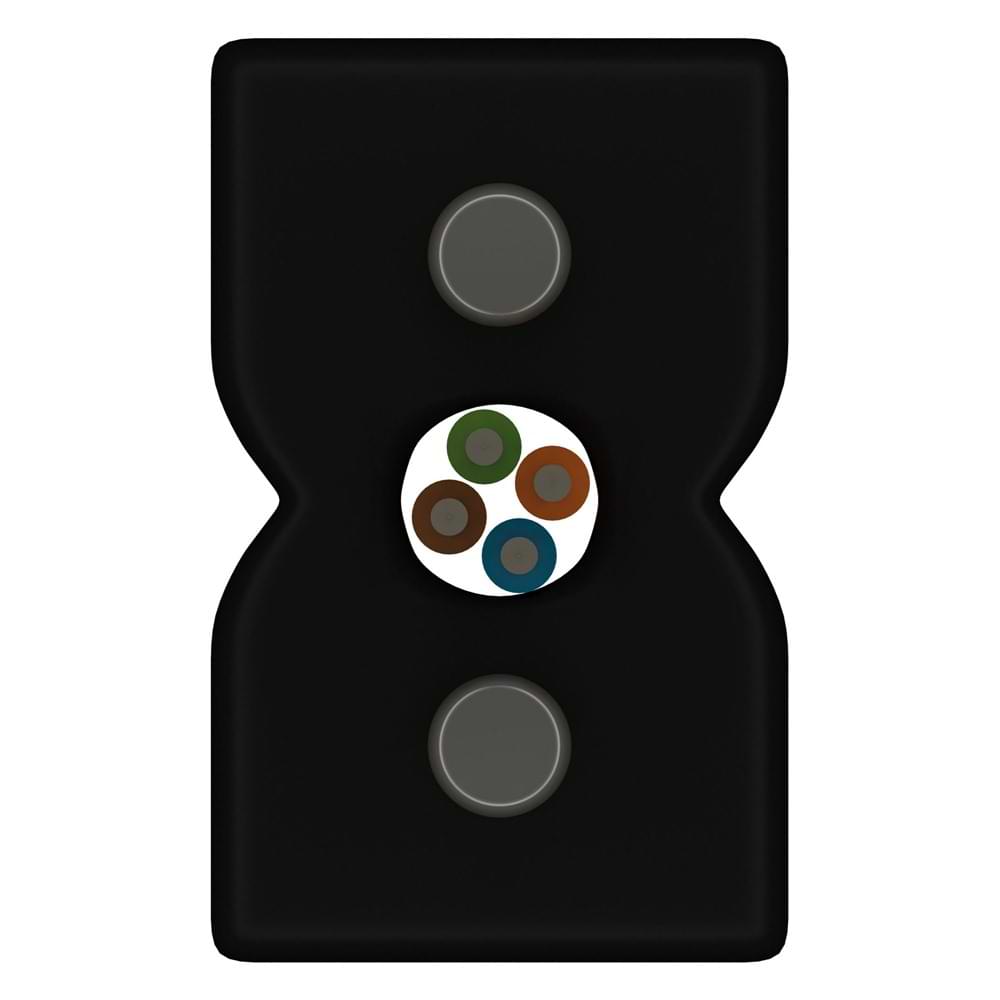

1 – Optical fiber core ¹

2 – Steel wire strength member

3 – UV resistant halogen-free (LSOH) outer jacket

Part Number	Core Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)
4.289.0.3.3.0900.0.0001	SM G.652.D	1	2,0 x 3,2	10
4.289.0.3.3.0900.0.0002	SM G.652.D	2	2,0 x 3,2	10
4.289.0.3.3.0900.0.0004	SM G.652.D	4	2,0 x 3,2	10

Part Number	Core Type	Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)
4.289.0.3.3.0971.0.0001	SM G.657.A1	1	2,0 x 3,2	10
4.289.0.3.3.0971.0.0002	SM G.657.A1	2	2,0 x 3,2	10
4.289.0.3.3.0971.0.0004	SM G.657.A1	4	2,0 x 3,2	10

	Test Standard	Specified Value	Acceptance Criteria
Maximum Installation Tension ²	IEC 60794-1-2-E1	Maks. 600 N	Fiber strainı ≤ 0.33%
Maximum Operation Tension			Δα ≤ 0.05 dB, No fiber strain
Crush Strength	IEC 60794-1-2-E3	800 N / 100 mm, maks. 15 min	Δα ≤ 0.05 dB, No damage
Impact	IEC 60794-1-2-E4	0.74 Nm, 3 impacts, R= 25 mm	Δα ≤ 0.05 dB after the test
Torsion	IEC 60794-1-2-E7	1 m. 100N, +/- 360°, 10 cycles	Δα ≤ 0.05 dB, No damage
Repeated Bending	IEC 60794-1-2-E6	R=20x D, 100 N, 35 cycles	No damage
Bending Radius	IEC 60794-1-2-E11	R=20x D, 5 turns, 3 cycles	Δα ≤ 0.05 dB, No damage
Temperature Cycling	IEC 60794-1-2-F1	-10°C to +60°C	Δα ≤ 0.05 dB/km
Waterproofness	IEC 60794-1-2-F5B	Sample= 3 m, water column= 1 m	No water leakage in 24 hours.

	Minimum Bending Radius
Operation	20 x cable Ø
Fixed	15 x cable Ø

	Temperature Range
Storage	-10°C to + 70°C	Installation	-30°C to +60°C
Transport	-10°C to + 70°C	Operating	-30°C to +60°C

Marking	ETK Kablo – Date of Manufacture – Fiber Count and Type – Length Marking
Packing	Wooden drum with protection
Delivery Lengths	2 km, 4 km ± %5 tolerance
