J-V(ZN)H Fiber Optic Cable

Product Code: Simplex Zipcord

Part NumberCore TypeFiber CountCable Diameter (mm)Cable Weight (kg/km)
4.291.0.3.3.0900.0.0001SM G.652.D126
4.291.0.3.3.0625.0.0001OM1126
4.291.0.3.3.0502.0.0001OM2126
4.291.0.3.3.0503.0.0001OM3126
4.291.0.3.3.0504.0.0001OM4126
4.291.0.3.3.0900.1.0001SM G.652.D12,89
4.291.0.3.3.0625.1.0001OM112,89
4.291.0.3.3.0502.1.0001OM212,89
4.291.0.3.3.0503.1.0001OM312,89
4.291.0.3.3.0504.1.0001OM412,89
Test StandardSpecified ValueAcceptance Criteria
Maximum Installation Tension ²IEC 60794-1-2-E1Maks. 200 NFiber strainı ≤ 0.33%
Maximum Operation TensionΔα ≤ 0.05 dB, No fiber strain
Crush StrengthIEC 60794-1-2-E31000 N / 100 mm, maks. 10 minΔα ≤ 0.05 dB, No damage
ImpactIEC 60794-1-2-E410 Nm, 3 impacts, R= 300 mmΔα ≤ 0.05 dB after the test
TorsionIEC 60794-1-2-E71 m, 100N, +/- 180°, 10 cyclesΔα ≤ 0.05 dB, No damage
Repeated BendingIEC 60794-1-2-E6R=20x D, 100 N, 35 cyclesNo damage
Bending RadiusIEC 60794-1-2-E11R=20x D, 4 turns, 3 cyclesΔα ≤ 0.05 dB, No damage
Temperature CyclingIEC 60794-1-2-F1-20°C to +70°CΔα ≤ 0.05 dB/km
Minimum Bending Radius
Operation20 x cable Ø
Fixed15 x cable Ø
Temperature Range
Storage-40°C to + 70°CInstallation-30°C to +60°C
Transport-40°C to + 70°COperating-40°C to +70°C

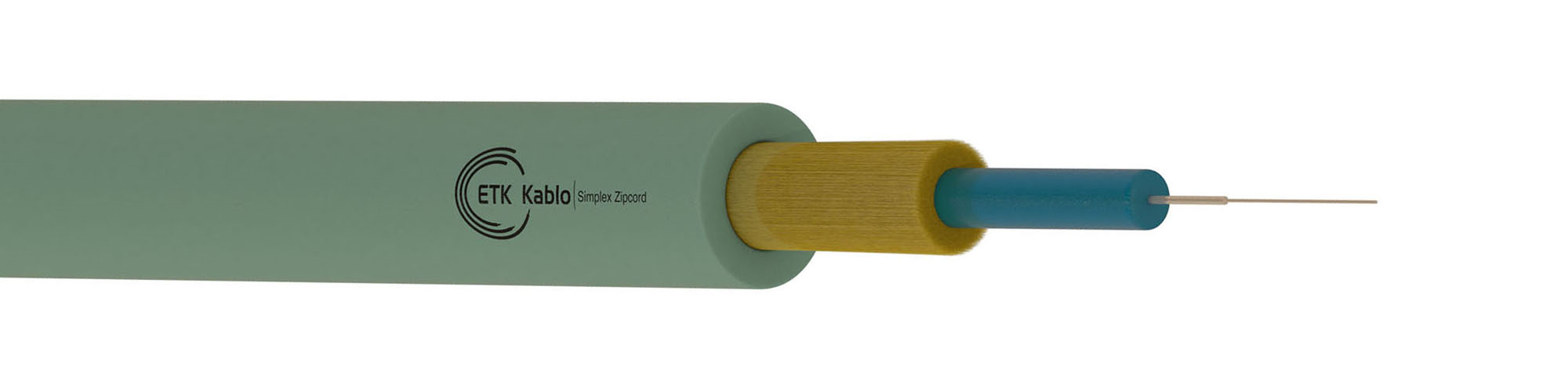

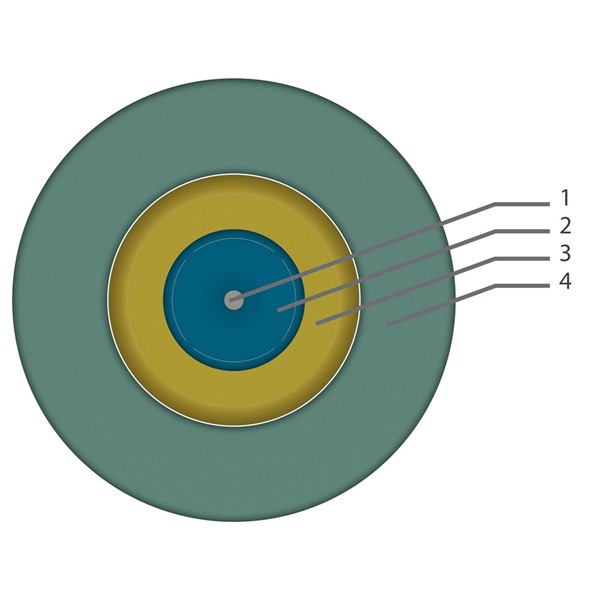

1 – Optical fiber core ¹
2 – HFFR insulated tight-buffered fiber of 900 μm diameter
3 – Non-metallic strength member (Aramid yarn)
4 – UV resistant halogen-free (LSOH) outer jacket

Part NumberCore TypeFiber CountCable Diameter (mm)Cable Weight (kg/km)
4.291.0.3.3.0900.0.0001SM G.652.D126
4.291.0.3.3.0625.0.0001OM1126
4.291.0.3.3.0502.0.0001OM2126
4.291.0.3.3.0503.0.0001OM3126
4.291.0.3.3.0504.0.0001OM4126
4.291.0.3.3.0900.1.0001SM G.652.D12,89
4.291.0.3.3.0625.1.0001OM112,89
4.291.0.3.3.0502.1.0001OM212,89
4.291.0.3.3.0503.1.0001OM312,89
4.291.0.3.3.0504.1.0001OM412,89
Test StandardSpecified ValueAcceptance Criteria
Maximum Installation Tension ²IEC 60794-1-2-E1Maks. 200 NFiber strainı ≤ 0.33%
Maximum Operation TensionΔα ≤ 0.05 dB, No fiber strain
Crush StrengthIEC 60794-1-2-E31000 N / 100 mm, maks. 10 minΔα ≤ 0.05 dB, No damage
ImpactIEC 60794-1-2-E410 Nm, 3 impacts, R= 300 mmΔα ≤ 0.05 dB after the test
TorsionIEC 60794-1-2-E71 m, 100N, +/- 180°, 10 cyclesΔα ≤ 0.05 dB, No damage
Repeated BendingIEC 60794-1-2-E6R=20x D, 100 N, 35 cyclesNo damage
Bending RadiusIEC 60794-1-2-E11R=20x D, 4 turns, 3 cyclesΔα ≤ 0.05 dB, No damage
Temperature CyclingIEC 60794-1-2-F1-20°C to +70°CΔα ≤ 0.05 dB/km
Minimum Bending Radius
Operation20 x cable Ø
Fixed15 x cable Ø
Temperature Range
Storage-40°C to + 70°CInstallation-30°C to +60°C
Transport-40°C to + 70°COperating-40°C to +70°C
MarkingETK Kablo – Date of Manufacture – Fiber Count and Type – Length Marking
PackingWooden drum with protection
Delivery Lengths2 km, 4 km ± %5 tolerance
