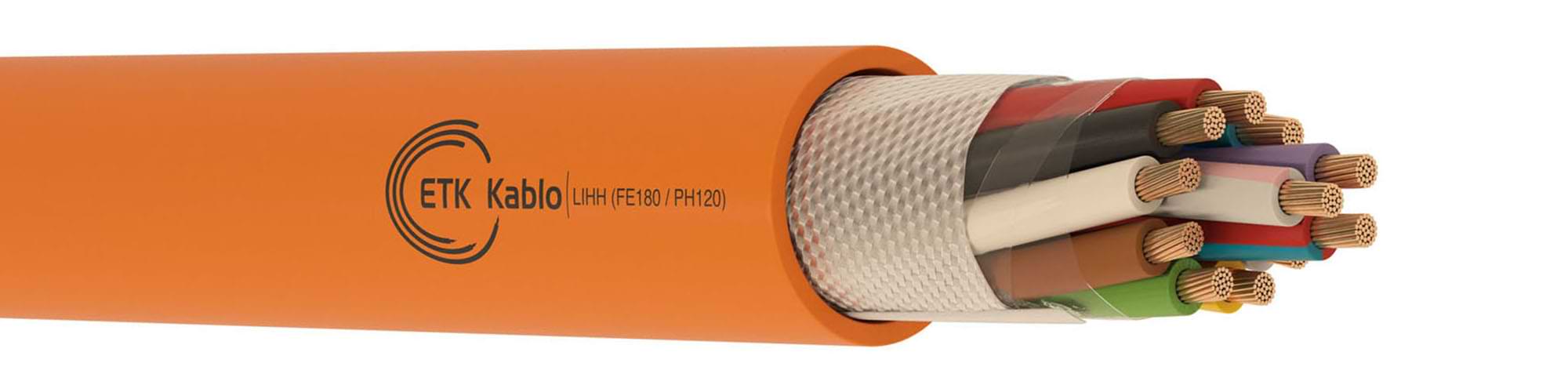

LIHH FE180 PH120 Fire Resistant Cable

Product Code: LIHH FE180 PH120

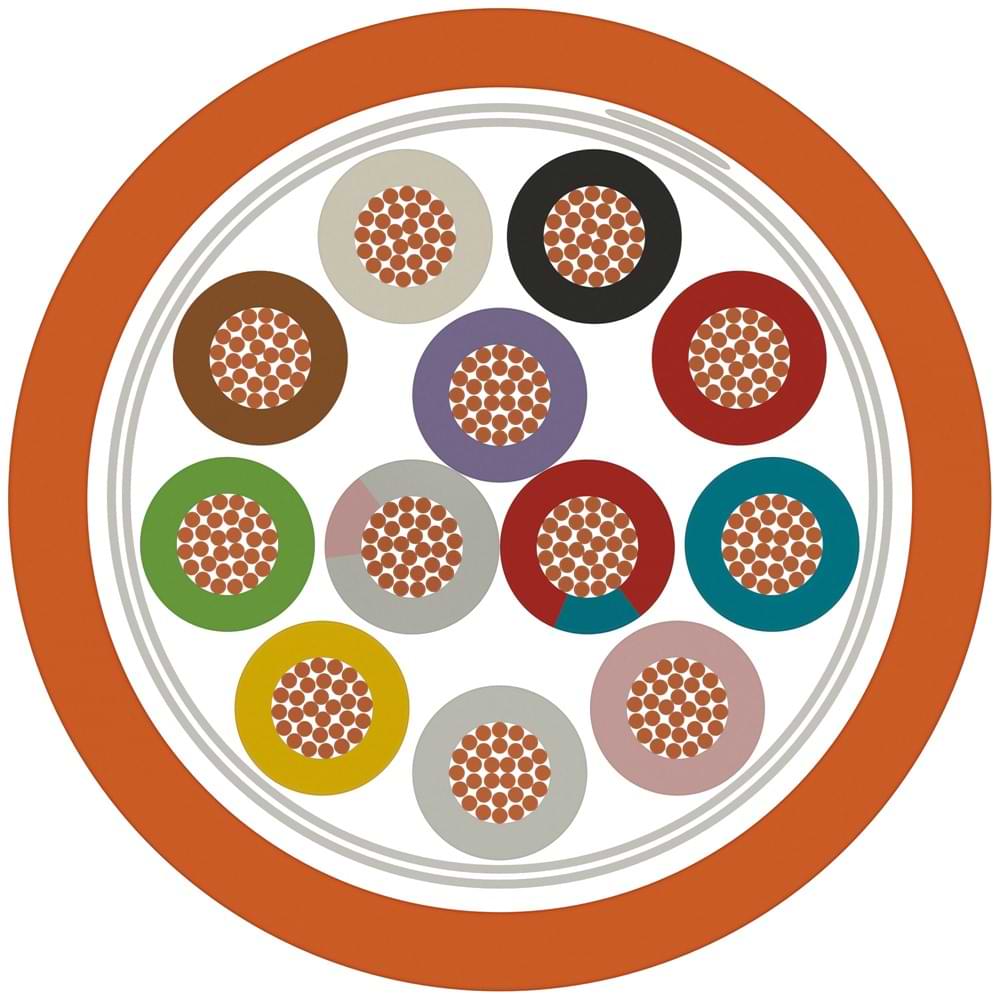

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Cross-linked polymer compound in ceramic form (DIN 47100)
3 – Stranding:In layers
4 – Wrapping:Polyester tape, glass yarn tape
5 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 2008 (Orange)
Conductor
Diameter		Conductor Resistance
Ω/km
(20 °C)		Insulation
Resistance
(@500V DC)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.50 mm²39.01001003002000
0.75 mm²26.01001003002000
1.00 mm²19.51001003002000
1.50 mm²13.31001003002000
2.50 mm²8.01001003002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Circuit Integrity Test
(FE180)		Circuit Integrity with Shock Test
(PH120)
IEC 60331-21EN 50200,
VDE 0482-200,
BS EN 50200
Part NumberConductorCountConductor Diameter (mm²)Approx. Cable Diameter(mm)Copper Weight(kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.512.2.4.3.0050.0.000220,55,48,934100/500/1000
3.512.2.4.3.0050.0.000330,55,713,342100/500/1000
3.512.2.4.3.0050.0.000440,56,117,751100/500/1000
3.512.3.4.3.0050.0.000550,56,822,164100/500/1000
3.512.3.4.3.0050.0.000660,57,326,575100/500/1000
3.512.3.4.3.0050.0.000770,57,330,978100/500/1000
3.512.3.4.3.0050.0.000880,5835,395100/500/1000
3.512.3.4.3.0050.0.000990,59,239,7109100/500/1000
3.512.3.4.3.0050.0.0010100,59,244,1112100/500/1000
3.512.3.4.3.0050.0.0012120,59,652,9130100/500/1000
3.512.3.4.3.0050.0.0014140,510,161,7148100/500/1000
3.512.3.4.3.0050.0.0016160,510,770,5165100/500/1000
3.512.3.4.3.0050.0.0018180,511,379,3188100/500/1000
3.512.3.4.3.0050.0.0019190,511,383,7191100/500/1000
3.512.3.4.3.0050.0.0020200,511,988,1207100/500/1000
3.512.3.4.3.0050.0.0021210,511,992,5219100/500/1000
3.512.3.4.3.0050.0.0024240,513,2105,7243100/500/1000
3.512.3.4.3.0050.0.0025250,513,2110,1257100/500/1000
3.512.3.4.3.0050.0.0027270,513,5118,9265100/500/1000
Part NumberConductorCountConductor Diameter (mm²)Approx. Cable Diameter(mm)Copper Weight(kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.512.2.4.3.0075.0.000220,755,913,343100/500/1000
3.512.2.4.3.0075.0.000330,756,219,953100/500/1000
3.512.2.4.3.0075.0.000440,756,826,567100/500/1000
3.512.3.4.3.0075.0.000550,757,533,183100/500/1000
3.512.3.4.3.0075.0.000660,758,139,798100/500/1000
3.512.3.4.3.0075.0.000770,758,146,3103100/500/1000
3.512.3.4.3.0075.0.000880,758,952,9124100/500/1000
3.512.3.4.3.0075.0.000990,7510,259,5141100/500/1000
3.512.3.4.3.0075.0.0010100,7510,266,1146100/500/1000
3.512.3.4.3.0075.0.0012120,7510,679,3169100/500/1000
3.512.3.4.3.0075.0.0014140,7511,292,5194100/500/1000
3.512.3.4.3.0075.0.0016160,7511,8105,7216100/500/1000
3.512.3.4.3.0075.0.0018180,7512,5118,9246100/500/1000
3.512.3.4.3.0075.0.0019190,7512,5125,5251100/500/1000
3.512.3.4.3.0075.0.0020200,7513,1132,1272100/500/1000
3.512.3.4.3.0075.0.0021210,7513,1138,7287100/500/1000
3.512.3.4.3.0075.0.0024240,7514,6158,5318100/500/1000
3.512.3.4.3.0075.0.0025250,7514,6165,1336100/500/1000
3.512.3.4.3.0075.0.0027270,7514,9178,3348100/500/1000
Part NumberConductorCountConductor Diameter (mm²)Approx. Cable Diameter(mm)Copper Weight(kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.512.2.4.3.0100.0.0002216,316,649100/500/1000
3.512.2.4.3.0100.0.0003316,724,862100/500/1000
3.512.3.4.3.0100.0.0004417,333,178100/500/1000
3.512.3.4.3.0100.0.000551841,397100/500/1000
3.512.3.4.3.0100.0.0006618,749,6115100/500/1000
3.512.3.4.3.0100.0.0007718,757,8121100/500/1000
3.512.3.4.3.0100.0.0008819,566,1146100/500/1000
3.512.3.4.3.0100.0.0009911174,3167100/500/1000
3.512.3.4.3.0100.0.00101011182,6173100/500/1000
3.512.3.4.3.0100.0.001212111,599,1201100/500/1000
3.512.3.4.3.0100.0.001414112,1115,6230100/500/1000
3.512.3.4.3.0100.0.001616112,7132,1257100/500/1000
3.512.3.4.3.0100.0.001818113,5148,6293100/500/1000
3.512.3.4.3.0100.0.001919113,5156,9299100/500/1000
3.512.3.4.3.0100.0.002020114,2165,1324100/500/1000
3.512.3.4.3.0100.0.002121114,2173,4343100/500/1000
3.512.3.4.3.0100.0.002424115,7198,1375100/500/1000
3.512.3.4.3.0100.0.002525115,7206,4397100/500/1000
3.512.3.4.3.0100.0.002727116,1222,9412100/500/1000
Part NumberConductorCountConductor Diameter (mm²)Approx. Cable Diameter(mm)Copper Weight(kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.512.2.4.3.0150.0.000221,56,925,863100/500/1000
3.512.2.4.3.0150.0.000331,57,338,681100/500/1000
3.512.2.4.3.0150.0.000441,5851,5102100/500/1000
3.512.3.4.3.0150.0.000551,58,864,3128100/500/1000
3.512.3.4.3.0150.0.000661,59,577,2151100/500/1000
3.512.3.4.3.0150.0.000771,59,590,1161100/500/1000
3.512.3.4.3.0150.0.000881,510,5102,9193100/500/1000
3.512.3.4.3.0150.0.000991,512,1115,8220100/500/1000
3.512.3.4.3.0150.0.0010101,512,1128,6229100/500/1000
3.512.3.4.3.0150.0.0012121,512,6154,4267100/500/1000
3.512.3.4.3.0150.0.0014141,513,3180,1307100/500/1000
3.512.3.4.3.0150.0.0016161,514205,8344100/500/1000
3.512.3.4.3.0150.0.0018181,514,8231,5392100/500/1000
3.512.3.4.3.0150.0.0019191,514,8244,4401100/500/1000
3.512.3.4.3.0150.0.0020201,515,6257,2434100/500/1000
3.512.3.4.3.0150.0.0021211,515,6270,1459100/500/1000
3.512.3.4.3.0150.0.0024241,517,4308,7508100/500/1000
3.512.3.4.3.0150.0.0025251,517,4321,5537100/500/1000
3.512.3.4.3.0150.0.0027271,517,8347,2559100/500/1000
Part NumberConductorCountConductor Diameter (mm²)Approx. Cable Diameter(mm)Copper Weight(kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.512.2.4.3.0250.0.000222,58,142,989100/500/1000
3.512.2.4.3.0250.0.000332,58,664,3118100/500/1000
3.512.2.4.3.0250.0.000442,59,685,8153100/500/1000
3.512.3.4.3.0250.0.000552,510,6107,2195100/500/1000
3.512.3.4.3.0250.0.000662,511,5128,6232100/500/1000
3.512.3.4.3.0250.0.000772,511,5150,1248100/500/1000
3.512.3.4.3.0250.0.000882,512,7171,5297100/500/1000
3.512.3.4.3.0250.0.000992,514,7192,9337100/500/1000
3.512.3.4.3.0250.0.0010102,514,7214,4353100/500/1000
3.512.3.4.3.0250.0.0012122,515,3257,2412100/500/1000
3.512.3.4.3.0250.0.0014142,516,2300,1474100/500/1000
3.512.3.4.3.0250.0.0016162,517343533100/500/1000
3.512.3.4.3.0250.0.0018182,518385,8608100/500/1000
3.512.3.4.3.0250.0.0019192,518407,3623100/500/1000
3.512.3.4.3.0250.0.0020202,519428,7675100/500/1000
3.512.3.4.3.0250.0.0021212,519450,1715100/500/1000
3.512.3.4.3.0250.0.0024242,521,1514,4777100/500/1000
3.512.3.4.3.0250.0.0025252,521,1535,9830100/500/1000
3.512.3.4.3.0250.0.0027272,521,6578,7865100/500/1000
Bending RadiusTemperature Range
Operating
10xD mm-40°C ~ +70°C
Open in a new tabDownload
