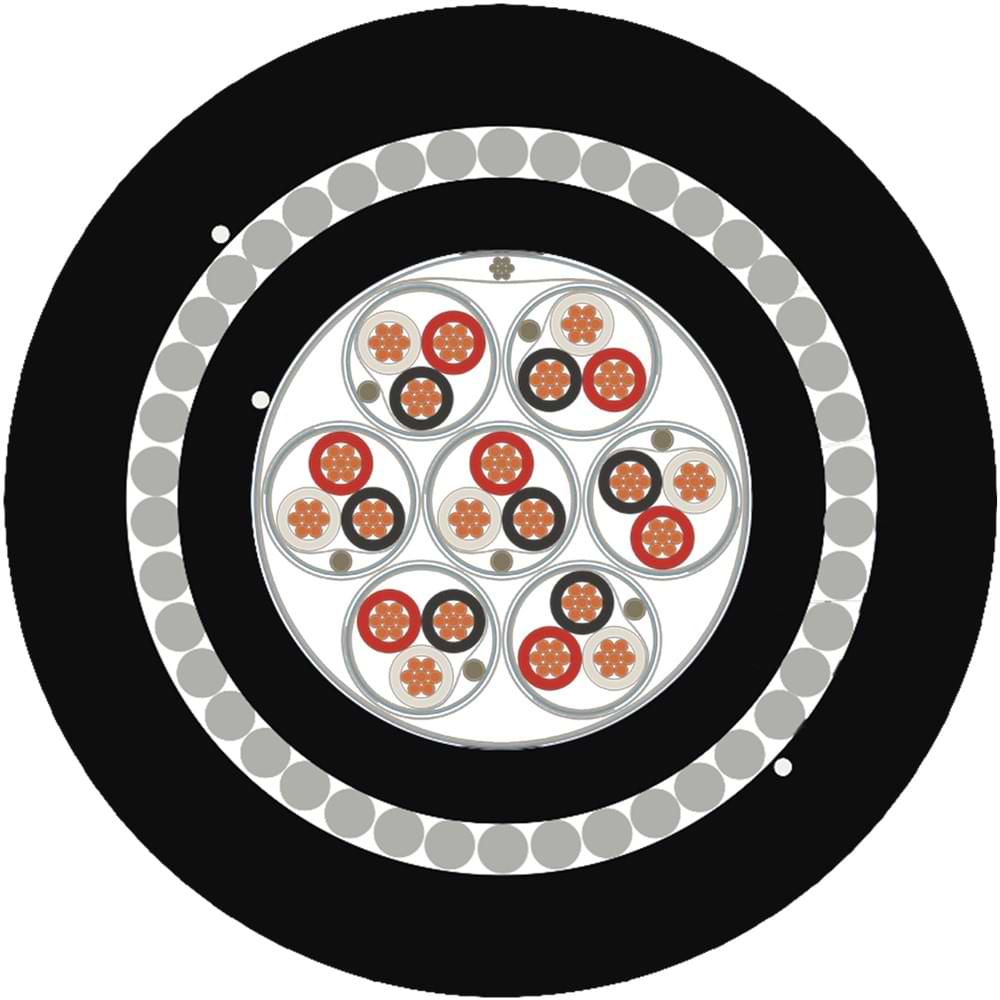

| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 2) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | XLPE (BS EN 50290-2, VDE 0207 YI1), Black, White, Red; Number coded (BS 5308-2) |
| 3 – Individual Stranding | : | Insulations stranding into pairs or triads |
| 4 – Individual Wrapping | : | Polyester tape |
| 5 – Individual Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Overall Stranding | : | Screened pairs or triads are stranded in layers. |
| 7 – Overall Wrapping | : | Polyester tape |
| 8 – Overall Screen | : | Tinned copper earthing wire, Al/PET tape |
| 9 – Inner Jacket | : | Halogen-free inner jacket. RAL 9005 (Black) |
| 10 – Armor | : | Galvanized steel wire armor, polyester tape |
| 11 – Outer Jacket | : | UV resistant halogen-free outer jacket. RAL 9005 (Black) |
| Conductor Diameter | Conductor Resistance Ω/km (20 °C) | Insulation Resistance (@500V DC) MΩ/km | Mutual Capacitance nF/km | Operating Voltage V DC | Test Voltage (@ 1 minute) V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 36.0 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| 0.75 mm² | 24.5 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| 1.00 mm² | 18.1 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| 1.50 mm² | 12.1 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| 2.50 mm² | 7.41 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| Manufacturing Referance | Smoke Density Test | Corrosive Gas Test | Halogen-free Test | Flame Propagation Test | Flame Retardancy Test |
|---|---|---|---|---|---|
| EN 50288-7 or IEC 60502-1 | IEC 61034-2, VDE 0482-1034-2, BS EN 61034-2 | IEC 60754-2, VDE 0482-267-2-3, BS EN 50267-2-3 | IEC 60754-1, VDE 0482-267-2-1, BS EN 50267-2-1 | IEC 60332-3-24, VDE 0482-332-3-24, EN 60332-2-24 | IEC 60332-1-2, VDE 0482-332-1-2, BS EN 60332-1-2 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +90°C |
RE-2X(St)HSWAH PiMF/TiMF Halogen-Free Steel Wire Armored Instrumentation Cable

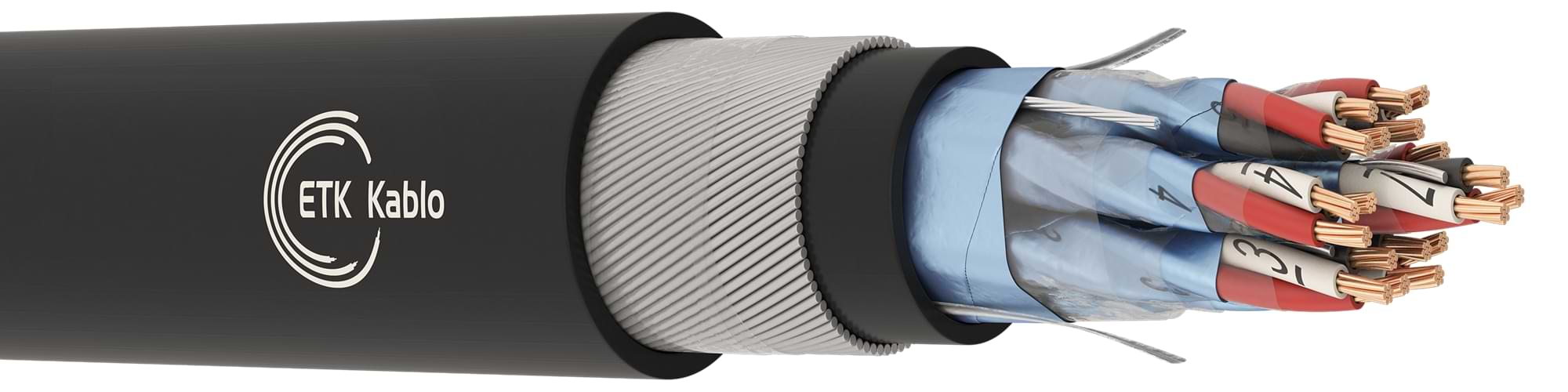

ETK Kablo’s RE-2X(St)HSWAH PiMF/TiMF cable is a halogen-free, steel wire armored instrumentation cable engineered for high-precision signal transmission and maximum safety in demanding industrial environments. Designed with individually shielded pairs (PiMF) or triads (TiMF), this cable ensures excellent EMI protection and signal integrity across long distances in control and measurement systems.
Superior EMI Shielding and Mechanical Protection
The cable’s structure includes individual pair or triad shields combined with an overall foil screen (St), providing comprehensive electromagnetic interference (EMI) suppression in high-noise zones. A layer of galvanized steel wire armor (SWA) delivers exceptional mechanical protection against crushing forces, rodent attacks, and external impact — ensuring reliability in critical applications such as refineries and offshore platforms.
Fire-Safe LSZH Construction
The LSZH (Low Smoke Zero Halogen) outer sheath guarantees low smoke emission and zero halogen release during fire, minimizing toxicity and ensuring personnel safety. This makes the cable ideal for installation in confined or safety-critical environments such as control rooms, tunnels, and petrochemical plants.
Optimized for Harsh Industrial Conditions
RE-2X(St)HSWAH PiMF/TiMF is designed for fixed installations in chemical processing facilities, power stations, offshore rigs, and automation networks. It ensures stable, low-noise signal transmission even under mechanical vibration, electrical interference, or temperature fluctuations, guaranteeing long-term system reliability.
Standards and Technical Compliance
Manufactured in accordance with EN 50288-7 and IEC 60332-1 standards, this instrumentation cable meets global requirements for fire safety, electrical performance, and mechanical protection. It is available in multiple core, pair, or triad configurations to meet complex control and measurement needs in modern industrial infrastructure.
Why Choose ETK Kablo’s RE-2X(St)HSWAH PiMF/TiMF Cable?
Choose ETK Kablo’s RE-2X(St)HSWAH PiMF/TiMF — the halogen-free, EMI-protected, steel wire armored instrumentation cable built for mission-critical automation and process control systems. It delivers fire safety, durability, and precision signal integrity across the most demanding industrial environments worldwide.
