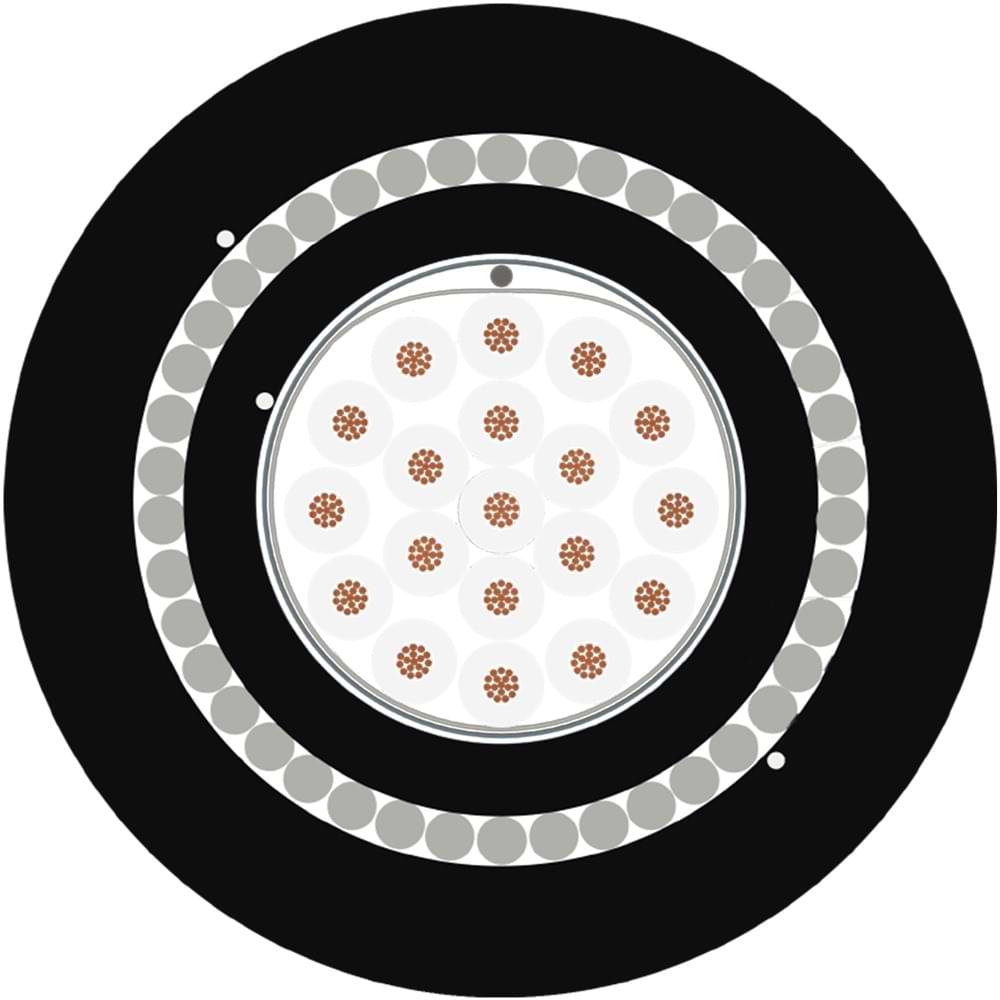

| 1 – Conductor | : | Stranded electrolytic copper conductor (Class 2) (IEC 60228, EN 60228, DIN VDE 0295) |
| 2 – Insulation | : | XLPE (BS EN 50290-2, VDE 0207 YI1), White; Number coded (BS 5308-2) |
| 3 – Stranding | : | In layers |
| 4 – Wrapping | : | Polyester tape |
| 5 – Screen | : | Tinned copper earthing wire, Al/PET tape |
| 6 – Inner Jacket | : | PVC inner jacket. RAL 9005 (Black) |
| 7 – Armor | : | Galvanized steel wire armor, polyester tape |
| 8 – Outer Jacket | : | UV resistant PVC outer jacket. RAL 9005 (Black) |
| Conductor Diameter | Conductor Resistance Ω/km (20 °C) | Insulation Resistance (@500V DC) MΩ/km | Mutual Capacitance nF/km | Operating Voltage V DC | Test Voltage (@ 1 minute) V DC |
|---|---|---|---|---|---|
| 0.50 mm² | 36.0 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| 0.75 mm² | 24.5 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| 1.00 mm² | 18.1 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| 1.50 mm² | 12.1 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| 2.50 mm² | 7.41 | Min. 1000 | Max. 250 | 300/500 | 2000 |
| Manufacturing Referance | Flame Retardancy Test |
|---|---|
| EN 50288-7 or IEC 60502-1 | IEC 60332-1-2 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 7.5xD mm | -30°C ~ +90°C |

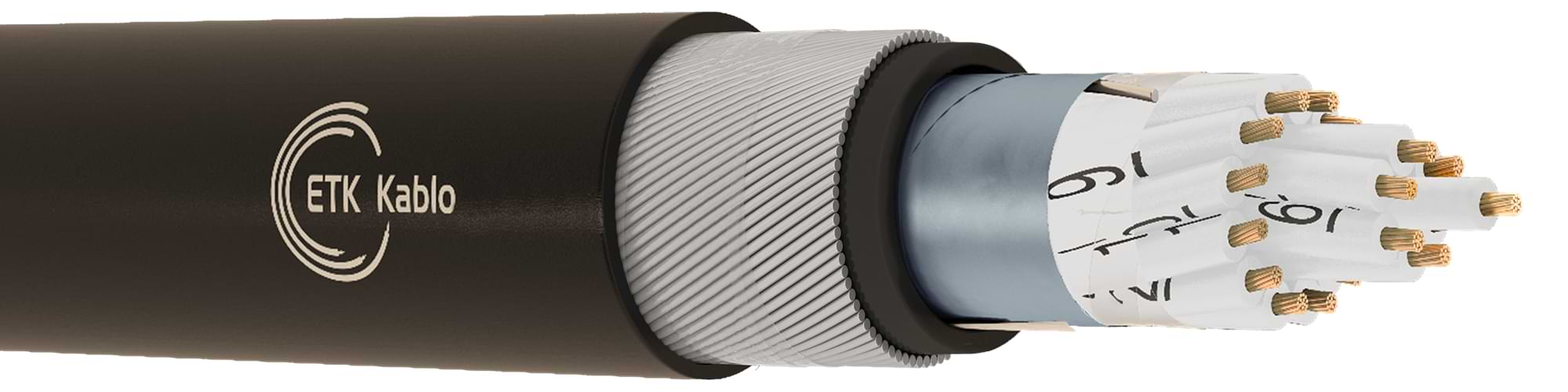

RE-2X(St)YSWAY Armored Instrumentation Cable for Harsh Industrial Environments
ETK Kablo’s RE-2X(St)YSWAY is a steel wire armored instrumentation cable engineered for secure signal transmission, mechanical protection, and long-term reliability in demanding process automation and industrial control systems. It ensures stable performance and interference-free communication even under extreme electrical and mechanical stress.
High-Level EMI Protection and Signal Integrity
The cable incorporates an overall aluminum/polyester foil screen (St) that provides robust shielding against electromagnetic interference (EMI). This ensures accurate analog and digital signal transmission over extended distances in noisy industrial environments such as refineries, chemical plants, and energy facilities. The twisted pair design further minimizes crosstalk, preserving measurement precision and control stability.
Mechanical Protection with Steel Wire Armor (SWA)
Encased in galvanized steel wire armor (SWA), the RE-2X(St)YSWAY instrumentation cable provides exceptional mechanical strength and impact resistance. This rugged construction allows direct burial installation, outdoor routing, and use in cable trays or ducts. It withstands crushing, abrasion, and external stress, guaranteeing operational safety and system longevity in mission-critical installations.
Halogen-Free or PVC Flame-Retardant Design
Available with either LSZH (Low Smoke Zero Halogen) or PVC outer sheath options, the cable ensures flame retardancy and low smoke emission in case of fire. This makes it ideal for energy plants, offshore platforms, oil and gas terminals, and other sensitive areas where both fire safety and mechanical durability are required.
Instrumentation and Control Applications
The RE-2X(St)YSWAY is designed for fixed installations in both dry and humid environments, supporting the transmission of low-voltage analog or digital signals for monitoring, process control, and data acquisition systems. It complies with EN 50288-7 and IEC 60332-1 standards, and is available in CPR-rated (Cca or Dca) versions upon request, ensuring full compatibility with international industrial cabling requirements.
Advantages of RE-2X(St)YSWAY Instrumentation Cable
- High EMI resistance through overall aluminum foil shielding (St)
- Steel Wire Armor (SWA) for superior mechanical protection and direct burial use
- Available in LSZH or PVC sheath for enhanced safety and durability
- Reliable performance in process automation and signal control systems
- Compliant with EN 50288-7, IEC 60332-1, and CPR building regulations
