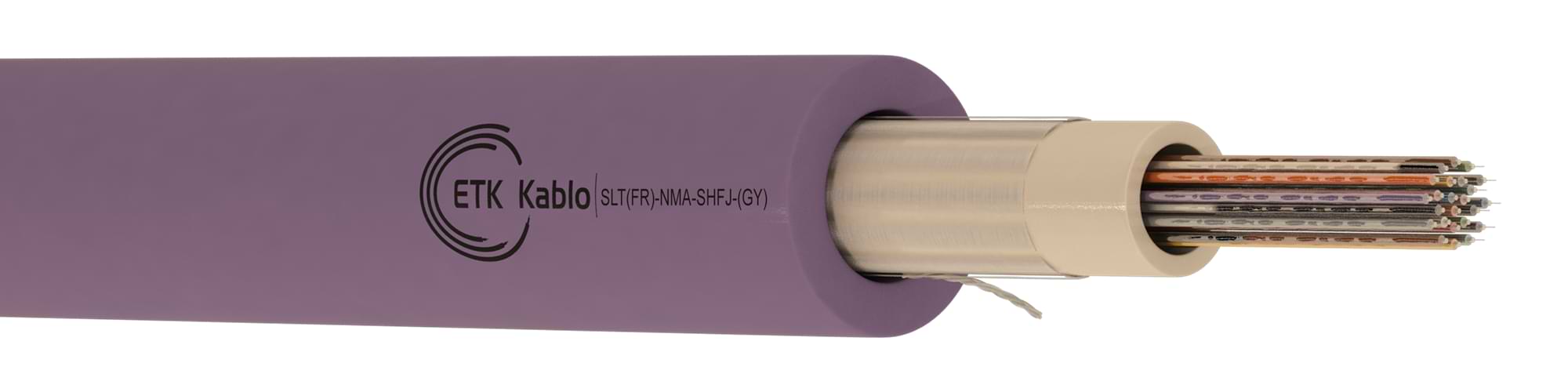

U-D(ZN)H b2ca Fiber Optic Cable

Product Code: SLT(FR)-NMA-SHFJ-(GY)

1 – Optical Fiber Type	:	Single Mode / Multi Mode.
2 – Tube Material	:	Halogen-free Flame Retardant Polybutylene Terephthalate (HFFR PBT).
3 – Tube Filling Compound Material	:	Water-swellable yarn.
4 – Dielectric Tensile Strength Member	:	Water-swellable glass yarn.
5 – Outer Jacket	:	UV resistant, halogen-free outer jacket.

Core Count	Core Type	Tube Count	Tube Diameter (mm)	Cable Diameter (mm)	Cable Weight (kg/km)
2	SM / MM	1	2,3	6,7	57
4	SM / MM	1	2,3	6,7	57
6	SM / MM	1	2,3	6,7	57
8	SM / MM	1	2,3	6,7	57
12	SM / MM	1	2,3	6,7	57
16	SM / MM	1	3,0	7,28	63
24	SM / MM	1	3,0	7,2	63

Marking	ETK Kablo – Date of Manufacture – Fiber Count and Type – Length Marking
Packing	Wooden drum with protection
Delivery Lengths	2 km, 4 km ± %5 tolerance

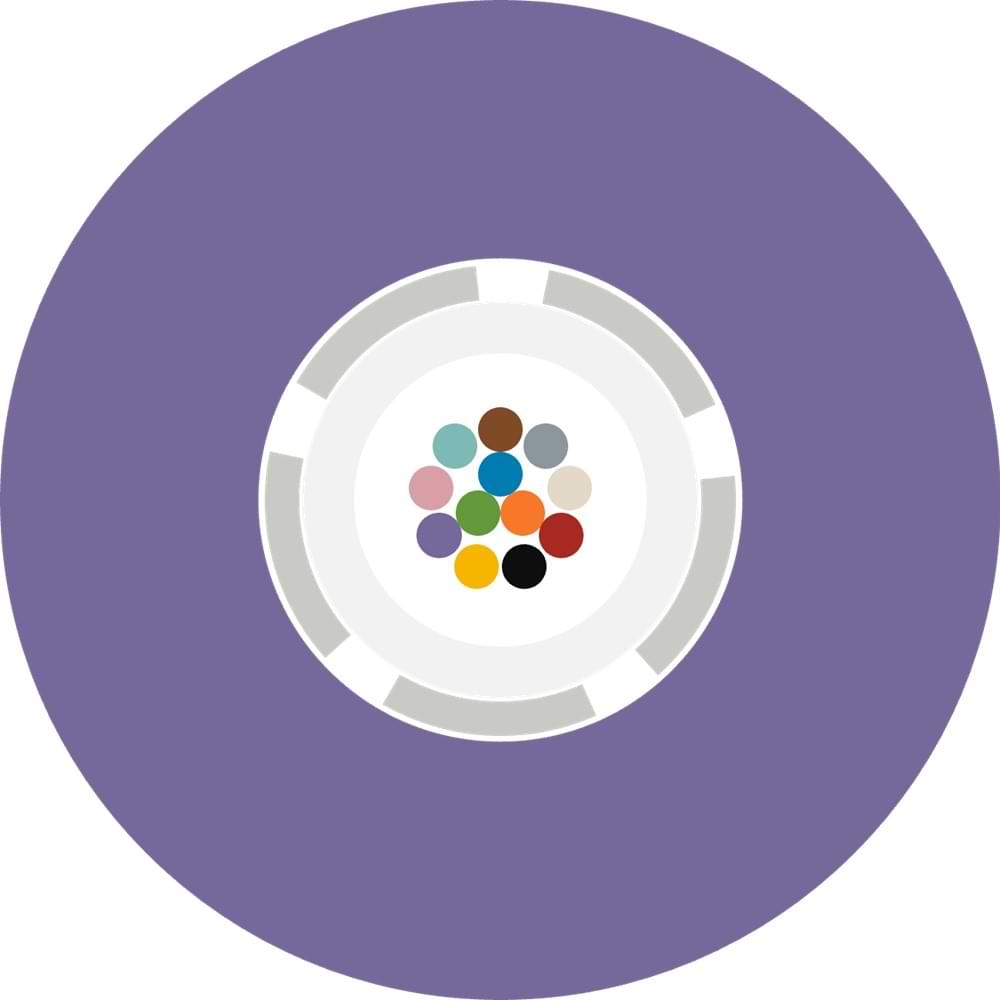

Single loose tube, non-metallic armor, halogen-free jacket, fiber optic cable
