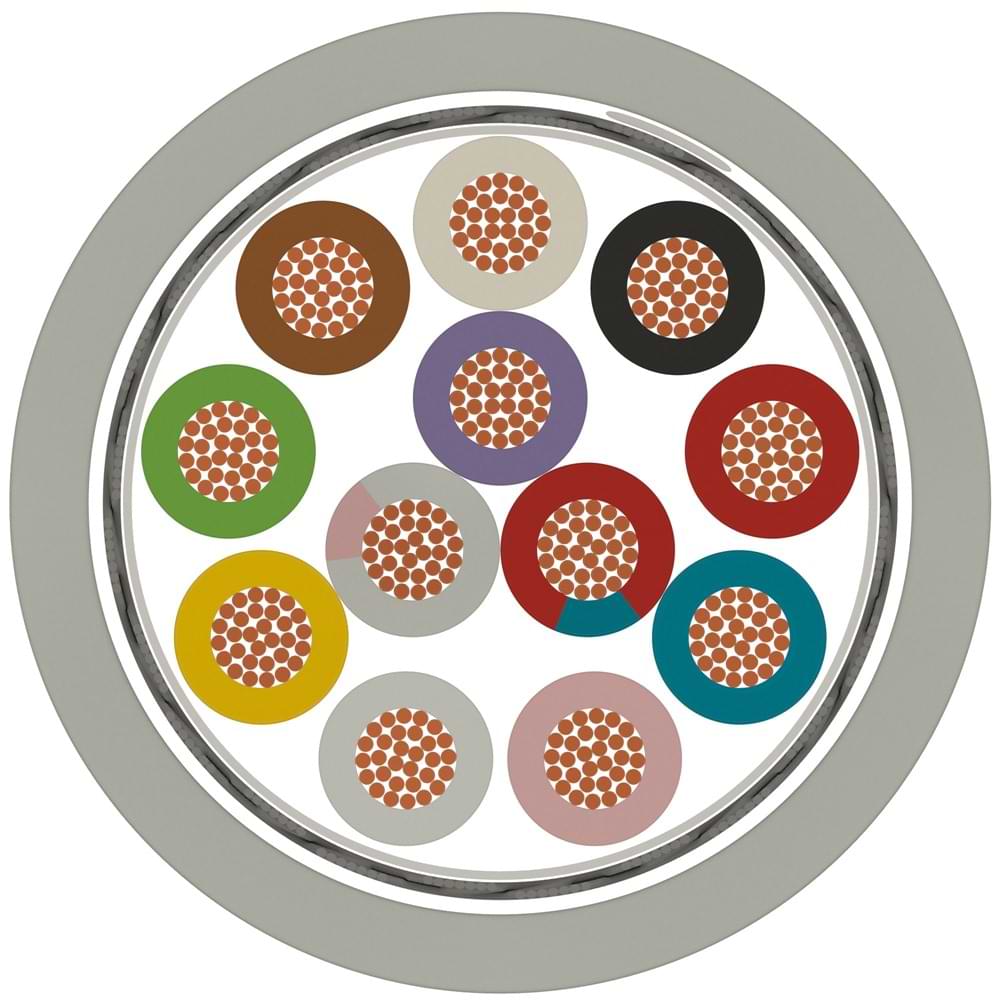

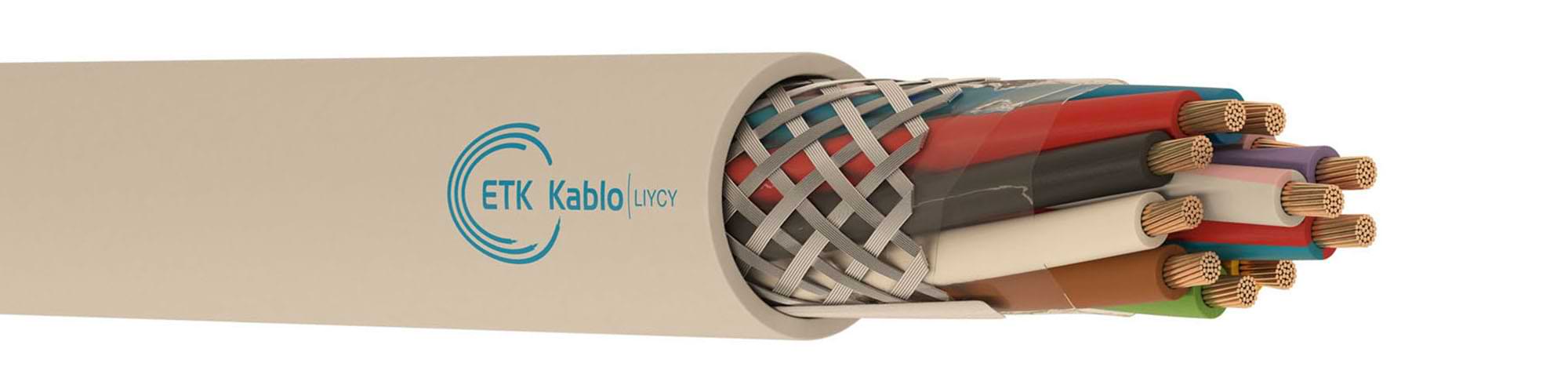

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:PVC (TS IEC 60189-2, EN 50290-2-21) (DIN 47100)
3 – Stranding:In layers
4 – Wrapping:Polyester tape
5 – Screen:Tinned copper braiding
6 – Outer Jacket:UV resistant PVC outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Flame Retardancy Test
IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0014.0.00022–0,143,5818100/500/1000
3.520.2.2.2.0014.0.00033–0,143,89,422100/500/1000
3.520.2.2.2.0014.0.00044–0,14411,125100/500/1000
3.520.2.2.2.0014.0.00055–0,144,513,531100/500/1000
3.520.2.2.2.0014.0.00066–0,144,81536100/500/1000
3.520.2.2.2.0014.0.00077–0,144,816,337100/500/1000
3.520.2.2.2.0014.0.00088–0,145,21944100/500/1000
3.520.2.2.2.0014.0.00099–0,145,620,648100/500/1000
3.520.2.2.2.0014.0.001010–0,146,123,153100/500/1000
3.520.2.2.2.0014.0.001212–0,146,325,859100/500/1000
3.520.2.2.2.0014.0.001414–0,146,62967100/500/1000
3.520.2.2.2.0014.0.001616–0,14732,674100/500/1000
3.520.2.2.2.0014.0.001818–0,147,437,285100/500/1000
3.520.2.2.2.0014.0.001919–0,147,437,985100/500/1000
3.520.2.2.2.0014.0.002020–0,147,74091100/500/1000
3.520.2.2.2.0014.0.002121–0,147,741,392100/500/1000
3.520.2.2.2.0014.0.002424–0,148,548,7106100/500/1000
3.520.2.2.2.0014.0.002525–0,148,551,4115100/500/1000
3.520.2.2.2.0014.0.002727–0,148,754,2115100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0022.0.00022–0,223,79,720100/500/1000
3.520.2.2.2.0022.0.00033–0,223,911,824100/500/1000
3.520.2.2.2.0022.0.00044–0,224,215,229100/500/1000
3.520.2.2.2.0022.0.00055–0,224,717,536100/500/1000
3.520.2.2.2.0022.0.00066–0,225,120,942100/500/1000
3.520.2.2.2.0022.0.00077–0,225,12345100/500/1000
3.520.2.2.2.0022.0.00088–0,225,725,552100/500/1000
3.520.2.2.2.0022.0.00099–0,22628,758100/500/1000
3.520.2.2.2.0022.0.001010–0,226,530,863100/500/1000
3.520.2.2.2.0022.0.001212–0,226,835,973100/500/1000
3.520.2.2.2.0022.0.001414–0,227,240,883100/500/1000
3.520.2.2.2.0022.0.001616–0,227,545,892100/500/1000
3.520.2.2.2.0022.0.001818–0,22850,7102100/500/1000
3.520.2.2.2.0022.0.001919–0,22852,8106100/500/1000
3.520.2.2.2.0022.0.002020–0,228,355,7111100/500/1000
3.520.2.2.2.0022.0.002121–0,228,357,8114100/500/1000
3.520.2.2.2.0022.0.002424–0,229,368,8135100/500/1000
3.520.2.2.2.0022.0.002525–0,229,371138100/500/1000
3.520.2.2.2.0022.0.002727–0,229,576,3147100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0025.0.00022–0,253,911,523100/500/1000
3.520.2.2.2.0025.0.00033–0,254,113,927100/500/1000
3.520.2.2.2.0025.0.00044–0,254,616,334100/500/1000
3.520.2.2.2.0025.0.00055–0,255,120,142100/500/1000
3.520.2.2.2.0025.0.00066–0,255,52347100/500/1000
3.520.2.2.2.0025.0.00077–0,255,524,951100/500/1000
3.520.2.2.2.0025.0.00088–0,256,128,760100/500/1000
3.520.2.2.2.0025.0.00099–0,256,531,366100/500/1000
3.520.2.2.2.0025.0.001010–0,2573472100/500/1000
3.520.2.2.2.0025.0.001212–0,257,339,783100/500/1000
3.520.2.2.2.0025.0.001414–0,257,745,894100/500/1000
3.520.2.2.2.0025.0.001616–0,258,151,4105100/500/1000
3.520.2.2.2.0025.0.001818–0,258,556,3114100/500/1000
3.520.2.2.2.0025.0.001919–0,258,558,7118100/500/1000
3.520.2.2.2.0025.0.002020–0,25961,4126100/500/1000
3.520.2.2.2.0025.0.002121–0,25963,8129100/500/1000
3.520.2.2.2.0025.0.002424–0,251076,7153100/500/1000
3.520.2.2.2.0025.0.002525–0,251079,1157100/500/1000
3.520.2.2.2.0025.0.002727–0,2510,284,1166100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0034.0.00022–0,344,513,429100/500/1000
3.520.2.2.2.0034.0.00033–0,344,716,735100/500/1000
3.520.2.2.2.0034.0.00044–0,345,121,442100/500/1000
3.520.2.2.2.0034.0.00055–0,345,62551100/500/1000
3.520.2.2.2.0034.0.00066–0,346,129,759100/500/1000
3.520.2.2.2.0034.0.00077–0,346,13364100/500/1000
3.520.2.2.2.0034.0.00088–0,346,73773100/500/1000
3.520.2.2.2.0034.0.00099–0,347,740,982100/500/1000
3.520.2.2.2.0034.0.001010–0,347,84590100/500/1000
3.520.2.2.2.0034.0.001212–0,34853102100/500/1000
3.520.2.2.2.0034.0.001414–0,348,562,7119100/500/1000
3.520.2.2.2.0034.0.001616–0,34971133100/500/1000
3.520.2.2.2.0034.0.001818–0,349,677,8150100/500/1000
3.520.2.2.2.0034.0.001919–0,349,681,2155100/500/1000
3.520.2.2.2.0034.0.002020–0,3410,285,9167100/500/1000
3.520.2.2.2.0034.0.002121–0,3410,289,3172100/500/1000
3.520.2.2.2.0034.0.002424–0,3411,398,3194100/500/1000
3.520.2.2.2.0034.0.002525–0,3411,3101,7199100/500/1000
3.520.2.2.2.0034.0.002727–0,3411,5108,4211100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0050.0.00022–0,55,116,937100/500/1000
3.520.2.2.2.0050.0.00033–0,55,421,345100/500/1000
3.520.2.2.2.0050.0.00044–0,55,82653100/500/1000
3.520.3.2.2.0050.0.00055–0,56,431,566100/500/1000
3.520.3.2.2.0050.0.00066–0,56,937,678100/500/1000
3.520.3.2.2.0050.0.00077–0,56,94281100/500/1000
3.520.3.2.2.0050.0.00088–0,57,646,998100/500/1000
3.520.3.2.2.0050.0.00099–0,58,851,9110100/500/1000
3.520.3.2.2.0050.0.001010–0,58,857,1114100/500/1000
3.520.3.2.2.0050.0.001212–0,59,269,5135100/500/1000
3.520.3.2.2.0050.0.001414–0,59,780,5155100/500/1000
3.520.3.2.2.0050.0.001616–0,510,289,7171100/500/1000
3.520.3.2.2.0050.0.001818–0,510,796,7188100/500/1000
3.520.3.2.2.0050.0.001919–0,510,7101,1192100/500/1000
3.520.3.2.2.0050.0.002020–0,511,4106,4211100/500/1000
3.520.3.2.2.0050.0.002121–0,511,4110,8211100/500/1000
3.520.3.2.2.0050.0.002424–0,512,6125,5242100/500/1000
3.520.3.2.2.0050.0.002525–0,512,6129,9256100/500/1000
3.520.3.2.2.0050.0.002727–0,512,8140,1265100/500/1000
3.520.3.2.2.0050.0.003030–0,513,3153,5288100/500/1000
3.520.3.2.2.0050.0.003232–0,513,8168,9313100/500/1000
3.520.3.2.2.0050.0.003636–0,514,4187347100/500/1000
3.520.3.2.2.0050.0.003737–0,514,4191,4350100/500/1000
3.520.3.2.2.0050.0.004040–0,515205,1388100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0075.0.00022–0,755,521,644100/500/1000
3.520.2.2.2.0075.0.00033–0,755,828,254100/500/1000
3.520.2.2.2.0075.0.00044–0,756,335,966100/500/1000
3.520.3.2.2.0075.0.00055–0,756,943,482100/500/1000
3.520.3.2.2.0075.0.00066–0,757,551,997100/500/1000
3.520.3.2.2.0075.0.00077–0,757,558,9102100/500/1000
3.520.3.2.2.0075.0.00088–0,758,365,9123100/500/1000
3.520.3.2.2.0075.0.00099–0,759,676,1141100/500/1000
3.520.3.2.2.0075.0.001010–0,759,683,7147100/500/1000
3.520.3.2.2.0075.0.001212–0,751098,3171100/500/1000
3.520.3.2.2.0075.0.001414–0,7510,6109,3192100/500/1000
3.520.3.2.2.0075.0.001616–0,7511,1123,9214100/500/1000
3.520.3.2.2.0075.0.001818–0,7511,8138,3244100/500/1000
3.520.3.2.2.0075.0.001919–0,7511,8144,9248100/500/1000
3.520.3.2.2.0075.0.002020–0,7512,6156,9276100/500/1000
3.520.3.2.2.0075.0.002121–0,7512,6163,5278100/500/1000
3.520.3.2.2.0075.0.002424–0,7513,8185,2318100/500/1000
3.520.3.2.2.0075.0.002525–0,7513,8191,8333100/500/1000
3.520.3.2.2.0075.0.002727–0,7514,2206,7349100/500/1000
3.520.3.2.2.0075.0.003030–0,7514,7226,8380100/500/1000
3.520.3.2.2.0075.0.003232–0,7515,3240,5406100/500/1000
3.520.3.2.2.0075.0.003636–0,7515,9269,6452100/500/1000
3.520.3.2.2.0075.0.003737–0,7515,9276,2457100/500/1000
3.520.3.2.2.0075.0.004040–0,7516,7296,7511100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0100.0.00022–15,925,150100/500/1000
3.520.2.2.2.0100.0.00033–16,234,263100/500/1000
3.520.3.2.2.0100.0.00044–16,643,376100/500/1000
3.520.3.2.2.0100.0.00055–17,552,297100/500/1000
3.520.3.2.2.0100.0.00066–18,266,1119100/500/1000
3.520.3.2.2.0100.0.00077–18,274,4126100/500/1000
3.520.3.2.2.0100.0.00088–19,183,6151100/500/1000
3.520.3.2.2.0100.0.00099–110,591168100/500/1000
3.520.3.2.2.0100.0.001010–110,599,3174100/500/1000
3.520.3.2.2.0100.0.001212–110,9116,5202100/500/1000
3.520.3.2.2.0100.0.001414–111,6134231100/500/1000
3.520.3.2.2.0100.0.001616–112,2151,8258100/500/1000
3.520.3.2.2.0100.0.001818–112,9173,6298100/500/1000
3.520.3.2.2.0100.0.001919–112,9181,8304100/500/1000
3.520.3.2.2.0100.0.002020–113,6191,6329100/500/1000
3.520.3.2.2.0100.0.002121–113,6199,9331100/500/1000
3.520.3.2.2.0100.0.002424–115,1227,3379100/500/1000
3.520.3.2.2.0100.0.002525–115,1235,6401100/500/1000
3.520.3.2.2.0100.0.002727–115,4254,5418100/500/1000
3.520.3.2.2.0100.0.003030–116,1279,7459100/500/1000
3.520.3.2.2.0100.0.003232–116,8296,9496100/500/1000
3.520.3.2.2.0100.0.003636–117,4330,7546100/500/1000
3.520.3.2.2.0100.0.003737–117,4338,9552100/500/1000
3.520.3.2.2.0100.0.004040–118,2367,4619100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0150.0.00022–1,56,635,765100/500/1000
3.520.2.2.2.0150.0.00033–1,5748,583100/500/1000
3.520.2.2.2.0150.0.00044–1,57,762,7105100/500/1000
3.520.3.2.2.0150.0.00055–1,58,577,2131100/500/1000
3.520.3.2.2.0150.0.00066–1,59,294,8158100/500/1000
3.520.3.2.2.0150.0.00077–1,59,2107,7168100/500/1000
3.520.3.2.2.0150.0.00088–1,510,1119,6198100/500/1000
3.520.3.2.2.0150.0.00099–1,511,8132,6223100/500/1000
3.520.3.2.2.0150.0.001010–1,511,8146,8234100/500/1000
3.520.3.2.2.0150.0.001212–1,512,3173,7273100/500/1000
3.520.3.2.2.0150.0.001414–1,513204,9317100/500/1000
3.520.3.2.2.0150.0.001616–1,513,7232,1355100/500/1000
3.520.3.2.2.0150.0.001818–1,514,4259,8400100/500/1000
3.520.3.2.2.0150.0.001919–1,514,4272,7410100/500/1000
3.520.3.2.2.0150.0.002020–1,515,3286,2447100/500/1000
3.520.3.2.2.0150.0.002121–1,515,3299451100/500/1000
3.520.3.2.2.0150.0.002424–1,517,1341,3521100/500/1000
3.520.3.2.2.0150.0.002525–1,517,1354,1551100/500/1000
3.520.3.2.2.0150.0.002727–1,517,5380,3573100/500/1000
3.520.3.2.2.0150.0.003030–1,518,2422,1634100/500/1000
3.520.3.2.2.0150.0.003232–1,518,9448,8678100/500/1000
3.520.3.2.2.0150.0.003636–1,519,6501,2749100/500/1000
3.520.3.2.2.0150.0.003737–1,519,6514,1759100/500/1000
3.520.3.2.2.0150.0.004040–1,520,4553,8840100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0250.0.00022–2,57,858,896100/500/1000
3.520.2.2.2.0250.0.00033–2,58,380,2124100/500/1000
3.520.2.2.2.0250.0.00044–2,59,3103,4160100/500/1000
3.520.3.2.2.0250.0.00055–2,510,3123,9199100/500/1000
3.520.3.2.2.0250.0.00066–2,511,2148,1238100/500/1000
3.520.3.2.2.0250.0.00077–2,511,2169,5254100/500/1000
3.520.3.2.2.0250.0.00088–2,512,3192,4304100/500/1000
3.520.3.2.2.0250.0.00099–2,514,5219,2350100/500/1000
3.520.3.2.2.0250.0.001010–2,514,5242,5368100/500/1000
3.520.3.2.2.0250.0.001212–2,515,1285,9428100/500/1000
3.520.3.2.2.0250.0.001414–2,516332493100/500/1000
3.520.3.2.2.0250.0.001616–2,516,8378,5554100/500/1000
3.520.3.2.2.0250.0.001818–2,517,8422,7630100/500/1000
3.520.3.2.2.0250.0.001919–2,517,8444,1645100/500/1000
3.520.3.2.2.0250.0.002020–2,518,8466,7698100/500/1000
3.520.3.2.2.0250.0.002121–2,518,8488,4706100/500/1000
3.520.3.2.2.0250.0.002424–2,520,9555,8807100/500/1000
3.520.3.2.2.0250.0.002525–2,520,9577,2855100/500/1000
3.520.3.2.2.0250.0.002727–2,521,4620,8890100/500/1000
3.520.3.2.2.0250.0.003030–2,522,3690,1985100/500/1000
3.520.3.2.2.0250.0.003232–2,523,2734,51063100/500/1000
3.520.3.2.2.0250.0.003636–2,524,28221183100/500/1000
3.520.3.2.2.0250.0.003737–2,524,2843,41199100/500/1000
3.520.3.2.2.0250.0.004040–2,525,3909,51337100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.2.2.2.0400.0.00022–48,986140100/500/1000
3.520.3.2.2.0400.0.00033–49,5120,3172100/500/1000
3.520.3.2.2.0400.0.00044–410,8154228100/500/1000
3.520.3.2.2.0400.0.00055–411,8190,8283100/500/1000
3.520.3.2.2.0400.0.00066–412,8232,3339100/500/1000
3.520.3.2.2.0400.0.00077–412,8266,6364100/500/1000
3.520.3.2.2.0400.0.00088–414,1303434100/500/1000
3.520.3.2.2.0400.0.00099–416,5339,9490100/500/1000
3.520.3.2.2.0400.0.001010–416,5375516100/500/1000
3.520.3.2.2.0400.0.001212–417,2444,6605100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.3.2.2.0600.0.00022–610,5121,3193100/500/1000
3.520.3.2.2.0600.0.00033–611,2172,7240100/500/1000
3.520.3.2.2.0600.0.00044–612,4225,7312100/500/1000
3.520.3.2.2.0600.0.00055–613,9284402100/500/1000
3.520.3.2.2.0600.0.00066–615,2341,1485100/500/1000
3.520.3.2.2.0600.0.00077–615,2392,5523100/500/1000
3.520.3.2.2.0600.0.00088–616,8447,7625100/500/1000
3.520.3.2.2.0600.0.00099–619,7500,5703100/500/1000
3.520.3.2.2.0600.0.001010–619,7553,2742100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.520.3.2.2.1000.0.00022–1012,5204,5286100/500/1000
3.520.3.2.2.1000.0.00033–1013,4293,5374100/500/1000
3.520.3.2.2.1000.0.00044–1014,9385,4489100/500/1000
3.520.3.2.2.1000.0.00055–1016,6478,2607100/500/1000
3.520.3.2.2.1000.0.00066–1018,2573,6754100/500/1000
3.520.3.2.2
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
Open in a new tabDownload

LIYCY Signal Control Cable for Industrial Automation

ETK Kablo’s LIYCY Signal Control Cable is a high-performance braided screened control cable designed for precise and reliable low-voltage signal transmission in industrial automation, machinery, instrumentation, and building technology systems. Its tinned copper braid shield provides superior protection against electromagnetic interference (EMI), ensuring stable and noise-free data transfer even in high-density electrical environments.

Construction and Technical Characteristics

Engineered for fixed installations in dry or humid indoor areas, the LIYCY cable ensures durable performance in control, monitoring, and signal applications. The flexible PVC outer sheath allows easy routing in tight spaces and delivers mechanical protection and long service life in control panels, production lines, and equipment wiring.

With stranded copper conductors, the cable offers high flexibility and reduced mechanical stress during installation or operation. Its color-coded cores simplify wiring, maintenance, and circuit identification. The LIYCY Signal Cable fully complies with VDE 0812 and IEC standards, meeting the requirements of modern automation and process control systems.

Applications of LIYCY Braided Screened Cable

Typical applications include measurement and control circuits, signal and instrumentation systems, HVAC automation, conveyor and assembly lines, and other low-voltage installations where EMI shielding is critical. Whether used in instrumentation panels or data acquisition units, ETK Kablo’s LIYCY braided screened cables deliver signal integrity, flexibility, and long-term reliability.

Why Choose ETK Kablo’s LIYCY Cable?

Empower your automation network with ETK Kablo’s LIYCY Signal Control Cable — delivering precision, protection, and performance for every industrial environment.

Frequently Asked Questions about LIYCY Cables

What does LIYCY mean?

LIYCY is a VDE-standard cable designation. “LI” indicates a flexible cable, “Y” refers to PVC insulation, “C” means copper braid shielding, and “Y” denotes a PVC outer sheath. In summary, LIYCY is a flexible, PVC-insulated, copper braided screened control cable designed for low-voltage signal and data transmission.

What is XLPE cable used for?

XLPE cables (cross-linked polyethylene insulated cables) are used for medium- and low-voltage power transmission where high thermal resistance and long-term stability are required. Unlike PVC cables, XLPE cables can operate at higher temperatures and are common in power distribution, renewable energy, and industrial networks.

What is LIYY cable?

LIYY cable is an unscreened version of LIYCY, featuring PVC insulation and sheath but no copper braid. It is ideal for low-frequency signal transmission in environments without significant electromagnetic interference (EMI), such as control cabinets, measuring devices, and data systems.

What’s the difference between YY and CY cable?

The main difference is the presence of shielding. YY cables are unscreened control cables, while CY cables (same as LIYCY) have a tinned copper braid screen to protect against electrical noise and interference. CY cables are preferred in industrial automation and process control systems where signal integrity is essential.

Which is better, XLPE or PVC?

XLPE insulation performs better than PVC in terms of temperature resistance, current capacity, and aging performance. However, PVC cables are more flexible, cost-effective, and suitable for indoor installations. The choice depends on the operating environment, temperature range, and voltage class of the application.
