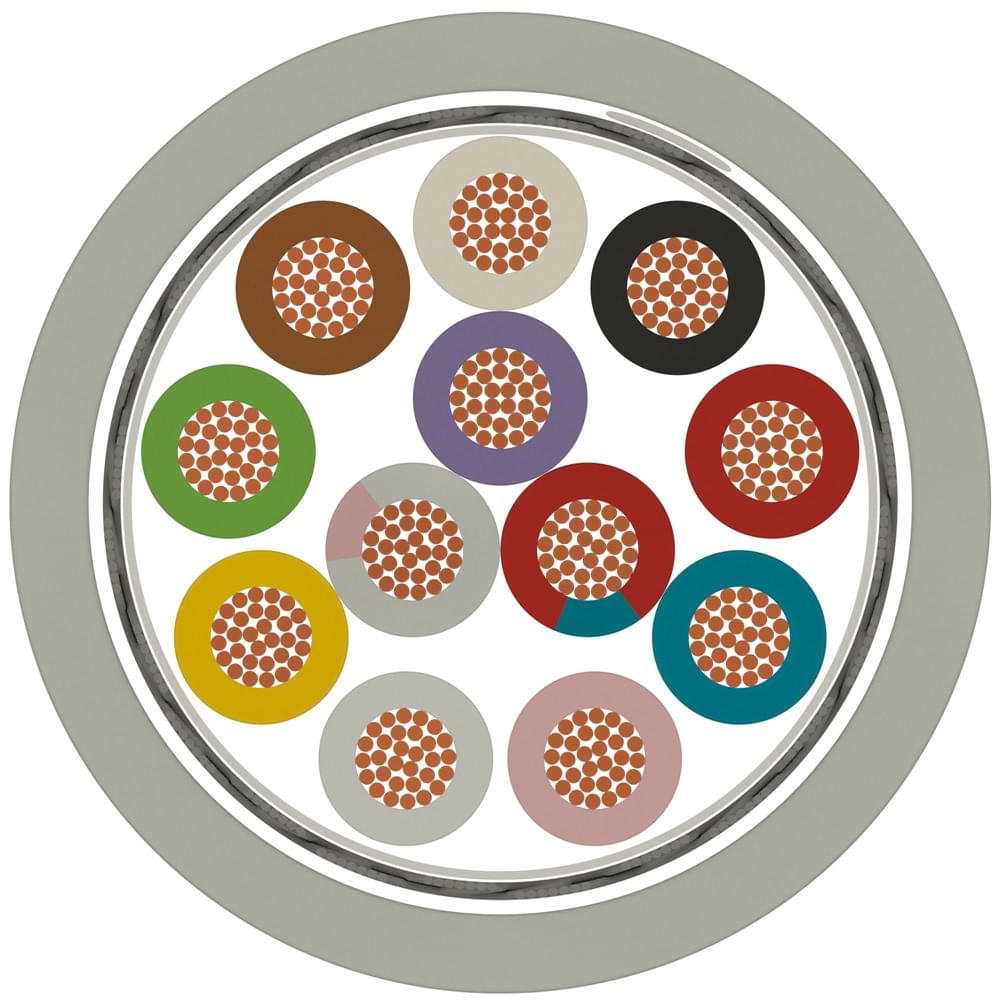

1 – Conductor:Stranded electrolytic copper conductor (Class 5) (IEC 60228, EN 60228, DIN VDE 0295)
2 – Insulation:Halogen-free (TS IEC 60189-2, EN 50290-2-26) (DIN 47100)
3 – Stranding:In layers
4 – Wrapping:Polyester tape
5 – Screen:Tinned copper braiding
6 – Outer Jacket:UV resistant halogen-free outer jacket. RAL 7035 (Grey)
Cross
Section		Conductor Resistance
(20 °C)
Ω/km		Insulation
Resistance
(20 °C)
MΩ/km		Mutual Capacitance

nF/km		Operating
Voltage

V DC		Test Voltage

(@ 1 minute)
V DC
0.22 mm²85.02001102501200
0.25 mm²77.82001102501200
0.34 mm²56.02001102501200
0.50 mm²39.020120300/5002000
0.75 mm²26.020120300/5002000
1.00 mm²19.520130300/5002000
1.50 mm²13.320140300/5002000
2.50 mm²7.9820150300/5002000
Smoke Density TestCorrosive Gas TestHalogen-free TestFlame Propagation TestFlame Retardancy Test
IEC 61034-2,
VDE 0482-1034-2,
BS EN 61034-2		IEC 60754-2,
VDE 0482-267-2-3,
BS EN 50267-2-3		IEC 60754-1,
VDE 0482-267-2-1,
BS EN 50267-2-1		IEC 60332-3-24,
VDE 0482-332-3-24,
EN 60332-2-24		IEC 60332-1-2,
VDE 0482-332-1-2,
BS EN 60332-1-2
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.532.2.3.3.0022.0.00022–0,223,79,720100/500/1000
3.532.2.3.3.0022.0.00033–0,223,911,824100/500/1000
3.532.2.3.3.0022.0.00044–0,224,215,229100/500/1000
3.532.2.3.3.0022.0.00055–0,224,717,535100/500/1000
3.532.2.3.3.0022.0.00066–0,225,120,941100/500/1000
3.532.2.3.3.0022.0.00077–0,225,12344100/500/1000
3.532.2.3.3.0022.0.00088–0,225,725,551100/500/1000
3.532.2.3.3.0022.0.00099–0,22628,757100/500/1000
3.532.2.3.3.0022.0.001010–0,226,530,861100/500/1000
3.532.2.3.3.0022.0.001212–0,226,835,971100/500/1000
3.532.2.3.3.0022.0.001414–0,227,240,881100/500/1000
3.532.2.3.3.0022.0.001616–0,227,545,889100/500/1000
3.532.2.3.3.0022.0.001818–0,227,951,398100/500/1000
3.532.2.3.3.0022.0.001919–0,22853,4103100/500/1000
3.532.2.3.3.0022.0.002020–0,228,455,8108100/500/1000
3.532.2.3.3.0022.0.002121–0,228,457,9111100/500/1000
3.532.2.3.3.0022.0.002424–0,229,368,8131100/500/1000
3.532.2.3.3.0022.0.002525–0,229,371134100/500/1000
3.532.2.3.3.0022.0.002727–0,229,776,4147100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.532.2.3.3.0025.0.00022–0,254,111,524100/500/1000
3.532.2.3.3.0025.0.00033–0,254,313,929100/500/1000
3.532.2.3.3.0025.0.00044–0,254,616,333100/500/1000
3.532.2.3.3.0025.0.00055–0,255,120,141100/500/1000
3.532.2.3.3.0025.0.00066–0,255,52346100/500/1000
3.532.2.3.3.0025.0.00077–0,255,524,949100/500/1000
3.532.2.3.3.0025.0.00088–0,256,128,759100/500/1000
3.532.2.3.3.0025.0.00099–0,256,531,364100/500/1000
3.532.2.3.3.0025.0.001010–0,2573470100/500/1000
3.532.2.3.3.0025.0.001212–0,257,339,780100/500/1000
3.532.2.3.3.0025.0.001414–0,257,745,891100/500/1000
3.532.2.3.3.0025.0.001616–0,258,151,4101100/500/1000
3.532.2.3.3.0025.0.001818–0,258,559,2113100/500/1000
3.532.2.3.3.0025.0.001919–0,258,561,6116100/500/1000
3.532.2.3.3.0025.0.002020–0,25965,5125100/500/1000
3.532.2.3.3.0025.0.002121–0,25967,9129100/500/1000
3.532.2.3.3.0025.0.002424–0,259,976,7146100/500/1000
3.532.2.3.3.0025.0.002525–0,259,979,1149100/500/1000
3.532.2.3.3.0025.0.002727–0,2510,284,2160100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.532.2.3.3.0034.0.00022–0,344,513,429100/500/1000
3.532.2.3.3.0034.0.00033–0,344,716,734100/500/1000
3.532.2.3.3.0034.0.00044–0,345,121,441100/500/1000
3.532.2.3.3.0034.0.00055–0,345,62549100/500/1000
3.532.2.3.3.0034.0.00066–0,346,129,757100/500/1000
3.532.2.3.3.0034.0.00077–0,346,13362100/500/1000
3.532.2.3.3.0034.0.00088–0,346,73770100/500/1000
3.532.2.3.3.0034.0.00099–0,347,740,980100/500/1000
3.532.2.3.3.0034.0.001010–0,347,84587100/500/1000
3.532.2.3.3.0034.0.001212–0,3485399100/500/1000
3.532.2.3.3.0034.0.001414–0,348,562,7115100/500/1000
3.532.2.3.3.0034.0.001616–0,34971128100/500/1000
3.532.2.3.3.0034.0.001818–0,349,579143100/500/1000
3.532.2.3.3.0034.0.001919–0,349,682,3151100/500/1000
3.532.2.3.3.0034.0.002020–0,3410,186158100/500/1000
3.532.2.3.3.0034.0.002121–0,3410,189,3163100/500/1000
3.532.2.3.3.0034.0.002424–0,3411,3101,7190100/500/1000
3.532.2.3.3.0034.0.002525–0,3411,3105195100/500/1000
3.532.2.3.3.0034.0.002727–0,3411,6116210100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.532.2.3.3.0050.0.00022–0,55,116,937100/500/1000
3.532.2.3.3.0050.0.00033–0,55,421,344100/500/1000
3.532.2.3.3.0050.0.00044–0,55,82652100/500/1000
3.532.3.3.3.0050.0.00055–0,56,431,563100/500/1000
3.532.3.3.3.0050.0.00066–0,56,937,675100/500/1000
3.532.3.3.3.0050.0.00077–0,56,94279100/500/1000
3.532.3.3.3.0050.0.00088–0,57,646,994100/500/1000
3.532.3.3.3.0050.0.00099–0,58,851,9107100/500/1000
3.532.3.3.3.0050.0.001010–0,58,857,1111100/500/1000
3.532.3.3.3.0050.0.001212–0,59,269,5130100/500/1000
3.532.3.3.3.0050.0.001414–0,59,780,5149100/500/1000
3.532.3.3.3.0050.0.001616–0,510,289,7165100/500/1000
3.532.3.3.3.0050.0.001818–0,510,896,1183100/500/1000
3.532.3.3.3.0050.0.001919–0,510,8100,5187100/500/1000
3.532.3.3.3.0050.0.002020–0,511,4106,3202100/500/1000
3.532.3.3.3.0050.0.002121–0,511,4110,7203100/500/1000
3.532.3.3.3.0050.0.002424–0,512,7125,3236100/500/1000
3.532.3.3.3.0050.0.002525–0,512,7129,7248100/500/1000
3.532.3.3.3.0050.0.002727–0,512,9139,9258100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.532.2.3.3.0075.0.00022–0,755,521,643100/500/1000
3.532.2.3.3.0075.0.00033–0,755,828,253100/500/1000
3.532.2.3.3.0075.0.00044–0,756,335,965100/500/1000
3.532.3.3.3.0075.0.00055–0,756,943,480100/500/1000
3.532.3.3.3.0075.0.00066–0,757,551,994100/500/1000
3.532.3.3.3.0075.0.00077–0,757,558,599100/500/1000
3.532.3.3.3.0075.0.00088–0,758,365,9119100/500/1000
3.532.3.3.3.0075.0.00099–0,759,676,1137100/500/1000
3.532.3.3.3.0075.0.001010–0,759,683,7143100/500/1000
3.532.3.3.3.0075.0.001212–0,751098,3166100/500/1000
3.532.3.3.3.0075.0.001414–0,7510,6109,3186100/500/1000
3.532.3.3.3.0075.0.001616–0,7511,1123,9207100/500/1000
3.532.3.3.3.0075.0.001818–0,7511,8138,3235100/500/1000
3.532.3.3.3.0075.0.001919–0,7511,8144,9240100/500/1000
3.532.3.3.3.0075.0.002020–0,7512,5156,9263100/500/1000
3.532.3.3.3.0075.0.002121–0,7512,5163,5266100/500/1000
3.532.3.3.3.0075.0.002424–0,7513,9185307100/500/1000
3.532.3.3.3.0075.0.002525–0,7513,9191,6323100/500/1000
3.532.3.3.3.0075.0.002727–0,7514,2206,6337100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.532.2.3.3.0100.0.00022–15,92650100/500/1000
3.532.2.3.3.0100.0.00033–16,234,262100/500/1000
3.532.3.3.3.0100.0.00044–16,643,375100/500/1000
3.532.3.3.3.0100.0.00055–17,552,294100/500/1000
3.532.3.3.3.0100.0.00066–18,266,1116100/500/1000
3.532.3.3.3.0100.0.00077–18,274,4122100/500/1000
3.532.3.3.3.0100.0.00088–19,183,6146100/500/1000
3.532.3.3.3.0100.0.00099–110,591162100/500/1000
3.532.3.3.3.0100.0.001010–110,599,3169100/500/1000
3.532.3.3.3.0100.0.001212–110,9116,5195100/500/1000
3.532.3.3.3.0100.0.001414–111,6134223100/500/1000
3.532.3.3.3.0100.0.001616–112,2151,8249100/500/1000
3.532.3.3.3.0100.0.001818–112,9173,6287100/500/1000
3.532.3.3.3.0100.0.001919–112,9181,8293100/500/1000
3.532.3.3.3.0100.0.002020–113,6191,6316100/500/1000
3.532.3.3.3.0100.0.002121–113,6199,8320100/500/1000
3.532.3.3.3.0100.0.002424–115,1227366100/500/1000
3.532.3.3.3.0100.0.002525–115,1235,3386100/500/1000
3.532.3.3.3.0100.0.002727–115,4254,2403100/500/1000
Part NumberConductor CountPair CountConductor Cross-section (mm²)Approx. Cable Diameter (mm)Copper Weight (kg/km)Approx. Weight (kg/km)Packing Lengths (m)
3.532.2.3.3.0150.0.00022–1,56,635,764100/500/1000
3.532.2.3.3.0150.0.00033–1,5748,581100/500/1000
3.532.2.3.3.0150.0.00044–1,57,762,7102100/500/1000
3.532.3.3.3.0150.0.00055–1,58,476,6126100/500/1000
3.532.3.3.3.0150.0.00066–1,59,294,8153100/500/1000
3.532.3.3.3.0150.0.00077–1,59,2107,7163100/500/1000
3.532.3.3.3.0150.0.00088–1,510,1119,6187100/500/1000
3.532.3.3.3.0150.0.00099–1,511,7132,6214100/500/1000
3.532.3.3.3.0150.0.001010–1,511,8146,8228100/500/1000
3.532.3.3.3.0150.0.001212–1,512,3173,7265100/500/1000
3.532.3.3.3.0150.0.001414–1,513204,9309100/500/1000
3.532.3.3.3.0150.0.001616–1,513,7232,1345100/500/1000
3.532.3.3.3.0150.0.001818–1,514,5259,8391100/500/1000
3.532.3.3.3.0150.0.001919–1,514,5272,7402100/500/1000
3.532.3.3.3.0150.0.002020–1,515,3286432100/500/1000
3.532.3.3.3.0150.0.002121–1,515,3298,9438100/500/1000
3.532.3.3.3.0150.0.002424–1,517,1340,8506100/500/1000
3.532.3.3.3.0150.0.002525–1,517,1353,7533100/500/1000
3.532.3.3.3.0150.0.002727–1,517,5380556100/500/1000
3.532.2.3.3.0250.0.00022–2,57,858,894100/500/1000
3.532.2.3.3.0250.0.00033–2,58,380,2122100/500/1000
3.532.2.3.3.0250.0.00044–2,59,3103,4156100/500/1000
3.532.3.3.3.0250.0.00055–2,510,3123,9194100/500/1000
3.532.3.3.3.0250.0.00066–2,511,2148,1231100/500/1000
3.532.3.3.3.0250.0.00077–2,511,2169,5247100/500/1000
3.532.3.3.3.0250.0.00088–2,512,3192,4295100/500/1000
3.532.3.3.3.0250.0.00099–2,514,5219,2340100/500/1000
3.532.3.3.3.0250.0.001010–2,514,5242,5359100/500/1000
3.532.3.3.3.0250.0.001212–2,515,1285,9417100/500/1000
3.532.3.3.3.0250.0.001414–2,516332480100/500/1000
3.532.3.3.3.0250.0.001616–2,516,8378,5539100/500/1000
3.532.3.3.3.0250.0.001818–2,517,8422,7610100/500/1000
3.532.3.3.3.0250.0.001919–2,517,8444,1627100/500/1000
3.532.3.3.3.0250.0.002020–2,518,8466,7675100/500/1000
3.532.3.3.3.0250.0.002121–2,518,8488,2686100/500/1000
3.532.3.3.3.0250.0.002424–2,521562,1790100/500/1000
3.532.3.3.3.0250.0.002525–2,521583,5833100/500/1000
3.532.3.3.3.0250.0.002727–2,521,4626,4869100/500/1000
3.532.2.3.3.0400.0.00022–48,986136100/500/1000
3.532.3.3.3.0400.0.00033–49,5120,3169100/500/1000
3.532.3.3.3.0400.0.00044–410,8156,1226100/500/1000
3.532.3.3.3.0400.0.00055–411,8190,8276100/500/1000
3.532.3.3.3.0400.0.00066–412,8232,3330100/500/1000
3.532.3.3.3.0400.0.00077–412,8266,6357100/500/1000
3.532.3.3.3.0400.0.00088–414,1303423100/500/1000
3.532.3.3.3.0400.0.00099–416,5339,9478100/500/1000
3.532.3.3.3.0400.0.001010–416,5375505100/500/1000
3.532.3.3.3.0400.0.001212–417,2444,6591100/500/1000
3.532.3.3.3.0600.0.00022–610,5121,3187100/500/1000
3.532.3.3.3.0600.0.00033–611,2172,7236100/500/1000
3.532.3.3.3.0600.0.00044–612,4225,7305100/500/1000
3.532.3.3.3.0600.0.00055–613,9284392100/500/1000
3.532.3.3.3.0600.0.00066–615,2341,1471100/500/1000
3.532.3.3.3.0600.0.00077–615,2392,5511100/500/1000
3.532.3.3.3.0600.0.00088–616,7447,7606100/500/1000
3.532.3.3.3.0600.0.00099–619,7500,5682100/500/1000
3.532.3.3.3.0600.0.001010–619,7553,2724100/500/1000
3.532.3.3.3.1000.0.00022–1012,5204,7285100/500/1000
3.532.3.3.3.1000.0.00033–1013,4293,7357100/500/1000
3.532.3.3.3.1000.0.00044–1014,9385,4480100/500/1000
3.532.3.3.3.1000.0.00055–1016,6478,2609100/500/1000
3.532.3.3.3.1000.0.00066–1018,2573,6734100/500/1000
3.532.3.3.3.1000.0.00077–1018,2662,6803100/500/1000
3.532.3.3.3.1600.0.00022–1616,9311,2439100/500/1000
3.532.3.3.3.1600.0.00033–1618,1451,4605100/500/1000
3.532.3.3.3.1600.0.00044–1620,1594788100/500/1000
3.532.3.3.3.1600.0.00055–1622,1738,5989100/500/1000
Bending RadiusTemperature Range
Operating
7.5xD mm-30°C ~ +70°C
Open in a new tabDownload

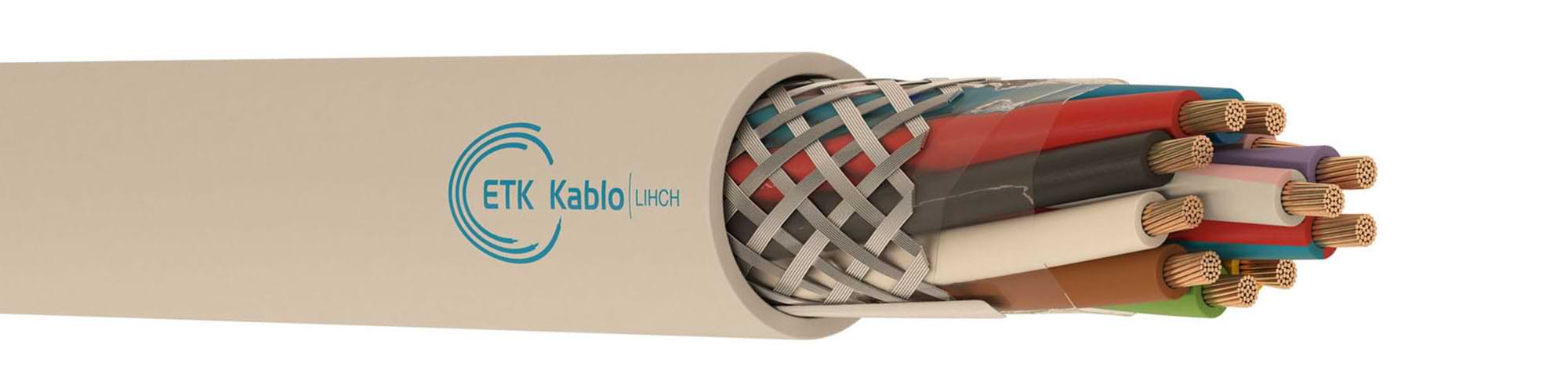

LIHCH Halogen-Free Braid-Screened Signal and Control Cable

ETK Kablo’s LIHCH cable is a halogen-free, braid-shielded signal and control cable designed for reliable data and signal transmission in industrial automation, instrumentation, and building control systems. Its copper braid screen (C) provides robust protection against electromagnetic interference (EMI), ensuring accurate and noise-free communication in sensitive environments.

EMI Protection and Signal Integrity

The tinned copper braid screen minimizes interference and signal crosstalk, maintaining signal stability in control circuits installed near power lines or in cable trays. This makes the LIHCH ideal for process automation, HVAC systems, building management systems (BMS), and instrumentation applications that require EMI shielding and reliable performance.

Halogen-Free, Flame-Retardant Construction

Manufactured with fine-stranded copper conductors and a Low Smoke Zero Halogen (LSOH) sheath, this cable combines flexibility, fire safety, and mechanical strength. The halogen-free materials minimize toxic and corrosive gas emissions during fire, meeting IEC 60332-1 and related international standards for flame retardancy and halogen-free performance.

Applications and Installation

The LIHCH signal and control cable is designed for fixed indoor installations in dry or slightly humid environments. It is widely used in control panels, automation cabinets, BMS systems, instrumentation setups, and production lines that demand safe, interference-free, and flexible signal cabling.

Comparison of ETK Kablo’s Signal and Control Cables

ModelShield TypeHalogen-Free (LSOH)Flame RetardantTypical Application
LIYYUnscreenedNo (PVC)Standard flame retardantGeneral signal and control circuits in low-noise areas
LIYCYTinned copper braid (C)No (PVC)Standard flame retardantSignal transmission in control cabinets and machinery with moderate EMI
LIHHUnscreenedYes (LSOH)Halogen-free and flame retardantLow-voltage communication and control in public buildings
LIHCHTinned copper braid (C)Yes (LSOH)Halogen-free and flame retardantShielded signal transmission in automation, instrumentation, and BMS

Why Choose ETK Kablo’s LIHCH Cable?

Choose ETK Kablo’s LIHCH — the halogen-free, braid-screened control cable built for signal reliability, fire safety, and mechanical durability. Engineered to meet international standards, it ensures long-term performance and safe operation in today’s industrial and commercial automation systems.

Frequently Asked Questions about LS0H and Cable Materials

What is an LS0H cable?

LS0H (Low Smoke Zero Halogen), also written as LSZH, refers to cables made with halogen-free flame-retardant materials that emit minimal smoke and no corrosive gases when exposed to fire. These cables, such as ETK Kablo’s LIHCH, are ideal for public buildings, transportation systems, and industrial automation where fire safety and low toxicity are essential.

Is LSZH better than PVC?

Yes, LSZH cables are generally considered safer than PVC (Polyvinyl Chloride) cables in fire scenarios. While PVC is durable and cost-effective, it releases dense smoke and toxic halogen gases when burned. LSZH cables, like ETK Kablo’s LIHCH, provide enhanced fire safety with reduced environmental and health risks, making them preferred for enclosed spaces and public facilities.

Is XLPE the same as LSF?

No, XLPE (Cross-Linked Polyethylene) and LSF (Low Smoke and Fume) are different materials. XLPE is a thermoset insulation material known for its high temperature resistance and electrical performance, while LSF describes a type of low-smoke, flame-retardant sheathing that reduces harmful emissions during fire. They serve different purposes within cable construction.

Is XLPE better than PVC?

XLPE cables generally outperform PVC cables in terms of thermal stability, current capacity, and long-term durability. XLPE insulation can withstand higher operating temperatures (up to 90°C), while PVC softens under heat. However, for control and signal cables where flexibility and halogen-free properties are critical, LSZH or LSF materials — such as used in LIHCH — are preferred.
