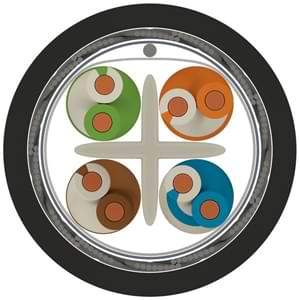

| 1 – Conductor | : | Electrolytic solid copper conductor |
| 2 – Insulation | : | Solid polyethylene insulation |
| 3 – Stranding | : | Insulations are stranded into pairs |
| 4 – Seperator | : | Pairs are stranded together with star shaped separator |
| 5 – Screen | : | Tinned copper earthing wire, Al/PET tape, tinned copper braiding |
| 6 – Outer Jacket | : | UV resistant polyethylene outer jacket |
| Conductor Resistance Ω/km (20 °C) | Insulation Resistance MΩ/km (20 °C) | Mutual Capacitance nF/km | Resistance Unbalance | Propagation Velocity | Characteristic Impedance Ω (1-250 MHz) | Operating Voltage V DC | Test Voltage V (DC. 1 minute) |
|---|---|---|---|---|---|---|---|
| Max. 94 | 5000 | Max. 56 | %2 | %67-69 | 100 ±%5 | 250 | 1200 |
| Manufacturing |
|---|
| ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801 |
Cat 6 SF-UTP PE (Pair)
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.446.2.1.1.0057.0.0004 | 4 | 0,57 | 6,9 | 37,4 | 61 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 8.0xD mm | -20°C ~ +60°C |
| Frequency MHz | Insertion Loss dB/100m (Max.) | Near-end Crosstalk (NEXT) dB (Min.) | Power-sum Near-end Crosstalk (PSNEXT) dB (Min.) | Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.) | Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.) | Return Loss (RL) dB (Min.) |
|---|---|---|---|---|---|---|
| 1 | 2 | 74.3 | 72.3 | 67.8 | 64.8 | 20 |
| 4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 23 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 6 | 59.3 | 57.3 | 47.8 | 44.8 | 25 |
| 16 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 25 |
| 20 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 24.3 |
| 25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 23.6 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 21.5 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 20.1 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 18 |
| 200 | 29 | 39.8 | 37.8 | 21.8 | 18.8 | 17.3 |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 16.8 |
Cat 6 SF/UTP PE Outdoor Ethernet Cable

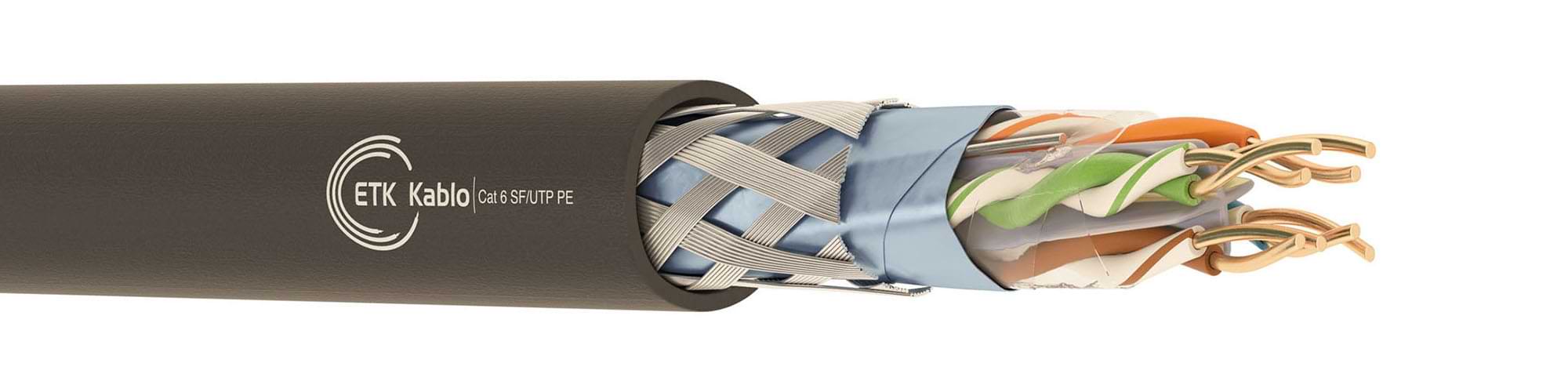

Cat 6 SF/UTP PE cable is a shielded outdoor Ethernet cable with 23 AWG solid copper conductors and a UV-resistant polyethylene jacket. Its four twisted pairs support Gigabit Ethernet applications, with electrical performance specified up to 250 MHz.
Within ETK Kablo’s Cat 6 SF/UTP cable range, this PE version serves outdoor network routes that require both UV resistance and an overall foil-and-braid screen.
Overall Foil and Braid Screening
SF/UTP describes two overall screening layers: aluminium/polyester foil and tinned copper braid. Both surround the four-pair assembly, while the individual pairs remain unscreened. A drain wire forms part of the screening arrangement, and a star-shaped separator keeps the pairs apart.
This combination helps reduce external electromagnetic interference. Use compatible screened connecting hardware and follow the project’s bonding and earthing requirements to maintain screen continuity through the installed link.
Outdoor LAN and IP Camera Applications
The black PE jacket provides UV resistance for outdoor cabling. Typical applications include outdoor LAN infrastructure and network connections for IP cameras. The product datasheet also lists Power over Ethernet (PoE); the required power level, cable length, installation temperature and bundling conditions should guide project selection.
Outdoor use does not automatically establish suitability for direct burial or continuous water exposure. Specify these conditions when requesting the cable so ETK Kablo can confirm the appropriate construction.
Cat 6 SF/UTP PE Cable Size
The table below summarises the listed conductor configuration. For dimensions, weights and packing lengths, request the current specification for your order.
| Cable Size | Pair Count | Conductor Count | Conductor Size |
|---|---|---|---|
| Cat 6 SF/UTP PE 4x2x23 AWG | 4 | 8 | 23 AWG solid copper |
Frequently Asked Questions
Is SF/UTP the same as S/FTP?
No. SF/UTP uses an overall foil screen and braid around unscreened pairs. S/FTP uses individually foil-screened pairs with an overall braid. The position of the screens is different.
Is the copper braid steel wire armor?
No. The tinned copper braid is an electrical screen. This product’s listed construction does not include steel wire armor.
Can I use the PE version where an LSOH jacket is required?
The PE jacket does not establish LSOH performance. For projects that specify low-smoke, halogen-free sheathing, review Cat 6 SF/UTP LSOH Ethernet cable against the required fire performance.
Request a Quotation
Contact ETK Kablo for Cat 6 SF/UTP PE cable pricing. Include the required quantity, delivery lengths, installation route and any PoE requirements so the quotation matches your project.
