| 1 – Conductor | : | Electrolytic solid copper conductor |
| 2 – Insulation | : | Solid polyethylene insulation |
| 3 – Stranding | : | Insulations are stranded into pairs |
| 4 – Seperator | : | Pairs are stranded together with star shaped separator |
| 5 – Outer Jacket | : | UV resistant polyethylene outer jacket |
| Conductor Resistance Ω/km (20 °C) | Insulation Resistance MΩ/km (20 °C) | Mutual Capacitance nF/km | Resistance Unbalance | Propagation Velocity | Characteristic Impedance Ω (1-250 MHz) | Operating Voltage V DC | Test Voltage V (DC. 1 minute) |
|---|---|---|---|---|---|---|---|
| Max. 94 | 5000 | Max. 56 | %2 | %67-69 | 100 ±%5 | 250 | 1200 |
| Manufacturing |
|---|
| ANSI/TIA-568-C.2, IEC-61156-5, IEC-11801 |
Cat 6 U-UTP PE (Pair)
| Part Number | Pair Count | Conductor Diameter (mm) | Approx. Cable Diameter (mm) | Copper Weight (kg/km) | Approx. Weight (kg/km) | Packing Lengths (m) |
|---|---|---|---|---|---|---|
| 3.416.2.1.1.0057.0.0004 | 4 | 0,57 | 6,4 | 19,9 | 41 | 100/500/1000 |
| Bending Radius | Temperature Range Operating |
|---|---|
| 8.0xD mm | -20°C ~ +60°C |
| Frequency MHz | Insertion Loss dB/100m (Max.) | Near-end Crosstalk (NEXT) dB (Min.) | Power-sum Near-end Crosstalk (PSNEXT) dB (Min.) | Equal-level Far-end Crosstalk (ELFEXT) dB/100m (Min.) | Power-sum Equal Level Far- end Crosstalk (PSELFEXT) dB/100m (Min.) | Return Loss (RL) dB (Min.) |
|---|---|---|---|---|---|---|
| 1 | 2 | 74.3 | 72.3 | 67.8 | 64.8 | 20 |
| 4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 23 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 6 | 59.3 | 57.3 | 47.8 | 44.8 | 25 |
| 16 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 25 |
| 20 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 24.3 |
| 25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 23.6 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 21.5 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 20.1 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 18 |
| 200 | 29 | 39.8 | 37.8 | 21.8 | 18.8 | 17.3 |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 16.8 |
Cat 6 Outdoor Cable for Ethernet Networks
Cat 6 outdoor cable from ETK Kablo combines four unshielded twisted pairs, solid copper conductors and a UV-resistant polyethylene outer jacket. The Cat 6 U/UTP PE design provides Category 6 transmission characteristics through 250 MHz for outdoor network routes that require a PE sheath.
This product forms part of our Cat 6 U/UTP cable range. It supports 1000BASE-T Gigabit Ethernet within a correctly designed and installed cabling channel.

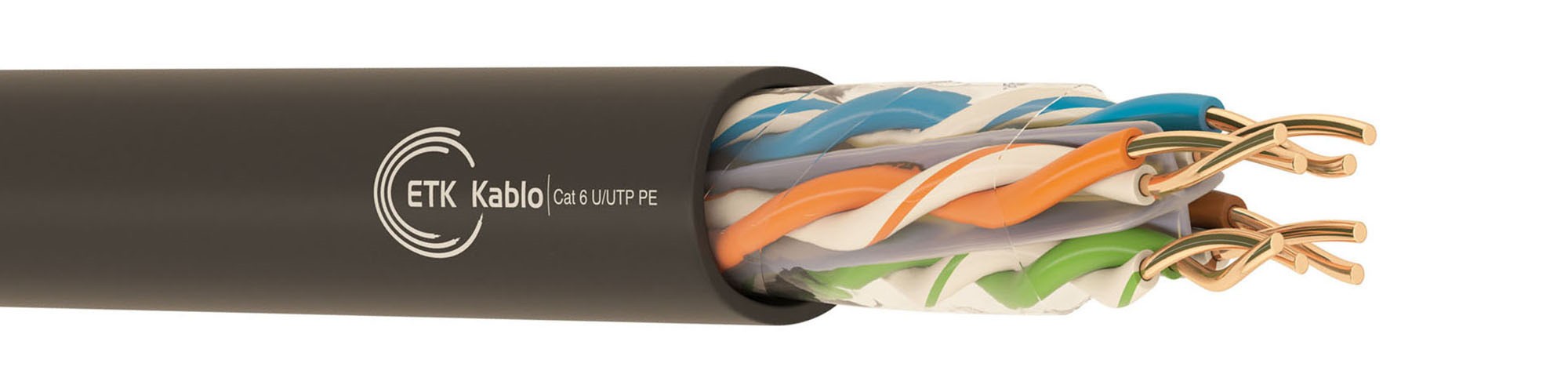

23 AWG Solid Copper Cat 6 UTP Cable

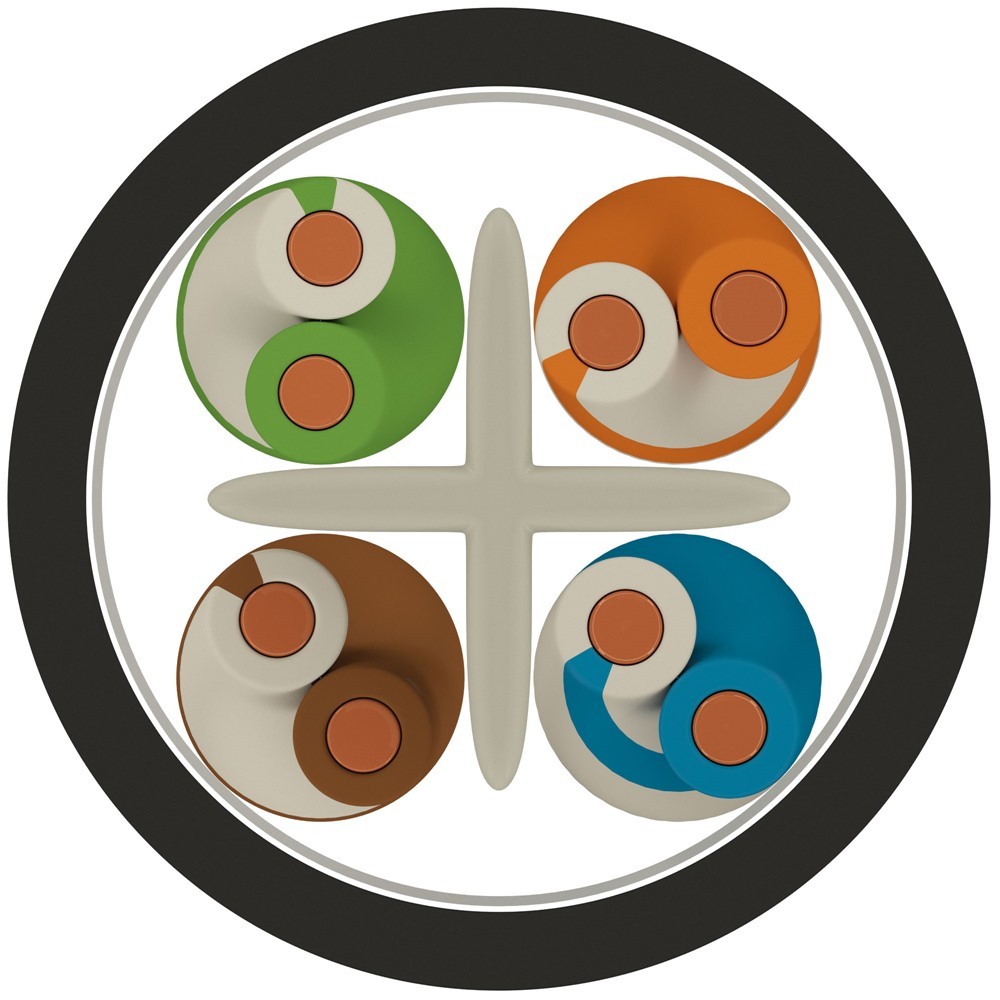

The cable contains eight solid copper conductors arranged as four twisted pairs. Polyethylene insulation surrounds each conductor, while a star-shaped separator maintains spacing between the pairs and helps control internal crosstalk.
U/UTP means that the cable has no overall metallic screen and no individual pair screens. Select this construction where the route and equipment requirements permit unshielded Ethernet cabling.
| Cable Size | Pair Count | Conductor Count | Conductor Size |
|---|---|---|---|
| Cat 6 U/UTP PE 4x2x23 AWG | 4 | 8 | 23 AWG solid copper |
The product page specifies a conductor diameter of 0.57 mm. Include the total quantity and required packing lengths when requesting bulk cable.
External LAN, IP Camera and Access Point Connections
Typical applications include outdoor IP camera connections, external wireless access points and LAN extensions along protected outdoor routes. The UV-resistant PE sheath addresses sunlight exposure, while the installation design must also account for water exposure, mechanical protection and suitable connections.
Maintain the required separation from power circuits and interference sources. If the route requires electromagnetic screening, review our Cat 6 F/UTP cable range and select a suitable outdoor jacket.
Gigabit Ethernet and Channel Length
The 250 MHz specification describes the transmission frequency range; it does not mean a 250 Mbps speed limit. The product documentation lists 1000BASE-T Gigabit Ethernet as an application.
A conventional structured-cabling channel allows up to 100 metres, typically including a permanent link of up to 90 metres plus patch and equipment cords. Use compatible Category 6 connecting hardware and test the installed link. Drum length is a supply quantity, not the permitted length of a single Ethernet connection.
Frequently Asked Questions
Can this Cat 6 outdoor cable be buried directly?
The listed construction has no armor or specified water-blocking layer. A PE jacket alone does not establish direct-burial suitability. Describe the soil, water exposure and mechanical protection requirements to ETK Kablo before selecting cable for an underground route.
Does this cable support Power over Ethernet?
The datasheet lists Power over Ethernet as an application. Confirm the required PoE type, channel length, bundle size and ambient temperature for the project. The general PoE reference does not establish suitability for every power level.
What is the difference between PE and LSOH versions?
This product uses a polyethylene outer jacket for outdoor-oriented installations. The separate Cat 6 U/UTP LSOH cable addresses low-smoke and halogen-related requirements. For routes entering buildings, check the required fire performance before choosing the jacket.
Request a Cat 6 U/UTP PE Cable Quotation
Contact ETK Kablo for Cat 6 U/UTP PE 4x2x23 AWG cable. Include the quantity, packing lengths, route conditions and required project documents. For camera or access-point installations, also specify any PoE requirements.
