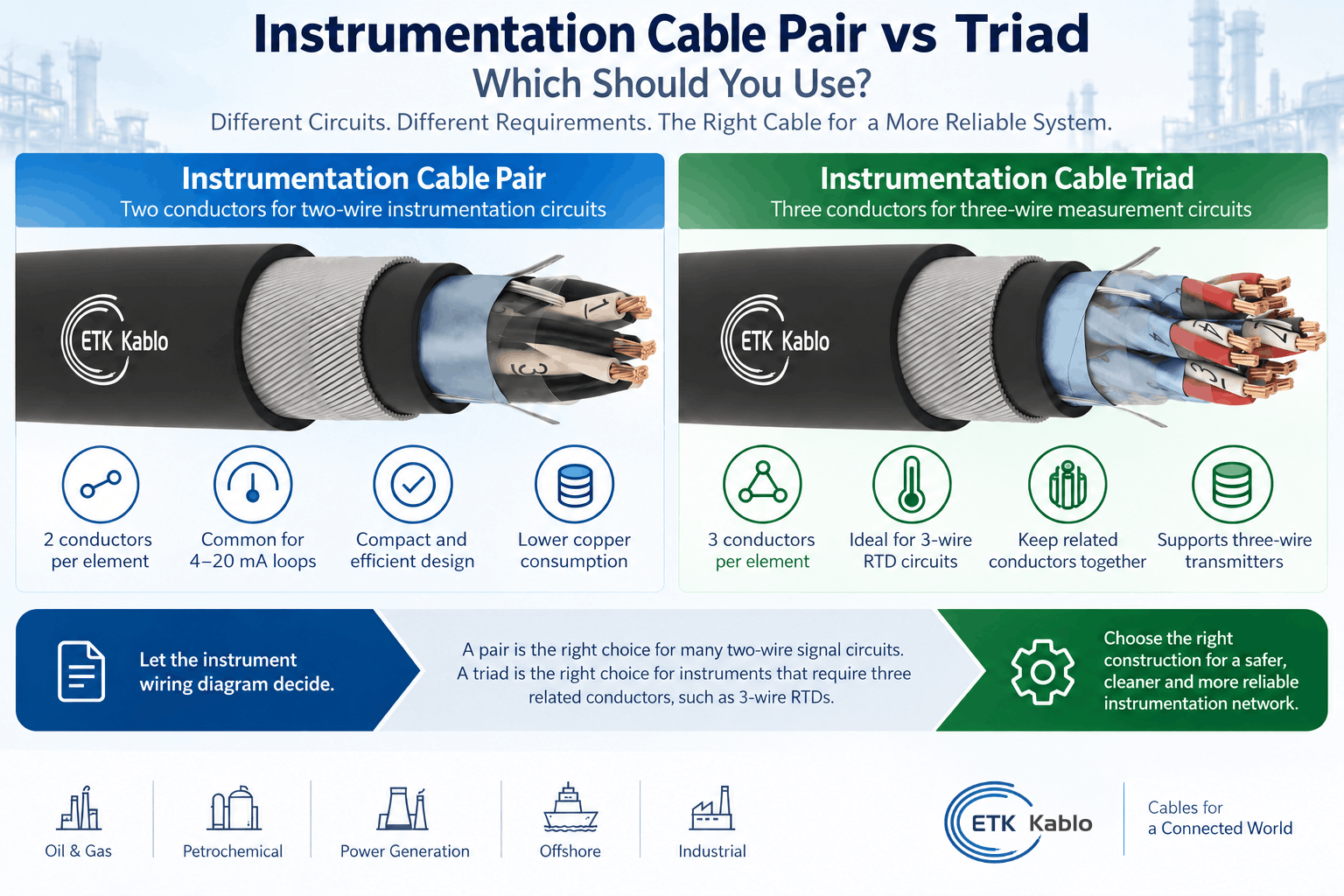

Instrumentation Cable Pair vs Triad: Which Should You Use?

Choosing between an instrumentation cable pair vs triad should begin with the electrical circuit rather than the cable construction. A pair contains two insulated conductors twisted together, while a triad contains three conductors grouped and twisted as one circuit element. Although the difference appears simple, it affects circuit compatibility, termination, conductor count, shielding architecture, cable diameter and project cost.

For many process-control applications, pairs provide the natural construction because the field circuit uses two conductors. A conventional two-wire 4–20 mA transmitter, for example, normally uses one twisted pair. By contrast, instruments that require three related conductors can benefit from a triad because all three wires remain grouped together throughout the cable.

However, a triad should not automatically be considered electrically superior to a pair. The correct choice depends on the instrument wiring diagram, signal type, input/output architecture, screening requirement and project specification.

Quick answer: Use a pair when the instrumentation circuit requires two conductors, such as many 4–20 mA loops and two-wire signal circuits. Use a triad when the device requires three related conductors, such as many 3-wire RTD circuits or specific three-wire transmitters. Do not choose triads simply for additional EMI protection; screening, capacitance, armour and signal compatibility should be specified separately.

Pair vs Triad Cable at a Glance

Characteristic	Pair	Triad
Conductors per element	2	3
Typical circuit logic	Two-conductor signal or loop	Three-conductor measurement or control circuit
Common example	2-wire 4–20 mA transmitter	3-wire RTD
Individual screening terminology	PiMF	TiMF
Conductor consumption per circuit	Lower	Higher
Termination points per element	2	3
Cable diameter for equal element count	Generally smaller	Generally larger
EMI performance	Depends on circuit balance and screening	Depends on circuit design and screening
Best selection basis	Instrument requires two conductors	Instrument requires three conductors

The table provides the basic distinction. Nevertheless, instrument topology should always override generic rules about which construction appears more advanced.

What Is an Instrumentation Cable Pair?

An instrumentation cable pair consists of two insulated conductors twisted together to form one signal element.

The twisting helps both conductors experience similar electromagnetic conditions along the cable route. Consequently, a balanced or differential circuit can reject part of the noise induced equally into both conductors.

A multipair instrumentation cable can contain:

• 1 pair
• 2 pairs
• 4 pairs
• 8 pairs
• 12 pairs
• 24 pairs
• or other project-specific pair counts

Depending on the cable design, the pairs can share one overall screen or each pair can receive an individual screen before the manufacturer assembles the complete cable.

What Is an Instrumentation Cable Triad?

An instrumentation cable triad contains three insulated conductors grouped together as one circuit element.

Manufacturers twist the three conductors together so that they remain mechanically associated throughout the cable. As a result, the triad provides a convenient structure for field devices that require three related conductors.

A multitriad instrumentation cable can contain:

• 1 triad
• 2 triads
• 4 triads
• 8 triads
• 12 triads
• or another project-specific number of triads

Like pairs, triads can use either an overall screen or individual screens around each signal element.

What Is the Main Difference Between Pair and Triad Instrumentation Cable?

The main difference is the number of conductors grouped into each circuit.

Pair = two related conductors.

Triad = three related conductors.

Therefore, the cable element should normally mirror the wiring requirement of the field instrument.

If a transmitter requires two electrical connections, using one pair creates a logical and efficient cable arrangement. Meanwhile, if an instrument requires three conductors that belong to the same measurement circuit, grouping those conductors into one triad can simplify identification, termination and maintenance.

Pair vs Triad Cable: Start with the Instrument Wiring Diagram

The instrument datasheet or loop drawing should usually decide the pair-versus-triad question.

Before selecting the cable, engineers should identify:

• How many conductors the device requires
• Whether the conductors belong to one measurement circuit
• Whether the signal is balanced or unbalanced
• Whether the device carries power and signal on the same conductors
• Whether a separate reference or return conductor is required
• Whether individual screening is required

For this reason, choosing cable before reviewing the instrument architecture can create unnecessary conductors or, worse, an incompatible field connection.

Pairs for 4–20 mA Instrumentation Loops

The 4–20 mA current loop remains one of the most common analogue signal systems in process instrumentation.

A typical two-wire transmitter uses the same two conductors for electrical supply and analogue current signal transmission.

Therefore, one twisted pair naturally matches this circuit:

Conductor 1 → loop supply / signal path

Conductor 2 → return path

This arrangement is common for instruments such as:

• Pressure transmitters
• Level transmitters
• Flow transmitters
• Temperature transmitters
• Other two-wire process transmitters

Consequently, multipair instrumentation cables remain widely used between field junction boxes, marshalling cabinets and control systems.

Does Every 4–20 mA Device Use a Pair?

No.

Although two-wire devices are extremely common, some transmitters use three-wire or four-wire electrical connections.

A three-wire device may have separate terminals for:

• Positive supply
• Common or negative supply
• Signal output

In that situation, a triad may provide a logical cable element if all three conductors travel between the same locations.

However, the equipment manufacturer’s wiring diagram should determine the final arrangement.

Triads for 3-Wire RTD Circuits

Three-wire RTD measurement is one of the clearest applications for instrumentation triads.

An RTD measures temperature through changes in electrical resistance. However, the resistance of the connecting leads can introduce measurement error.

A three-wire RTD circuit uses an additional conductor so that suitable measurement electronics can compensate for much of the lead resistance.

Therefore, a triad provides a natural physical grouping:

• RTD lead 1
• RTD lead 2
• RTD compensation lead

Keeping these conductors together also simplifies identification at the field instrument and control-system terminals.

Why Conductor Consistency Matters for 3-Wire RTDs

Three-wire RTD compensation works best when the relevant cable conductors have similar resistance.

Therefore, engineers should use conductors with the same:

• Material
• Cross-section
• Length
• Construction

A properly manufactured triad naturally keeps the three conductors in the same cable element and along the same route.

Nevertheless, the triad itself does not create measurement accuracy. The instrument, conductor resistance, temperature and complete circuit design still determine system performance.

2-Wire vs 3-Wire vs 4-Wire RTD Cabling

RTD Connection	Typical Cable Element	Main Consideration
2-wire RTD	Pair	Simple, but lead resistance contributes directly to measurement error
3-wire RTD	Triad	Allows lead-resistance compensation with suitable instrumentation
4-wire RTD	Two pairs or suitable four-conductor construction	Provides the highest compensation capability in appropriate measurement systems

Consequently, specifying a triad for every temperature sensor would be incorrect. The RTD connection method determines the required conductor arrangement.

Should Thermocouples Use Standard Instrumentation Pairs?

Not automatically.

A thermocouple generates a voltage from two dissimilar metals. Therefore, the extension circuit may require dedicated thermocouple or compensation cable using materials matched to the thermocouple type.

Examples include:

• Type J
• Type K
• Type T
• Type E

For this reason, a generic copper instrumentation pair should not replace specified thermocouple extension cable simply because both constructions contain two conductors.

The measurement technology should always determine the conductor material.

Pair vs Triad for Digital Instrumentation Signals

Digital industrial communication requires additional care.

Some systems use balanced twisted pairs, while others require specific:

• Characteristic impedance
• Capacitance
• Conductor size
• Shielding
• Maximum distance
• Termination

Therefore, engineers should not assume that a standard instrumentation pair or triad automatically suits every digital protocol.

For example, a protocol that requires a defined impedance should use cable specifically designed or approved for that communication system.

Does a Three-Wire Digital Circuit Automatically Need a Triad?

No.

A digital interface may use two signal conductors plus a reference or shield connection, but that does not automatically mean all three should form one twisted triad.

Instead, the protocol’s physical-layer specification should determine:

• Twist geometry
• Characteristic impedance
• Shield arrangement
• Reference conductor treatment
• Termination

Consequently, the number of terminals on the equipment should not replace the communication-cable specification.

Does a Triad Provide Better EMI Protection Than a Pair?

Not inherently.

This is an important specification point.

A twisted pair can provide excellent common-mode noise rejection when used with an appropriate balanced or differential signal circuit.

A triad, meanwhile, provides three associated conductors but does not automatically create superior electromagnetic performance.

Therefore, EMI performance depends on several factors:

• Signal topology
• Twist design
• Individual screening
• Overall screening
• Cable routing
• Grounding
• Nearby electrical equipment

In practice, engineers should select pair or triad according to circuit topology and then select the required screen independently.

Overall Screened Pair and Triad Cables

An overall-screened instrumentation cable places one metallic screen around the complete assembled cable core.

The screen commonly uses:

• Aluminium/polyester foil
• Drain wire
• Additional conductive components where specified

Overall screening can provide effective protection against external electromagnetic interference where the individual circuits do not require separate shields.

Therefore, both multipair and multitriad cables can use the same overall-screen concept.

PiMF: Pair in Metal Foil

PiMF means Pair in Metal Foil.

In this construction, each twisted pair receives its own metallic foil screen before the manufacturer assembles the complete cable.

Individual pair screening can reduce coupling between adjacent instrumentation circuits and provide additional isolation in high-noise environments.

Moreover, the complete cable can also use an additional overall screen.

TiMF: Triad in Metal Foil

TiMF applies the same concept to triads.

Each three-conductor element receives an individual metallic foil screen.

As a result, a multitriad cable can maintain electrical separation between several three-wire measurement circuits.

This can be valuable in process plants containing:

• High-density instrumentation
• Long cable routes
• Motors
• Variable-frequency drives
• Power cables
• Other sources of electrical noise

Pair vs Triad and Individual Screening

Cable Element	Overall Screen Only	Individual + Overall Screen
Pair	St / overall-screened multipair	PiMF + overall screen
Triad	St / overall-screened multitriad	TiMF + overall screen
Main objective	Protection against external EMI	External EMI protection + additional circuit-to-circuit isolation

Therefore, selecting a triad does not eliminate the need to decide whether the circuit needs individual screening.

Pair vs Triad and Crosstalk

Multipair and multitriad cables carry several low-level signals within one common outer sheath.

Consequently, electrical coupling between adjacent circuits can become important, particularly over long routes.

Individual screens can reduce this coupling. However, cable geometry, capacitance and signal characteristics also influence performance.

For this reason, noise-sensitive process instrumentation often uses individually screened PiMF or TiMF constructions.

Pair vs Triad and Cable Capacitance

Capacitance can matter in long analogue loops, digital circuits and intrinsically safe installations.

Pair and triad geometry can produce different capacitance relationships because the conductors sit differently within each cable element.

Therefore, buyers should compare the manufacturer’s actual technical data rather than assuming that one geometry always provides lower capacitance.

Important parameters can include:

• Mutual capacitance
• Capacitance conductor-to-screen
• Inductance
• Conductor resistance

Pair vs Triad in Intrinsically Safe Circuits

Intrinsically safe instrumentation systems limit the electrical energy that can reach hazardous areas.

In these systems, cable characteristics can contribute to the overall safety calculation.

Important values can include:

• Capacitance per unit length
• Inductance per unit length
• Resistance
• Total route length

Therefore, pair or triad construction alone does not make a cable suitable for an intrinsically safe loop.

The designer must verify the complete circuit against the barrier, isolator, field instrument and applicable hazardous-area requirements.

Does Blue Sheath Mean the Cable Is Intrinsically Safe?

No.

Some projects use blue cable jackets to identify intrinsically safe instrumentation circuits.

However, sheath colour serves primarily as an identification convention.

Consequently, blue colour alone does not prove electrical compliance with an intrinsically safe system.

Pair vs Triad and Conductor Cross-Section

Pair and triad selection does not determine conductor size.

Instrumentation cables can use conductor cross-sections such as:

• 0.50 mm²
• 0.75 mm²
• 1.00 mm²
• 1.50 mm²
• 2.50 mm²

The correct size depends on:

• Loop resistance
• Route length
• Voltage drop
• Device current
• Signal requirements
• Project specification

Therefore, a 1.5 mm² triad is not inherently more suitable than a 0.75 mm² pair. The electrical loop calculation should determine the required conductor area.

Pair vs Triad and Cable Diameter

For the same number of cable elements and conductor cross-section, a triad contains more copper and insulation than a pair.

Consequently, multitriad cables can become larger and heavier than equivalent multipair cables with the same element count.

However, the final outside diameter also depends on:

• Screening
• Insulation thickness
• Conductor size
• Inner sheath
• Armour
• Outer sheath

Therefore, engineers should compare actual cable dimensions when tray capacity or gland size is limited.

Pair vs Triad and Copper Weight

A triad uses three conductors per circuit element instead of two.

As a result, the cable generally contains more copper for the same number of elements and conductor cross-section.

This affects:

• Cable weight
• Material cost
• Drum weight
• Handling
• Tray loading

Therefore, specifying triads for circuits that only require pairs can add unnecessary material and cost without improving system performance.

Pair vs Triad and Termination

The field termination should remain as intuitive as possible.

A pair naturally presents two conductors for a two-terminal circuit.

Meanwhile, a triad presents three conductors that can remain associated with one three-terminal instrument.

This can improve:

• Identification
• Junction-box organization
• Marshalling
• Maintenance
• Troubleshooting

Consequently, cable grouping should align with the control-system I/O and field-device arrangement wherever practical.

Using Two Pairs Instead of One Triad

Technically, a designer may sometimes have spare conductors available in two pairs and consider using three of them for one three-wire circuit.

However, that approach breaks the natural cable grouping and can complicate:

• Identification
• Individual screening
• Termination
• Future maintenance

Moreover, the three conductors may not share precisely the same geometric relationship within the cable.

Therefore, a dedicated triad is generally cleaner when the circuit genuinely requires three associated conductors.

Using a Triad for a Two-Wire Circuit

A triad can physically provide two conductors for a two-wire circuit while leaving one conductor spare.

However, this usually creates unnecessary copper, diameter and cost when many circuits repeat across a project.

For this reason, multipair cable is generally more efficient for large populations of two-wire loops.

A spare conductor strategy should come from the project design rather than from routinely oversizing every element.

Pair and Triad Cable for Oil and Gas Projects

Oil, gas and petrochemical facilities use large numbers of analogue and digital instrumentation circuits.

A typical project can include:

• Pressure transmitters
• Flow transmitters
• Level transmitters
• Temperature transmitters
• RTDs
• Control valves
• Shutdown instruments
• Process analyzers

Consequently, the same project can legitimately require both multipair and multitriad cables.

Two-wire transmitter loops can use pairs, while three-wire measurement circuits can use triads. Meanwhile, screening, armour and sheath requirements should follow the EMC, mechanical and fire conditions of each route.

Pair and Triad Cable for Refineries and Petrochemical Plants

Refineries combine high instrumentation density with significant sources of electromagnetic interference.

Therefore, engineers frequently need to coordinate:

• Pair or triad grouping
• Individual screening
• Overall screening
• Armour
• LSZH or PVC materials
• UV resistance

For particularly noise-sensitive signals, individually screened PiMF or TiMF designs can provide additional circuit isolation.

Pair and Triad Cable for Power Plants

Power plants also contain large instrumentation networks near generators, motors, switchgear and other electrical equipment.

As a result, screening can become particularly important.

However, pair-versus-triad selection should still follow the instrument circuit rather than the electrical noise level.

A two-wire transmitter does not become a three-wire instrument simply because the surrounding environment has severe EMI.

Pair and Triad Cable for Offshore Projects

Offshore installations can impose additional requirements involving:

• Oil resistance
• Drilling fluids
• Fire behaviour
• Smoke
• Halogen-free materials
• Mechanical strength
• Marine approvals

Nevertheless, pair and triad grouping still follows the control or measurement circuit.

For marine and offshore installations, the project should also identify the applicable cable standard and approval system rather than relying only on a general instrumentation designation.

Pair vs Triad with PVC, PE and XLPE Insulation

Conductor grouping and insulation material represent separate design decisions.

Instrumentation cables can use:

• PVC insulation
• PE insulation
• XLPE insulation
• Other project-specific compounds

XLPE can provide strong electrical, thermal and mechanical characteristics. Meanwhile, PE can provide excellent insulation resistance and capacitance performance in suitable designs.

Therefore, pair or triad architecture should not determine the insulation material automatically.

Pair vs Triad with PVC or LSZH Outer Sheath

The outer jacket also remains independent from the conductor grouping.

A pair or triad cable can use:

• PVC
• LSZH
• PE
• Other project-specific sheath compounds

For enclosed or evacuation-sensitive environments, LSZH can reduce smoke and halogen-related combustion products.

Meanwhile, PVC can remain practical where project fire requirements permit it.

Therefore, fire and environmental performance should be specified separately from pair-versus-triad selection.

Pair vs Triad with SWA Armour

Both pair and triad instrumentation cables can use Steel Wire Armour when mechanical protection is required.

SWA can improve resistance to:

• Impact
• Crushing
• Rodents
• External mechanical loads

However, armour does not affect whether the electrical circuit needs two or three conductors.

Consequently, engineers should first choose the pair or triad architecture and then add armour according to the route conditions.

Pair vs Triad with SWB Armour

Steel Wire Braid can also provide additional mechanical reinforcement while maintaining greater flexibility than many heavy SWA designs.

Again, this mechanical decision remains separate from the signal-element architecture.

Therefore, projects can specify pair/SWB or triad/SWB constructions where both requirements are appropriate.

Which Should You Choose: Pair or Triad?

Application	Construction to Consider	Reason
2-wire 4–20 mA transmitter	Pair	Two conductors match the loop architecture
2-wire analogue signal	Pair	Efficient two-conductor grouping
3-wire transmitter	Triad	Three associated electrical conductors
3-wire RTD	Triad	Natural grouping for three-wire measurement
4-wire RTD	Two pairs or suitable 4-core construction	Four-conductor measurement circuit
Thermocouple	Specified thermocouple pair	Conductor alloy matters
Noise-sensitive two-wire circuit	PiMF pair	Individual pair shielding
Noise-sensitive three-wire circuit	TiMF triad	Individual triad shielding
Digital bus	Protocol-specified cable	Impedance and electrical requirements can dominate

The best selection therefore follows the field-device electrical topology rather than a general preference for pairs or triads.

Common Mistakes When Selecting Pair or Triad Instrumentation Cable

1. Assuming Triads Are Better Than Pairs

Triads simply serve circuits that require three associated conductors. They are not an automatic performance upgrade.

2. Using Triads to Improve EMI Performance

EMI control depends on signal topology, twist design, shielding and installation. A third conductor does not automatically improve noise rejection.

3. Using a Pair for a 3-Wire RTD Without Reviewing the Circuit

A three-wire RTD normally requires three conductors associated with the same measurement circuit.

4. Using Generic Copper Pairs for Thermocouple Extensions

Thermocouple circuits can require specific conductor alloys or compensation materials.

5. Assuming PiMF and TiMF Mean the Same Thing

PiMF individually screens a pair, while TiMF individually screens a triad.

6. Assuming Overall Screening Replaces Individual Screening

Overall screening mainly protects the cable core from external interference, while individual screens can provide additional circuit-to-circuit isolation.

7. Selecting Cable Before Reviewing I/O Drawings

The instrument loop diagram should normally define how many conductors belong to each circuit.

8. Assuming a 3-Wire Digital Interface Automatically Needs a Triad

Digital protocols can have specific impedance, reference and shielding requirements that override simple conductor counting.

9. Ignoring Capacitance and Inductance

These parameters can matter in long signal routes and intrinsically safe circuits.

10. Choosing Triads for Every Circuit to Create a Spare Conductor

Large projects can add substantial copper, diameter and cost through unnecessary spare conductors.

11. Assuming Blue Sheath Proves Intrinsic Safety

Colour identifies circuits but does not replace the complete hazardous-area electrical calculation.

12. Ignoring Termination Density

Pair and triad counts affect junction boxes, terminals, glands and marshalling-space requirements.

13. Treating Armour as Part of the Pair/Triad Decision

Armour addresses mechanical protection, while pair and triad architecture addresses circuit grouping.

14. Assuming LSZH Means Triad or PVC Means Pair

Sheath material and conductor grouping are completely independent choices.

15. Ignoring the Instrument Manufacturer’s Wiring Requirements

The equipment wiring diagram should override generic cable-selection assumptions.

What Should Buyers Include in a Pair or Triad Instrumentation Cable RFQ?

An RFQ that states only “instrumentation cable” leaves many important design decisions unresolved.

A useful specification should define:

• Pair or triad requirement
• Number of pairs or triads
• Conductor cross-section
• Conductor class
• Insulation material
• Overall or individual screening
• PiMF or TiMF where required
• Drain wire requirement
• Maximum capacitance where relevant
• Maximum conductor resistance
• Inductance where relevant
• Operating voltage
• PVC, PE or LSZH sheath
• Indoor or outdoor installation
• UV resistance
• Armour requirement
• SWA or SWB where specified
• Oil or chemical resistance
• Operating temperature
• Flame-retardancy requirement
• Smoke and halogen requirements
• Hazardous-area requirements
• Applicable EN, IEC, BS or project specification
• Cable marking
• Drum length
• Test reports and certificates

As a result, the manufacturer can quote the cable according to the actual instrument circuits rather than guessing whether pairs or triads are required.

EN 50288-7 and Pair/Triad Instrumentation Cables

EN 50288-7 provides an important reference for instrumentation and control cables used for analogue and digital signal transmission.

The standard framework covers multi-element metallic instrumentation cables and allows different constructions involving:

• Pairs
• Triads
• Screening
• Armouring
• Environmental protection

However, specifying EN 50288-7 alone does not determine whether a project needs pairs or triads.

Therefore, the circuit schedule and instrument wiring philosophy still need to define the required element arrangement.

ETK Kablo Pair and Triad Instrumentation Cable Solutions

ETK Kablo manufactures both pair and triad instrumentation cable constructions for process control, oil and gas, petrochemical, power, industrial and infrastructure applications.

Within the RE-2X and related instrumentation families, conductors can be twisted into pairs or triads according to the required circuit architecture.

Overall-screened TP/TT constructions provide a common foil screen around the assembled cable core. Meanwhile, individually screened PiMF/TiMF versions provide separate foil screens around each pair or triad before the complete cable receives its overall screen.

Depending on the project, these constructions can also combine with XLPE, PE or other insulation systems, PVC or halogen-free outer sheaths, and additional SWA mechanical protection.

Conductor sizes can be selected according to loop resistance, route length and device requirements, while screening and armour can be adapted to the electromagnetic and mechanical environment.

Therefore, the appropriate ETK construction should begin with the field circuit: pair for two-conductor circuits, triad for three-conductor circuits, followed by the required screening, sheath and protection system.

Frequently Asked Questions

What is the difference between a pair and a triad instrumentation cable?

A pair groups two insulated conductors together, while a triad groups three. The correct construction normally depends on how many related conductors the field instrument requires.

When should I use a pair instrumentation cable?

Pairs are commonly used for two-conductor instrumentation circuits, including many two-wire 4–20 mA transmitters and analogue signal loops.

When should I use a triad instrumentation cable?

Triads are appropriate when three related conductors belong to one instrumentation circuit, such as many three-wire RTD measurements or certain three-wire transmitters.

Is a triad better than a pair?

No. A triad is not a higher-performance version of a pair. It simply provides three conductors instead of two and should be selected when the circuit requires them.

Is a triad better for EMI protection?

Not inherently. EMI performance depends primarily on signal topology, twisting, screening, grounding and cable routing.

What is PiMF instrumentation cable?

PiMF means Pair in Metal Foil. Each twisted pair receives an individual metallic foil screen to improve circuit isolation and noise protection.

What is TiMF instrumentation cable?

TiMF refers to an individually foil-screened triad. Each three-conductor signal element receives its own metallic screen.

Should a 4–20 mA loop use pair or triad cable?

A conventional two-wire 4–20 mA transmitter normally uses one pair. Three-wire transmitters may require a triad depending on the manufacturer’s wiring arrangement.

Should a 3-wire RTD use a triad?

Yes, a triad provides a logical construction for many three-wire RTD circuits because all three measurement conductors remain together.

What cable should a 4-wire RTD use?

A four-wire RTD generally requires four conductors, which can be provided through two pairs or another suitable four-conductor measurement cable according to the system design.

Can thermocouples use standard instrumentation cable?

Thermocouple extension circuits can require conductor materials matched to the thermocouple type. Therefore, standard copper instrumentation cable should not automatically replace specified thermocouple cable.

Can pairs and triads both be individually screened?

Yes. Pairs can use PiMF construction, while triads can use TiMF construction. Both can also include an additional overall screen.

Can pair and triad cables use SWA?

Yes. Steel Wire Armour can be added to either pair or triad instrumentation cable when the route requires additional mechanical protection.

Can pair and triad cables be LSZH?

Yes. Pair-versus-triad grouping does not determine sheath material. Both constructions can use appropriate halogen-free designs.

Which is cheaper, pair or triad cable?

For the same number of elements and conductor size, triad cable generally uses more copper and insulation because each element contains three conductors rather than two. However, total price also depends on screening, armour, sheath and quantity.

Which is larger, multipair or multitriad cable?

A multitriad cable will generally be larger than a multipair cable with the same number of elements and conductor cross-section, although the complete construction determines the final outside diameter.

Does EN 50288-7 cover instrumentation cable?

Yes. EN 50288-7 provides a widely used framework for multi-element instrumentation and control cables intended for analogue and digital signal transmission.

Can pair or triad cable be used in hazardous areas?

It can form part of a hazardous-area instrumentation system when the cable’s electrical parameters, construction and complete circuit meet the project and intrinsic-safety requirements. Pair or triad geometry alone does not determine compliance.

Conclusion

Choosing an instrumentation cable pair vs triad should begin with the electrical architecture of the field instrument.

A pair groups two conductors and provides an efficient solution for many two-wire analogue and 4–20 mA loops. Meanwhile, a triad keeps three related conductors together and therefore provides a natural construction for applications such as three-wire RTDs and certain three-wire transmitters.

However, the number of conductors does not determine the complete cable performance.

PiMF and TiMF individual screening, overall screening, conductor size, capacitance, insulation material, LSZH or PVC sheath and mechanical armour all remain separate specification decisions.

In addition, specialized measurement and communication systems can impose requirements that go beyond simple conductor counting. Thermocouples may require dedicated alloy conductors, while digital networks can require specific impedance and capacitance characteristics.

For engineers and purchasing teams, the most reliable approach is therefore to review the loop diagrams first, match the cable element to the actual number of required conductors, and then select screening, electrical parameters and mechanical protection according to the route and project environment.
